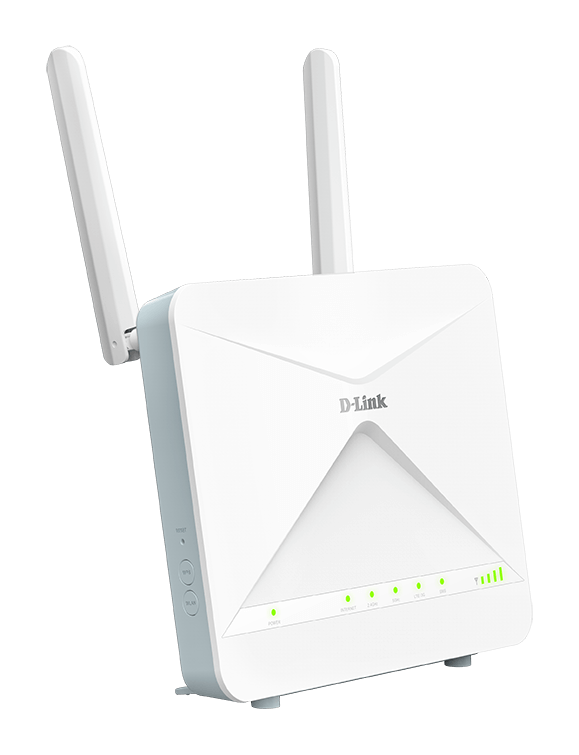

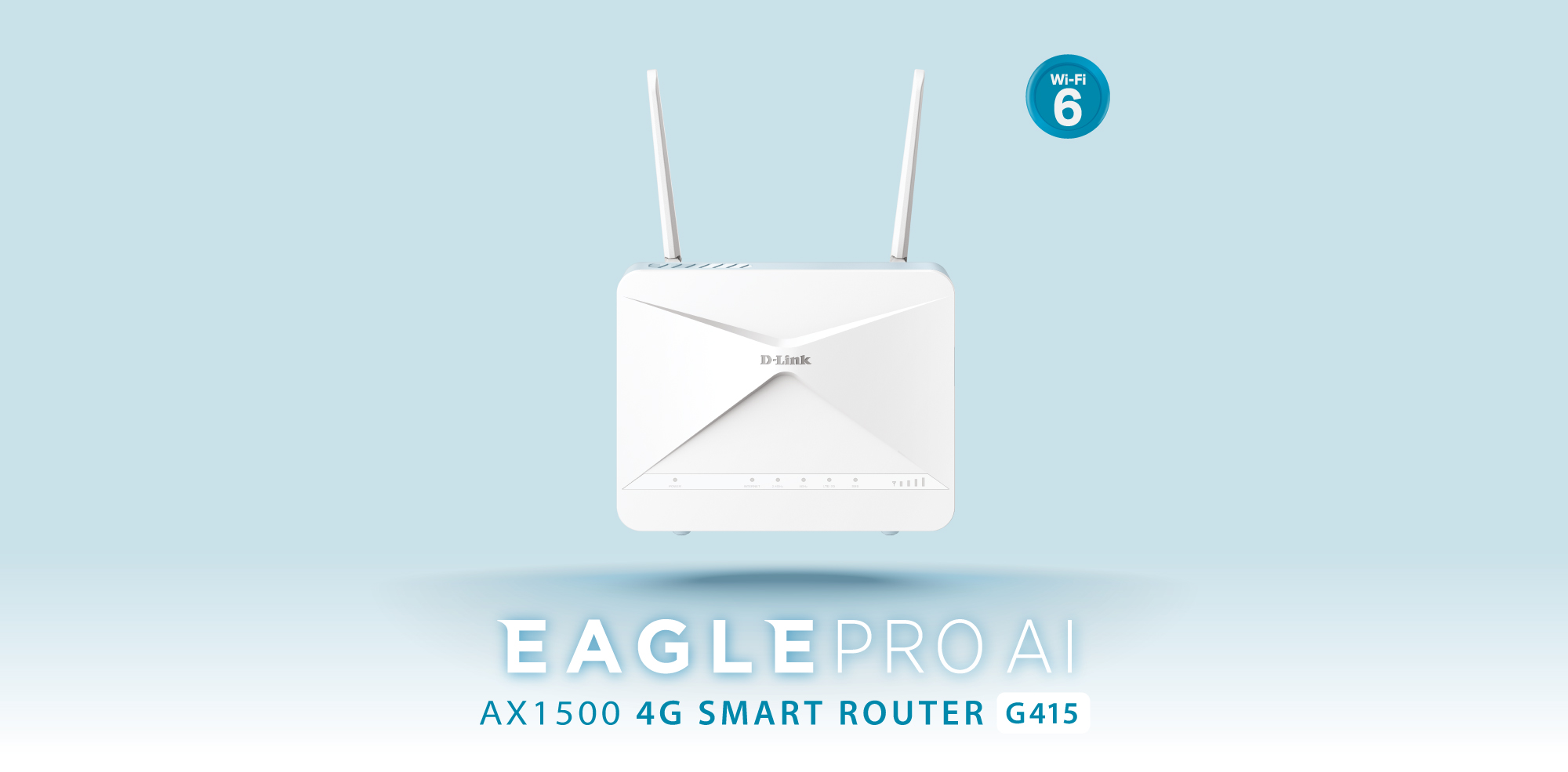

AX1500 4G Smart Router
G415
- Product Status (Revision A2_v100): Live
- 4G LTE CAT4 Connectivity at up to 150 Mbps
- Wi-Fi 6 (802.11AX) Support, up to 1500 Mbps
- 1x 10/100/1000 Gigabit Ethernet WAN Port with automatic failover
- 3x 10/100/1000 Gigabit Ethernet LAN Ports
- WPA/WPA2/WPA3 Support
- Mesh with other Eagle Pro AI Devices
- EAGLE PRO AI features including
- AI Wi-Fi Optimizer
- AI Traffic Optimizer
- AI Parental Controls
- AI Assistant
Where to buy
Mobility
Connectivity
Reliability
Expandability
High-Speed, Flexible Mobile Broadband
The G415 AX1500 4G Smart Router allows you use your carrier’s SIM/UICC card to share your 3G/4G mobile network access through dedicated Wi-Fi 6 network or any of the three Gigabit ports. With LTE CAT 4 support, you can download at up to 150Mbps, enabling you to stream in 4K definition, make conference calls, and surf the web seamlessly even without a fixed broadband connection.
Stay Connected Even When Your Fixed Broadband Goes Down
In addition 3G/4G wireless broadband support, the G415 also provides a built-in Gigabit Ethernet WAN port for fixed broadband connections. You can set either fixed or mobile connection as the primary connection, and with automatic failover mode, one connection can be used to provide uninterrupted connectivity in the event that the other fails.
Wi-Fi 6 Performance
MU-MIMO & OFDMA
Beamforming
WPA3
TWT Technology
Health Mode
Guest Connect
4G Speeds
Why Do You Need Wi-Fi 6?
Wall obstruction and interference from home appliances can weaken your Wi-Fi connectivity. Having many devices connected to your network can make the problem worse. Wi-Fi 6 technology was designed to help overcome these issues and will soon become a standard feature in all new end devices. Whether you’re looking for an upgrade or replacement, Wi-Fi 6 is the best choice.
Why Choose Wi-Fi 6
Increase in throughput
Reduction in Latency
More Coverage Area
More Connected Devices
Backwards Compatible

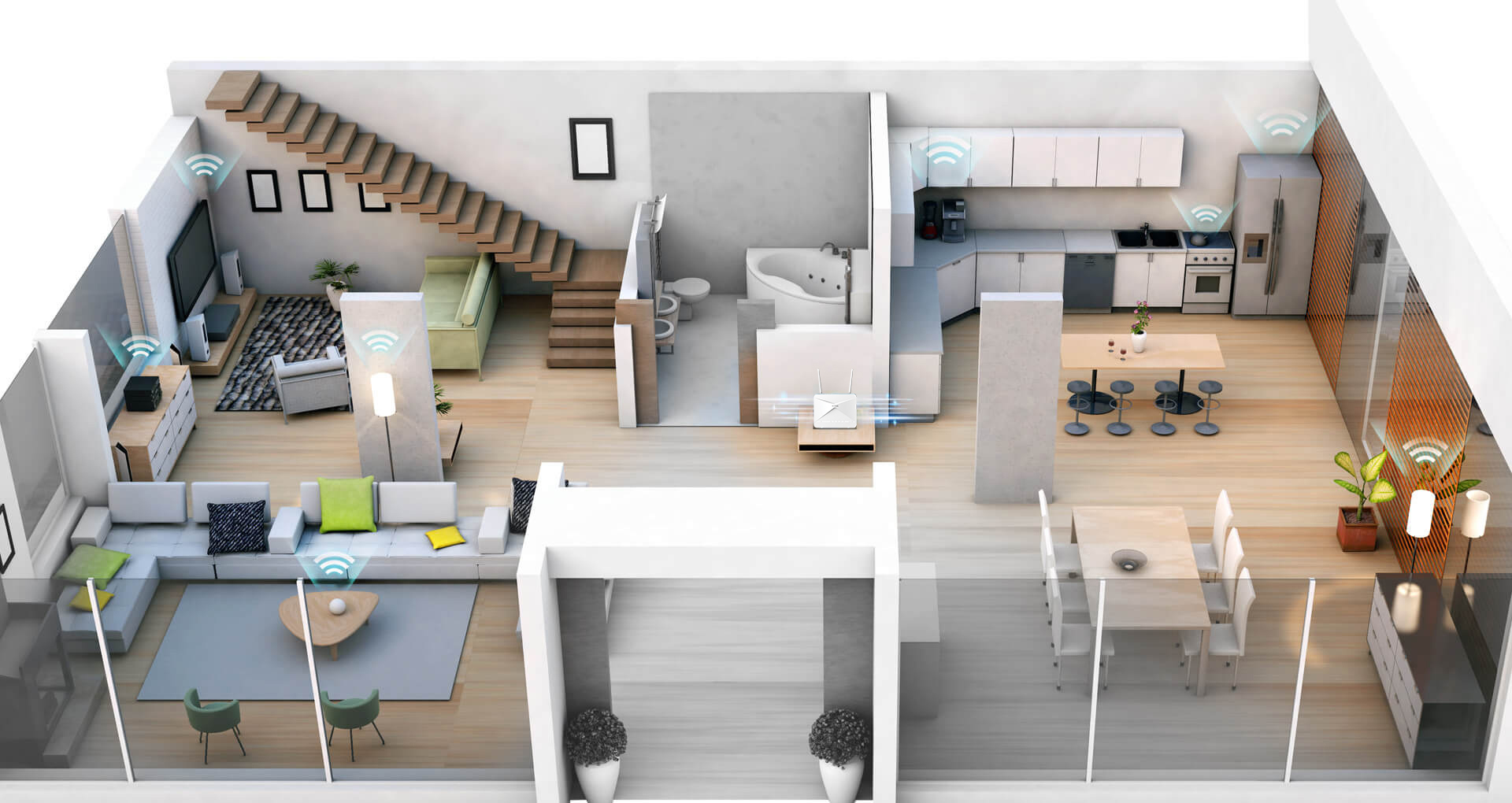

Connect Up to 128 Devices
*Number of connected devices and coverage area are D-link test results. Performance may vary under different environments.

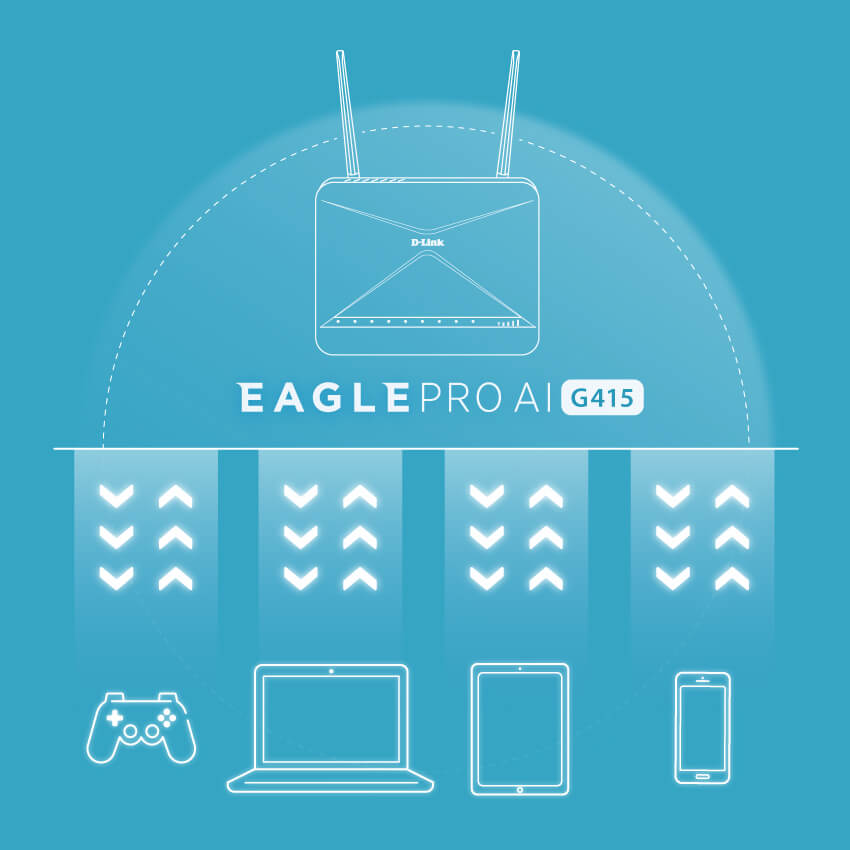

More Devices, Faster W-Fi, Greater Coverage

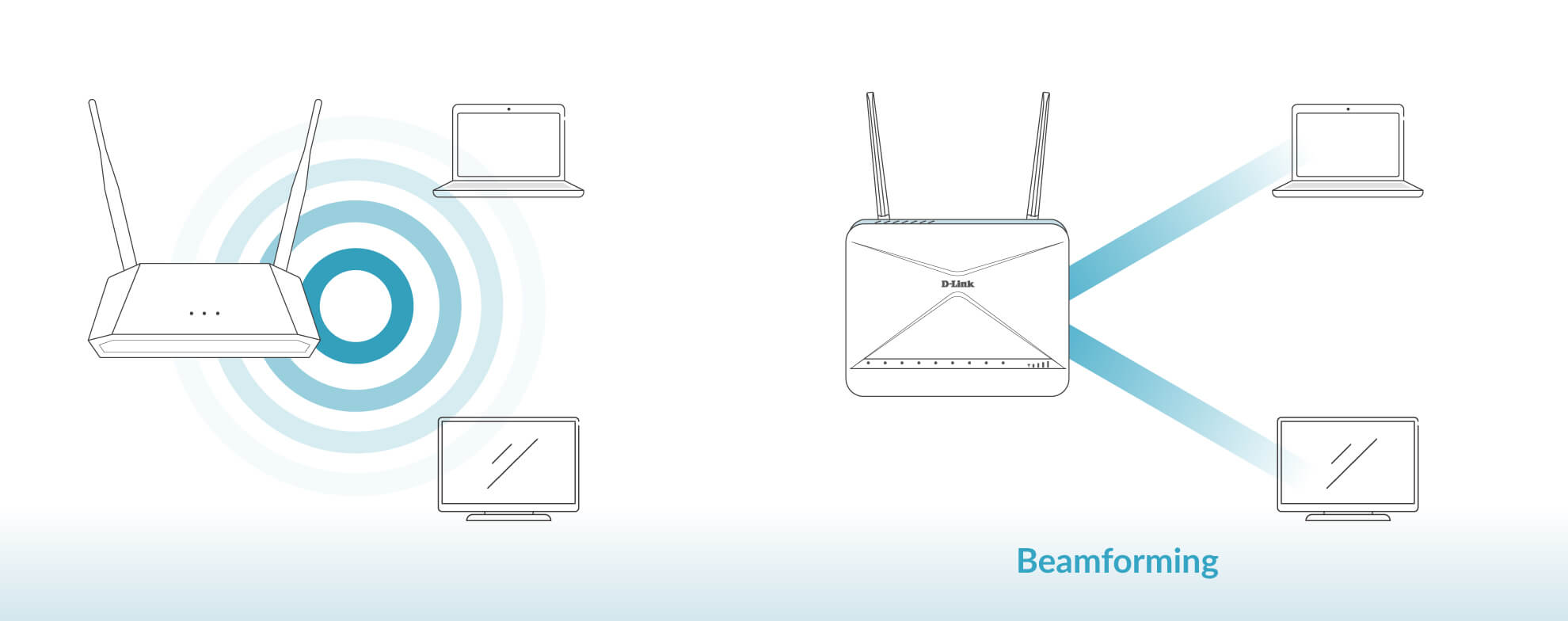

Wi-Fi 6 features bi-directional MU-MIMO technology to handle more simultaneous users at faster data rates, and beamforming capability to greatly extend Wi-Fi coverage area.
More Users at Once, Lower Latency
Wi-Fi 6 offers OFDMA technology to serve more device connections at once to significantly reduce network latency.
Reliable Connections for Greater Coverage
Highest Protection Level for Peace of Mind
User privacy is of utmost importance when connected to the Internet. WPA3 technology is aligned with CNSA standards and features 192-bit encryption to ensure your connections are safe and protected from unauthorized access.

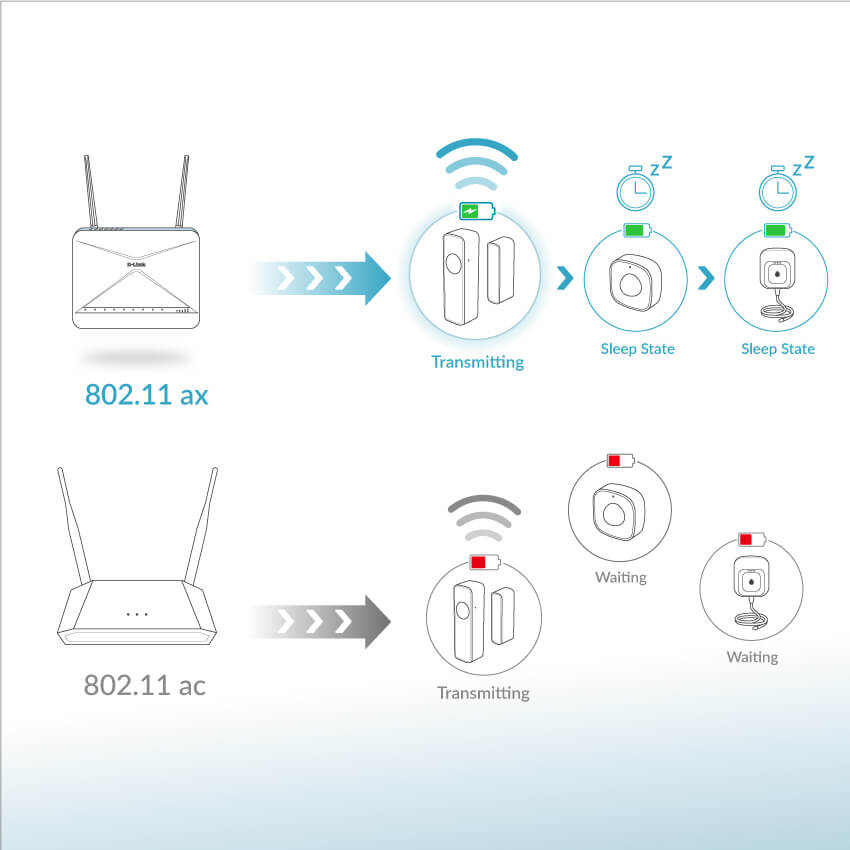

Save Power on Mobile Devices
Target Wake Time (TWT) technology schedules connected devices to be awake or asleep during designated time periods. This not only saves device battery life, but also reduces network congestion.
Greater Protection with Main and Guest Wi-Fi Control
- Turn on guest Wi-Fi to prevent visitors from accessing you local network, granting access only to the Internet
- Set data speeds for guess Wi-Fi users to preserve Wi-Fi quality
- Log-in credentials and QR codes for guest Wi-Fi access
No More Wi-Fi Congestion
Smart Connect technology automatically directs your device to the optimum wireless band. No more frustrating drop outs, lag or interruptions in your wireless connections.
Always the Best Connection Possible

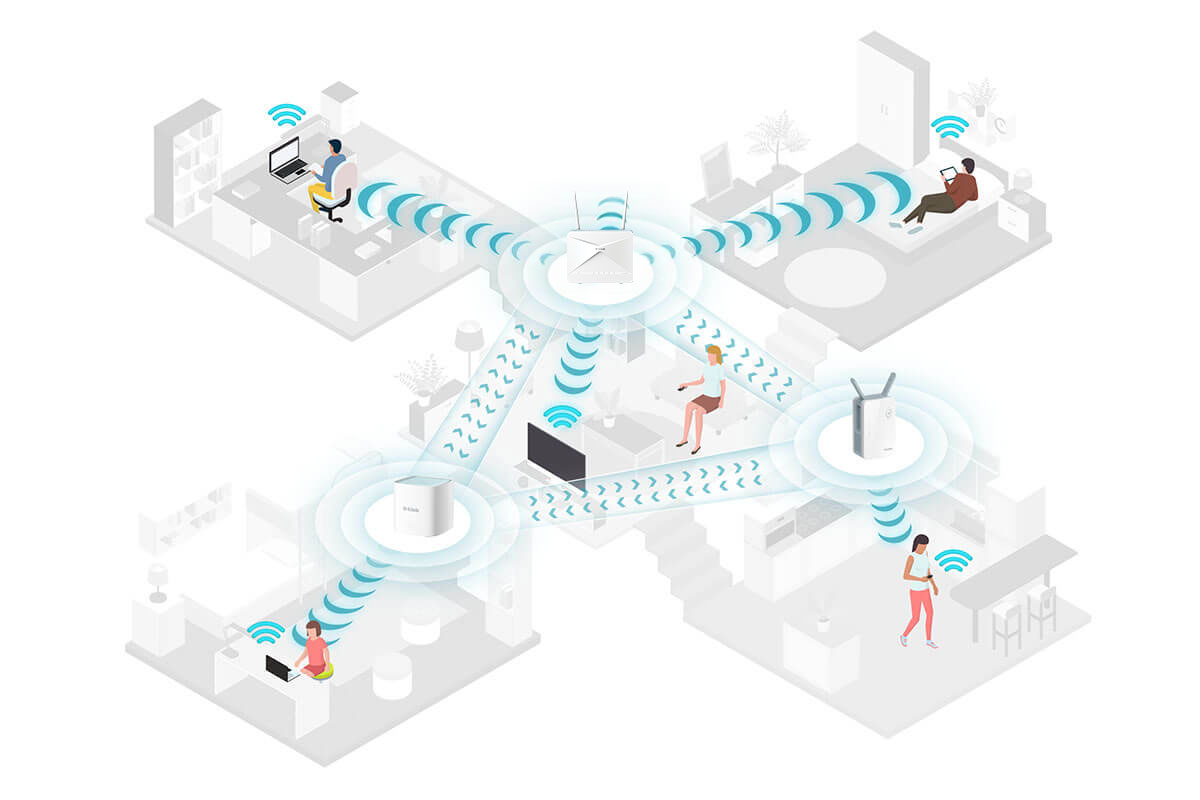

Intelligent One-Touch Setup for Seamless Connections
- Auto Mesh setup and detects the best channels within the network
- Simple access management with one SSID for both Wi-Fi bands (2.4 and 5 GHz)
- Network self-healing when a weak connection is detected
Uninterrupted Video, Voice, and Gaming Enjoyment
When high network traffic is detected, AI-based QoS technology prioritizes your important services such as 4K/8K video streaming to keep them running lag-free.
Services such as email or file transfers will be given lower priority to ensure network quality.

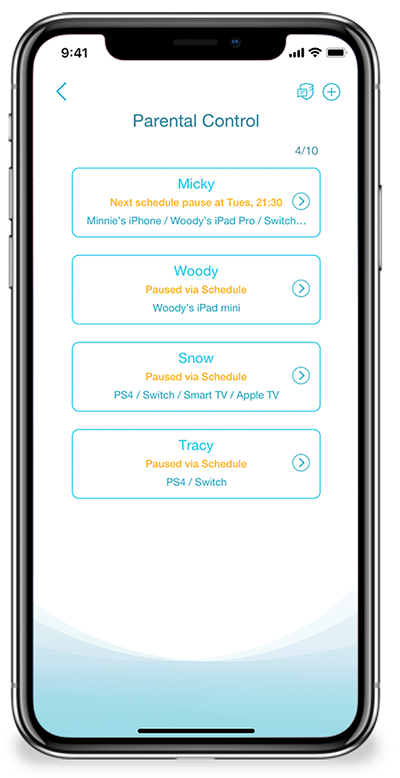

Keep Playtime Safe and Healthy
AI parental control lets you designate online hours for little ones and restrict website access to keep their learning experience a safe and healthy one.
Health Mode
- Schedule Wi-Fi transmission hours to reduce possible effects of electromagnetic radiation
- Schedule Wi-Fi access hours to maintain a balanced family lifestyle
- Turn off Wi-Fi entirely to conserve energy
Perfect For
Trailer Home
Fast internet on the go
Remote Communities
Where fixed broadband isn't an option
Pop-Up Retail
Helps enable smart POS services for retailers and Wi-Fi for consumers
For Everything Wi-Fi, there’s D-Link EAGLE PRO AI
Managing your Wi-Fi has never been easier.

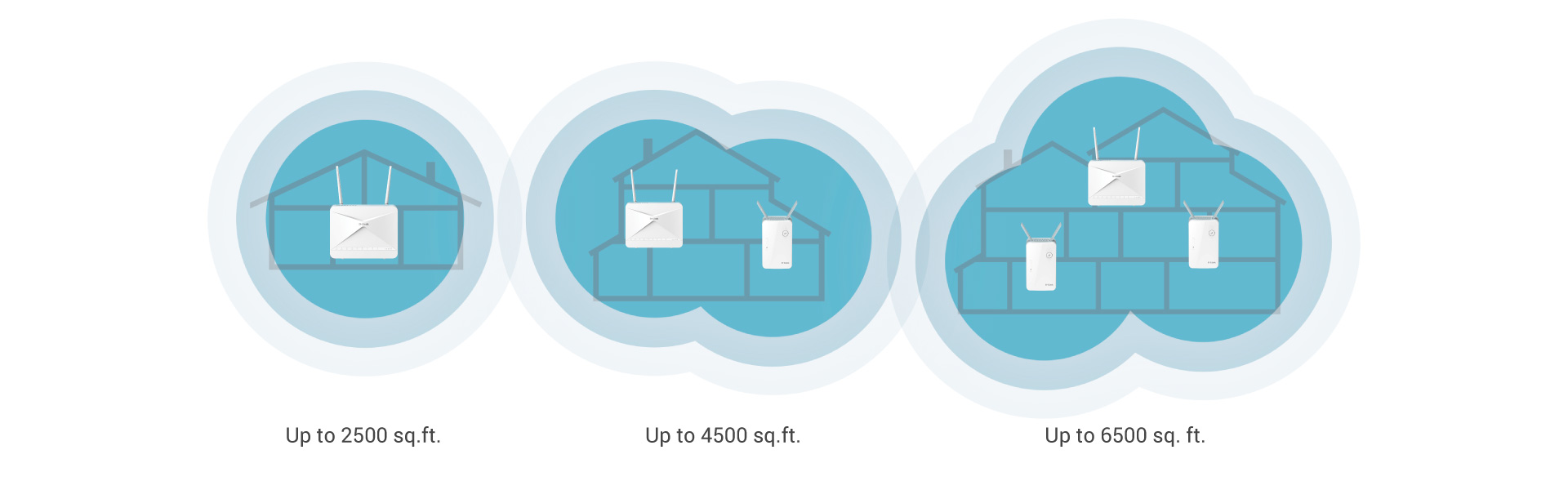

Expanding Your Wi-Fi is a Snap
Simply add E15 Wi-Fi extenders to build a smart Mesh network, giving you high-speed Internet coverage throughout your home of any size.
Works with Google Assistant and Alexa
Easily integrates with Amazon Echo’s Alexa
or the Google Assistant for convenient hands-free voice control.
*Please check availability in your region
Specs
|
Antenna
|
2 x external 4G LTE antennas |
|---|---|
|
Certifications
|
BSMI/NCC CE RCM |
|
Device Management
|
EAGLE PRO AI app (iOS and Android) |
|
Dimensions
|
198 x 170.14 x 66.21 mm (7.79 x 6.69 x 2.60 in) |
|
Firewall
|
1 x DMZ Anti-spoofing Checking IP/MAC Address Filtering Stateful Packet Inspection |
|
Frequency Support
|
GSM/GPRS/EDGE: 900/1800 MHz LTE Bands: Release 10 CAT4: Band 1/3/7/8/20/28/38/40/41 UMTS/HSPA/HSPA+/DC-HSPA+: Band 1/8 (900/2100 MHz); |
|
Interfaces
|

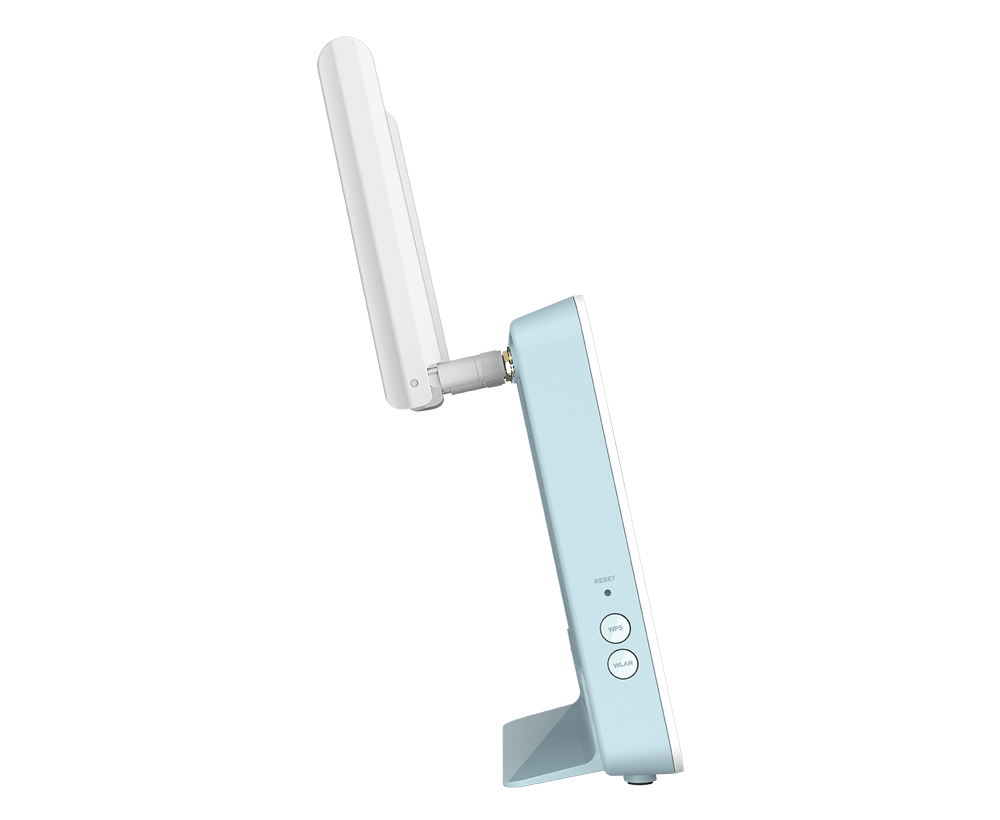

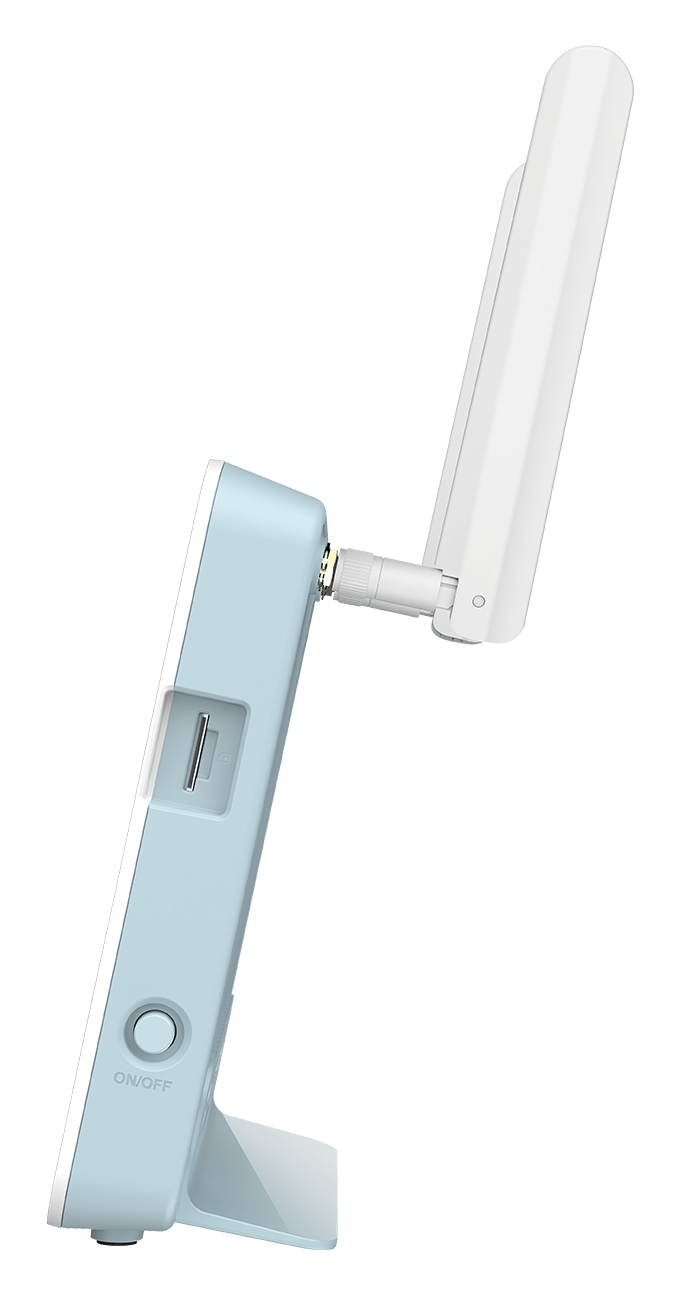

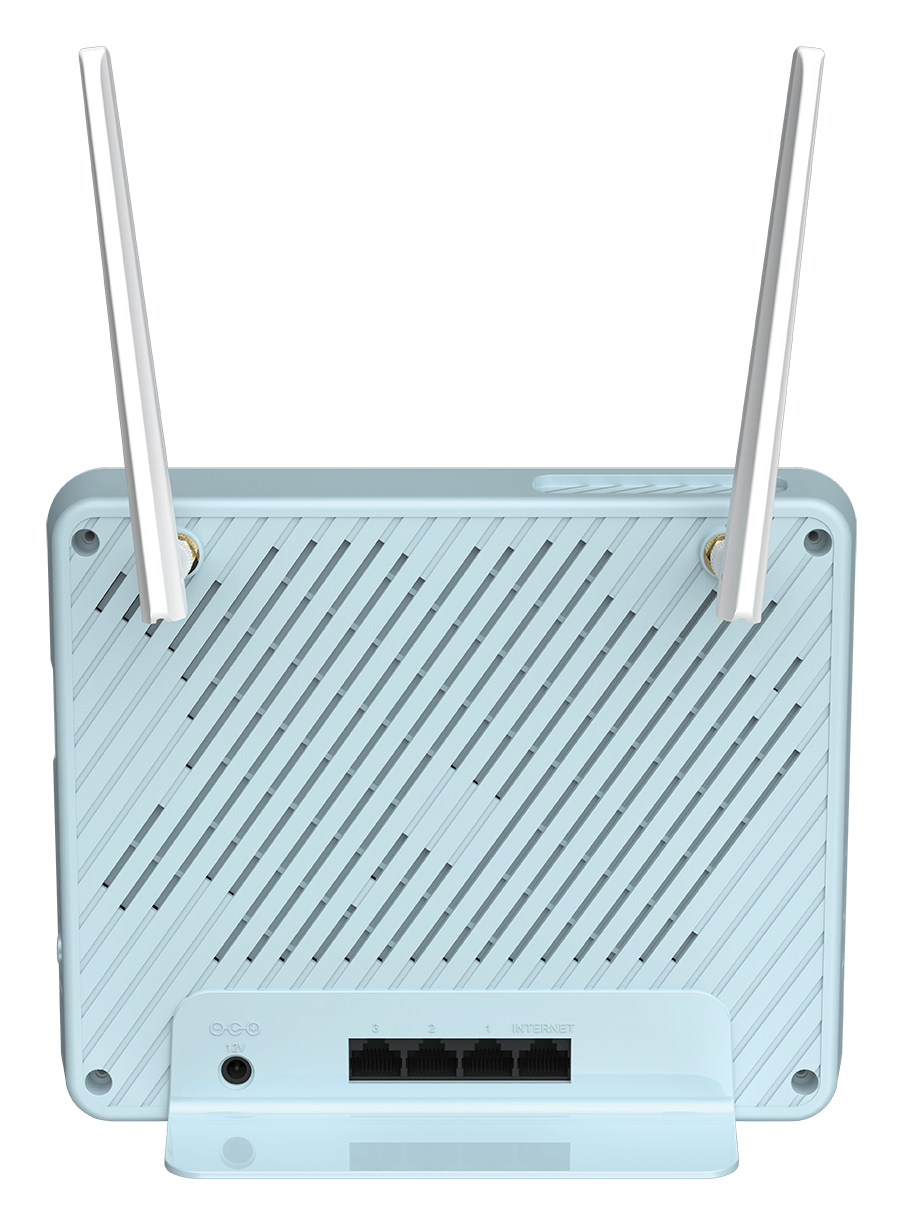

1 x Power button 1 x power connector 1 x reset button 1 x SIM Card slot 1 x WLAN button 1 x WPS button 1x Gigabit Ethernet WAN port 3 x Gigabit Ethernet LAN port |
|
LED Status Indicators
|
2.4 GHz Wi-Fi 5 GHz Wi-Fi Internet LTE/3G Power Signal Strength SMS |
|
LTE Data Rates
|
DC-HSPA Downlink up to 42 Mbps DC-HSPA Uplink up to 5.72 Mbps LTE Downlink up to 150 Mbps LTE Uplink up to 50 Mbps |
|
Operating Humidity
|
10% to 90% non-condensing |
|
Operating Temperature
|
0 to 40 °C (32 to 104 °F) |
|
Power Input
|
12V/1.5A |
|
Security Protocol
|
WPA (Wi-Fi Protected Access) WPA2 WPA3 WPS (Wi-Fi Protected Setup) |
|
Standards
|
IEEE 802.11ax/ac/n/g/b/a IEEE 802.3u/ab |
|
Storage Humidity
|
0% to 95% non-condensing |
|
Storage Temperature
|
-10 to 70 °C (14 to 158 °F) |
|
Voice Assistant
|
Amazon Alexa Google Assistant |
|
Weight
|
400 g (14.1 oz) |
|
Wi-Fi Data Rate
|
1/2/5.5/11 Mbps in 802.11b mod 2.4 GHz Up to 300 Mbps 5 GHz Up to 1201 Mbps 6/9/11/12/18/24/36/48/54Mbps in 802.11g mode |
