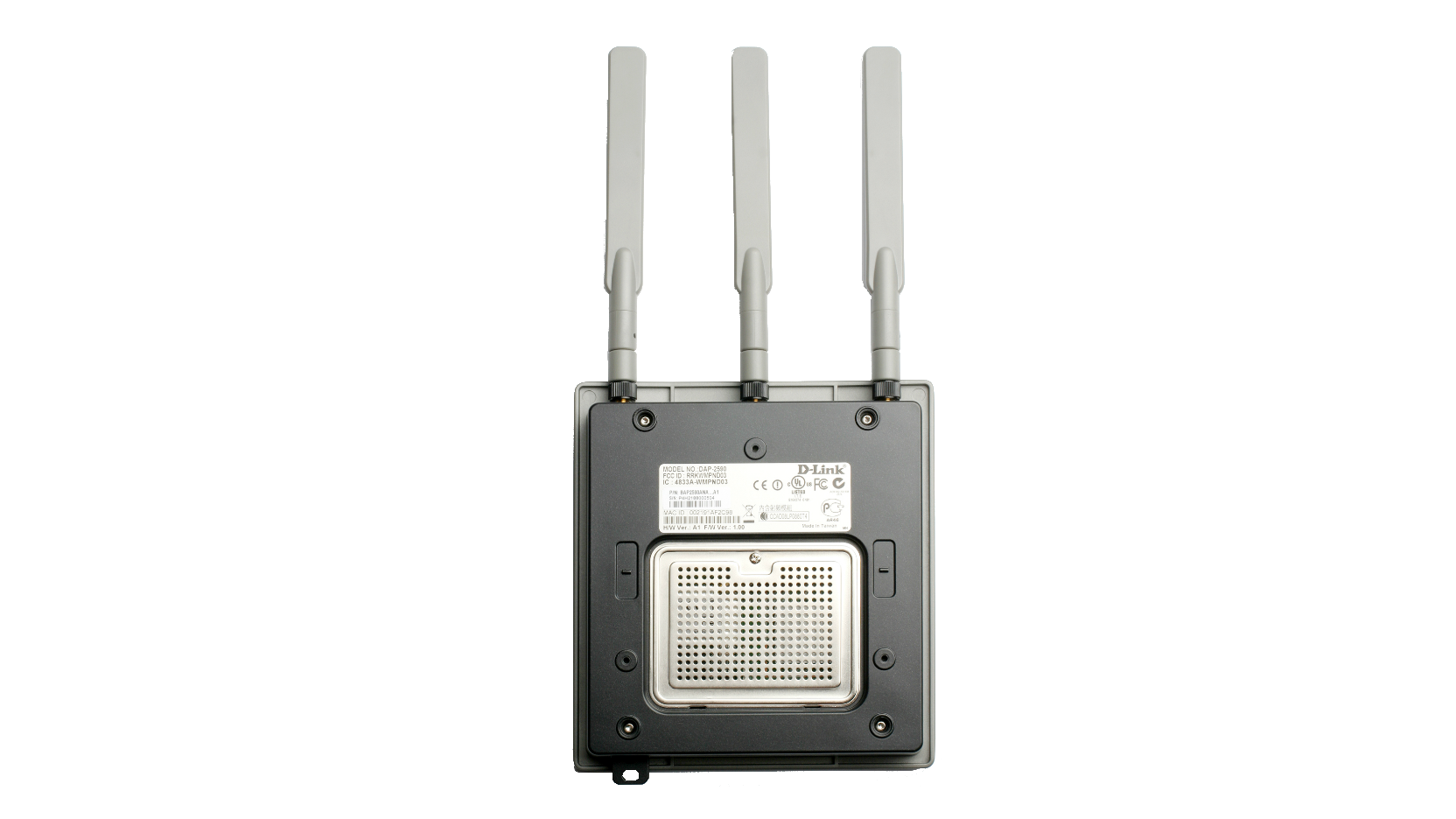

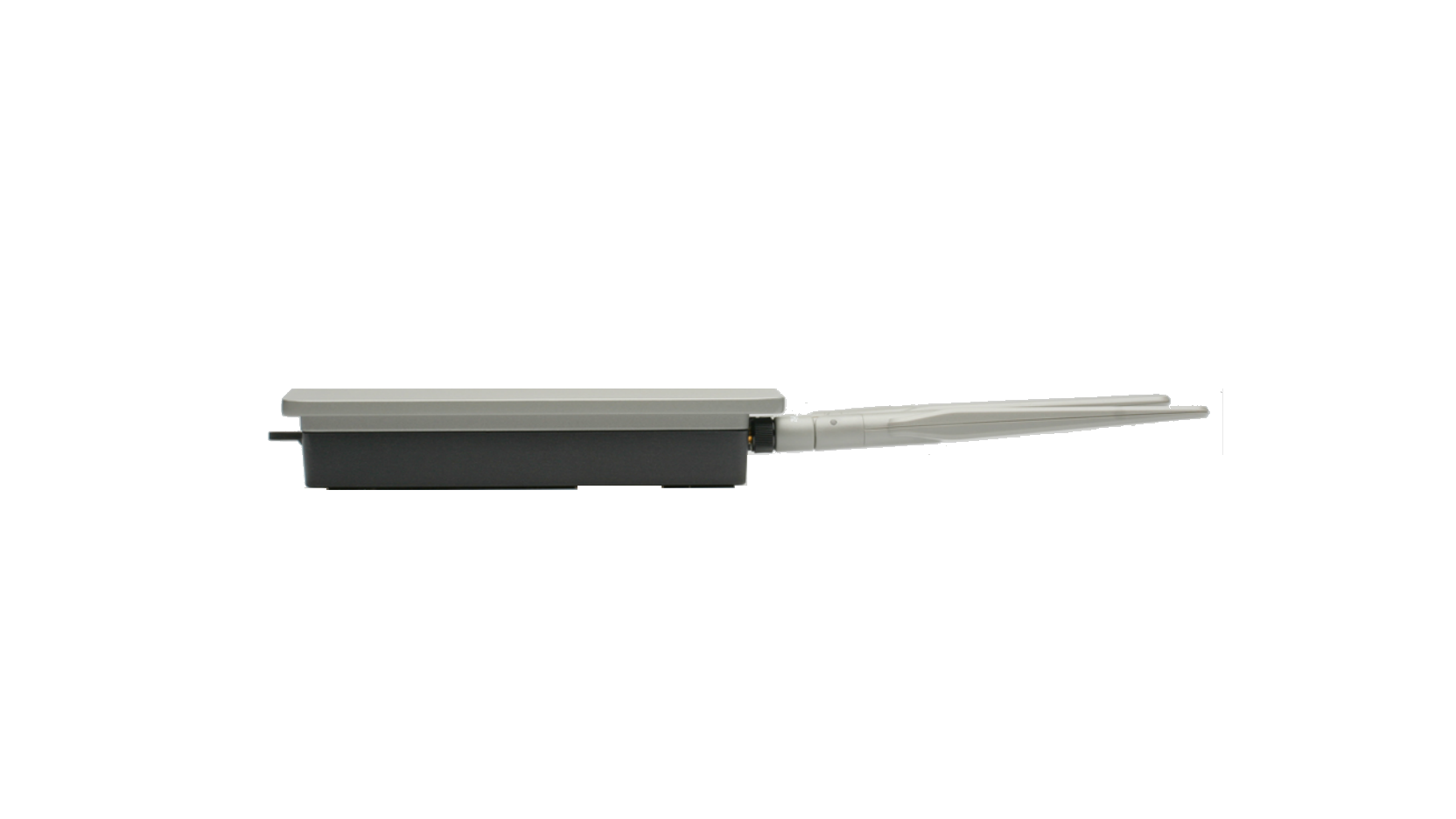

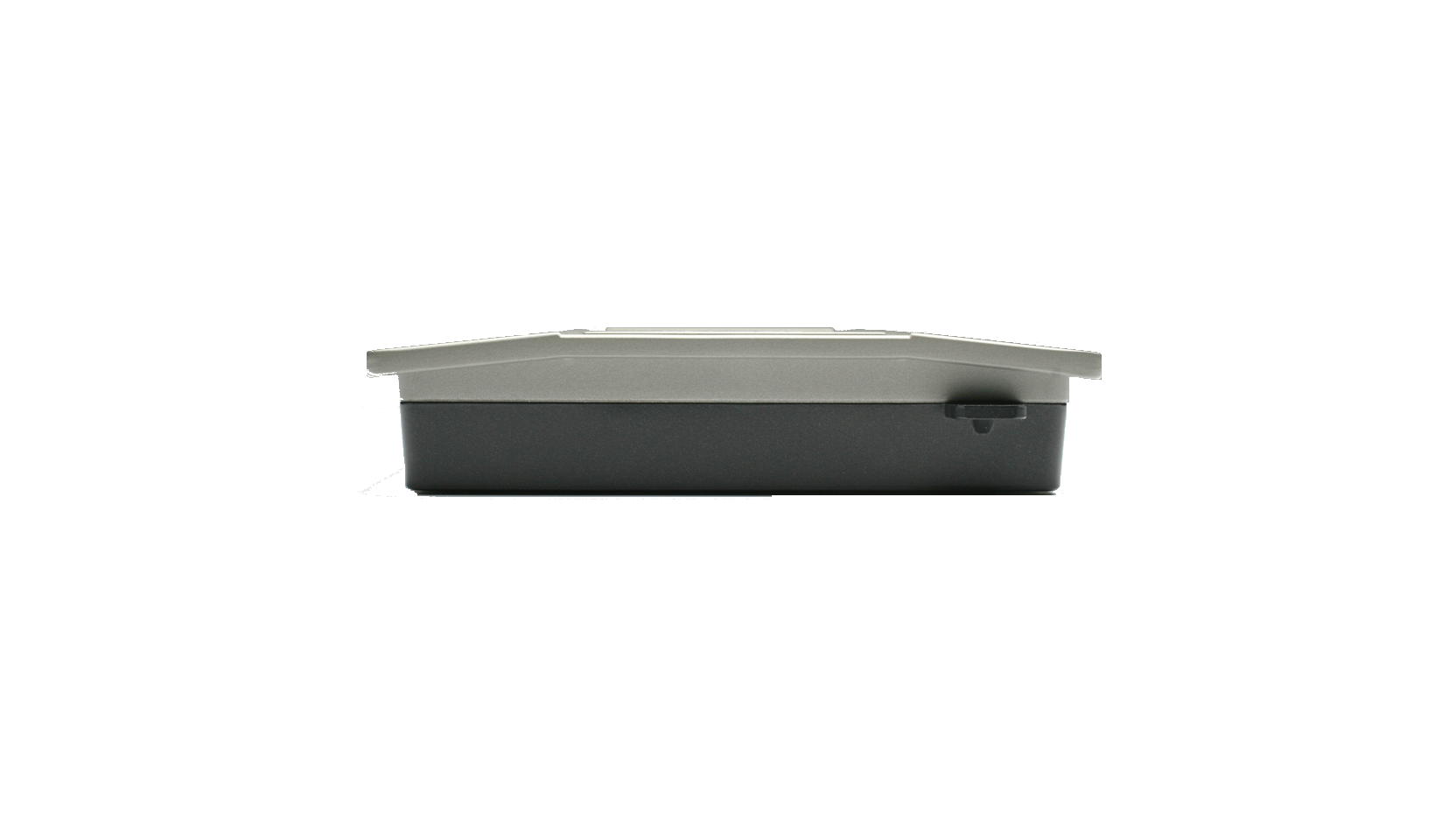

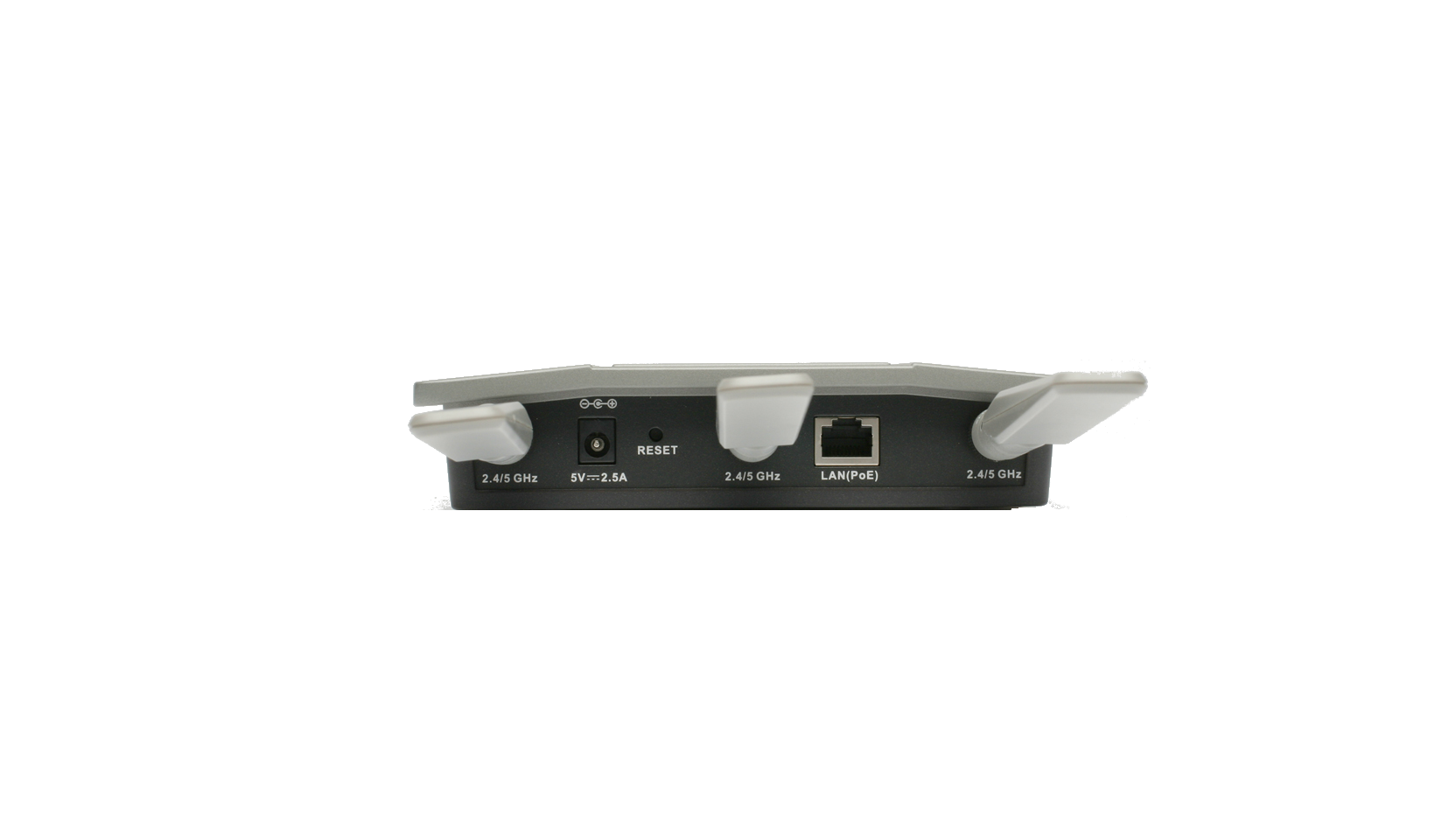

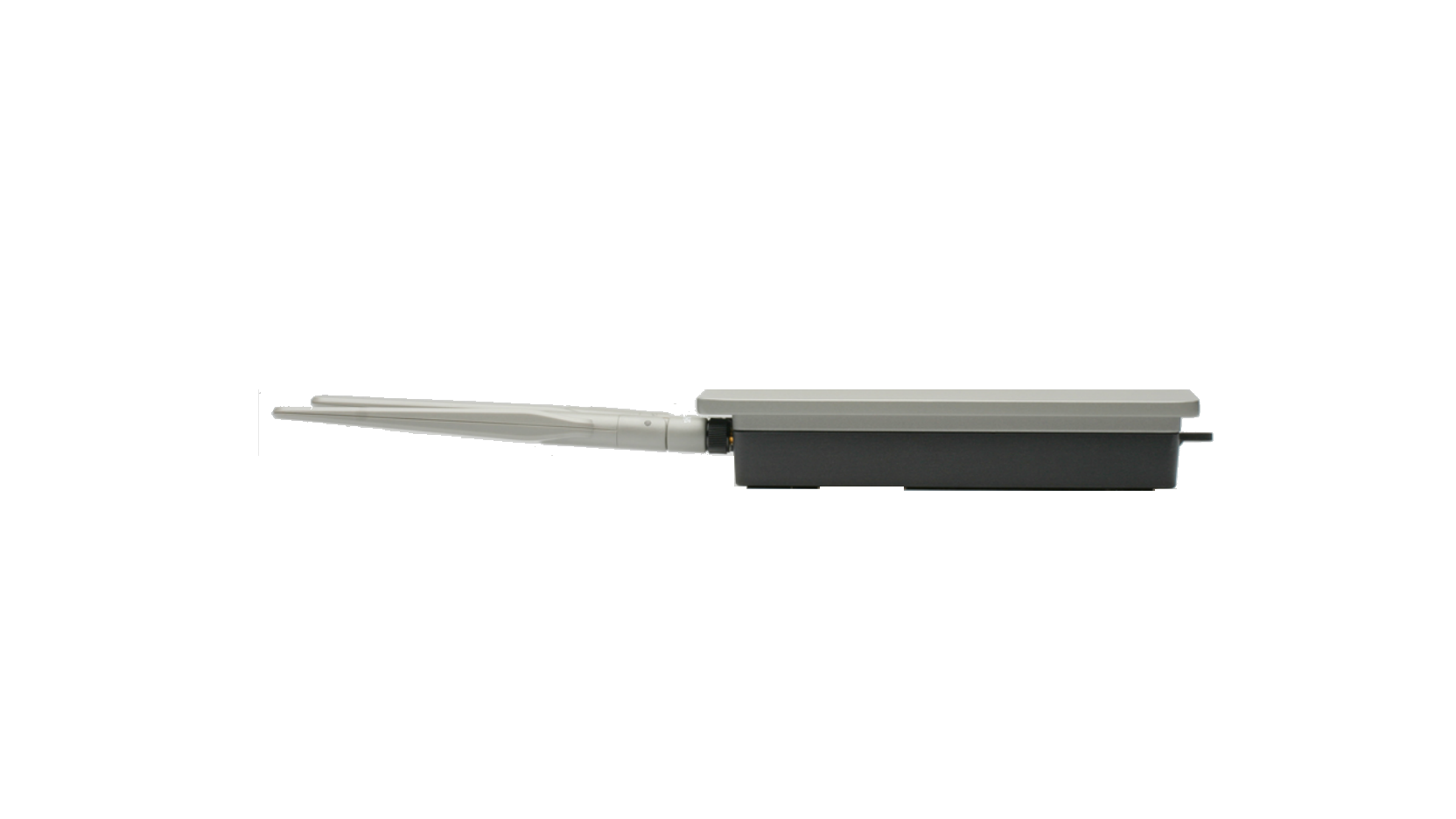

Wireless N Dual Band PoE Access Point
DAP-2590
- Product Status: End of Life
Compatibility and performance
With adjustable antennas, the DAP-2590 delivers 300Mbps per band performance
Broadcast 16 independent SSIDs simultaneously
Supports up to 16 SSIDs, 8 per Band, including station isolation
Performance and Compatibility
The DAP-2590 is a second generation Dual-Band Wireless N indoor access point designed specifically for businesses. It’s varied and comprehensive management capabilities ensures that the DAP-2590 meets the needs of almost any business.
Simultaneous Dual-Band Wireless
Supports up to 300Mbps for the 5Ghz band and up to 300Mbps for the 2.4Ghz band
Smart Design
The DAP-2590 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.
Specs
|
Type
|
Software Managed AP |
|---|---|
|
Wireless standard
|
Wireless N |
|
Frequency band mode
|
Dual-band selectable |
|
Antenna type
|
3 detachable omni-directional antennas |
|
Antenna gain
|
4 dBi for 2.4 GHz 6 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
1 x Gigabit Ethernet LAN |
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Metal |
|
Plenum rated (UL-2043)
|
Supported
|
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
|
Advanced features
|
MIMO |
|
Maximum number of SSIDs
|
8 |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
L2 roaming
|
Supported
|
|
WEP 64/128 bit
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WPA_WPA2_PSK over WDS
|
Supported
|
|
WLAN partition
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
DHCP server
|
Supported
|
|
802.1D STP
|
Supported
|
|
IGMP snooping
|
Supported
|
|
ARP spoofing
|
Supported
|
|
NTP
|
Supported
|
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
CLI
|
Supported
|
|
Telnet
|
Supported
|
|
SSH
|
Supported
|
|
Syslog
|
Supported
|
|
Central management (through AP Manager II and/or D-View Wireless Control Module)
|
Supported
|
Support
This product was phased out on: 15/05/2016
This product's last date of support is on: 14/05/2021
| Version | Date | Type | File Size | |
|---|---|---|---|---|
| Datasheet (English) | - | 4.47mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| Quick Installation Guide (Multilingual) | - | 1.91mb | Download |
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
| Version | Description | Date | |
|---|---|---|---|
| CE doc 1.00 Revision A2 | CE document | 12/03/2014 | Download |
