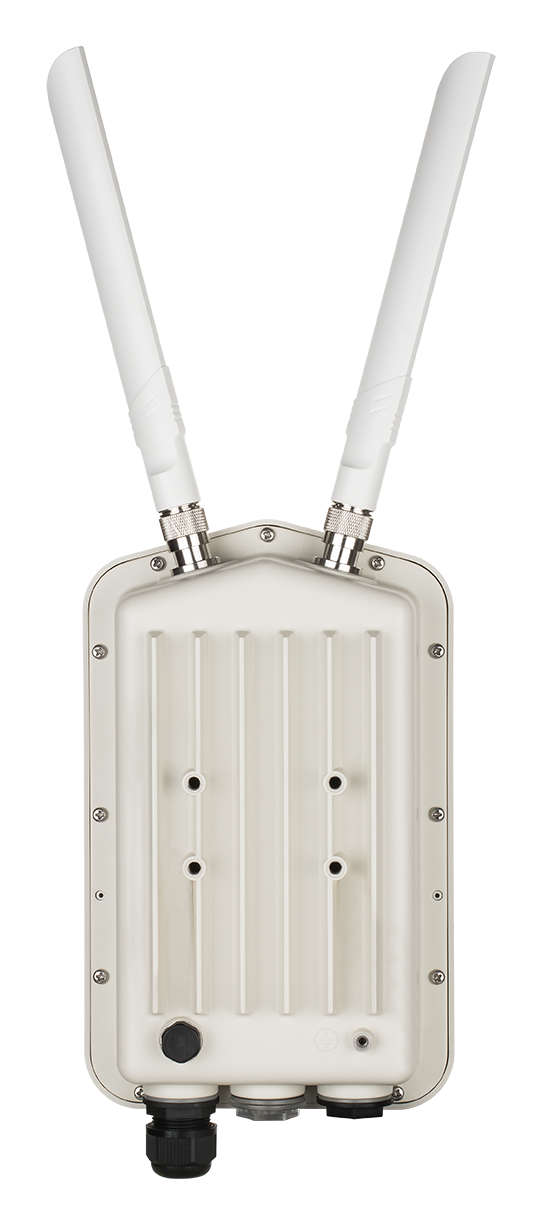

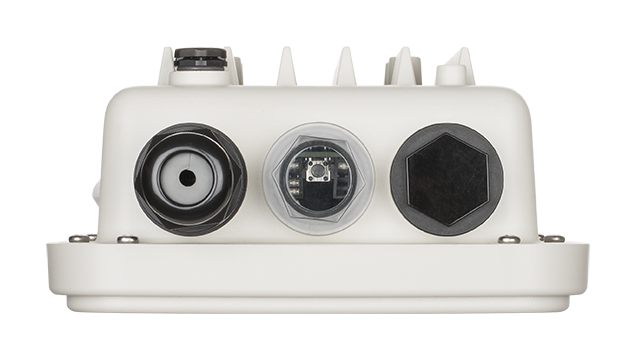

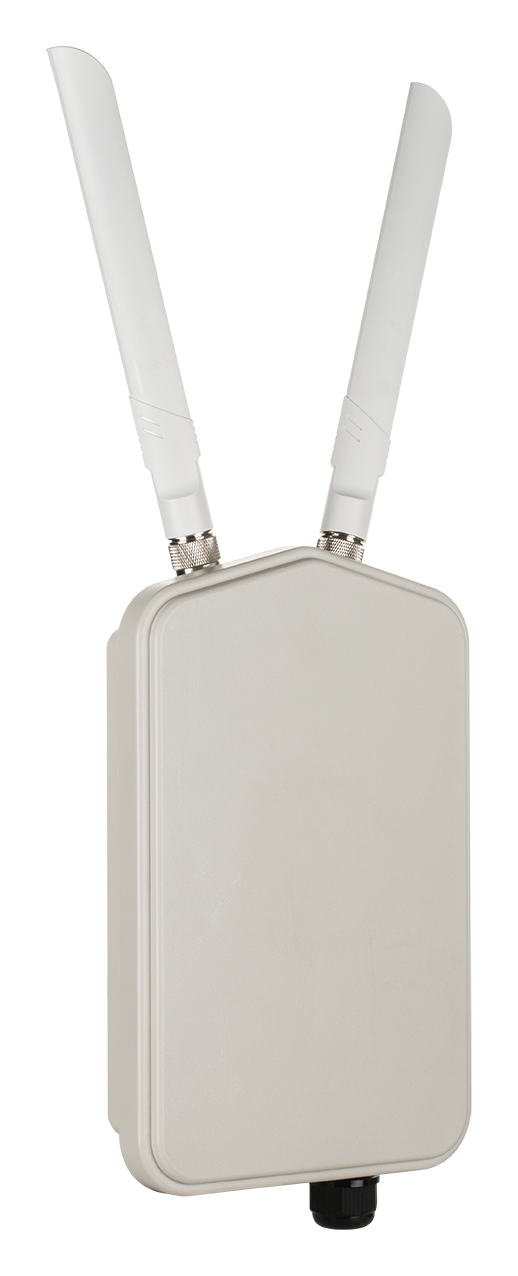

Nuclias Wireless AC1300 Wave 2 Outdoor IP67 Cloud Managed Access Point
DBA-3621P
- Product Status (Revision A1): Live
- Nuclias cloud-based remote management (1-year license included)
- Dual-band AC1300 Wave 2, 2x2 MU-MIMO
- Ruggedised IP67 water, dust-proof, weather-resistant metal housing (-40 to 60°C)
- Zero-Touch Provisioning, cloud-based auto-configuration, unlimited scalability
- Instant alerts, real-time statistics, WPA3 encryption, captive portal
- Register for Limited Lifetime Warranty
Where to buy
Cloud-managed outdoor Wi-Fi.
Manage your outdoor wireless network from anywhere with this Nuclias Cloud ruggedised outdoor access point. Designed to give you Wi-Fi connectivity in outdoor spaces, it’s ideal for education, retail and hospitality and a great option for managed service providers. Deliver high-combined data rates of up to 1,300 Mbps2 over 2 dedicated wireless bands with the latest WPA3 wireless security.
![](/al/sq/-/media/product-pages/dba/3621p/slices/dba3621p_01_logo.png?h=61&w=192&la=sq-AL&hash=EC399F1150E14FDA1AEF40B0A6C1D10A)
![](/al/sq/-/media/product-pages/dba/3621p/slices/dba3621p_01_billboard.jpg?h=665&w=2000&la=sq-AL&hash=9A560C515574CFCC0BA60FB7388BE355)

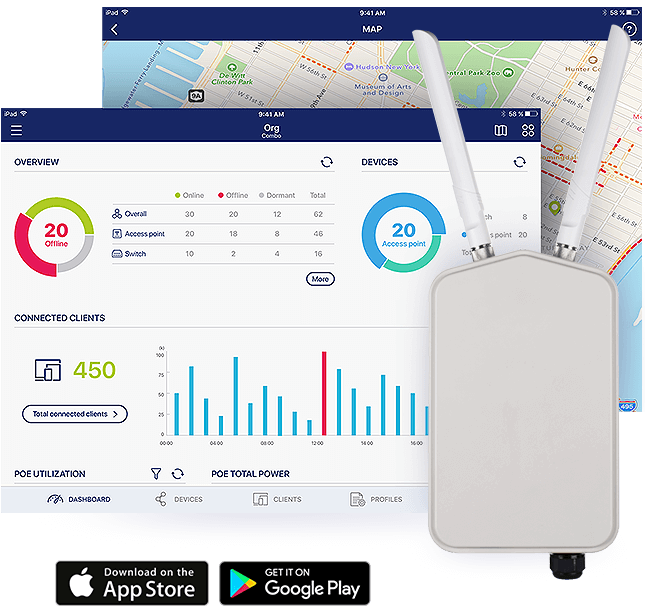

Network management has never been this easy.
Nuclias Cloud is our simplest solution available and allows any organisation with any level of IT resources to quickly set up, manage and troubleshoot the entire network via a web browser, or the dedicated Nuclias Cloud app.
![](/al/sq/-/media/product-pages/dba/3621p/slices/dba3621p_02_nuclias.png?h=612&w=645&la=sq-AL&hash=55ECF5781A3AA4DCECA476C6F15F3A74)
![](/al/sq/-/media/product-pages/dba/1210p/assets/icon_01_cenralisedmanagement.png)
Nuclias cloud-based network management
Manage your network from one place from a browser or through the tablet app, anywhere, anytime.1
![](/al/sq/-/media/product-pages/dba/3621p/slices/dba3621p_03_weather.png)
Ruggedised outdoor design
IP67-rated weatherproof design with a wide -40 to 50°C operating temperature range.
![](/al/sq/-/media/product-pages/dba/3621p/slices/dba3621p_03_wpa3.png)
WPA3 Security
Keep your wireless network secure with the latest Wi-Fi encryption technology.
![](/al/sq/-/media/product-pages/dba/1210p/assets/icon_03_scalability.png)
Unlimited scalability
Easy to add or scale back in line with demand.
![](/al/sq/-/media/product-pages/dba/1210p/assets/icon_02_zerotouch.png)
Zero-Touch Provisioning
Plug and play, cloud-based auto-configuration.
![](/al/sq/-/media/product-pages/dba/1210p/assets/icon_licence.png)
License included
1-year Nuclias Cloud Management license included with the product. Renewal options from 1 to 5 years.
![](/al/sq/-/media/product-pages/dap/2662/slices/dap2662_icon_poe.png)
Easy-mount setup with PoE
Supports Power over Ethernet (802.3af) for a simpler installation with a single cable.

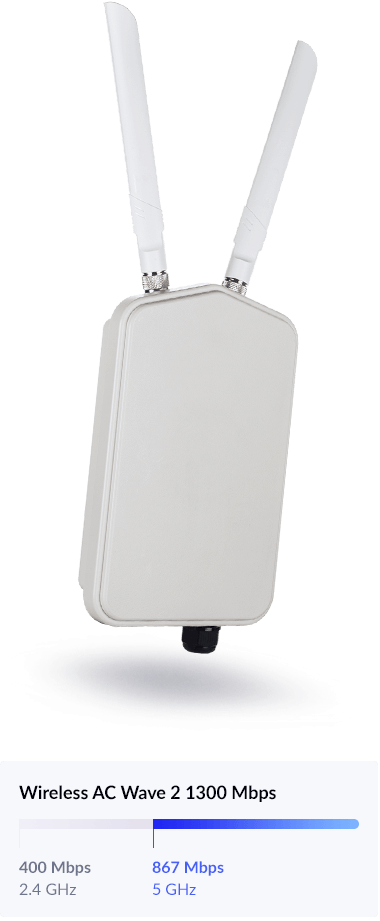

Exceptional connectivity, exceptional performance
The DBA-3621P delivers reliable, high-speed AC1300 Wave 2 Wi-Fi with maximum combined wireless speeds of up to 1.3 Gbps2. Band steering, MU-MIMO, beamforming and load balancing support further enhance the overall connectivity performance.
![](/al/sq/-/media/product-pages/dba/3621p/slices/dba3621p_04_connectivity.png?h=921&w=380&la=sq-AL&hash=16C833E565DEBDB42F2DF2DB4330A7D9)
A more effective and efficient network
When multiple access points are deployed in the same location, Nuclias Cloud supports automatic load balancing between them without the need for additional hardware or configuration. This ensures the Wi-Fi network performs optimally, all the time.
![](/al/sq/-/media/product-pages/dba/3621p/slices/dba3621p_04_efficiency.jpg?h=775&w=489&la=sq-AL&hash=EB9DBFC76DA64D99DCAE9C7744A1A1F0)
Reliable connectivity, even in extreme outdoor conditions
Its IP67-rated weather-proof metal housing offers dust, rain, heat, snow and rust protection, even during extreme summers or freezing winters between -40 to 60°C.
Dust Resistant Total protection against all dust. | Water Resistant Protected against rain and temporally immersion of up to 1 metre. |
Network management, refreshed.
Automate, monitor, manage and scale your network without the complexity or cost.
![](/al/sq/-/media/product-pages/dba/3621p/slices/dba3621p_06_logo.png?h=52&w=150&la=sq-AL&hash=9998F944FBD643482C5F7ACFFC367D6B)
Get your networks up and running from anywhere easily and quickly.
The DBA-3621P can be deployed without the need to send IT engineers on-site. With Nuclias Cloud’s Zero Touch Provisioning, you can power-up the access points on site, connect them to the network, and remotely set up and manage them through the Nuclias Cloud portal.
![](/al/sq/-/media/product-pages/dba/3621p/slices/dba3621p_06_zerotouch.png?h=630&w=585&la=sq-AL&hash=94D24870298BDF3C83530CCC894C5198)

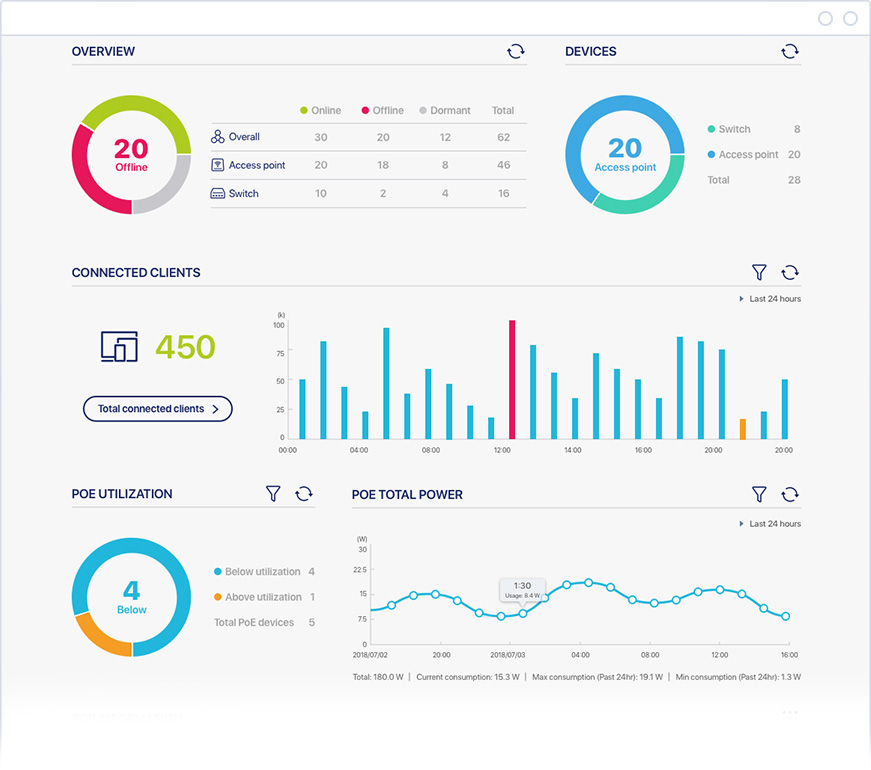

Complete control over your network
With D-Link Nuclias Cloud, businesses can organise their entire wireless network, manage multiple APs simultaneously, and monitor live network statistics. This enables you to focus more on providing reliable connectivity and services and spend less time managing devices.
- Intuitive app
- Real-time network information
- Manage multiple sites and devices
- Over-the-air firmware updates
![](/al/sq/-/media/product-pages/dba/3621p/slices/dba3621p_08_portal.jpg?h=770&w=871&la=sq-AL&hash=17461205587F5D7118A503DA7B2E9700)

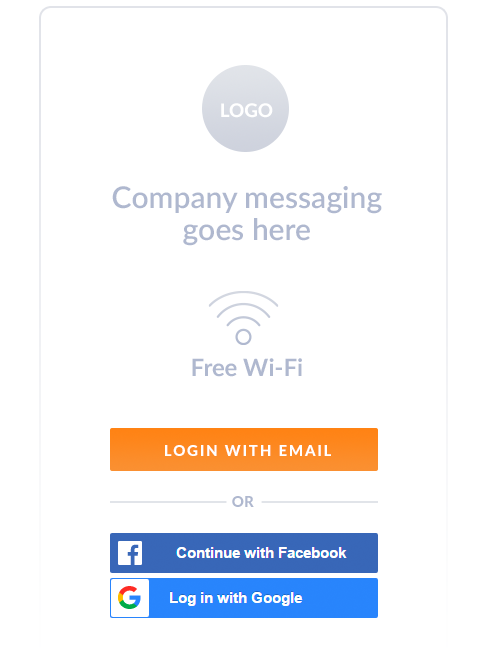

Your Guests Online in No Time with a Captive Portal
Get your guests online quickly and easily with a captive portal. Not only can you let them connect using just their email address, Facebook or Google account, it also gives your business the opportunity to increase brand awareness and advertise promotions. At the same time, it can provide user insights that allow businesses to better understand their customers.
![](/al/sq/-/media/product-pages/dba/3621p/slices/dba3621p_09_captive.png?h=666&w=490&la=sq-AL&hash=73C1F2D638FD8E387CDECCCA75D90806)
Scale your Wi‑Fi alongside your business.
Nuclias Cloud is designed with unlimited scalability, so you can always tailor to the demands of the business. Adding a new site or expanding an existing one is quick and easy as all management and configuration is done through the cloud, with access points being ready to deploy straight out of the box.
![](/al/sq/-/media/product-pages/dba/3621p/slices/dba3621p_010_scale.png?h=460&w=450&la=sq-AL&hash=45403FF2C1F56F0B971D14EFE530205A)
![](/al/sq/-/media/microsites/nuclias/v2/nuclias-cloud/solutions_cloud_03_cafe.png?h=260&w=260&la=sq-AL&hash=9FFCBDF82C19963685F862DC03C7A389)
Retail
Real time analytics help you tailor customer’s Wi-Fi experience, as well as further drive sales.
![](/al/sq/-/media/microsites/nuclias/v2/nuclias-cloud/solutions_cloud_03_smallbusiness.png?h=260&w=260&la=sq-AL&hash=FE62960D036EEBC58394550B5699805D)
Small businesses
Deploy an efficient network built for the future. Easily manage multiple sites, and see detailed reports.
![](/al/sq/-/media/microsites/nuclias/v2/nuclias-cloud/solutions_cloud_03_motel.png?h=259&w=260&la=sq-AL&hash=966263D69E79F9D8B3A502B671C52C9F)
Hospitality
Create a secure and fast Wi-Fi experience for all your guests throughout all your premises.
![](/al/sq/-/media/microsites/nuclias/v2/nuclias-cloud/solutions_cloud_03_education.png?h=260&w=260&la=sq-AL&hash=EB662206FE4C47D8B8C0D4239861EC3B)
Education
Ensure staff and student online safety while supporting a digital learning experience.
Budget-friendly renewals
All Nuclias products include a 1-Year license.
And unlike other solutions in this category, there are no extra feature licenses to buy and prices aren't based on the number of users.
All Nuclias products include a 1-Year license.
And unlike other solutions in this category, there are no extra feature licenses to buy and prices aren't based on the number of users.
![](/al/sq/-/media/product-pages/dba/3621p/slices/dba3621p_012_product.jpg?h=341&w=2000&la=sq-AL&hash=23E62B129A11354F825A2C81CEEB4DBC)
Free Next-Business-Day Service
Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.
Our rapid-response technical support is designed to ensure businesses get the best support for their unique environment. Our extended warranty and enhanced service packages increases the lengths of warranties and further minimises downtime.
![](/al/sq/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_14_assistlogo.png?h=92&w=224&la=sq-AL&hash=B19909398BADDDEAA264B9DEAFF5129A)
We're here to help.
![](/al/sq/-/media/product-pages/common/callouts/icon_35years.png?h=113&w=142&la=sq-AL&hash=EA0B22DA29275604B68E5EE8C9E8C88A)
Over 35 years in the networking industry
Innovative end‑to‑end solution experts for small businesses to large corporations around the world.
![](/al/sq/-/media/product-pages/common/callouts/icon_support.png?h=113&w=86&la=sq-AL&hash=A0B8E88D58D05B1BC95660C4EBC1F52B)
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
![](/al/sq/-/media/product-pages/common/callouts/icon_limitedlifetime_warranty.png?h=113&w=108&la=sq-AL&hash=B989F136606656522FD90CD83CDC5F1A)
D-Link Limited Lifetime warranty
The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.
Related Products
![](/al/sq/-/media/product-pages/dba/3620p/dba_3620p_a1_front.png?h=100&w=44&la=sq-AL&hash=954C3E163F71435549AF96B04CE8F980)
![](/al/sq/-/media/product-pages/dba/x2830p/dba_x2830p_a1_front.png?h=100&w=100&la=sq-AL&hash=29F2A23C9E67F4296BF4B3430D7E9433)
![](/al/sq/-/media/product-pages/dbs/2000/dbs_2000_series_a1_image_l_front.png?h=100&w=131&la=sq-AL&hash=D59A1775659E52D6F111B7089E8FC73F)
![](/al/sq/-/media/product-pages/dba/x1230p/assets/dba_x1230p_a1_side.png?h=100&w=87&la=sq-AL&hash=3023975E860D2C164B9CEF0E2D0F525D)
Specs
Type
|
Cloud-managed AP |
---|---|
Wireless standard
|
Wireless AC Wave 2 |
Frequency band mode
|
Dual-band simultaneous |
Wireless speed
|
400 Mbps 2.4 GHz 867 Mbps 5 GHz |
Antenna type
|
2 detachable omni-directional antennas |
Antenna gain
|
3.5 dBi for 2.4 GHz 5 dBi for 5 GHz |
Wired interface
|
1 x Gigabit Ethernet LAN |
Console port
|
Supported
|
Indoor/outdoor
|
Outdoor |
Type of housing
|
Metal |
IP rating
|
IP67 |
Wireless modes
|
Access Point (AP) |
Advanced features
|
802.11k/r Roaming MU-MIMO |
Maximum number of SSIDs
|
16 |
Auto channel selection
|
Supported
|
Wi-Fi scheduler
|
Supported
|
AP traffic load balance
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
WPA3-Personal/Enterprise
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal |
IPv6
|
Supported
|
Management platform
|
Nuclias Cloud Networking Solution |
1 Active D-Link Nuclias account and valid device license required. 1-year license included.
2 Maximum wireless signal rate derived from IEEE Standard 802.11g, and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
