Wireless N Day & Night Home Network Camera

DCS-932

  • Product Status: End of Life

There's a new version of this product:

Day/Night Cloud Camera

DCS-932L

See Newer Product

There's a new version of this product:

DCS-932L

Day/Night Cloud Camera

Overview

The DCS-932L Wi-Fi Day/Night Camera is a complete surveillance solution for your home or small office. The built-in night vision gives you 24 hour surveillance complete with motion and sound detection. It’s mydlink enabled too, so you can check on your camera anytime, anywhere from any PC, tablet, or mobile phone.
    See Newer Product

    Overview

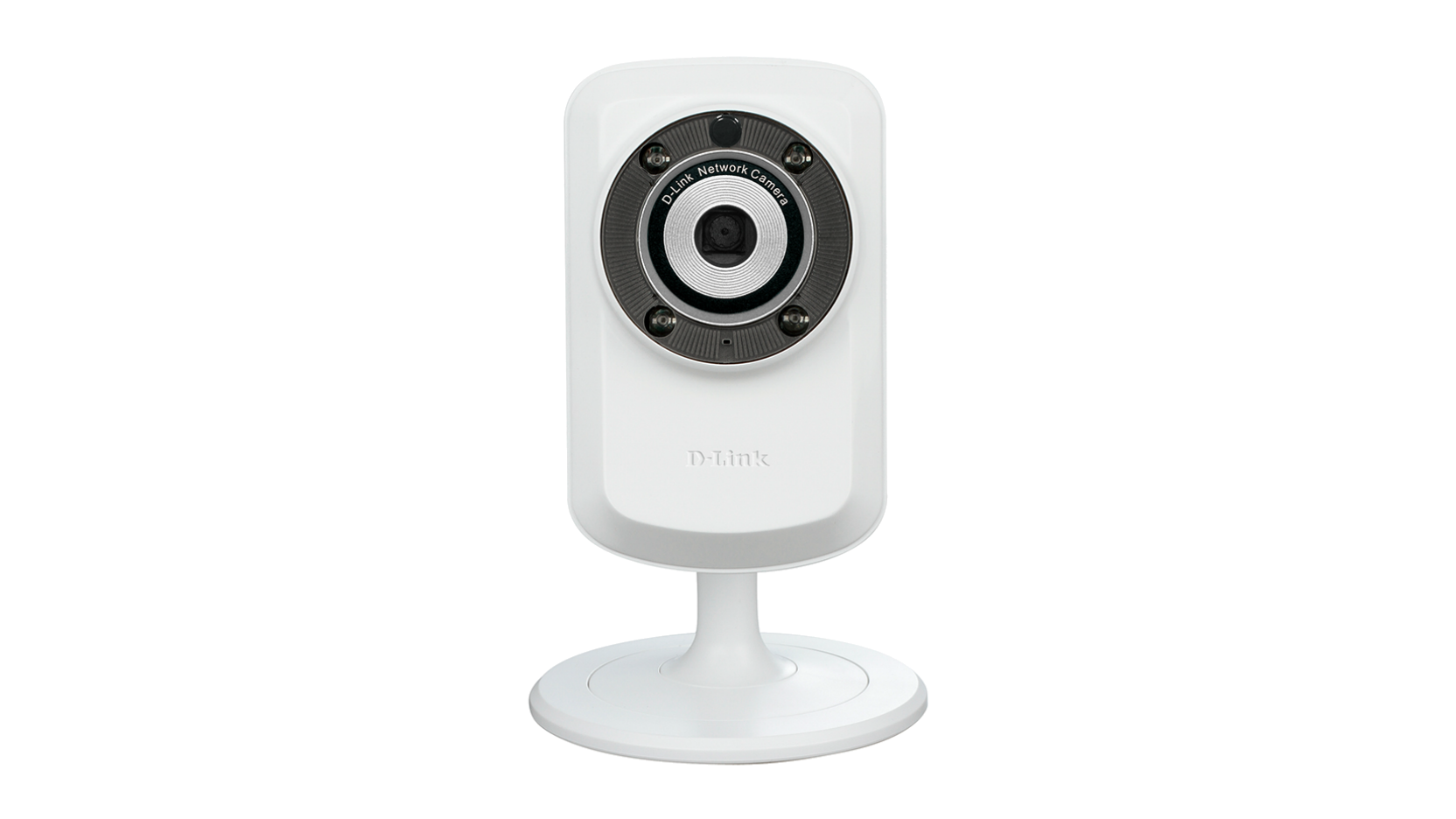

    The DCS-932L Wi-Fi Day/Night Camera is a complete surveillance solution for your home or small office. The built-in night vision gives you 24 hour surveillance complete with motion and sound detection. It’s mydlink enabled too, so you can check on your camera anytime, anywhere from any PC, tablet, or mobile phone.
      See Newer Product
      • Compact size
      • Wireless N technology for a flawless connection anywhere in your home
      • Built-in IR LEDs for night vision (up to 5 m.)
      • Motion-triggered alerts by email
      • Built-in microphone
      • Wireless security at the touch of a button with Wi-Fi Protected Setup (WPS)
      • Dynamic DNS support to easily access your camera from anywhere in the Internet
      • Includes D-ViewCam software

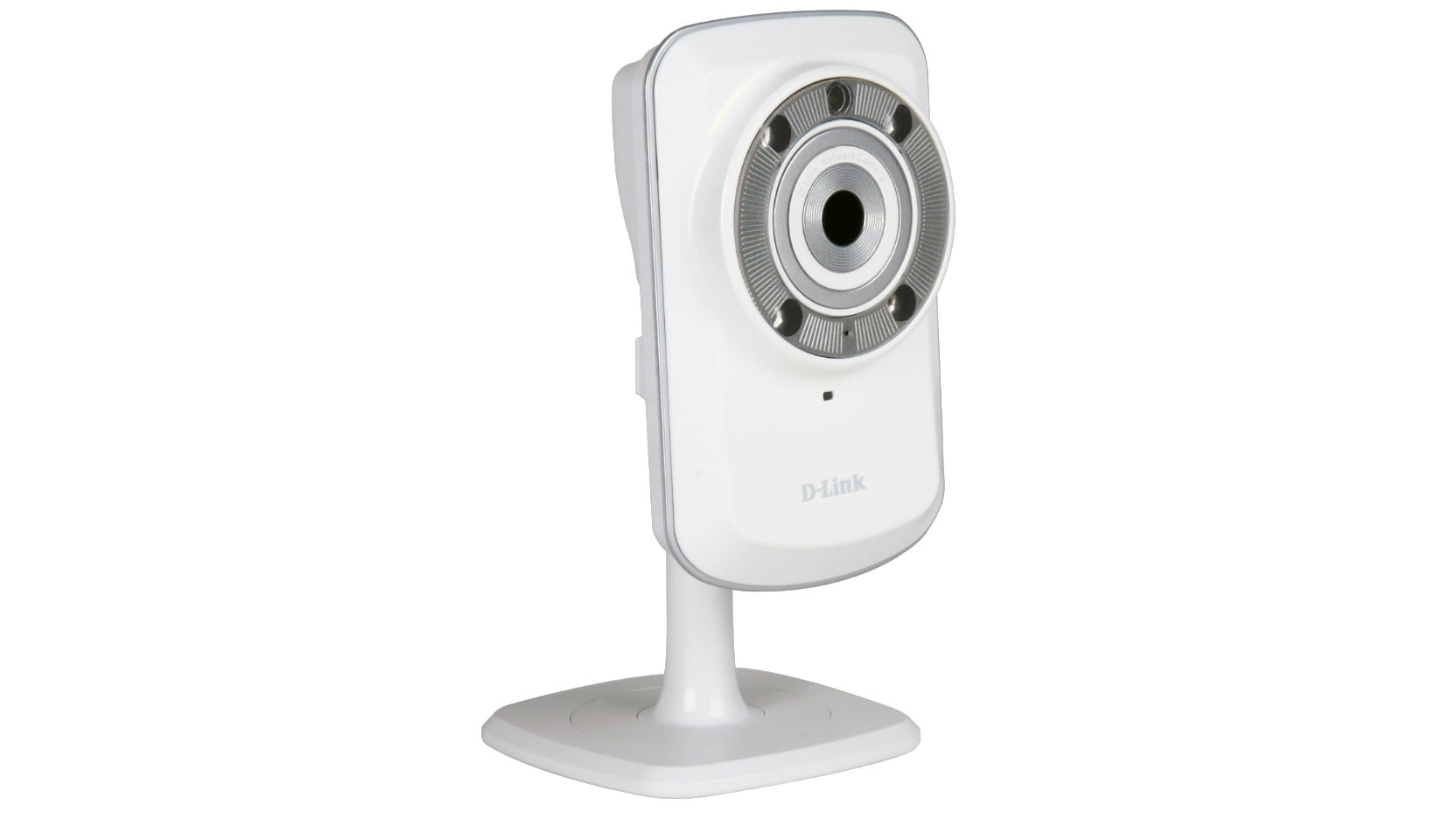

      The DCS-932 is a unique and versatile surveillance solution for your home or small office. Unlike a traditional webcam, this camera is a complete system with a built-in CPU and web server that transmits high quality video images and audio for security, surveillance, and remote monitoring. Simple installation and an intuitive web based interface offer easy integration with your Ethernet or 802.11n wireless network. The DCS-932 also comes with remote monitoring, motion detection, and night vision for a complete and cost-effective home security solution.


      Wireless N connectivity
      This network camera includes 802.11n wireless for fast and easy integration into your existing network environment. Wireless N allows you to stream high-quality video to remote sites over the Internet. A Site Survey feature also allows you to view and connect to nearby wireless networks with ease. It also includes a standard Ethernet port for connections to traditional wired networks.


      Night vision
      This Wireless N camera comes with built-in infrared LEDs that allow for continuous monitoring even in complete darkness. The 5-metre illumination distance makes it suitable for small offices, baby rooms, sheds and garages.


      Easy to configure and use
      This network camera supports the Universal Plug-n-Play feature, which allows computers running on Windows XP/Vista/7 to automatically recognise the camera and add it to the network. Sign up with one of the free Dynamic DNS services available on the web to assign a name and domain to the camera (e.g. mycamera.dlinkddns.com), and remotely access the camera without having to remember the IP address. You may also view up to 32 cameras from a central location using the included free D-ViewCam software (DCS-100). D-ViewCam has a robust set of features including automated e-mail alerts which can instantly inform users of suspicious or unusual activities.


      Actual product appearance may differ from the image displayed on this page

      Networking Protocol
      • IPV4, ARP, TCP, UDP, ICMP
      • DHCP Client
      • NTP Client (D-Link)
      • DNS Client
      • DDNS Client (Dyndns and D-Link)
      • SMTP Client
      • FTP Client
      • HTTP Server
      • PPPoE
      • UPnP Port Forwarding
      • LLTD


      Network Interface
      • 10/100BASE-TX Fast Ethernet
      • 802.11b/g/n WLAN


      Wireless connectivity
      • 802.11b/g/n Wireless
      • WEP/WPA/WPA2 security


      Wireless transmit output power
      • 16 dBm for 11b
      • 12 dBm for 11g
      • 12 dBm for 11n (typical)


      Memory
      • SDRAM: 32 MB
      • Flash: 4 MB


      Reset button
      • Reset to factory default


      Video codecs
      • MJPEG
      • JPEG for still images


      Video features
      • Adjustable image size and quality
      • Time stamp and text overlay
      • Flip and Mirror


      Resolution
      • 640 x 480 at up to 20 fps
      • 320 x 240 at up to 30 fps
      • 160 x 120 at up to 30 fps


      Lens
      • Focal length: 5.01 mm, F2.8


      Sensor
      • VGA 1/5 inch CMOS Sensor


      Minimum Illumination
      • 1 lux @ F2.8


      View Angle
      • Horizontal: 45.3°
      • Vertical: 34.5°
      • Diagonal: 54.9°


      Digital zoom
      • Up to 4x


      LEDs
      • 4x IR LED
      • Illumination distance: 5 m. (16 feet)


      3A control
      • AGC (Auto Gain Control)
      • AWB (Auto White Balance)
      • AES (Auto Electronic Shutter)


      Power
      • Input: 100-240 V AC, 50/60 Hz
      • Output: 5 V DC, 1.2 A
      • External AC-to-DC switching power adapter


      Dimensions (W x D x H)
      • Camera only: 27.2 x 60 x 96 mm
      • Including the bracket and stand: 65.8 x 65 x 126 mm


      Weight
      • 76.9 g (without bracket and stand)


      Max power consumption
      • 2 W


      Temperature
      • Operation: 0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)
      • Storage: -20 ˚C to 70 ˚C (-4 ˚F to 158 ˚F)


      Humidity
      • 20-80% RH non-condensing


      Emission (EMI), Safety & Other Certifications
      • FCC Class B
      • IC
      • C-Tick
      • CE
      This product was phased out on: 21/01/2012
      This product's last date of support is on: 20/01/2014
      Version Date Type File Size
      Datasheet (English) - PDF 0.62mb Download
      Version Description Date Type File Size
      Manual (English) Manual (English) - PDF 3.32mb Download
      Version Description Date Type File Size
      Quick Installation Guide (English) - PDF 0.54mb Download
      This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

      http://tsd.dlink.com.tw/GPL.asp

      The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
      Version Description Date Type
      Firmware 1.01b3 Firmware 10.1.2012 - Download
      Version Description Date
      Installation Wizard 1.01.0929 Installation Wizard 10.1.2012 Download
      Version Description Date
      DNR_2020_04P_Cam_Support_list DNR-2020-04P Camera Support List 22.9.2016 Download
      CE doc RevisionA1 CE document 21.6.2013 Download
      DEU_CE_Declaration_RevA CE Declaration 14.8.2012 Download
