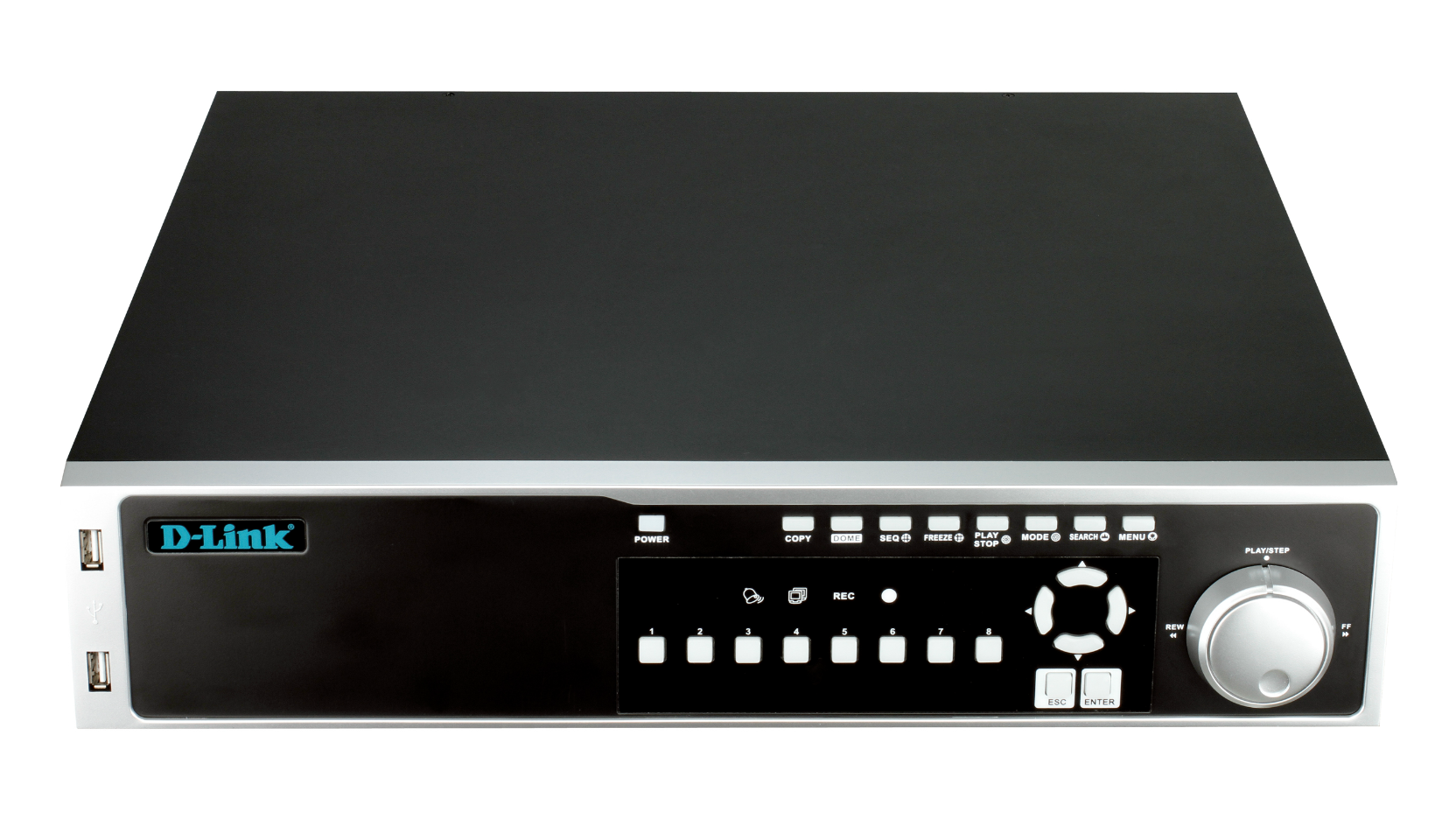

The DNR-2060-08P JustConnect Network Video Recorder is a comprehensive standalone network video display, storage, and management solution providing reliable high quality monitoring for IP-based security systems. The DNR-2060-08P enables simultaneous recording and remote access to recorded videos as well as live view. Controlling the DNR-2060-08P is exceptionally easy using conventional front panel controls, or with an optional keypad and mouse, or remote control handset. The highly flexible, simple-to-configure, and manage make the DNR-2060-08P a cost-effective upgrade addition to your security and surveillance infrastructure.
Maximising the potential
The latest multi-megapixel resolution cameras demand a new generation of network recording solutions. The DNR-2060-08P exceeds these demands and adds reliability, scalability, flexibility, ease of use and competitive pricing.
Robust Management Software
The standalone DNR-2060-08P includes a complete surveillance software package that enables you to view, manage, store, record, and search through footage from up to eight cameras in a central location, without the need of a computer. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.
Connectivity
The DNR-2060-08P has eight built-in 802.3at compliant PoE+ ports that simplifies camera installation by providing both power and network connectivity through a simple cable. Not only does this save overall installation cost by eliminating the need to install separate electrical wiring and power outlet, PoE+ allows you to power even the most demanding cameras. In addition, the included digital input and output connector enables further integration to external devices such as switches and alarm relays.
Product Awards
Specs
Channel Number
|
8 channels |
---|---|
Compression Format
|
H.264 MJPEG |
Video Output
|
HDMI VGA |
Display Mode
|
1, 4, 8 split screen |
Auto Scan
|
Supported
|
PTZ Control
|
Supported
|
Auto Pan/Petrol
|
Supported
|
Audio
|
1-way |
Recording Type
|
Digital Input Edge Motion Detection by Camera Manual Motion Event Schedule |
Pre-Recording Period
|
70 seconds |
Post-Recording Period
|
70 seconds |
Audio Recording
|
Supported
|
Auto/Scheduled Recycling
|
Supported
|
Simultaneous Playback
|
8 channels |
Video Control
|
Play, stop, pause, forward, backward, next, previous |
Digital Zoom
|
4X |
Audio Control
|
Supported
|
Video Search
|
Camera Event Text Time |
Video Export Format
|
AVI DRV RAW |
Image Export File Format
|
JPG |
Tamper-Proof (Digital Watermark)
|
Supported
|
I/O Control
|
Supported
|
Event to E-mail
|
Supported
|
Event to Alarm
|
Supported
|
Event by Signal Lost
|
Supported
|
Event by Disk Full
|
Supported
|
Client Viewer
|
JustConnect+ App Web browser |
Remote View
|
Supported
|
Max Concurrent Channel per Client
|
8 |
Playback Viewer
|
Playback manager via browser |
Number of E-Map Layer
|
1 |
E-Map Image Format
|
JPG |
Supported Camera
|
D-Link |
Number of HDD Bay
|
6 |
HDD Configuration
|
Single |
Network Interface
|
1 x Gigabit port 8 x 802.3at Fast Ethernet ports |
PoE support
|
802.3at |
Backup Options
|
eSATA USB |
Front Panel Control
|
Supported
|
Auto Boot-Up (Power Recovered)
|
Supported
|
Support
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
DNR-2060-08P manual | DNR-2060-08P manual | - | - | - | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
1.00 | DNR-2060-08P quick installation guide | - | - | - | Download |
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version | Description | Date | |
---|---|---|---|
CE declaration | CE declaration | 15.10.2014 | Download |
DEU_IP_Surveillance_Cheat_Sheet | - | 6.6.2014 | Download |
Compatible_Cameras_1_10_00_RevA | Compatible cameras for DNR-2060-08P |
27.3.2014 | Download |
How_to_enable_Java_on_Mac_OS_X_for_mydlink | How to enable Java on Mac OS X for mydlink | 12.8.2013 | Download |
CE doc Revision A1 | CE Document | 28.5.2013 | Download |
Compatible_Hard_Drives_RevA | Compatible hard drives for DNR-2060-08P | - | Download |
