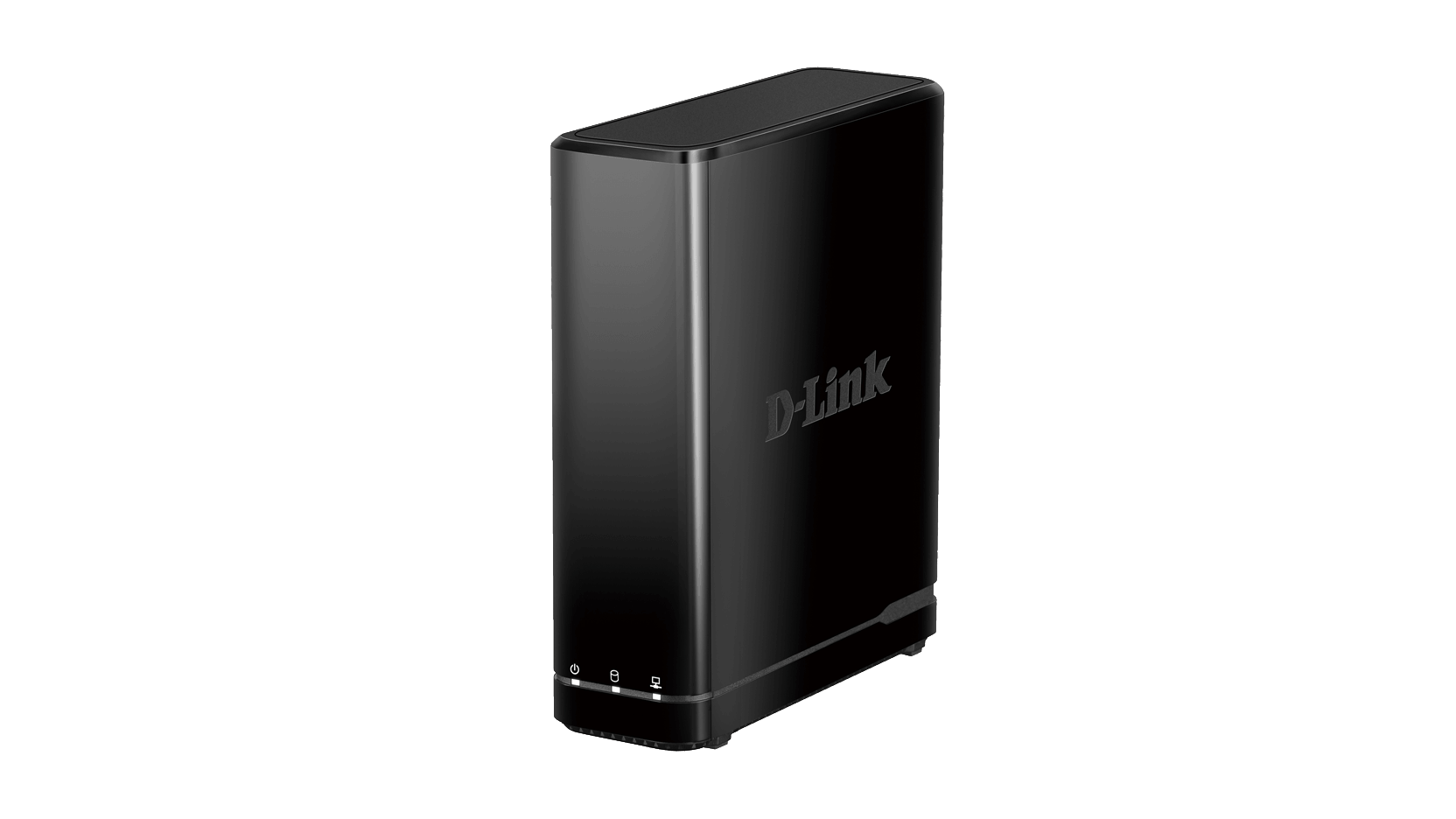

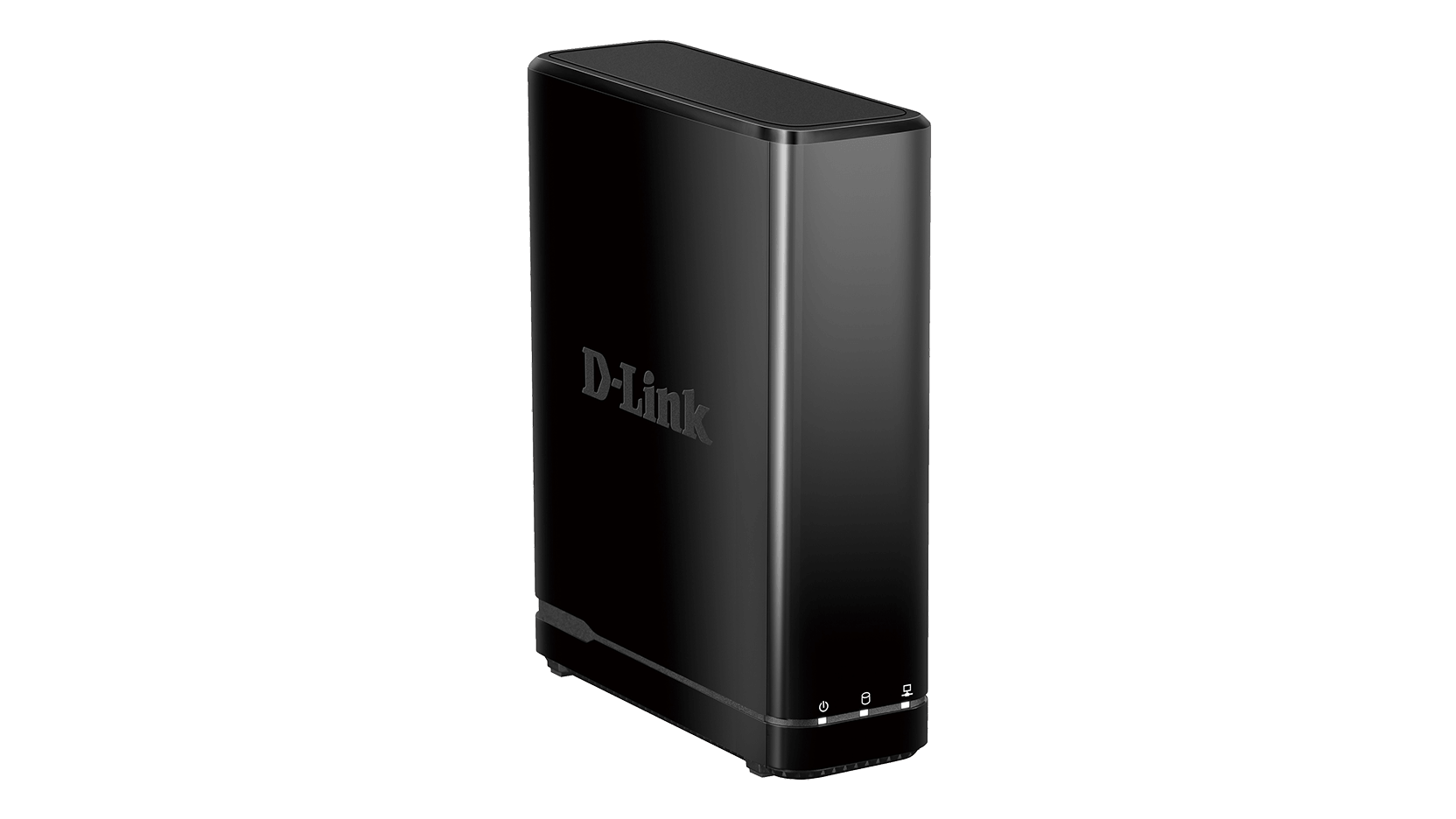

mydlink™ Network Video Recorder with HDMI
DNR-312L
- Product Status: End of Sale

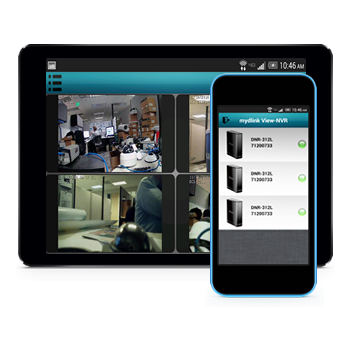

View from Anywhere
View your cameras from anywhere on your phone, tablet, or PC.

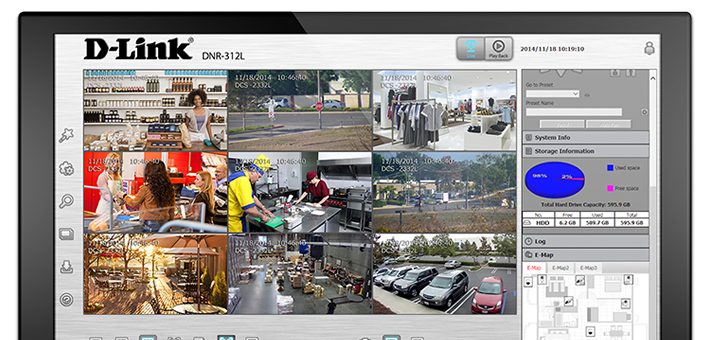

View, Record, Playback 9 Cameras at the Same Time
The More Detail
The Better
Supports HD up to 3 megapixel resolution.

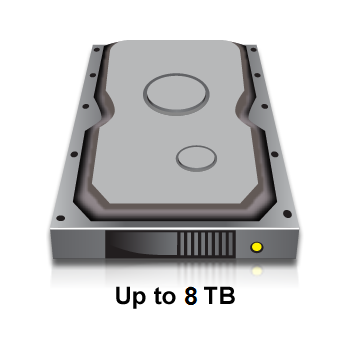

Record Months at a Time
Set it and forget it. Your old video is automatically overwritten by new video.
Better Than DVR
NVR means flexible camera placement, even in remote locations.
No need for hard-wired, local-only setups.

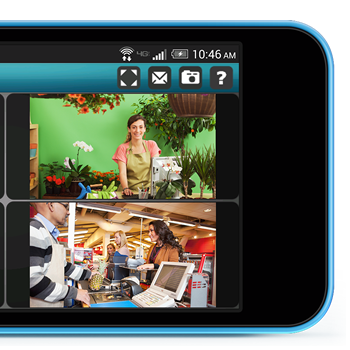

View Multiple Locations
Secure and monitor multiple stores or franchises from one app.
Plug-N-Play Setup
Automatically finds and starts
recording cameras.

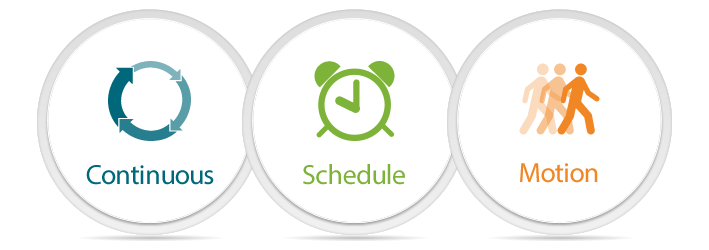

Custom Recording Options

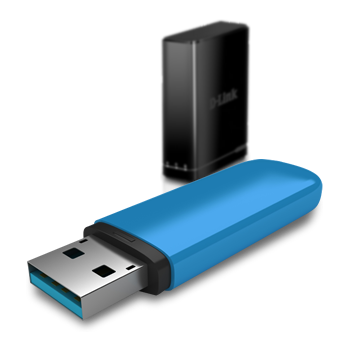

Easy Export
Quickly and easily export video from your NVR, PC, or USB drive to the authorities, and save snapshots to show faces and other details.

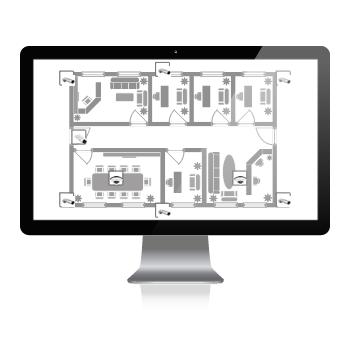

Visual Floor Plan Display
Import a floor plan to place cameras virtually.

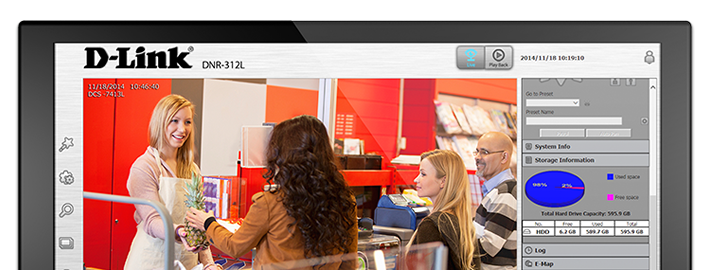

On Screen Display
View details like date/time, motion detection staus, frame rate and bandwidth.

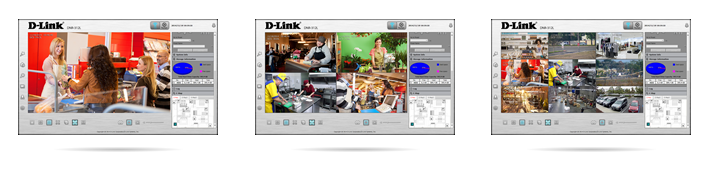

Display Options & Auto Cycle
View 1, 4, or 9 cameras at a time, or auto-cycle through your camera views.

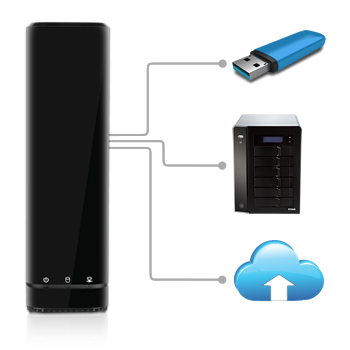

Back It Up Your Way
Schedule back ups or perform them manually, and save footage to your NAS, FTP, or HDD.

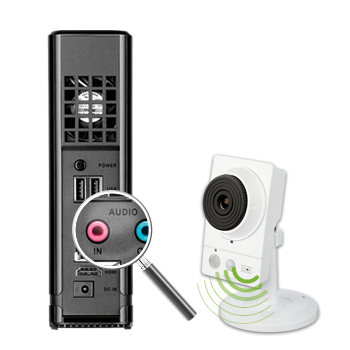

Two Way Audio
Talk through the mic jack on your mydlink
Video Recorder out to any D-Link
speaker-enabled camera.

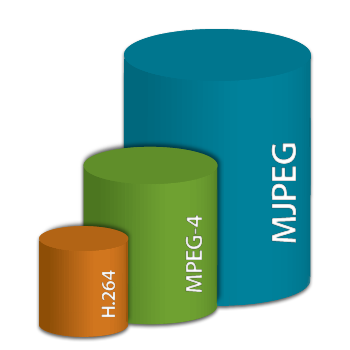

Better Compression = More Storage
Supports multiple video compression formats including H.264 to maximize recording density.
Specs
|
Channel Number
|
9 channels |
|---|---|
|
Compression Format
|
H.264 MJPEG MPEG-4 |
|
Video Output
|
HDMI |
|
Display Mode
|
1, 4, 9 split screen |
|
Auto Scan
|
Supported
|
|
PTZ Control
|
Supported
|
|
Auto Pan/Petrol
|
Supported
|
|
Audio
|
2-way |
|
Recording Type
|
Edge Motion Detection by Camera Manual Motion Event Schedule |
|
Pre-Recording Period
|
60 seconds |
|
Post-Recording Period
|
300 seconds |
|
Audio Recording
|
Supported
|
|
Auto/Scheduled Recycling
|
Supported
|
|
Simultaneous Playback
|
9 channels |
|
Video Control
|
Play, stop, pause, forward, backward, next, previous |
|
Digital Zoom
|
16X |
|
Audio Control
|
Supported
|
|
Video Search
|
Camera Event Time |
|
Video Export Format
|
AVI |
|
Image Export File Format
|
BMP JPG |
|
Tamper-Proof (Digital Watermark)
|
Supported
|
|
Event to E-mail
|
Supported
|
|
Event to Alarm
|
Supported
|
|
Event by Signal Lost
|
Supported
|
|
Event by Disk Full
|
Supported
|
|
Client Viewer
|
mydlink View NVR App Web browser |
|
Remote View
|
Supported
|
|
Max Concurrent Channel per Client
|
9 |
|
Playback Viewer
|
Playback manager via browser |
|
Number of E-Map Layer
|
3 |
|
E-Map Image Format
|
BMP JPG |
|
Supported Camera
|
D-Link |
|
Auto Surveillance VLAN support
|
Supported
|
|
Number of HDD Bay
|
1 |
|
HDD Configuration
|
Single |
|
Network Interface
|
1 x Gigabit port |
|
Backup Options
|
USB |
|
Auto Boot-Up (Power Recovered)
|
Supported
|
