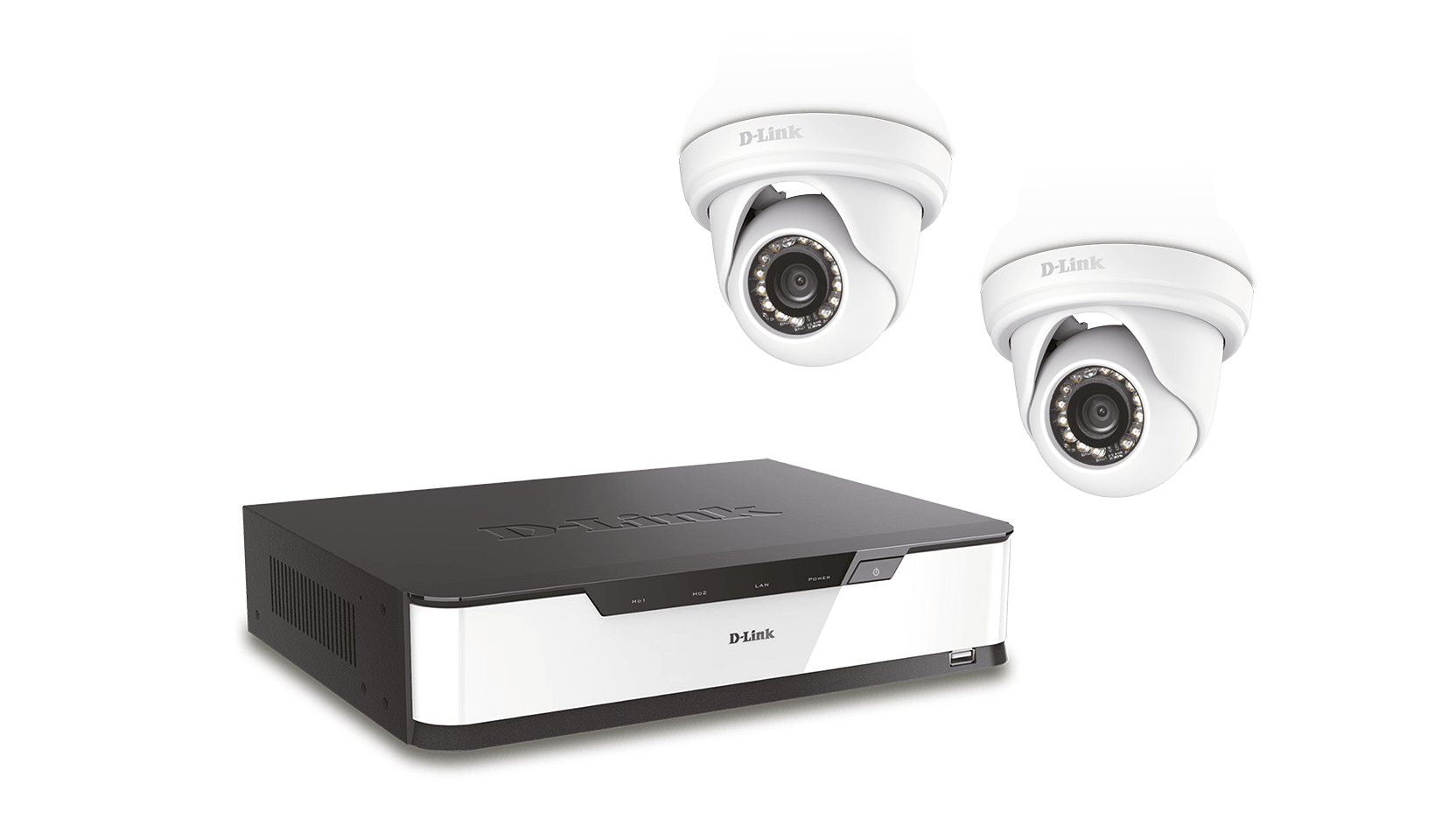

The Vigilance Full HD Surveillance Starter Kit includes the 16-Channel PoE Network Video Recorder and 2 x Full HD Outdoor PoE Mini Dome Cameras to allow you to start protecting your premise right away. Simply add hard disk(s) to the Network Video Recorder (NVR) and connect the cameras, to start monitoring and recording
without the need of a computer.
The DNR-2020-04P JustConnect 16-Channel PoE Network Video Recorder is an all-in-one network video recorder (NVR) that can record video from up to 16 network cameras1 to its dual HDD storage2. With the integrated HDMI/VGA display output and USB port3, users can view, control and configure the DNR-2020-04P without the need to turn on their PC.
![](/al/sq/-/media/product-pages/dnr/2020/dnr202004pintro.jpg)
Featuring Power over Ethernet (PoE), the NVR supplies power to up to four PoE cameras, saving valuable time and electrical installation costs during setup.
![](/al/sq/-/media/product-pages/dnr/16-4802-2/poe.png)
Powered by an embedded system, the DNR-2020-04P supports real-time remote monitoring and playback via a web browser using the NVR's web GUI. Additionally, support for audio in/out, DI/DO triggering, and external USB 3.0 storage for video export and backups fill the needs of small businesses.
![](/al/sq/-/media/product-pages/dnr/2020/dnr2020gui.png)
The NVR also includes the option to protect data using a RAID 1 configuration, which duplicates recorded data onto two separate hard drives. In the event of HDD failure, data integrity is maintained on the secondary HDD. The recorded data can be backed up to external USB disks or additional storage locations such as FTP servers whenever required.
![](/al/sq/-/media/product-pages/dnr/2020/dnr202004pback.jpg)
The included DCS-260 Multi-NVR Viewer is a comprehensive network surveillance software designed for SMB and enterprise users. Using an intuitive user interface, you can centrally manage up to 128 NVR devices and network cameras, allowing you to efficiently control multiple D-Link NVRs located in different areas.
![](/al/sq/-/media/product-pages/dnr/2020/multinvr.jpg)

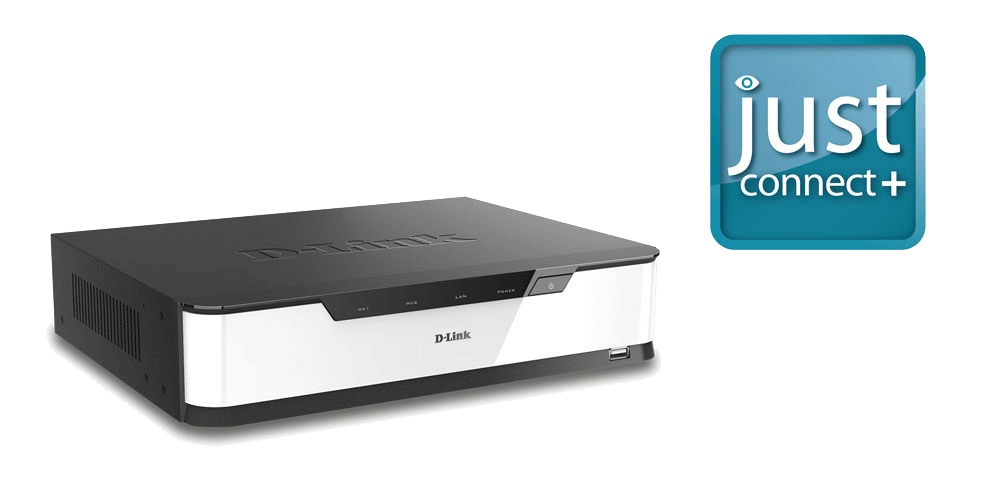

Users can remotely monitor their surveillance network in real-time through the JustConnect+ mobile app for smart phones or tablets. It offers total peace-of-mind 24/7 for business owners to view live video or playback recorded footage, at anytime, when connected to the Internet.
![](/al/sq/-/media/product-pages/dnr/16-4802-2/justconnect.png)
![DCS-4021](/al/sq/-/media/product-pages/dcs/4802e/dcs_4802e_overview.png)

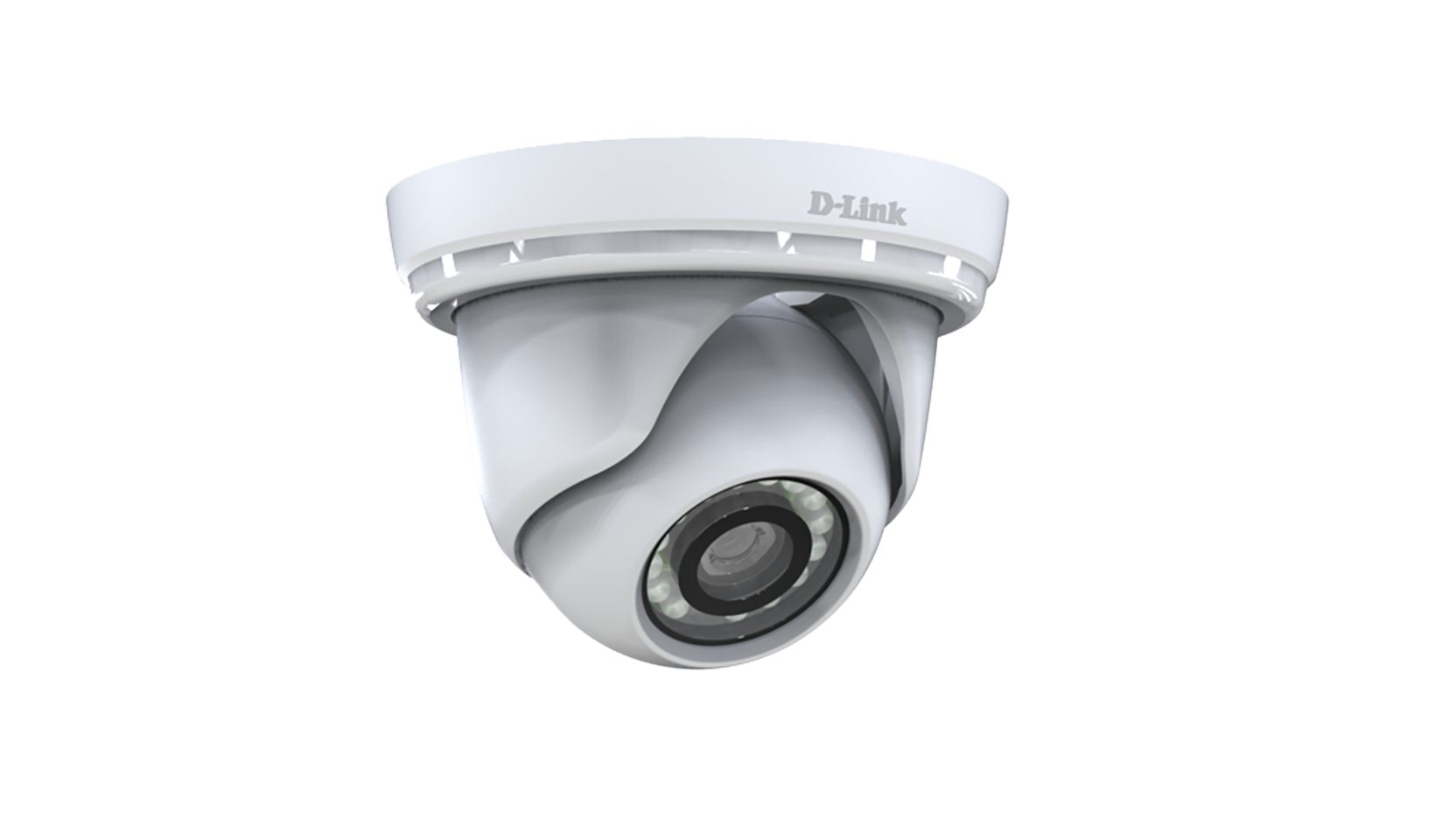

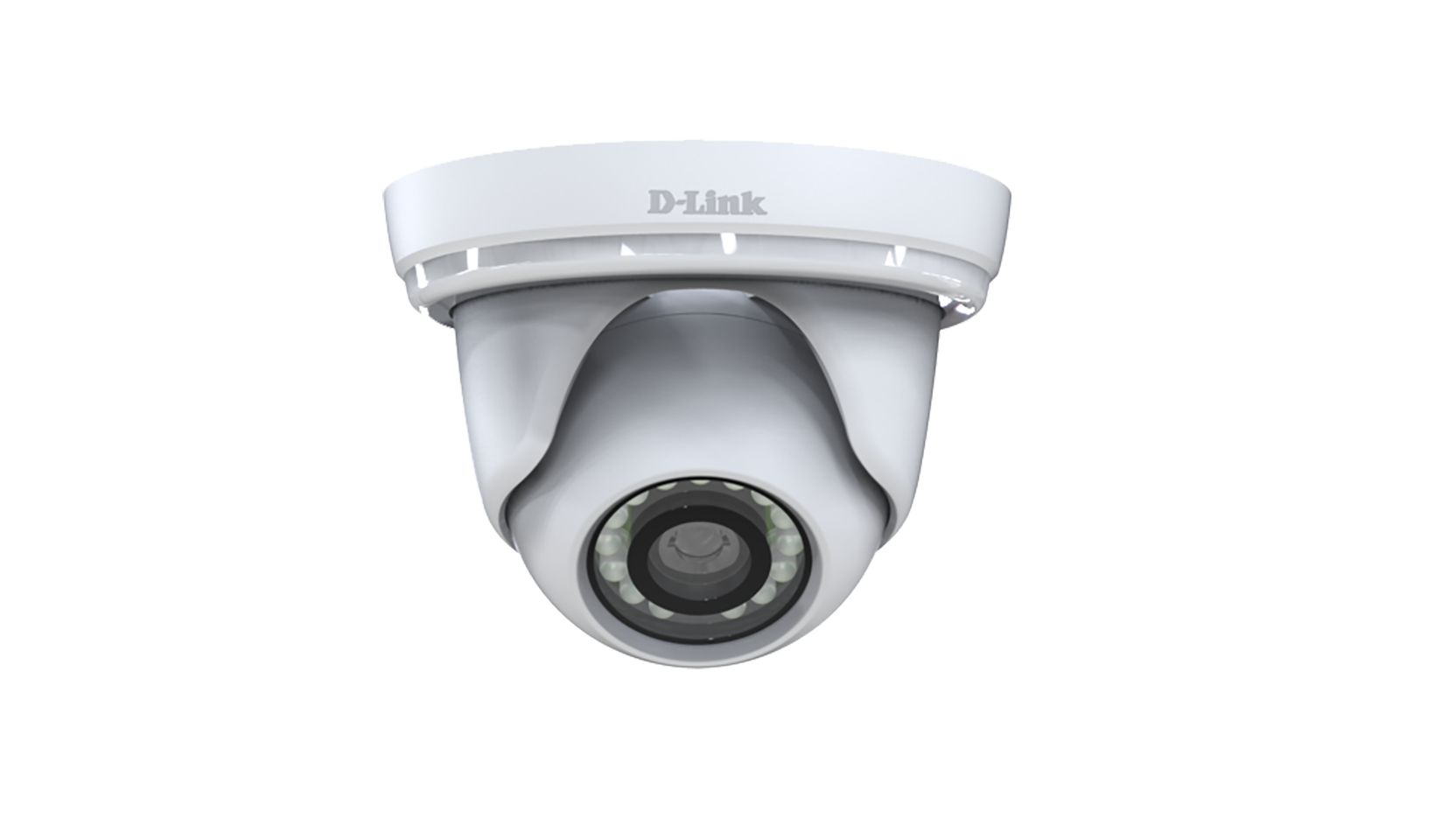

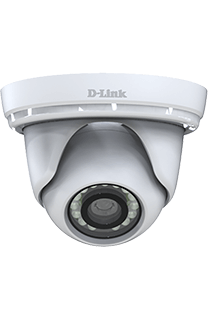

Full HD Outdoor Mini Dome Camera
The Vigilance Full HD Outdoor PoE Mini Dome Camera is a professional, full featured full HD Camera that is designed to be easy to install and integrated into a highly affordable video surveillance solution. Incorporating IR LED illuminator, WDR and 3DNR support, you get up to 30 metres night vision and clear detailed images in contrasting and low light environments. The camera’s IP-66 (weather-proof) housing is specifically designed to withstand all adverse weather conditions.
![](/al/sq/-/media/product-pages/dcs/4802e/dcs_4802e_icons.png)
Vigilance range
The Vigilance Range offers professional, full featured high definition video surveillance that is easy to install and highly affordable. The range consists of cameras designed specifically to meet different surveillance and environmental requirements. From standalone surveillance solutions that allow you to record video without additional software or equipment, to weather/vandal-proof cameras for harsh environments.
![](/al/sq/-/media/product-pages/dcs/4201/sip.png)
Security Installer Focused
Specifically designed for any security installer looking to offer digital video surveillance, this versatile range of cameras is designed for easy selection and simple installation. You'll be able to guide your customers to the right choice for their needs and they will be delighted with the quality, reliability and straightforward ease-of-use that Vigilance delivers.
2 Hard disks are not included. Supports hard disks up to 10 TB each for a total of 20 TB.
3 This port is used for firmware updates, video exports to USB drives, and backups. Connection to a USB mouse/keyboard is supported.
4 RAID 0 and RAID 1 mirroring requires the use of two internal SATA drives. To avoid data incompatibility in RAID 1 operation, use identical SATA drives from the same manufacturer. Formatted drive capacity for RAID 1 operation is dependent on the drive capacity of the lowest-sized drive. Some older generation SATA drives may not be compatible. Click here for a list of SATA drives that have been tested to work with the NVR.
Specs
Channel Number
|
16 channels |
---|---|
Compression Format
|
H.264 MJPEG MPEG-4 |
Video Output
|
HDMI VGA |
Display Mode
|
1, 4, 6, 9, 10, 13, 16 split screen |
PTZ Control
|
Supported
|
Auto Pan/Petrol
|
Supported
|
Audio
|
2-way |
Recording Type
|
Digital Input Edge Motion Detection by Camera Manual Motion Event Schedule |
Pre-Recording Period
|
60 seconds |
Post-Recording Period
|
300 seconds |
Audio Recording
|
Supported
|
Auto/Scheduled Recycling
|
Supported
|
Simultaneous Playback
|
16 channels |
Video Control
|
Play, stop, pause, forward, backward, next, previous |
Digital Zoom
|
2X |
Audio Control
|
Supported
|
Video Search
|
Camera Event Time |
Video Export Format
|
ASF AVI MP4 |
Image Export File Format
|
JPG |
Tamper-Proof (Digital Watermark)
|
Supported
|
Event to E-mail
|
Supported
|
Client Viewer
|
JustConnect+ App Multi-NVR Viewer |
Remote View
|
Supported
|
Playback Viewer
|
Playback manager via browser |
Number of E-Map Layer
|
1 |
E-Map Image Format
|
JPG |
Supported Camera
|
3rd party D-Link |
Auto Surveillance VLAN support
|
Supported
|
Number of HDD Bay
|
2 |
HDD Configuration
|
JBOD RAID0/1 Single |
Network Interface
|
1 x Gigabit port 4 x 802.3af Fast Ethernet ports |
PoE support
|
802.3af |
Backup Options
|
USB |
Auto Boot-Up (Power Recovered)
|
Supported
|
