How to Create ACL Rules - DGS-3620-Series
Scenario:

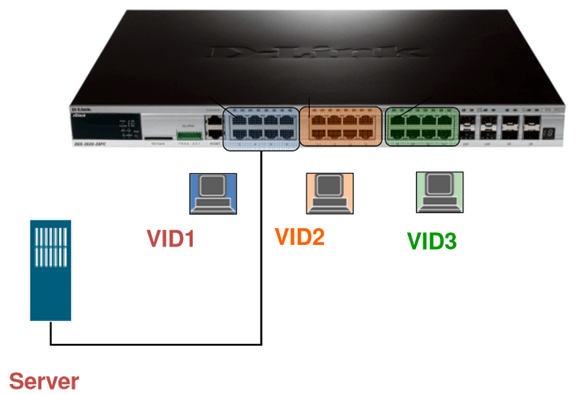

You want to ensure that all VLANs have access to the server, whilst each VLAN can not communicate with the each other
![DGS 3620 Create filtering ACL rules](/al/sq/-/media/faqs/es/dgs/dgs-3620-create-filtering-acl-rules2.png?h=395&w=576)
1. default VLAN1 IP address 192.168.1.1/24. Ports 1-8.
Server IP: 192.168.1.250/24
2. VLAN2 IP address 192.168.10.1/24. 9-16 ports.
3. VLAN3 172.16.0.1/16 IP address. Ports 17-24.
Creating access list:

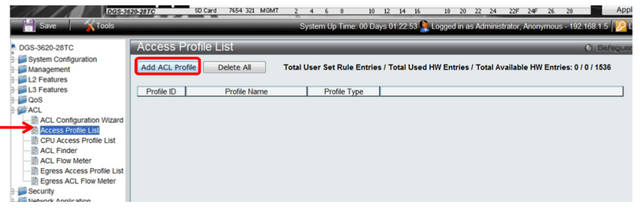

Step 1 - Select "ACL" and click on "Access Profile List".
Then click "Add ACL Profile" to create a new rule.
![](/al/sq/-/media/faqs/es/dgs/dgs-3620-create-filtering-acl-rules3.png)

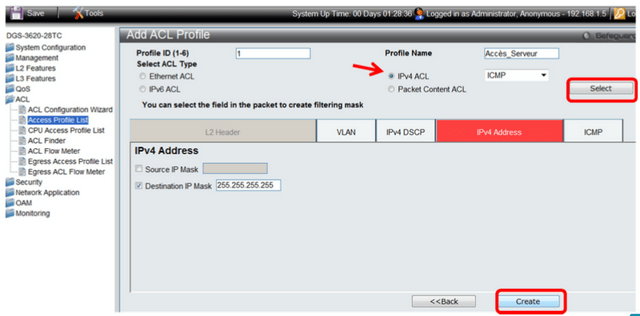

Step 2 - Specifying a "Profile ID" from 1-6.
Specify a name for the profile
Select "IPv4 ACL" to select the "type" rule will be created, click "Select".
Then click "Create" to confirm.
![](/al/sq/-/media/faqs/es/dgs/dgs-3620-create-filtering-acl-rules4.png)

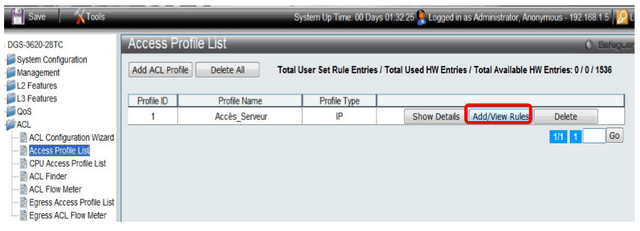

Step 3 - Creating a firewall rule:
Select the "Profile ID" created
Then click "Add / ViewRules" to add a rule.
![](/al/sq/-/media/faqs/es/dgs/dgs-3620-create-filtering-acl-rules5.png)

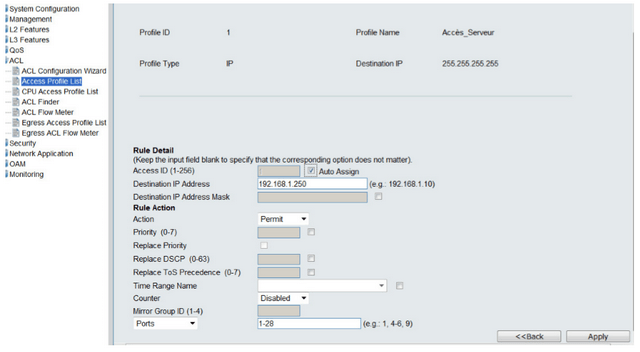

Rule: Everyone has access to the server (IP: 192.168.1.250/24).
![](/al/sq/-/media/faqs/es/dgs/dgs-3620-create-filtering-acl-rules6.png)
