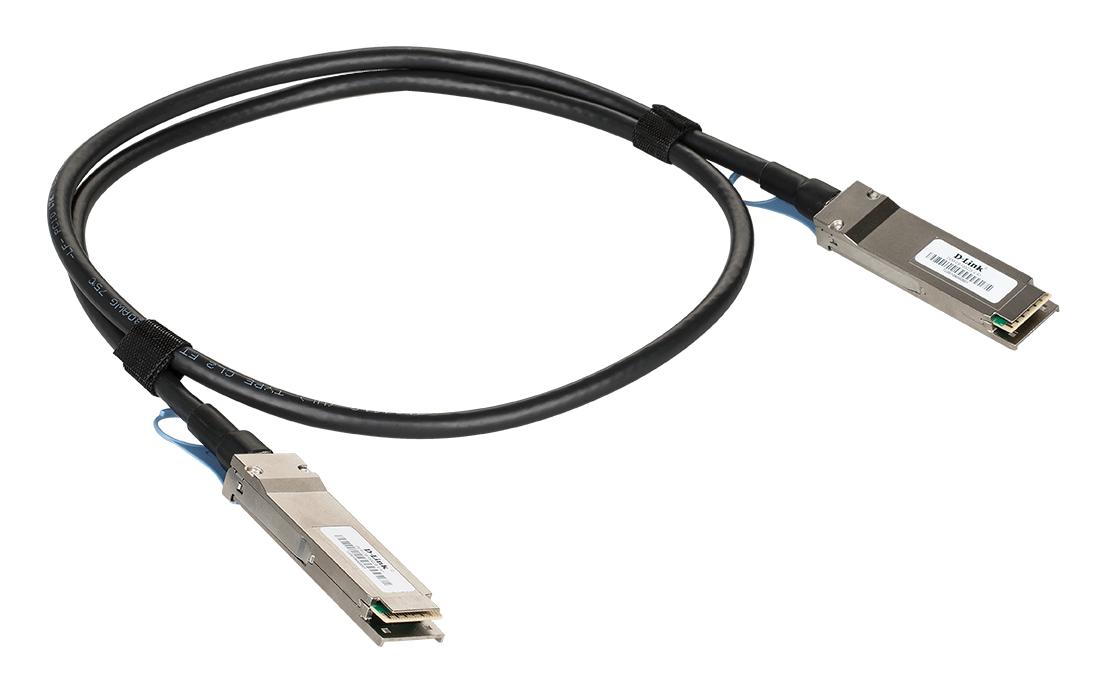

100G QSFP28 to QSFP28 1 m Direct Attach Stacking Cable
DEM-CB100Q28
- Product Status: Live
High-quality 100G QSFP28 connection cables for physical stacking (compatible with DXS-3610 series).
Where to buy
Where to buy
High-quality 100G QSFP28 connection cables for physical stacking (compatible with DXS-3610 series).
- Quad Small Form-factor Pluggable 28 (QSFP28)
- 100 Gbps data rate
- Compliant with the following standards:
- SFF-8436
- SFF-8636
- SFF-8665
- EIA-364
- EIA-364-1000.01
Related Products
Layer 3 Stackable 10G Managed Switches
DXS-3610-54S, DXS-3610-54T
Specification
General
Device Rate
- 100 Gbps
Connector Type
- QSFP28 Cable Assembly
Wire AWG
- 30 AWG
Functionality
SFP MSA Standard
- SFF-8436, SFF-8636, SFF-8665
Electrical Connector Performance Test Standard
- EIA-364, EIA-364-1000.01
Flammability Standard
- UL 94
Physical
Minimum Cable Bend Radius
- 34.5 mm (1.36 in)
Cable Characteristic Impedance
- 100 Ohms
Voltage
- 30 V AC
Current
- 0.5 A
Operating Temperature
- -40 to 75 °C (-40 to 167 °F)
