Industrial Layer 2+ Gigabit Managed Switch with 10G SFP+ slots
DIS-700G-28XS
- Product Status: Live

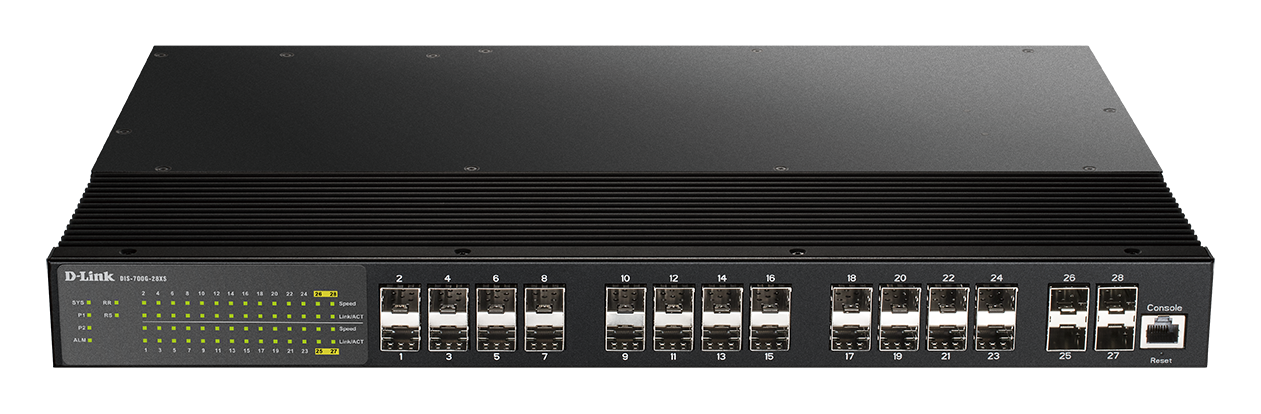

- 24 x SFP ports, 4 x 10G SFP+ slots
- Layer 2+ management features
- High availability with redundant dual DC inputs
- Withstands extreme temperatures
- Certified for vibration, shock, free-fall, EMI, EMS
Where to buy
Features
For the core of your network, the DIS-700G-28XS features user management interfaces and provides diagnostics, security and controls to shape your managed network needs.
Designed with 24 x SFP ports and 4 x 10G SFP+ slots (1G SFP backwards compatible) to suit a range of devices and network layouts.
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Operates effortlessly in a range of industrial and harsh environments in temperatures from –40°C to +75°C.
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
Rapid ring failover recovery time of < 20ms.
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Related Products
Specification
|
Type
|
Managed |
|---|---|
|
Number of ports
|
16 to 30 ports |
|
Layer
|
Layer 2+ |
|
Main type of ports
|
SFP |
|
Type of uplink ports
|
10GbE SFP+ |
|
Fanless
|
Supported
|
|
Form Factor
|
Rackmountable |
|
Housing
|
Metal |
|
Jumbo frame
|
Supported
|
|
Environmental
|
Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
|
<20ms link loss recovery
|
Supported
|
|
MAC address
|
8K |
|
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
|
Link aggregation
|
802.3ad |
|
VLAN group (max static)
|
2048 |
|
VLAN type
|
Port-based Protocol-based |
|
Advanced VLAN
|
Double VLAN (Q-in-Q) |
|
Number of QoS queues per port
|
8 |
|
CoS based on contents
|
Supported
|
|
Bandwidth control
|
1 Kbps minimum granularity |
|
Three colour marker
|
1 Kbps minimum granularity |
|
Encryption protocol supported
|
SSH |
|
BPDU attack protection
|
Supported
|
|
802.1X access control
|
Supported
|
|
RADIUS/TACACS+ authentication
|
Supported
|
|
SNMP (v1/v2c/v3)
|
Supported
|
