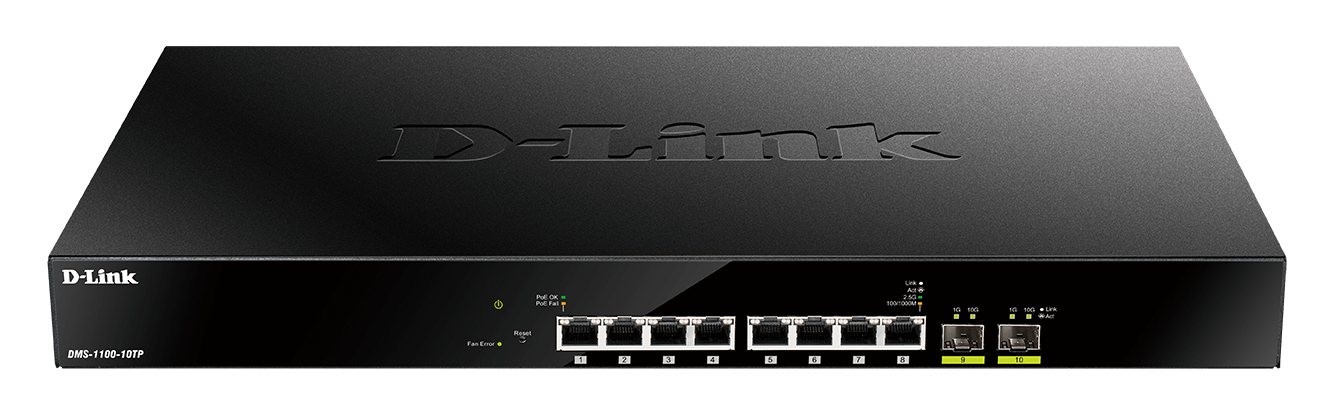

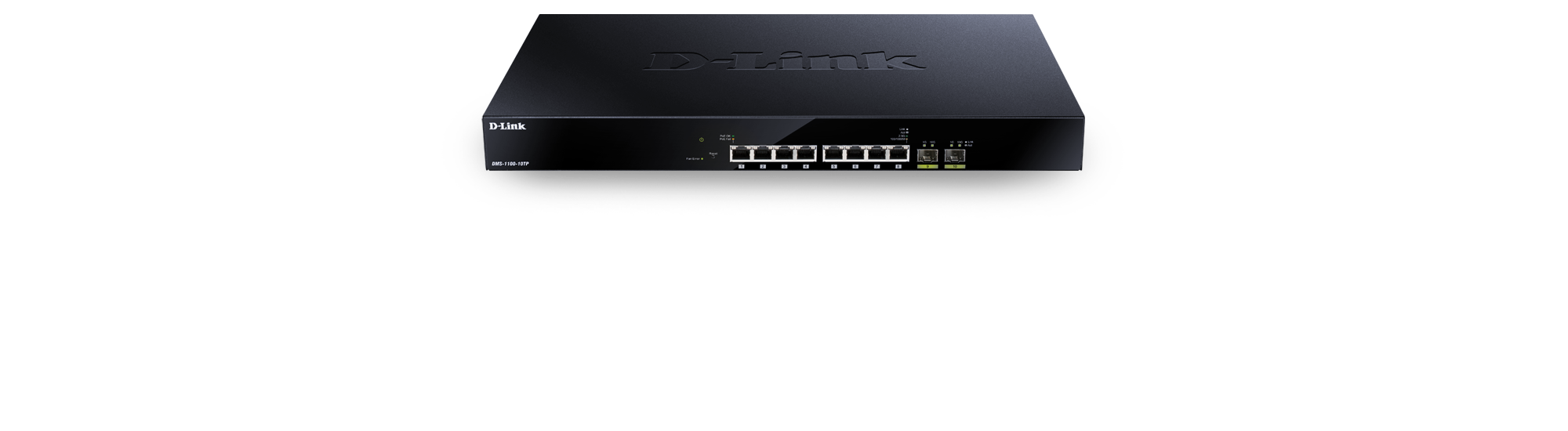

10-Port Multi-Gigabit PoE Smart Managed Switch
DMS-1100-10TP
- Product Status (Revision A1): Live
- x8 2.5 Gigabit PoE/PoE+ ports
- x2 10 Gigabit SFP+ uplink ports
- Layer 2 management and security
- PoE options up to 240W power budget
- Designed for Wi-Fi 6 access points
Where to buy
10G Multi-Gigabit
10G multi-Gigabit Ethernet connections for low-latency, to easily meet high-bandwidth demands, and device flexibility across the network.
2.5 Gigabit PoE ports
8 x 100/1000/2.5GBASE-T PoE/PoE+ ports for rapid and reliable Ethernet connections and power to devices via a single cable.
Web-based GUI
Intuitive remote management interface makes setups and configurations easier, and reduces switch deployment times.
Layer 2 Features
Includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP).
Quality of Service (QoS)
Rich QoS controls, including bandwidth control, and Auto Surveillance VLAN.
Network Security
D-Link’s Safeguard Engine™ helps protect against traffic flooding from malicious attacks.
Energy Saving Technology
Supports LED shutoff, and complies with IEEE 802.3az Energy Efficient Ethernet (EEE).
Futureproof your network. Ready for Wi-Fi 6.
Ideal for businesses looking to upgrade to Wi-Fi 6, the DMS-1100-10TP has 2.5 Gigabit PoE ports and 10 Gigabit SFP+ uplink ports, providing the multi-gigabit connectivity needed to maximise throughput between access points and the network infrastructure.

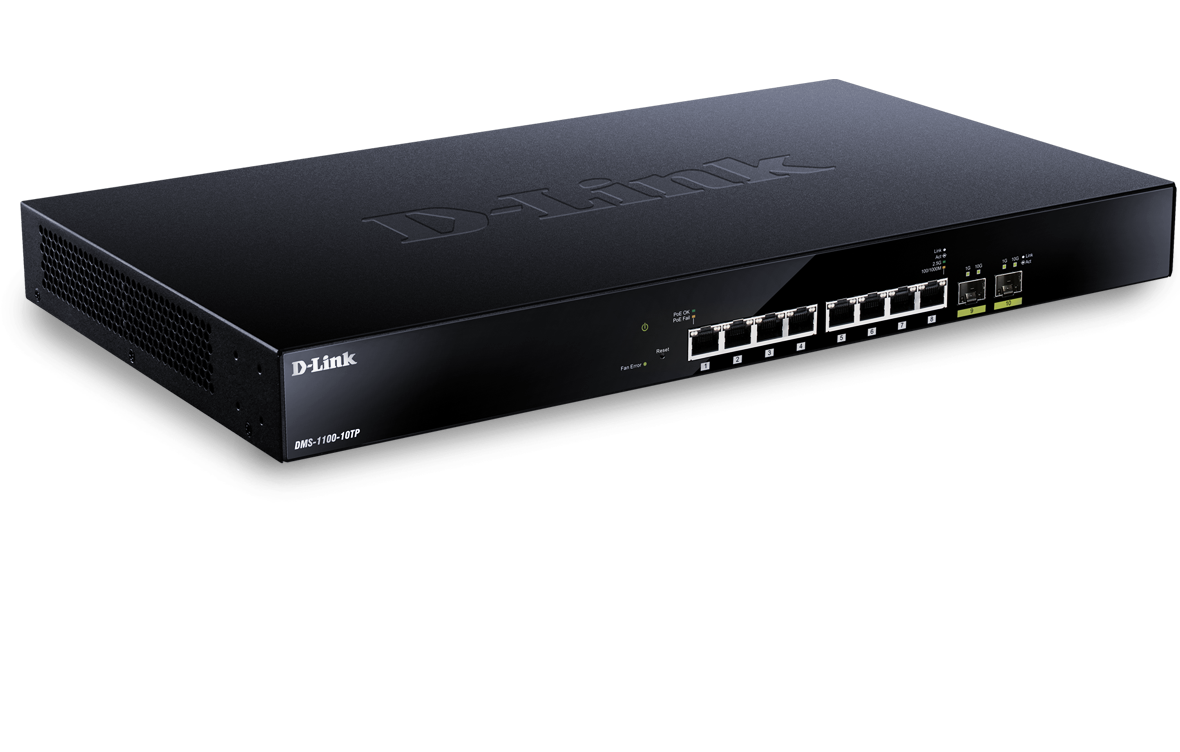

Affordable 10G capabilities, for a reliable high-speed network.
Add 10-Gigabit Ethernet connectivity to your network with this cost-effective switch. Integrate it into existing Gigabit Ethernet network infrastructures while simultaneously futureproofing the network.

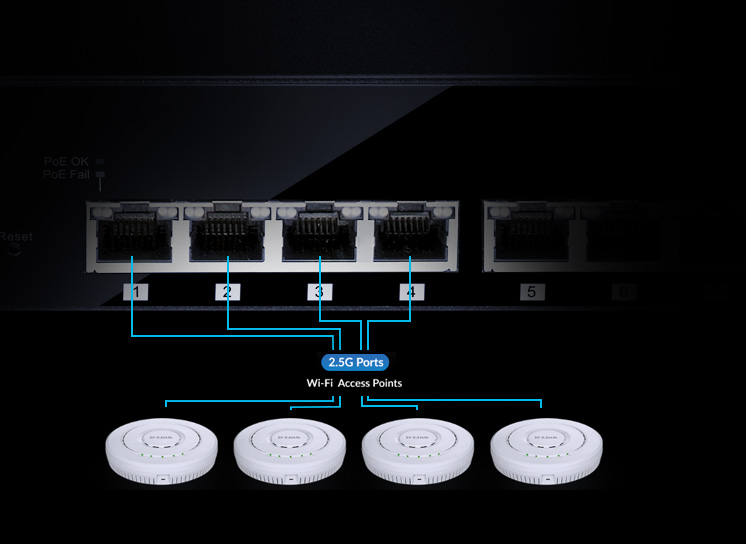

Ready for Wi-Fi 6.
You can add a Wi-Fi 6 Access Point to your network to any of the 2.5 Gbps ports to maximise throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, allowing your network to take full advantage of the efficiency and speeds provided by Wi-Fi 6.
Extensive Layer 2 features.
Utilise a full line up of Layer 2 features such as: port mirroring, Spanning Tree Protocol (STP/MSTP/RSTP),Link Aggregation Control Protocol (LACP), IGMP and MLD Snooping, auto voice and surveillance VLAN 2.0, and LLDP and LLDP-MED.
PoE and PoE+, with budgets up to 270W
PoE and PoE+, with budgets up to 270W
Includes a high-power budget for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.
Security with every port.
The innovative D-Link Safeguard Engine protects the switches against traffic flooding caused by malicious attacks and increases overall network reliability.
This switch also features support for traffic segmentation, Broadcast/Multicast/Unknown Unicast Storm Control, and DoS attack prevention.

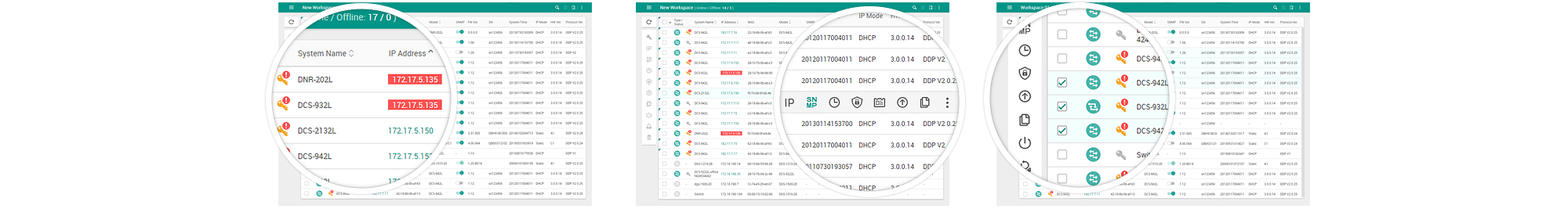

Versatile network management options.
The DMS-1100-10TP can be configured quickly and easily through the web-based management interface. Built-in smart wizard and dual configuration give network administrators more options and flexibility.
Also supports D-View Network Management Software that allows central management of critical network characteristics such as availability, reliability, resilience, and security.
Free Next-Business-Day Service
Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.
Our rapid-response technical support is designed to ensure businesses get the best support for their unique environment. Our extended warranty and enhanced service packages increases the lengths of warranties and further minimises downtime.
We're here to help.
Over 35 years in the networking industry
Innovative end‑to‑end solution experts for small businesses to large corporations around the world.
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
D-Link Limited Lifetime warranty
The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.
Related Products
Specification
|
Type
|
Smart managed |
|---|---|
|
Number of ports
|
5 to 14 ports |
|
Layer
|
Layer 2 |
|
Main type of ports
|
2.5GBASE-T Ethernet |
|
Type of uplink ports
|
10GbE SFP+ |
|
PoE options
|
802.3af 802.3at |
|
Number of PoE ports
|
8 |
|
PoE power budget
|
See datasheet |
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
|
Form Factor
|
Rackmountable |
|
Housing
|
Metal |
|
Jumbo frame
|
Supported
|
|
Cable diagnostics
|
Supported
|
|
MAC address
|
16K |
|
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
|
Ethernet ring protection switching (ERPS)
|
Supported
|
|
Link aggregation
|
802.3ad |
|
VLAN group (max static)
|
4K |
|
VLAN type
|
MAC-based Port-based |
|
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Voice VLAN |
|
Number of QoS queues per port
|
8 |
|
Bandwidth control
|
1 Kbps minimum granularity |
|
SNMP (v1/v2c/v3)
|
Supported
|
|
LLDP
|
Supported
|
|
LLDP-MED
|
Supported
|
