AC1300 Wave 2 Dual-Band Outdoor Unified Access Point
DWL-8720AP
- Product Status: Live
- 802.11ac Wave 2, up to 1.3 Gbps*
- IP67 weatherproof housing
- 2x2 MU-MIMO, detachable omni-directional antennas
- Up to 32 virtual access points per access point
- 802.11k Fast Roaming, and QoS with WMM
- WPA3 security

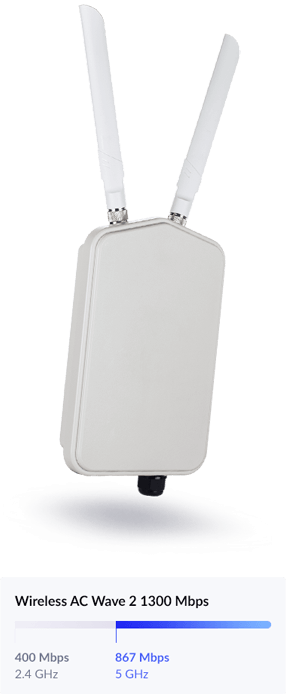

Wireless AC Wave 2
Up to 1.3 Gbps* combined throughput.
Dual-Band with band steering
Two bands to improve throughput and coverage as well as reduces co-channel interference.
2 x 2 MU-MIMO
Improved efficiency in handling throughput distribution to multiple devices connected to the network.
PoE & flexible installation
It can be wall or pole mounted and power over Ethernet enables installation in hard to reach locations.
802.11k Fast Roaming
Allows wireless clients to move freely, jumping from AP to AP without losing connectivity.1

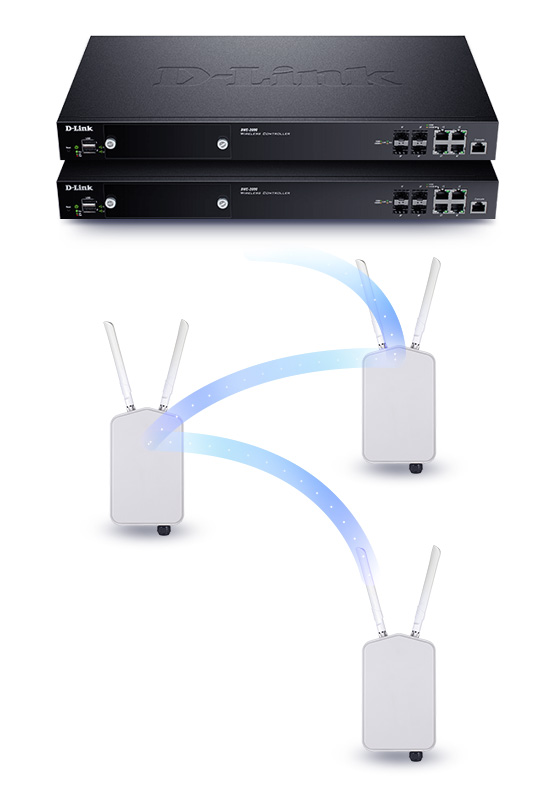

Self-healing
Set up a robust and resilient wireless network that can automatically heal itself when an AP fails.
Latest Wireless Security
Supports WPA3, MAC address filtering & Rogue AP detection.
Related Products
Wireless Controller
DWC-2000
Wireless Controller
DWC-1000
AX3600 Wi-Fi 6 Dual-Band Unified Access Point
DWL-X8630AP
Wireless AC2600 Wave 2 Dual-Band Unified Access Point
DWL-8620APE
Wireless AC2600 Wave 2 Dual-Band Unified Access Point
DWL-8620AP
Specs
Type
|
Hardware-managed AP |
---|---|
Wireless standard
|
Wireless AC Wave 2 |
Frequency band mode
|
Dual-band simultaneous |
Wireless speed
|
400 Mbps 2.4 GHz 867 Mbps 5 GHz |
Antenna type
|
2 detachable omni-directional antennas |
Antenna gain
|
3.5 dBi for 2.4 GHz 5 dBi for 5 GHz |
Power-over-Ethernet
|
Yes |
Wired interface
|
1 x Gigabit Ethernet LAN |
Console port
|
Supported
|
Indoor/outdoor
|
Outdoor |
Type of housing
|
Metal |
IP rating
|
IP67 |
Wireless modes
|
Access Point (AP) |
Advanced features
|
Fast Roaming MU-MIMO SmartBeam |
Maximum number of SSIDs
|
16 per radio |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|

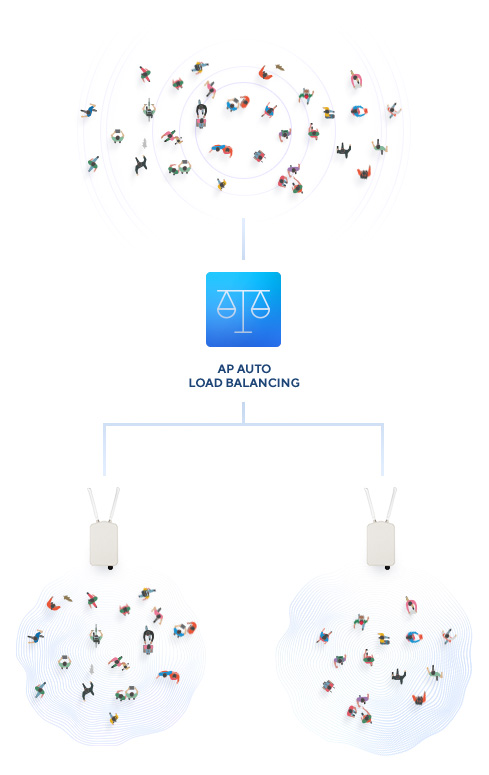

AP traffic load balance
|
Supported
|
L2 roaming
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
WPA3-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal L2/L3 fast roaming Rogue AP mitigation View neighbour AP information WIDS/WIPS |
Supported D-Link Wireless Controllers/Unified Switches
|
DWC-1000 DWC-2000 |
Management platform
|
Hardware controller: DWC Series |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
CLI
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
