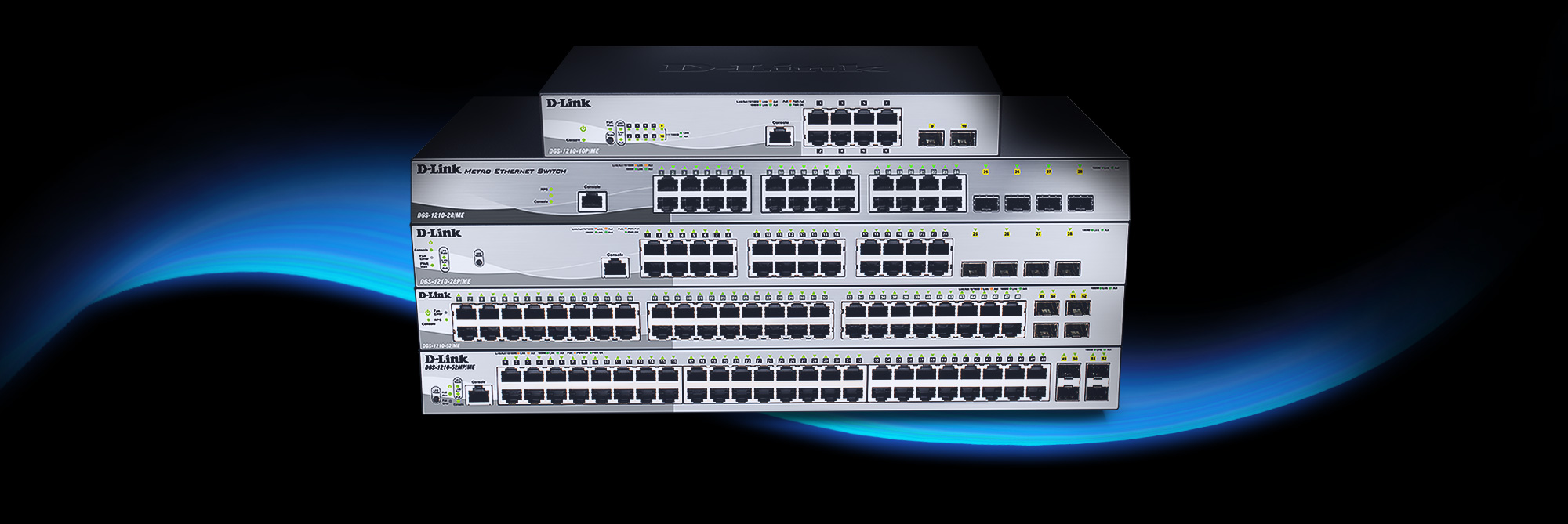

Gigabit Managed Switches
DGS-1210/ME Series
- Statut produit (Hardware version: B): Live

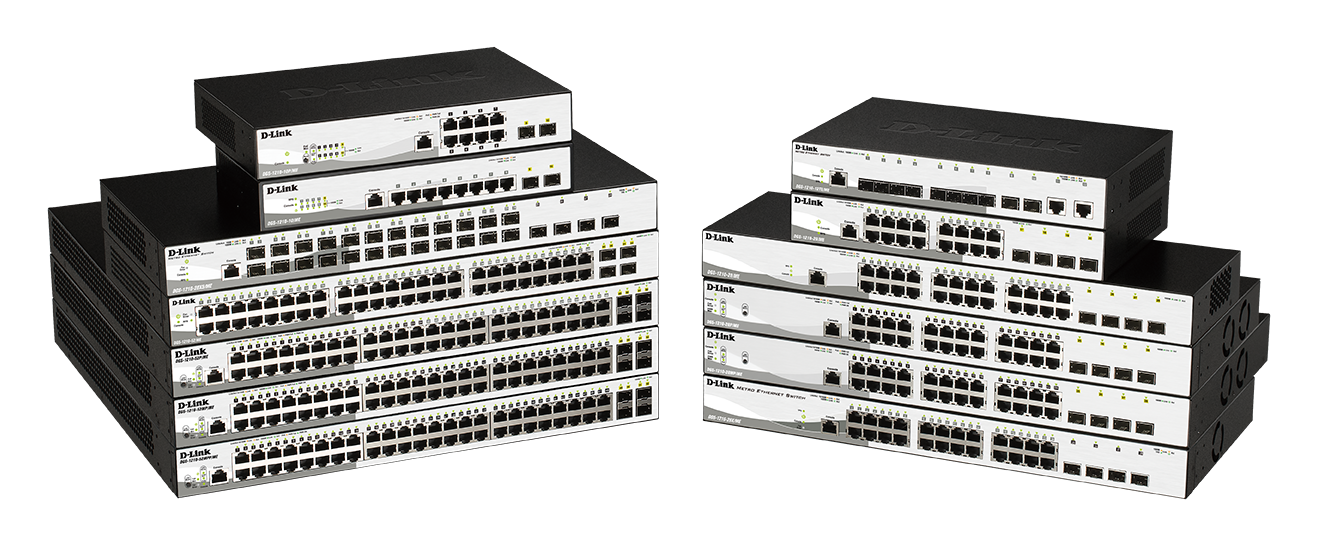

- Wide range of port configurations
- Advanced layer 2 features with static route and IP interface support
- PoE options up to 370W power budget
- Easy management with web UI
- Available in PoE and non-PoE variations
Télécharger la fiche technique.
Voir la liste de nos partenairesGigabit Managed Switches
The DGS-1210/ME Series Gigabit Managed Switches provide a diverse range of Gigabit port densities to accommodate various enterprise and public sector connectivity needs. With optional PoE to conveniently power edge devices, SFP ports to extend network connectivity, and advanced Layer 2 functionalities, the DGS-1210/ME Series is ideal for any enterprise access layer or large multi-site deployment and allows businesses to build a more secure and efficient network with advanced network security features and QoS.
Conception matérielle flexible
Large gamme de ports et de types de supports, y compris des ports 10/100/1000BASE-T RJ-45, des ports mixtes 100/1000 Mbit/s GbE/SFP et des ports 100/1000 Mbit/s SFP.
Grande capacité de commutation et budget PoE
Capacité de commutation jusqu’à 104 Gbit/s avec un budget PoE maximal de 370 W
Layer 2 avec les fonctionnalités de Layer 3 Lite
Équipé d’une gamme complète de fonctions L2 et prenant en charge les interfaces IP, ARP, IPv6 neighbor discovery (ND) et le routage par défaut
Sécurité du réseau
Safeguard Engine™ innovant de D-Link protège les switches contre l’inondation du trafic causée par des actes malveillants.
Gestion simplifiée
Prend en charge l’assistant réseau D-Link, les utilitaires Web UI et l’interface de ligne de commande (CLI) via Telnet ou SSH pour une utilisation facile
Garantie à vie limitée et service de remplacement le jour suivant
Inscrivez-vous pour bénéficier de la garantie à vie limitée de D-Link, avec un service de remplacement immédiat gratuit le jour ouvrable suivant inclus.
En savoir plus

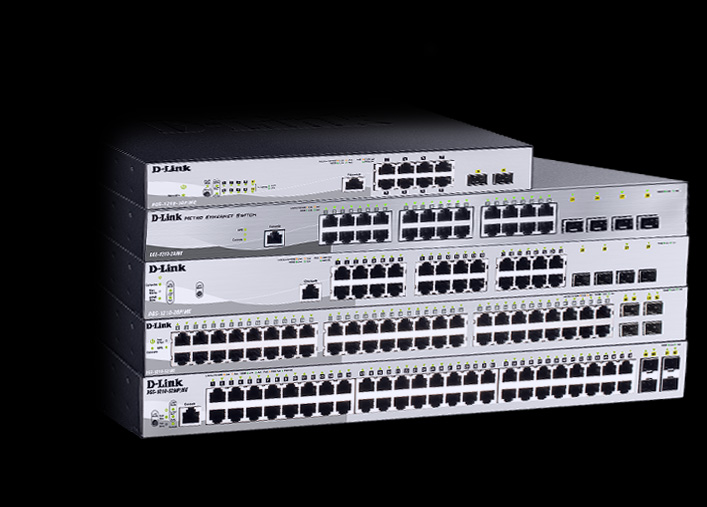

Gigabit Performance

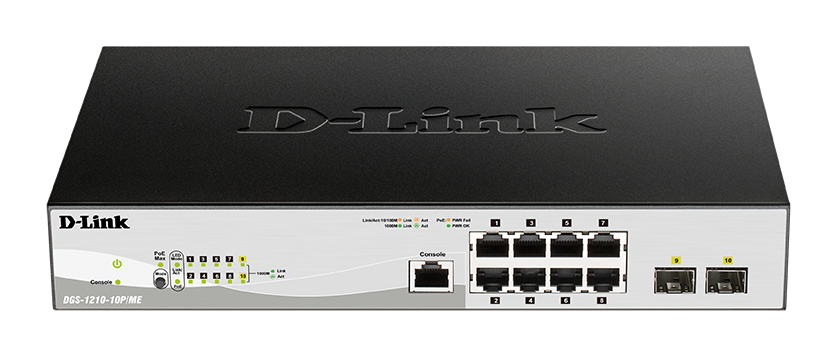

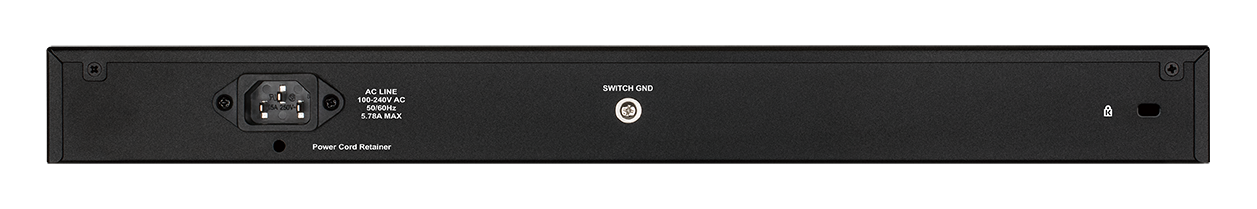

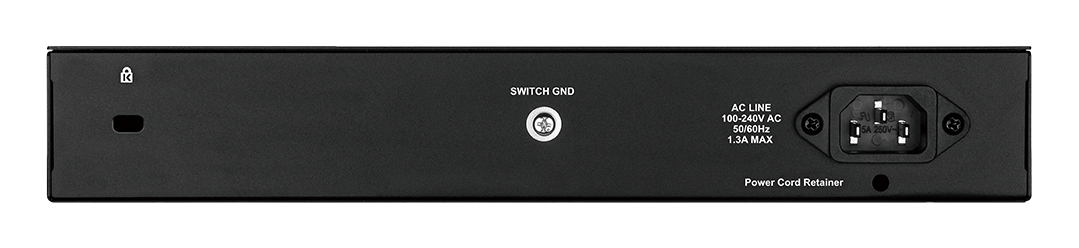

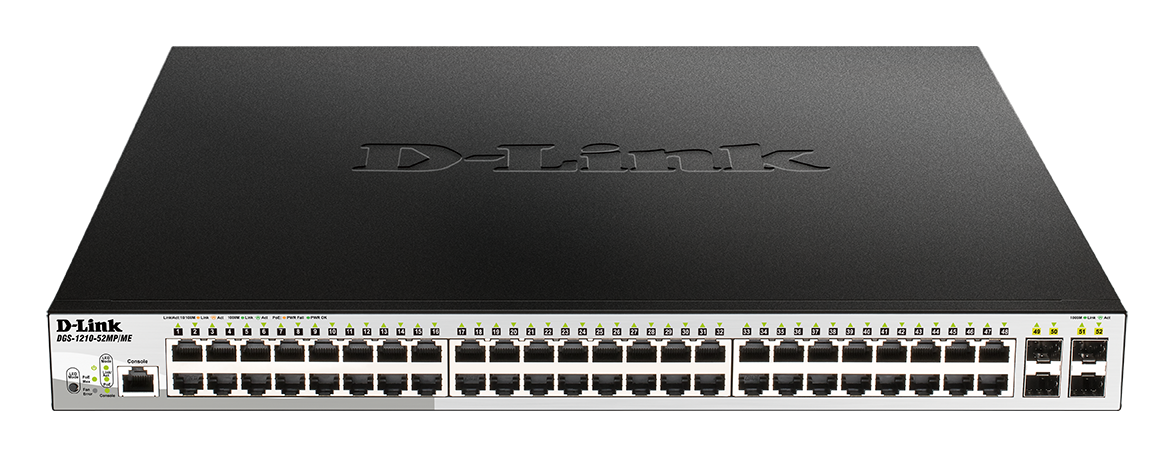

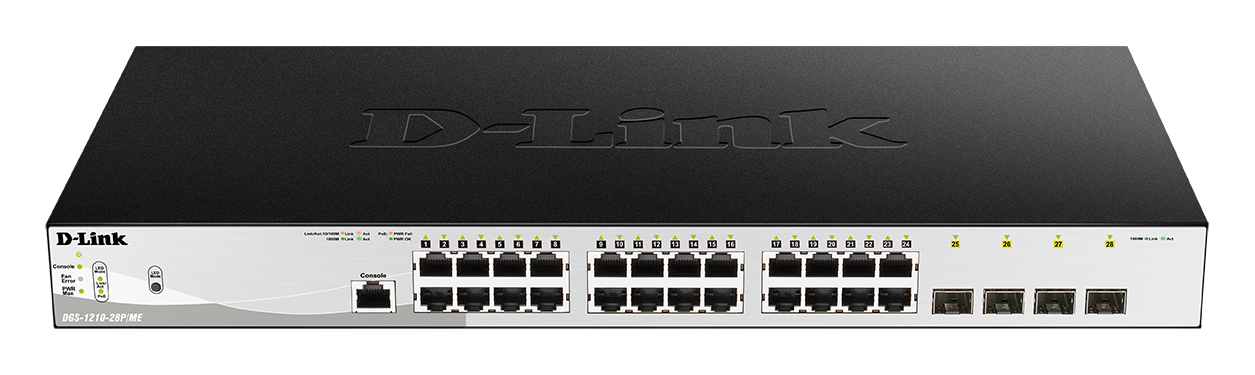

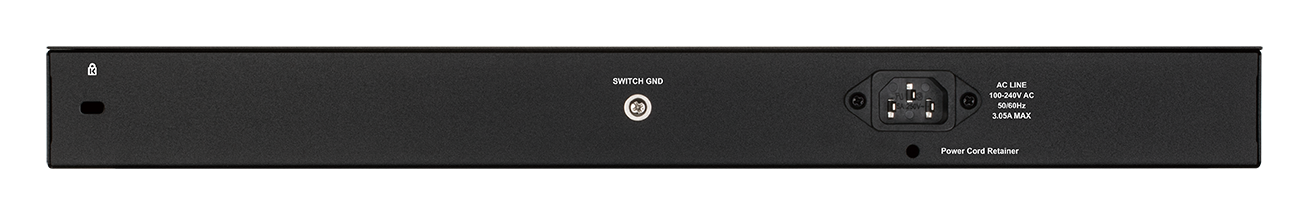

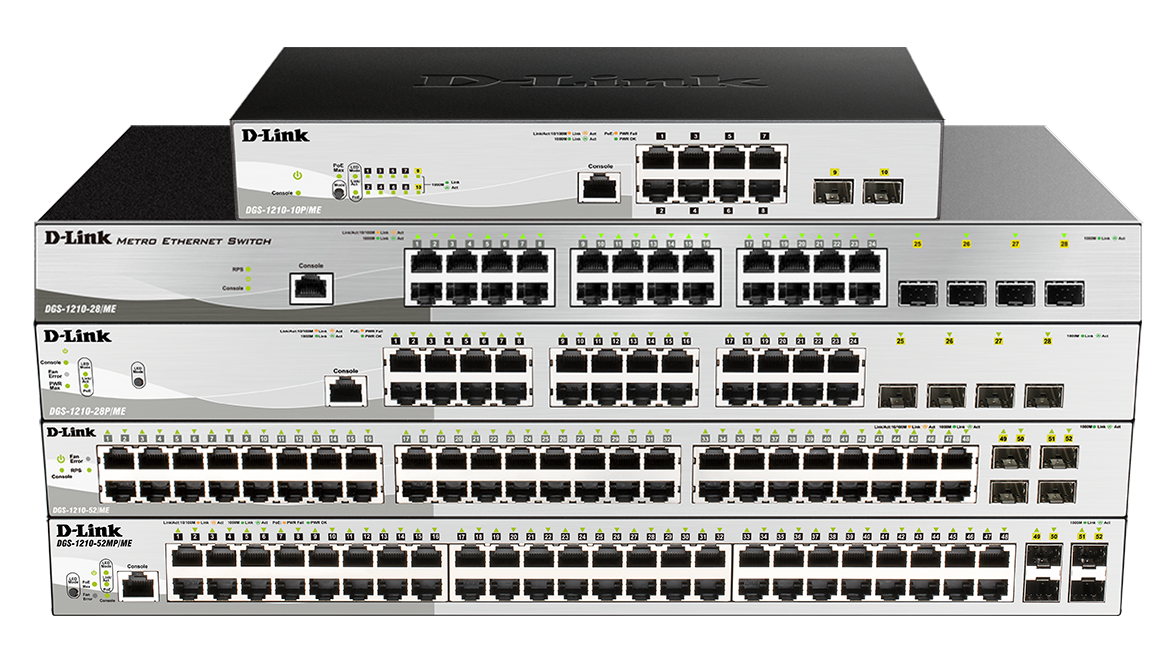

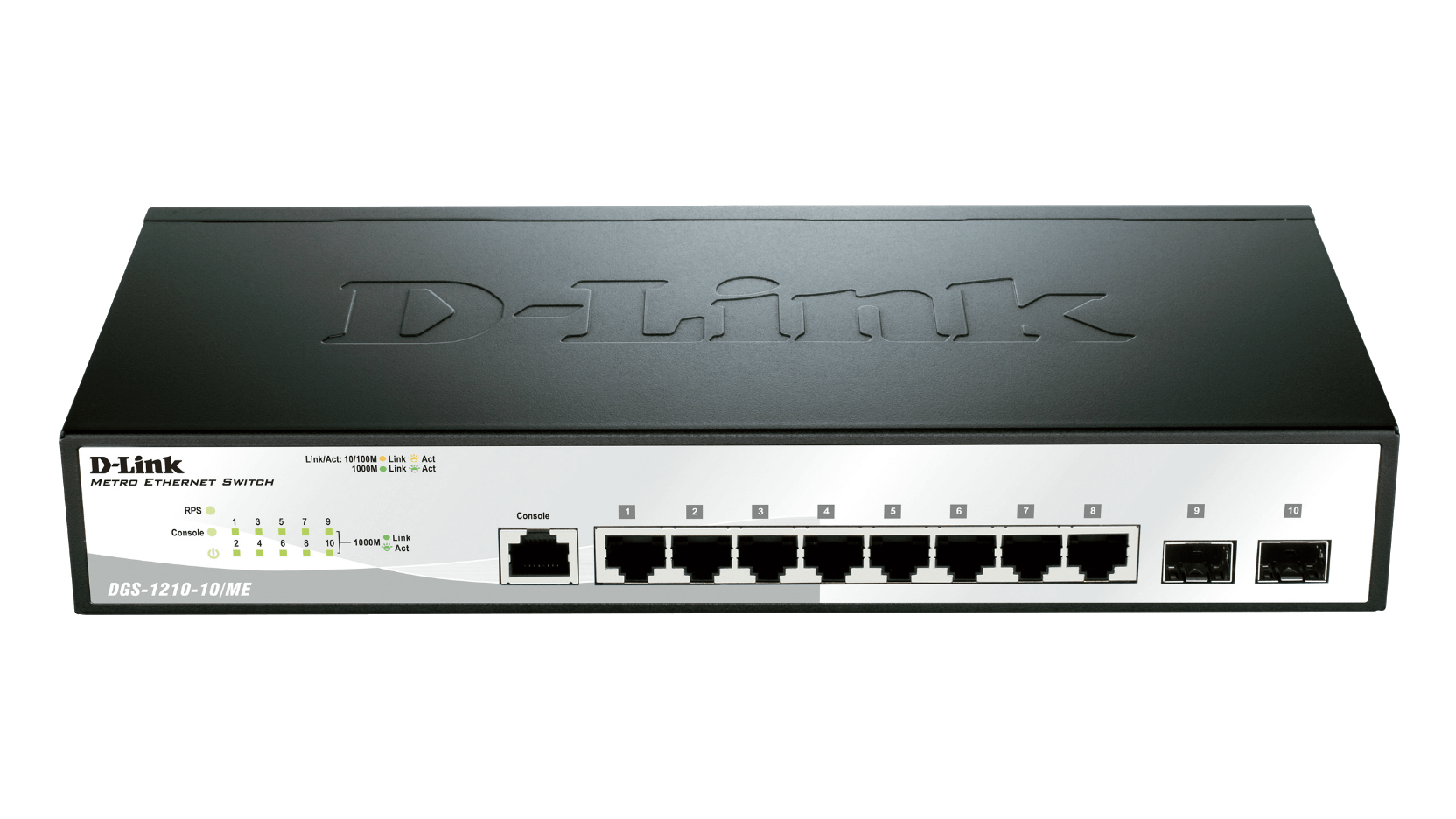

The DGS-1210/ME Series Gigabit Managed Switches come in a variety of port setups, including Gigabit Ethernet RJ-45 and SFP ports. The DGS-1210-10P/ME, DGS-1210-28P/ME and DGS-1210-52MP/ME switches feature Power over Ethernet (PoE), allowing compatible devices to be installed and powered in remote locations without immediate access to power outlets.

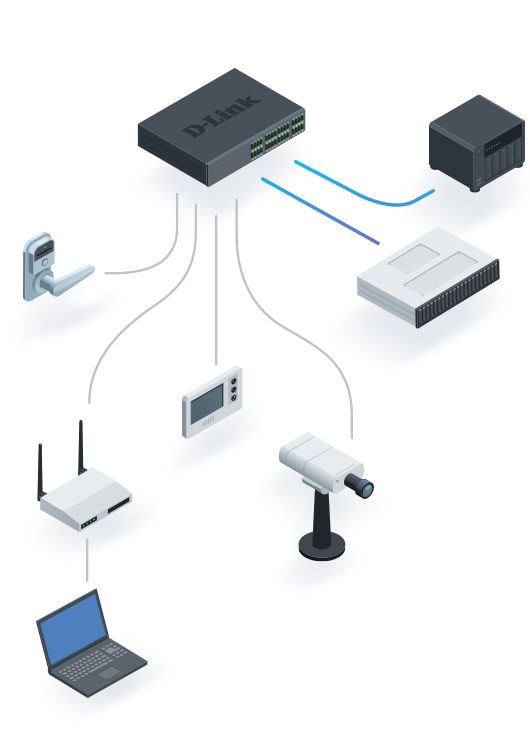

Efficient and Resilient Networking
For mission critical environments, the DGS-1210/ME Series Gigabit Managed Switches support IEEE 802.1D 2004 edition, 802.1w, and 802.1s Spanning Tree Protocols (STP). The Spanning Tree Protocol allows the switches to participate in Spanning Tree topology, providing an alternative Layer 2 path in the event of a network failover. The switches also support IEEE 802.3ad link aggregation, which enables multiple ports to be grouped to form a single virtual port, increasing bandwidth and redundancy for higher availability. This series furthermore features IEEE 802.1p Quality of Service (QoS), allowing for real-time traffic classification into Weighted Round Robin (WRR) and strict priority levels mapped to 8 queues. Advanced traffic classification parameters allow the network to be tuned for flexible configurations for specific multimedia applications such as VoIP or IPTV.
Multicast Applications
The DGS-1210/ME Series features a full set of L2 multicast functions, including IGMP snooping, IGMP filtering, fast leave, and multicast traffic configuration for specific ports. With L2 multicast support, the DGS-1210/ME Series is ready and capable of handling growing IPTV applications. Host-based IGMP/MLD snooping allows for multiple multicast subscribers per physical interface, and ISM VLAN sends multicast streams in a multicast VLAN, saving bandwidth on the backbone. Additionally, ISM VLAN profiles allow users to bind or replace the predefined multicast registration information to subscriber ports quickly and easily.
Traffic & Bandwidth Control
Integrated bandwidth control allows network administrators to define the throughput levels for ingress and egress bandwidth. It provides a minimum granularity of 64 Kbps for ingress port and flow-based bandwidth control, and a minimum granularity of 64 Kbps for egress queue bandwidth. The DGS-1210/ME Series also supports traffic control, which optimizes performance by dropping packets when exceeding a set threshold, while port mirroring helps administrators facilitate traffic diagnostics and track network performance. The DGS-1210/ME Series also provides IGMP snooping with IGMP authentication to prune multicast traffic and to optimize available bandwidth.
Management Capabilities
A user-friendly web interface gives administrators access to advanced management features such as DHCP auto-configuration. This enables switches to load their configuration from a TFTP server once they have been assigned an IP address, allowing central management of device configurations. The switches support Link Layer Discovery Protocol (LLDP), which advertises the device’s capabilities and identity to the local network, allowing administrators to better manage their network topology. Each port also supports cable diagnostics, which can be used to troubleshoot cable length and functionality problems remotely, resulting in lower management overheads.
Security & Authentication
The DGS-1210/ME Series supports IEEE 802.1X port-based/host-based access control, guest VLAN, and RADIUS/TACACS+ authentication for strict access control to the network. The IP-MAC-Port Binding (IMPB) feature allows administrators to associate a source IP address with a designated MAC address and also offers the flexibility to define the port number to enhance user access control. The built-in D-Link Safeguard Engine™ protects the CPU from broadcast, multicast, and unicast flooding by automatically trapping packets and logging events in these situations. In addition, the Access Control List (ACL) feature enhances network security and switch performance.
Service gratuit le jour ouvrable suivant
Profitez de notre service gratuit Next Business Day Service (Expédition le jour ouvré suivant), en standard, pour remplacer rapidement les équipements défectueux.
Notre assistance technique à réponse rapide est conçue pour que les entreprises obtiennent la meilleure assistance possible dans leur environnement unique. Notre garantie étenue et nos forfaits de services améliorés augmentent la durée des garanties et minimisent les temps d'arrêt. Vous pouvez même opter pour notre service le jour même (Same Business Day Service), qui garantit la livraison du produit de remplacement dans les 4 heures suivant la confirmation de la défaillance du produit.
Nous sommes là pour vous aider.
Plus de 35 ans d’expérience dans la gestion de réseau.
Experts des solutions de bout en bout innovantes pour les petites et grandes entreprises dans le monde.
Une assistance facilement accessible.
Une assistance spécialisée dans 16 pays. Nos équipes d’assistance sont à votre disposition pour vous aider.
Garantie à vie limitée de D-Link
La qualité et la fiabilité des produits D-Link nous permettent de fournir une garantie à vie limitée leader du secteur avec chaque enregistrement.
Produits apparentés
Nombre de ports
|
16 à 28 ports 48 à 52 ports 5 à 10 ports |
---|---|
Niveau
|
Niveau 2+ |
Type principal des ports
|
1000BASE-T Gigabit Ethernet |
Type de ports uplink
|
SFP |
Capacité de commutation
|
104 Gbps 20 Gbps |
Options PoE
|
802.3af 802.3at |
Nombre de ports PoE
|
24 48 |
Budget PoE
|
See datasheet See datasheet See datasheet |
D-Link Green
|
Supported
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
Format
|
Rackable |
Type de boîtier
|
Métallique |
Jumbo frame
|
Supported
|
Diagnostic du câble
|
Supported
|
Adresse MAC
|
16K |
Protocole Spanning Tree
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Agrégation des liens
|
802.3ad |
Groupe VLAN (statique max)
|
4K |
Type VLAN
|
GVRP MAC-based Port-based Protocol-based |
VLAN avancé
|
Double VLAN (Q-in-Q) ISM VLAN VLAN asymétrique |
IPv6 Ready
|
Supported
|
Nombre de queues QoS queues par port
|
8 |
CoS basée sur les contenus
|
Supported
|
Contrôle de la bande passante
|
Granularité 64 Kbps minimum |
ACL type
|
Ingress |
ACL based on packet contents
|
Supported
|
Time-based ACL
|
Supported
|
Protocole d'encryptage supporté
|
SSH SSL (v1/v2/v3) |
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
ARP spoofing
|
Supported
|
BPDU attack protection
|
Supported
|
802.1X access control
|
Supported
|
Microsoft NAP support
|
Supported
|
Authentification RADIUS/TACACS+
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
RMON v1/v2
|
Supported
|
LLDP
|
Supported
|
ICMPv6
|
Supported
|
