Requirements:

Firmware 4.4.0.1_B006 or later
Note: Recovery procedure only supports after v.4.4.0.1_B006
Download from site...

Step 1 – Press and hold reset button

Step 2 – Power on DWL-6700AP by connecting AP to the PoE on power injector

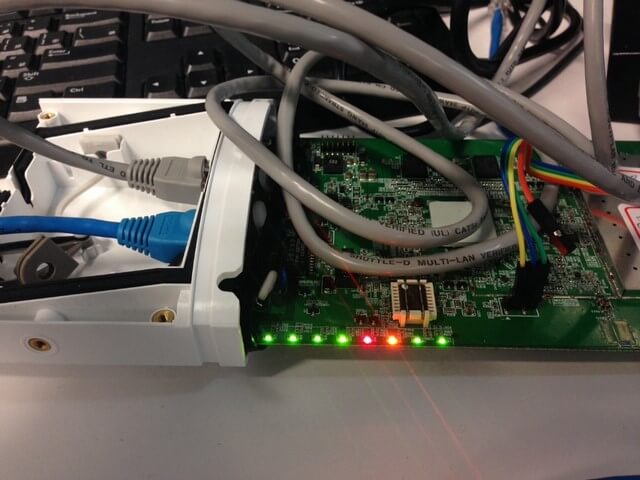

Step 3 – Wait for ALL LEDs to turn on (as below):



Once completed (as Step 3), release the reset button

Step 4 – Connect cable from LAN (on PoE Injector) to PC and configure the LAN card of the PC to:
IP: 192.168.0.x

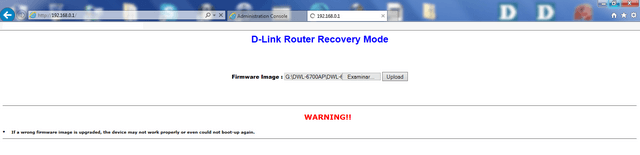

Step 5 – Open a Web-browser and go to the recovery mode Web-UI (192.168.0.1)



Step 6 – Use the Web-UI to upload the firmware and wait approximately 60 seconds
Or open cmd.exe and enter:
ping 192.168.0.1 –t
If it doesn’t respond then it has completed the recovery and go to Step 7

Step 7 – Once the above is completed, configure the LAN card of PC to:
10.90.90.x

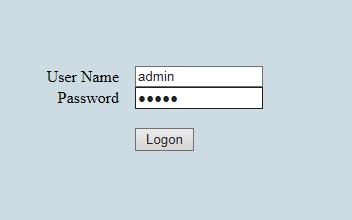

Step 8 – Open a web browser and enter:
10.90.90.91



Username: admin
Password: admin (default)

You should now have the DWL-6700AP recovered and ready to configure.
