How to Access Web UI when Managed Mode - DWC and DWS- Series
Step 1 – Set AP in Debug Mode

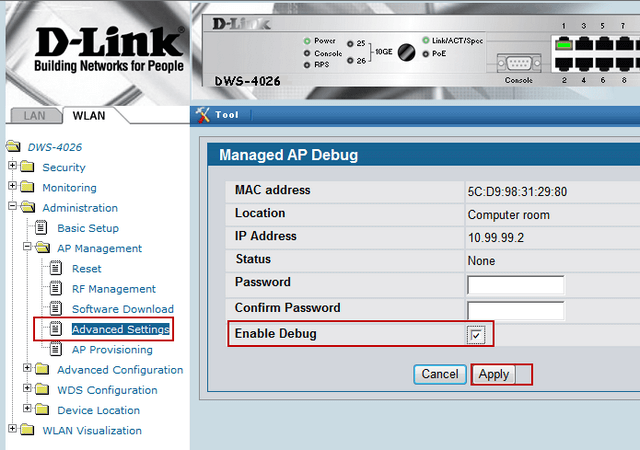

DWS-4026, DWS-3160, DWS-3024L:

Click “Enable Debug” and enter a password

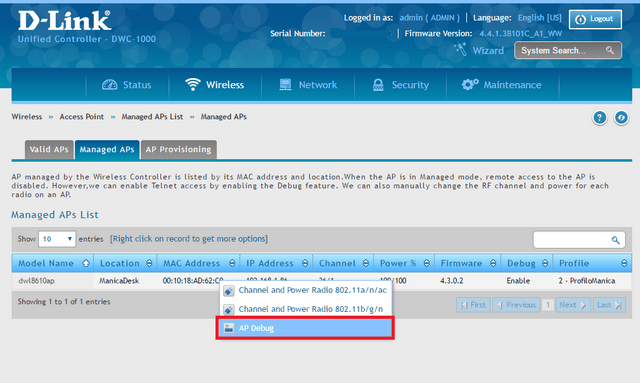

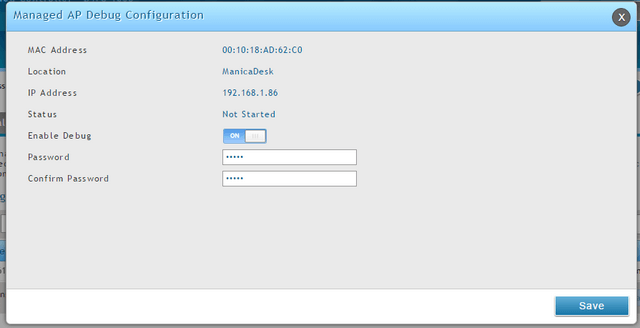

DWC-1000 and DWC-2000:

Click “Enable Debug” - ON and enter a password, confirm then click “Save”
Step 2 – Connect to the IP of the AP via Telnet (Port 23)

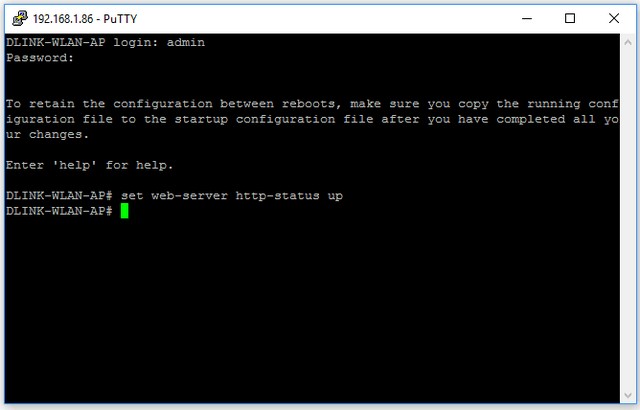

Step 3 – Enter the following command:

DLINK-WLAN-AP# set web-server http-status up
Login:

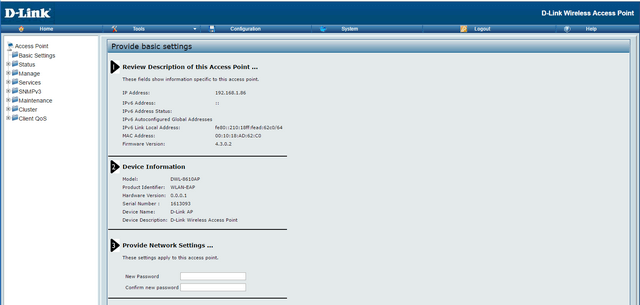

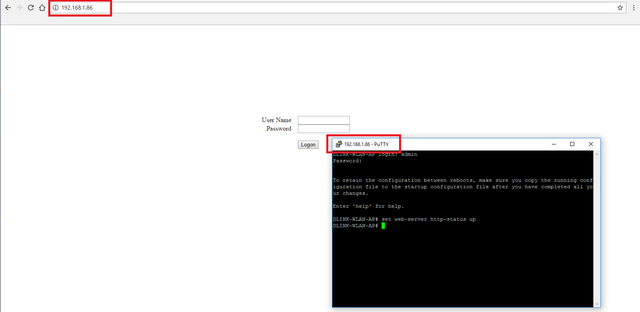

Web-UI Access:

DWS-4026, DWS-3160, DWS-3024L:

Click “Enable Debug” and enter a password
DWC-1000 and DWC-2000:
Click “Enable Debug” - ON and enter a password, confirm then click “Save”
Step 2 – Connect to the IP of the AP via Telnet (Port 23)
Step 3 – Enter the following command:
DLINK-WLAN-AP# set web-server http-status up
Login:
Web-UI Access:
