Wireless AC1200 Wave 2 Dual-Band Access Point
DAP-1665
- Product Status (Revision B): End of Sale
There's a new version of this product:

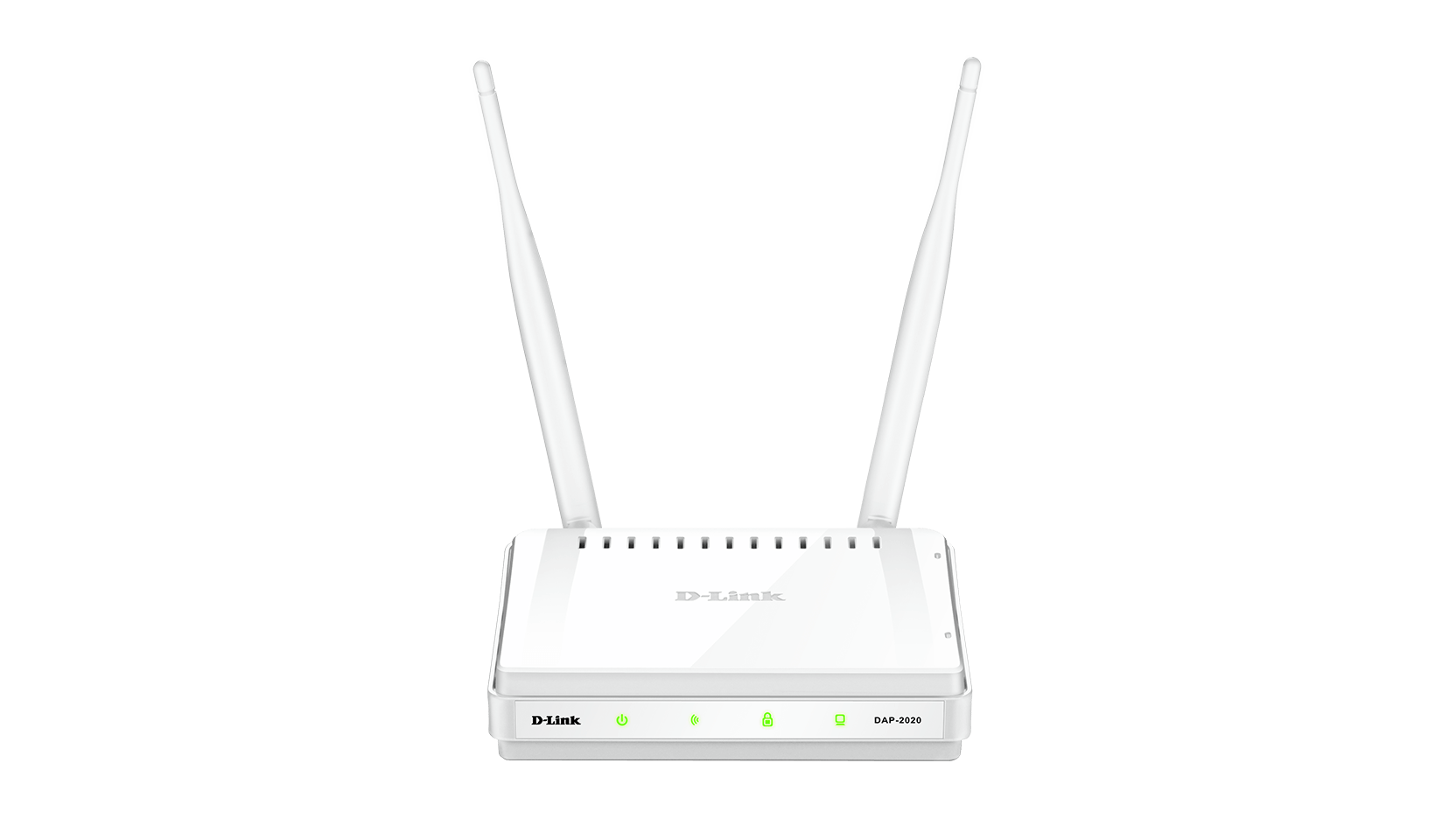

DAP-2020
Wireless N Access Point
Overzicht
Overzicht
Performance without Compromise

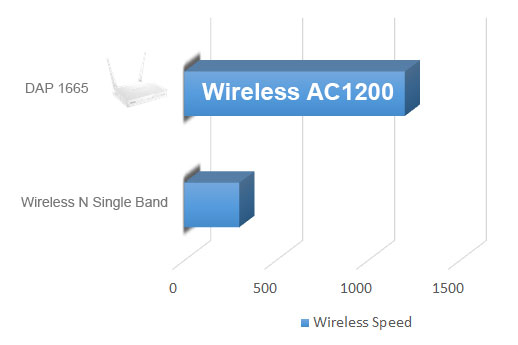

Incorporating industry-leading Wireless AC Wave 2, the DAP-1665 delivers up to 3 times* the performance of Wireless N by supporting simultaneous dual-band operation.
Wireless Security
Advanced wireless security features including MAC address, filter, wireless LAN partition, user limit as well as the latest WPA/WPA2 wireless encryption to help protect your network and wireless data.
Flexible Wireless
The DAP-1665 delivers a combined wireless speed of up to 1200 Mbps1 with MU-MIMO and beamforming, with increased capacity and range enabling your Wi-Fi to reach more places in your home or office.

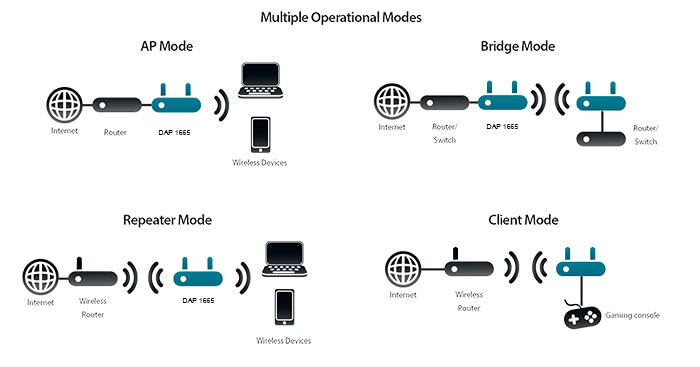

Flexible Deployment Options
Supporting up to 7 different operating modes, the DAP-1665 can operate as an Access Point (AP), bridge, bridge with AP, repeater, wireless client, WISP client or repeater, giving you the flexibility to tailor it to your network's needs.

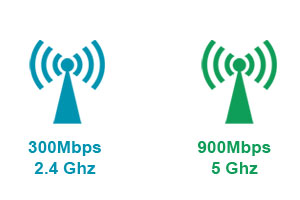

Simultaneous Dual-Band Wireless
Supports up to 900 Mbps for the 5 Ghz band and up to 300 Mbps for the 2.4 Ghz band.

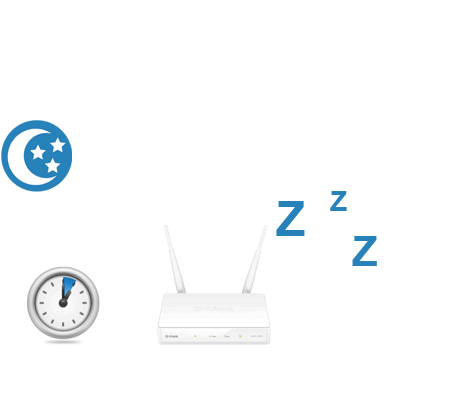

Smart Design
The DAP-1665 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.
*When compared to Wireless N300.
1 Maximum wireless signal rate derived from 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and
network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Wireless range and speed rates are D-Link RELATIVE performance measurements based on the wireless
range and speed rates of a standard Wireless N product from D-Link.
Gerelateerde Producten
Specs
|
Type
|
Software Managed AP |
|---|---|
|
Wireless standard
|
Wireless AC Wave 2 |
|
Frequency band mode
|
Dual-band simultaneous |
|
Wireless speed
|
300 Mbps 2.4 GHz 867 Mbps 5 GHz |
|
Antenna type
|
2 detachable omni-directional antennas |
|
Antenna gain
|
3 dBi for 2.4 GHz 5 dBi for 5 GHz |
|
Wired interface
|
1 x Gigabit Ethernet LAN |
|
Type of housing
|
Plastic |
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
|
Geavanceerde Eigenschappen
|
MU-MIMO |
|
Maximum number of SSIDs
|
4 per radio |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
TKIP/AES encryption
|
Supported
|
|
WLAN partition
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
DHCP server
|
Supported
|
|
802.1D STP
|
Supported
|
|
IGMP snooping
|
Supported
|
|
NTP
|
Supported
|
|
IPv6
|
Supported
|
|
WEB
|
Supported
|
|
Syslog
|
Supported
|
