Gigabit PoE+ Injector

DPE-301GI

  • Product Status (Revision A): Live

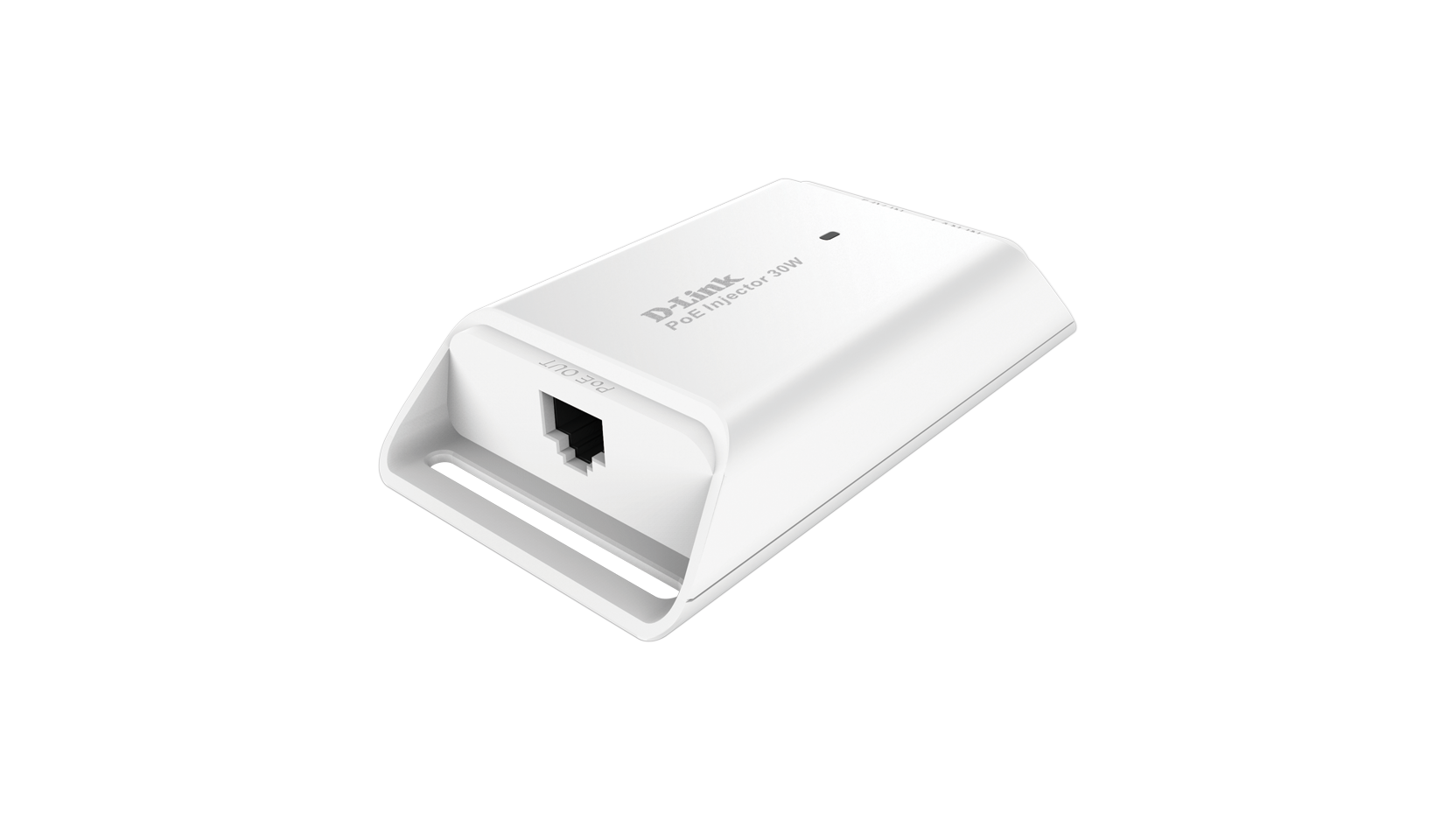

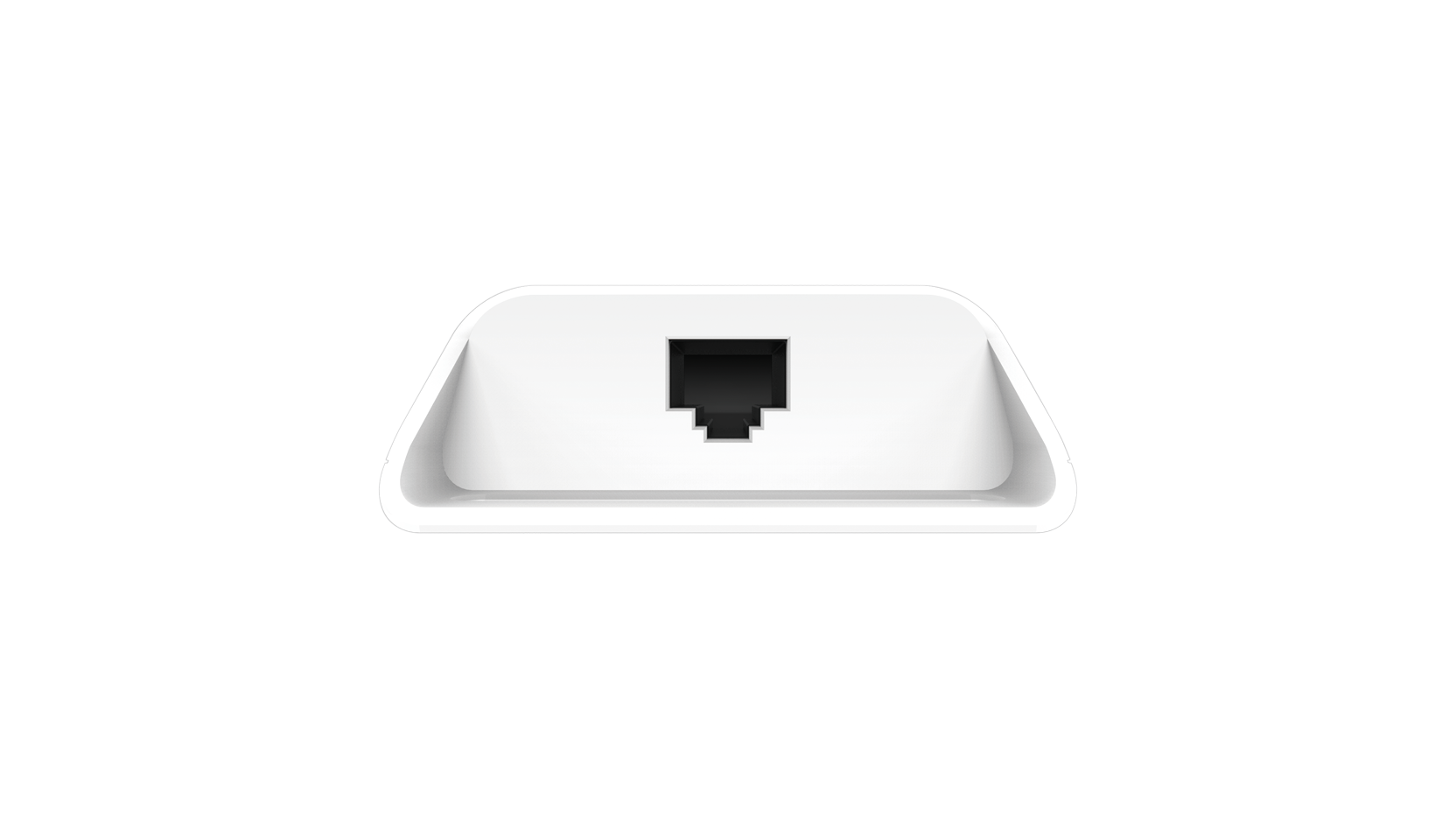

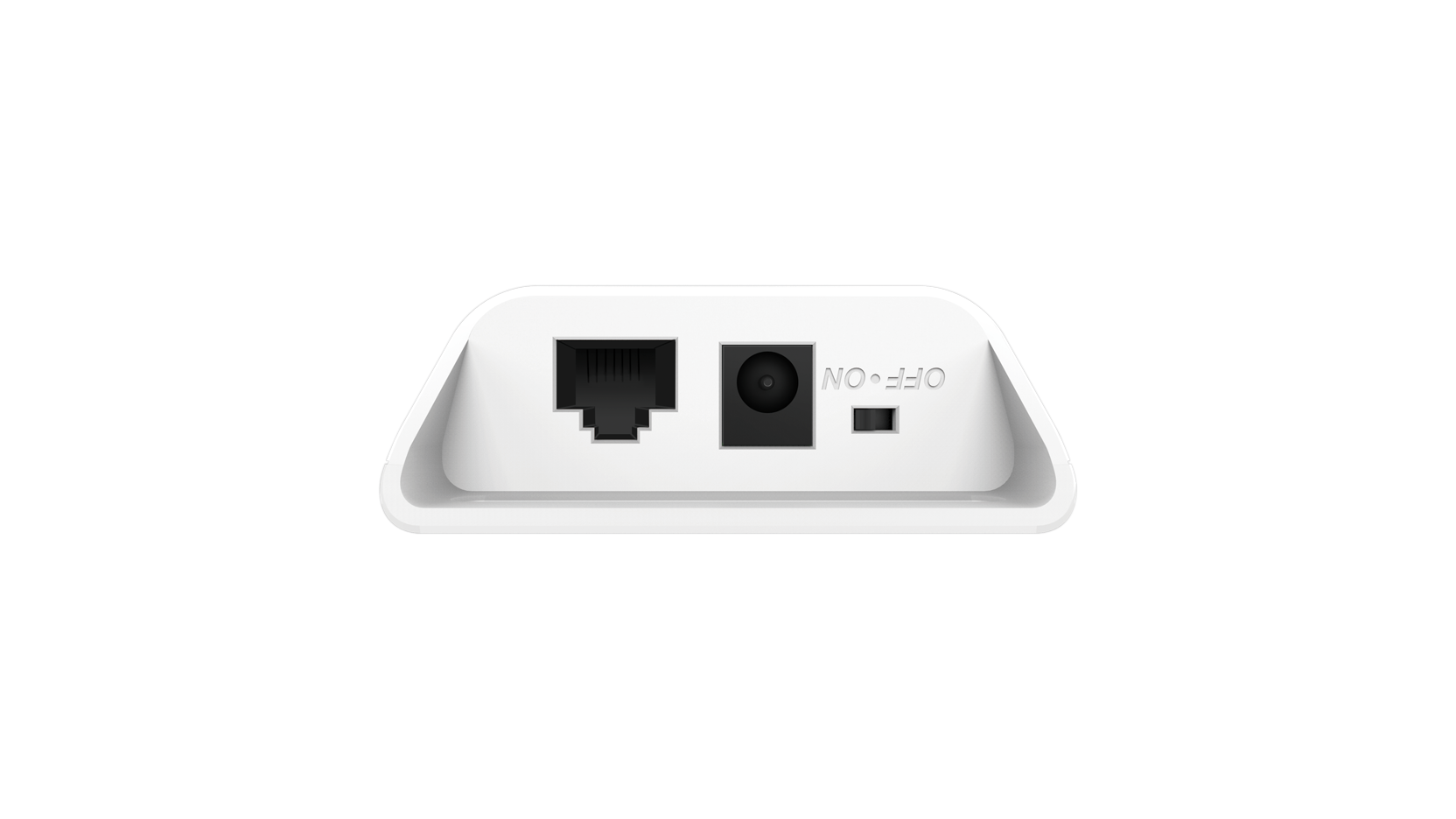

The IEEE 802.3at (PoE+)/802.3af (PoE) compliant DPE-301GI Gigabit PoE+ Injector is designed to supply data and up to 30 watts of power to PoE-enabled devices such as network cameras and wireless access points.


Download de datasheet.

Alle Verkooppunten

Extend Your Existing Wireless Network

The IEEE 802.3at (PoE+)/802.3af (PoE) compliant DPE-301GI Gigabit PoE+ Injector is designed to supply data and up to 30 watts of power to PoE-enabled devices such as network cameras and wireless access points.

The DPE-301GI gives you the ability to mount your PoE device virtually anywhere in a building, such as on ceilings or near entryways, by eliminating the need for a nearby power outlet.

D-Link's DPE-301GI combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet (PoE) signal for transmission over a single Ethernet cable, to up to 100 metres1 distance.

Examples where the DPE-301GI is ideal include powering network devices such as professional network cameras with pan/tilt/zoom, night vision or internal heating/cooling features, as well as the latest wireless access points that support the high throughput 802.11ac standard.

1 Maximum distance per 802.3u specifications.

Gerelateerde Producten

Wireless AC 1200 Wave 2 Dual-Band Unified Access Point met Smart Antenne
DWL-6620APS
Meer lezen
Wireless AC2200 Wave 2 Tri-Band Unified Access Point
DWL-7620AP
Meer lezen
Wireless AC2600 Wave 2 Dual-Band Unified Access Point
DWL-8620AP
Meer lezen
Wireless AC2600 Wave 2 Dual-Band Unified Access Point
DWL-8620APE
Meer lezen
Main type of ports
1000BASE-T Gigabit Ethernet
Type of uplink ports
1000BASE-T Gigabit Ethernet
PoE options
802.3at
Number of PoE ports
1
Fanless
Supported
Housing
Plastic
Versie Datum Type Bestandsgrootte
Blad in het Engels - - - Download
Versie Beschrijving Datum Type Bestandsgrootte
Installatiehandleiding Installatiehandleiding - - - Download
Versie Beschrijving Datum
Conformiteitsverlaring Rev.A1 Conformiteitsverlaring Rev.A1 - Download
