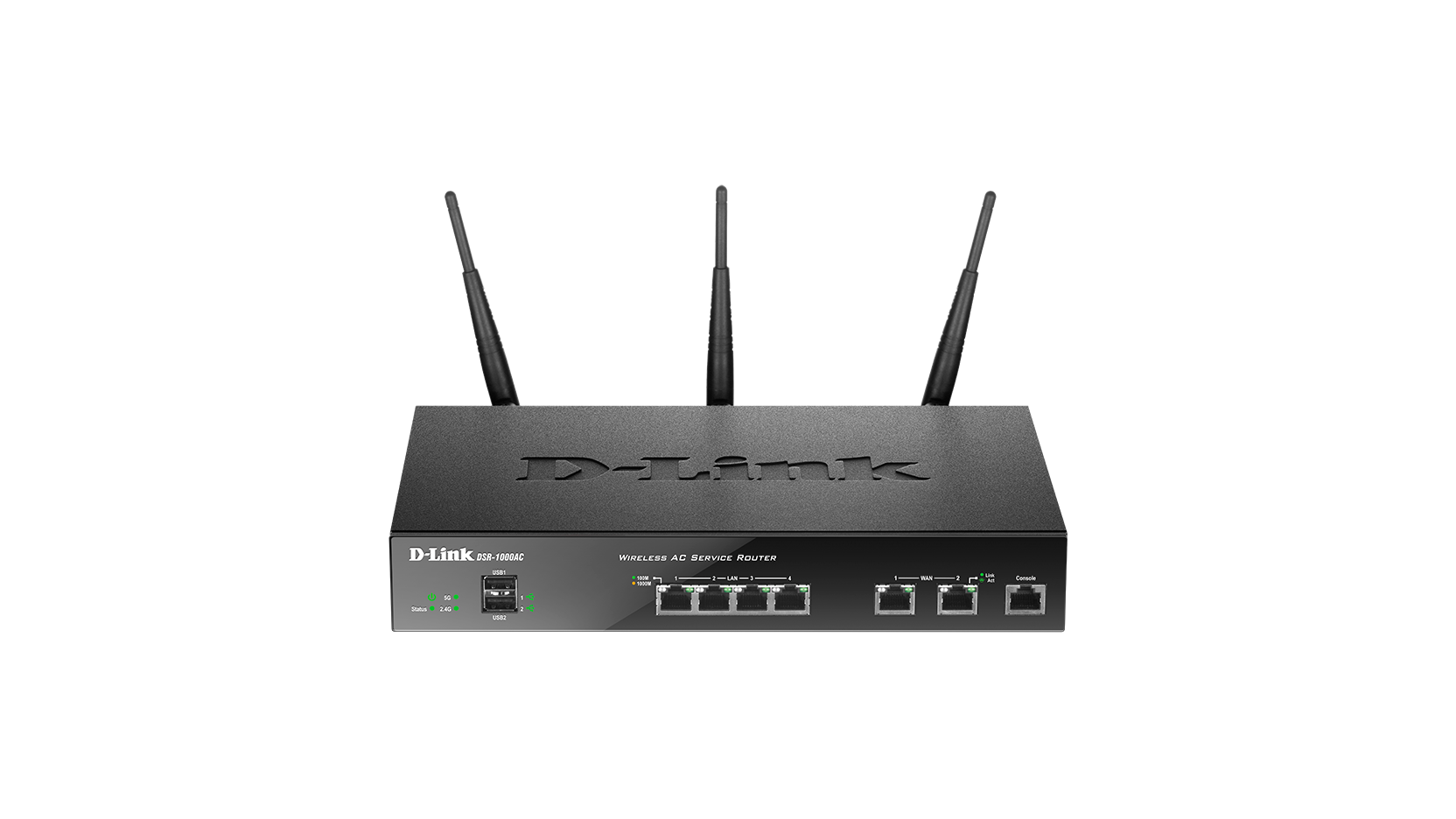

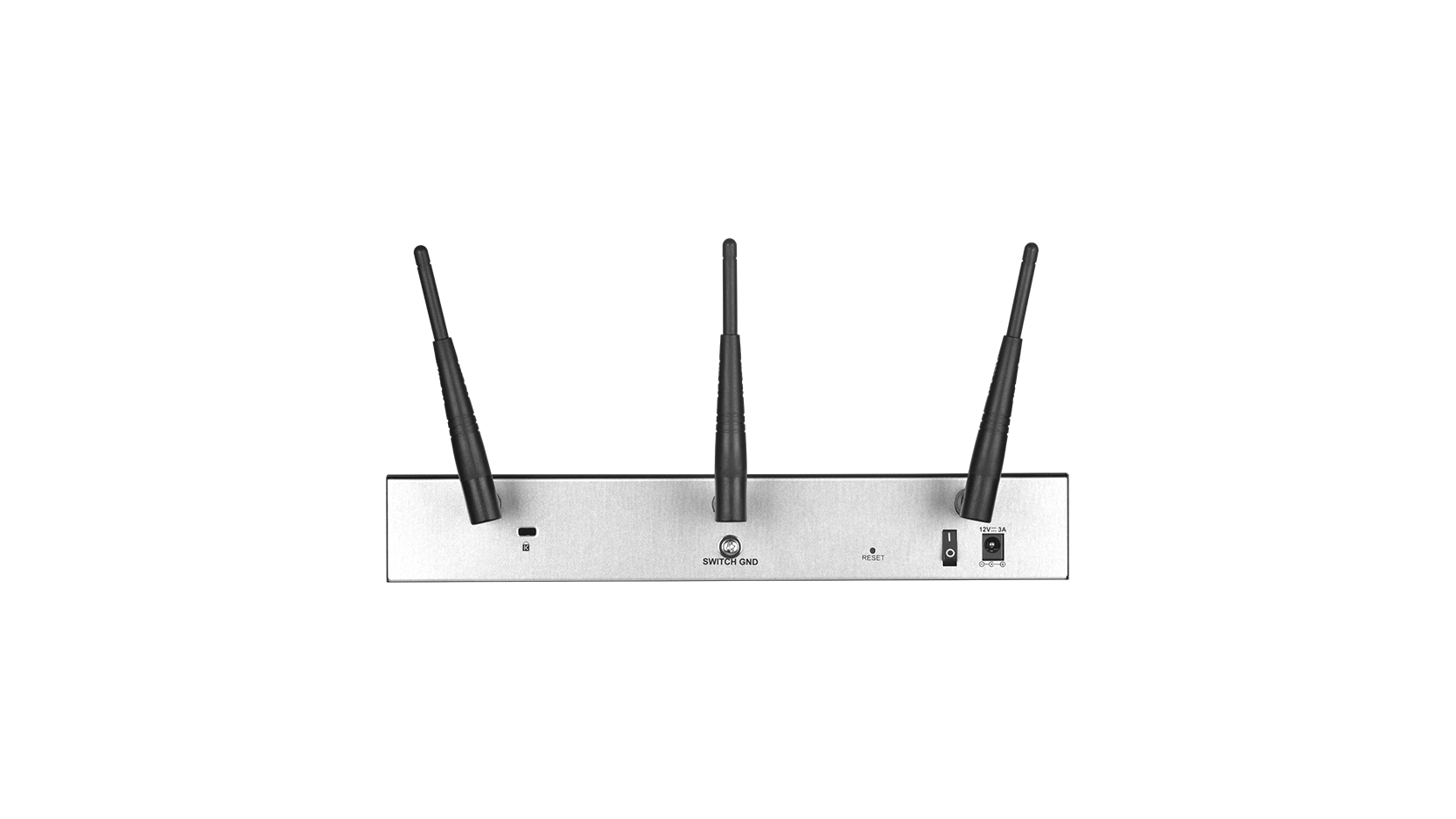

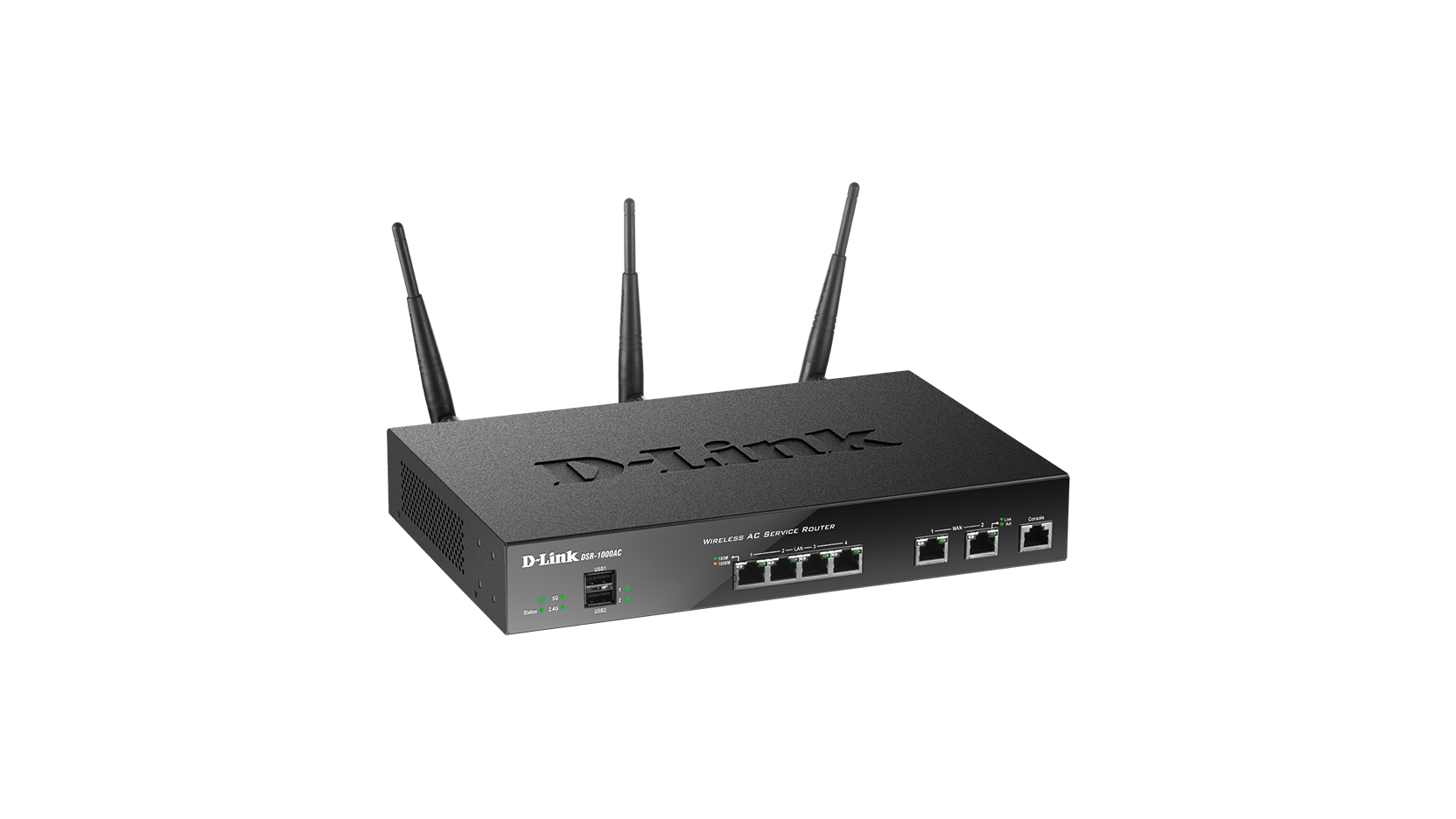

Wireless AC Unified Services VPN Router

DSR-1000AC

  • Product Status (DE_RevA): End of Sale

The DSR-1000AC Wireless AC Unified Services VPN Router provides a secure, high-performance networking solutions to address the growing needs of small and medium businesses. Next generation wireless performance provides wireless speeds of up to 1300 Mbps.

Comprehensive Management Capabilities

The DSR-1000AC includes dual WAN Gigabit Ethernet ports to provide high availability for your WAN or Internet connections. Traffic can be load-balanced across the links with Outbound Load Balancing, increasing the performance and availability of business applications. It supports mobile broadband networks via an optional USB modem1, such as 3G or 4G dongles.


Web Authentication Capabilities

Captive Portal allows employees and guest users to be easily authenticated and authorised by accessing a customised landing page. Users can be authenticated by a local database, RADIUS, LDAP, Microsoft Windows Active Directory, NT Domain and POP3 server. A maximum of four servers can be configured at any one time.


Complete and Robust VPN Features

A fully featured virtual private network (VPN) provides your mobile workers and branch offices with a secure link to your network. The DSR-1000AC is capable of Secure Sockets Layer (SSL) VPN tunnels, as well as Generic Routing Encapsulation (GRE) tunnels, empowering your mobile users by providing remote access to a central corporate database. Site-to-site VPN tunnels use IP Security (IPSec) Protocol, Point-to-Point Tunneling Protocol (PPTP), or Layer 2 Tunneling Protocol (L2TP) to facilitate branch office connectivity through encrypted virtual links. OpenVPN allows mobile users to connect to the intranet via encrypted links with their PC, laptops or mobile devices.

1 The following portable modem are supported: DWM-152 A1/A2/A3, DWM-156 A1/A2/A3/A5/A6/A7, DWM-157
Type
VPN security router
Wireless standard
Wireless AC
Frequency band mode
Dual-band simultaneous
Wireless speed
1300 Mbps 5 GHz
450 Mbps 2.4 GHz
Antenna type
3 detachable omni-directional antennas
Antenna gain
2 dBi for 2.4 GHz
2 dBi for 5 GHz
Wired interface
2 x Gigabit Ethernet WAN
4 x Gigabit Ethernet LAN
USB ports
2 x USB 2.0
Console port
Supported
Indoor/outdoor
Indoor
Type of housing
Metal
Wireless modes
Access Point (AP)
Geavanceerde Eigenschappen
MIMO
Maximum number of SSIDs
4
WEP 64/128 bit
Supported
WPA/WPA2-Personal/Enterprise
Supported
TKIP/AES encryption
Supported
Firewall throughput
950 Mbps
VPN throughput (3DES)
250 Mbps
Concurrent sessions
100000
Firewall policies
600
Internet connection type
Multiple PPPoE
PPPoE/L2TP/PPTP
Static/Dynamic IP
Firewall system
Dynamic DNS
Dynamic route
Inter-VLAN route
Intrusion prevention system (IPS)
NAT, PAT
Static route
Web content filtering
Networking
3G redundancy
DHCP relay
DHCP server/client
IEEE802.1q VLAN
IP multicast
IPv6
Outbound load balancing
Route failover
VLAN (port-based)
VPN tunnels
195
IPSec tunnels
50
70
Encryption methods
DES, 3DES, AES, Twofish, Blowfish, CAST-128, NULL
RC4-128, 3DES, AES
VPN features
Dead Peer Detection
Hub and Spoke
IP Authentication Header (AH)
IP Encapsulating Security Payload (ESP)
IPSec NAT Traversal
IPSec/PPTP/L2TP Server
VPN Tunnel Keep Alive
Bandwidth management
Port-based QoS
WEB
Supported
SNMP (v1, v2c, v3)
Supported
CLI
Supported
This product was phased out on: 04/04/2024
De laatste dag dat ondersteuning beschikbaar is voor dit product is op: 10/05/2027
