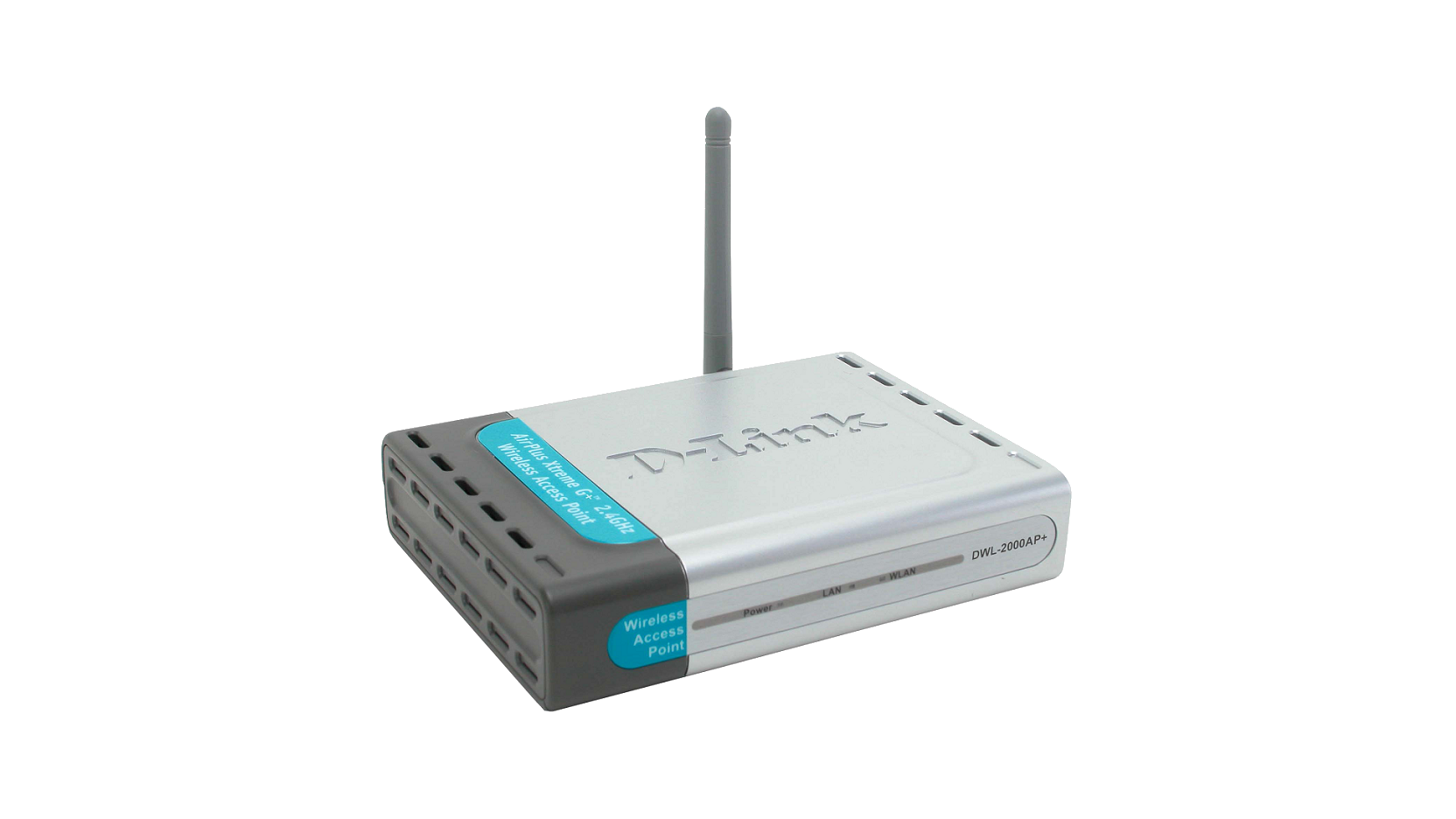

802.11g High-Speed Wireless Access Point

DWL-2000AP+

  • Product Status (Revision B): End of Life

Gerelateerde Producten

DWA131 Side
Wireless-N Nano USB Adapter
DWA-131
Meer lezen
8-Port Gigabit Unmanaged Desktop Switch
DGS-1008D
Meer lezen
D-Link DWA-121 Wireless N 150 Pico USB Adapter Right side image
Wireless N 150 Pico USB Adapter
DWA-121
Meer lezen
Wireless LAN Standards
  •  802.11b
  •  802.11b+
  •  802.11g
Data Rates
  •  802.11g: up to 54Mbps (6/9/12/18/24/36/48/54Mbps)
  •  802.11b+: up to 22Mbps
  •  802.11b: up to 11Mbps (1/2/5.5/11Mbps)
Transmission Technology
  • DSSS
RF Frequency Range
  • 2.4 to 2.4835GHz
Frequency Stability
  • Within +/- 25ppm
Operating Channels
  •  1 to 11 channels (North America)
  •  1 to 13 channels (Europe)
Data Modulation Type
  • DBPSK, DQPSK, CCK, PBCC and OFDM (BPSK/QPSK/16-QAM/ 64-
  • QAM)
Antennas
  •  1 external dipole antenna, 2dBi Gain
  • 1 internal embedded antenna
Transmit Output Power
  •  802.11b: 16dBm (typical)
  •  802.11g: 14dBm (typical)

Receive Sensitivity (for 802.11b)

  • (typically @PER < 8% packet size 1024 @ 25 oC +/- 5 oC)
  •  22Mbps (PBCC): -80dBm
  •  11Mbps (PBCC): -85dBm
  •  11Mbps (CCK): -84 dBm
  •  5.5Mbps (CCK): -87 dBm
  •  2Mbps (QPSK): -90 dBm
  •  1Mbps (BPSK): -92 dBm
Receive Sensitivity (for 802.11g)
  • (typically @PER < 8% packet size 1024 @ 25 oC +/- 5 oC)
  •  54Mbps (OFDM): -71 dBm
  •  48Mbps (OFDM): -72 dBm
  •  36Mbps (OFDM): -77 dBm
  •  24Mbps (OFDM): -80 dBm
  •  12Mbps (OFDM): -86 dBm
  •  9Mbps (OFDM): -87 dBm
  •  6Mbps (OFDM): -89 dBm
Operating Range
  •  Indoors: 100 meters (328 feet)
  •  Outdoors: 400 meters (1,312 feet)

 Environmental

  • factors may adversely affect range
Ethernet Interface
  • 10/100BASE-TX port with auto MDI/MDIX support
Diagnostic LEDs
  •  Power
  •  LAN
  •  WLAN
Operating Modes
  •  Standard Access Point
  •  AP Client
  •  Bridge: Point-to-Point, Point-to-Multi Point
Security
  •  WEP user-selectable 64/128/256-bit data encryption
  •  Password protect
  •  802.1x security (MD5 and TLS)
  •  MAC filtering
  •  SSID broadcast disable
  •  Wi-FiTM Protected Access
This product was phased out on: 05/03/2007
De laatste dag dat ondersteuning beschikbaar is voor dit product is op: 04/03/2009

Downloads can vary across product revisions. Please select the correct hardware revision.
