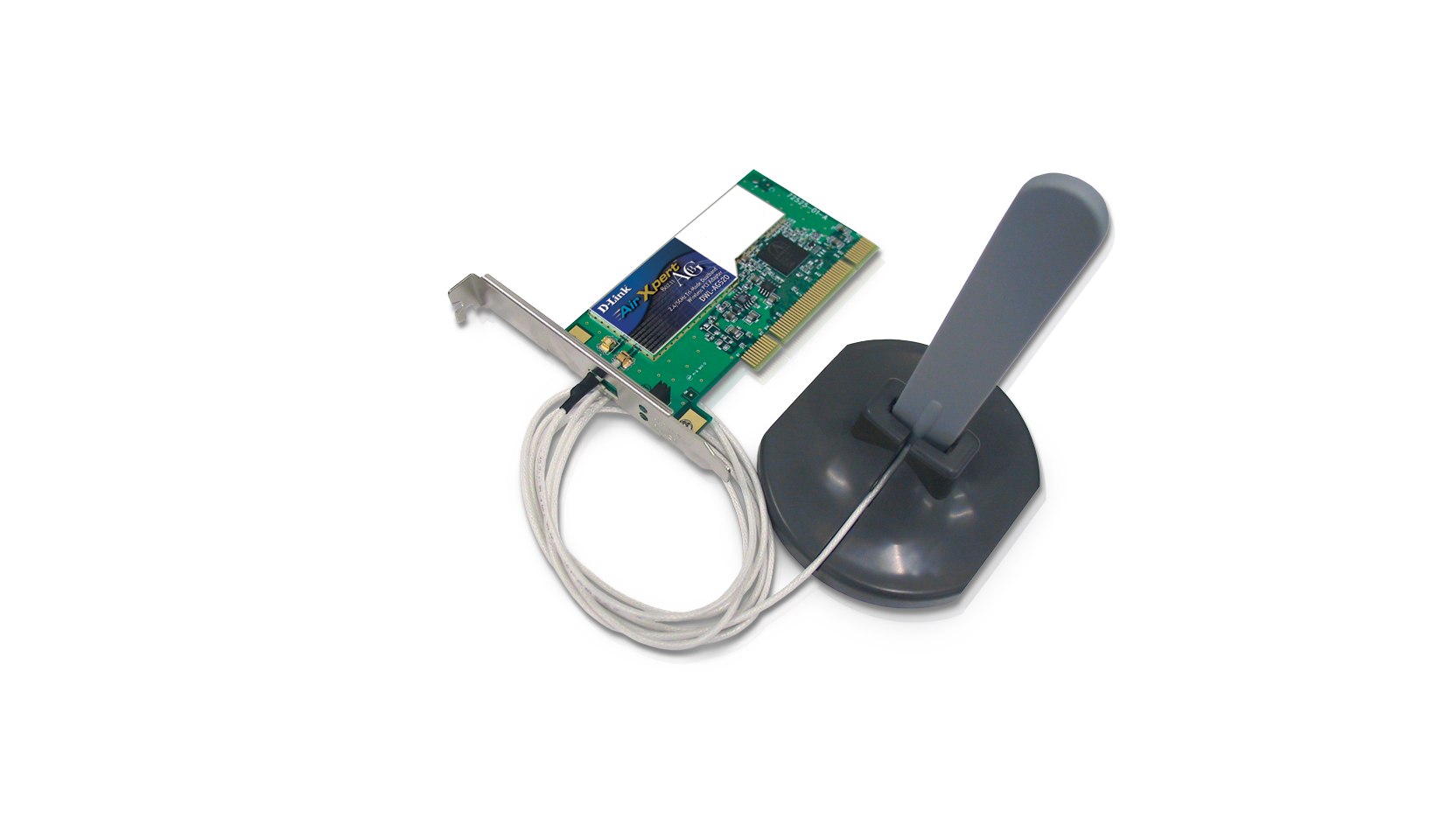

54Mbps PCI Bus 802.11a/b/g Wireless Adapter

DWL-AG520

  • Product Status (Revision A): End of Life

Gerelateerde Producten

AC1300 Wi-Fi Range Extender
DAP-1620
Meer lezen

Specs

Download de datasheet.

Standards
  •  IEEE 802.11a
  •  IEEE 802.11b
  •  IEEE 802.11g
Bus Type
  • PCI 2.2
  •  PCI 32-bit interface
Media Access Control
  • CSMA/CA with ACK
Data Rates
  • (With automatic fallback)
  • 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps,
  • 9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps
Modulation Technology
  •  Orthogonal Frequency Division Multiplexing (OFDM)
  •  Complementary Code Keying (CCK)
  •  Direct Sequence Spread Spectrum (DSSS)
Frequency Range
  •  Software configurable as allowable frequency will vary from country to country in the
  • European region.
Transmit Output Power
  • 15 dBm +/- 2dBm
  • Receiver Sensitivity
  •  54Mbps OFDM, 10% PER, -72dBm
  •  48Mbps OFDM, 10% PER, -75dBm
  •  36Mbps OFDM, 10% PER, -78dBm
  •  24Mbps OFDM, 10% PER, -84dBm
  •  18Mbps OFDM, 10% PER, -87dBm
  •  12Mbps OFDM, 10% PER, -88dBm
  •  11Mbps CCK, 8% PER, -88dBm
  •  9Mbps OFDM, 10% PER, -89dBm
  •  6Mbps OFDM, 10% PER, -90dBm
  •  5.5Mbps CCK, 8% PER, -91dBm
  •  2Mbps QPSK, 8% PER, -91dBm
  •  1Mbps BPSK, 8% PER, -92dBm
Antenna
  • 2dBi - 4dBi Gain omni-directional dipole antenna
Operation Range
  •  Indoors: up to 100 meters (328 feet)*
  •  Outdoors: up to 400 meters (1,312 feet)*
  •  Environmental factors may adversely affect range
Security
  •  64/128-WEP data encryption
  •  802.1x authentication
  •  WPA (Wi-FiTM Protected Access): 802.1x, Pre Share Key, WEP,
  • TKIP, AES
Dimensions
  • 133 (L) x 120 (W) x 22 (H) mm (5.24 x 4.72 x 0.87 inches)
Weight
  • 63 grams (0.14 lb.)
Operating Voltage
  • 5 VDC +/- 10%
Operating Temperature
  • 0 - 45 C
Storage Temperature
  • 10 - 60 C
Humidity
  • 95% maximum (non-condensing)
EMI Certification
  •  FCC Class B
  •  CE Class B
O.S. Support
  • Windows 98 SE, ME, 2000, XP

Support

This product was phased out on: 05/02/2006
De laatste dag dat ondersteuning beschikbaar is voor dit product is op: 05/02/2008
Versie Datum Type Bestandsgrootte
Blad in het Engels - - - Download
Versie Beschrijving Datum Type Bestandsgrootte
Handleiding in het Engels Handleiding in het Engels - - - Download
Versie Beschrijving Datum Type Bestandsgrootte
Installatiehandleiding Installatiehandleiding - - - Download
Versie Beschrijving Datum
2.41.32 voor Windows Huidige driver voor Windows 98SE, ME, 2000 (32 Bit) und XP (32 Bit) 18/08/2003 Download
Versie Beschrijving Datum
Conformiteitsverlaring Rev.A1 Conformiteitsverlaring Rev.A1 - Download
