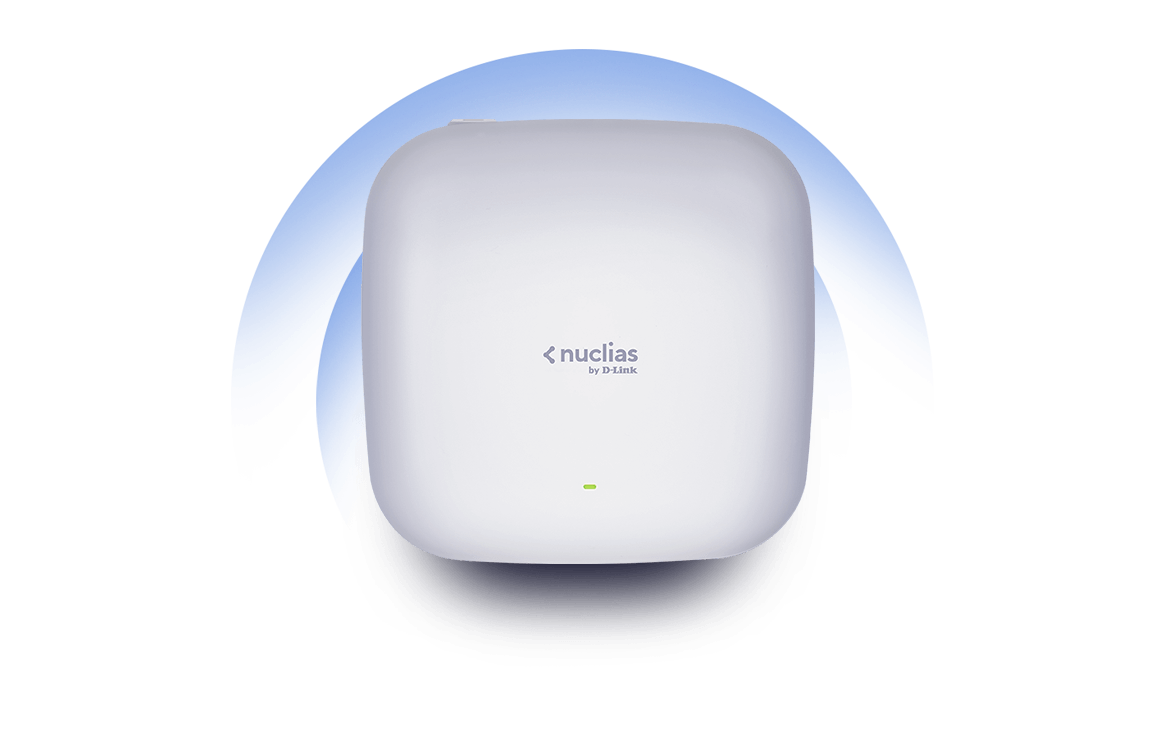

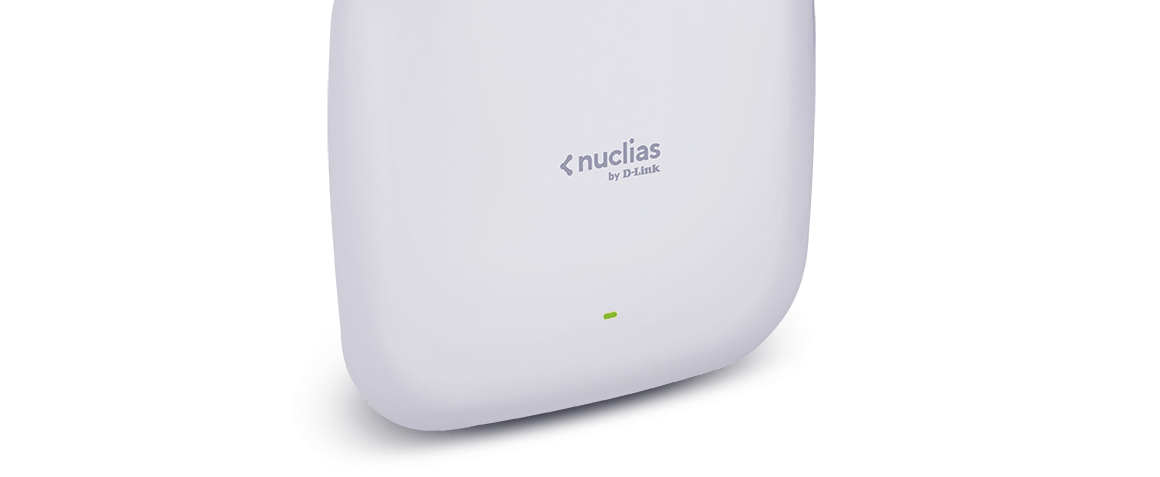

AX1800 Wi-Fi 6 Cloud-Managed Access Point
DBA-X1230P
- състоянието на продукта (Revision A1): Live
- Centralised cloud-based management via browser & app
- Dual-band Wi-Fi 6 speeds of up to 1.8Gbps
- Band Steering with Airtime Fairness & MU-MIMO
- Power over Ethernet 802.3at
- Zero-Touch Deployment with plug & play installation
- WPA3 encryption
Свалете таблицата с характеристики.
Where to buyBusiness-class Wi-Fi 6.
Manage your wireless network from anywhere in the world with the Nuclias AX1800 Wi-Fi 6 Cloud-Managed Access Point. Designed to give you the latest technology and efficiency in any setup, it’s ideal for SMB, retailers, hospitality, campuses, and managed service providers.
Network management has never been this easy.
Nuclias Cloud is our simplest solution available and allows any organisation with any level of IT resources to quickly set up, manage and troubleshoot the entire network via a web browser, or the dedicated Nuclias Cloud app.
Nuclias cloud-based network management
Automate, monitor, manage and scale your network without the complexity or cost. FREE 1yr Nuclias Cloud licence included.
Next-gen Wi-Fi 6
Delivers greater network efficiency and lower latency, with nearly x4 the capacity of previous Wi-Fi standards
WPA3 Security
Keep your wireless network secure with the latest Wi-Fi encryption technology.
Unlimited scalability
Easy to add or scale back in line with demand.
Plug and Play with Zero-Touch Deployment
Cloud-based auto-configuration allows for swift plug-and-play installation and eliminates the need for on-site setup.

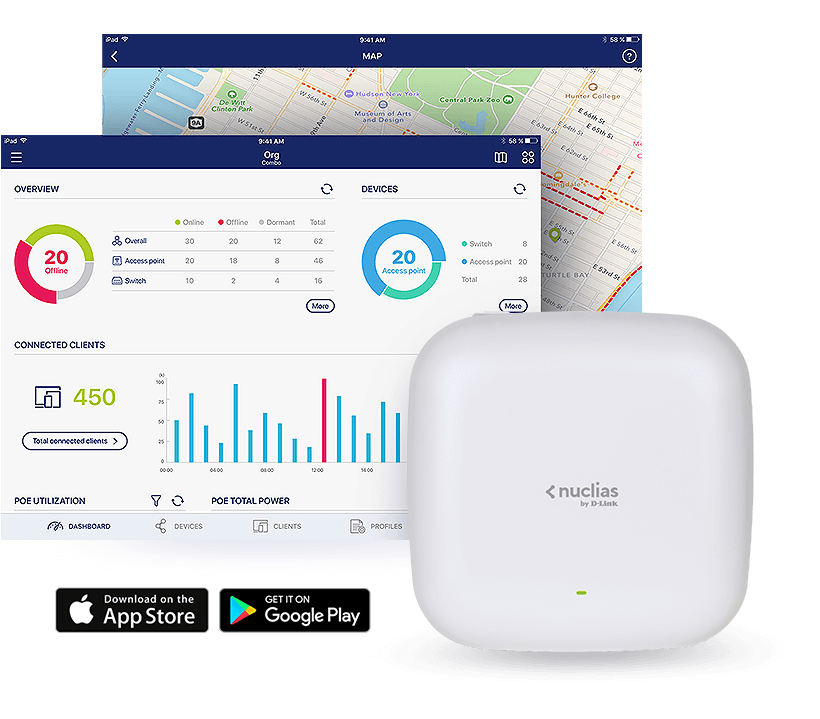

Free Nuclias Cloud app
Manage your network from one place from a browser or through the tablet app, anywhere, anytime.

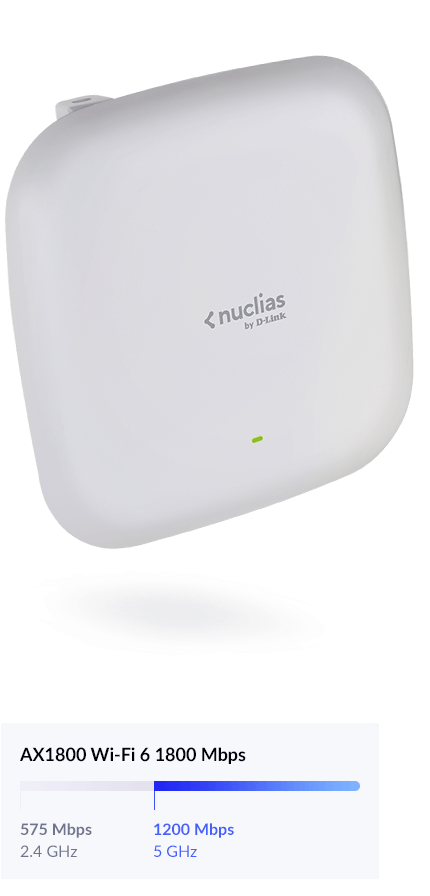

Exceptional connectivity, exceptional performance
With combined Wi-Fi 6 speeds of up to 1,800 Mbps with MU-MIMO and dual-band technology, The DBA-X1230P provides lightning-fast access to cloud-based applications, fast data transfer, smooth voice and video streaming, even in highly congested environments.
Learn more about Wi-Fi 6
- Band steering
- MU-MIMO
- Beamforming

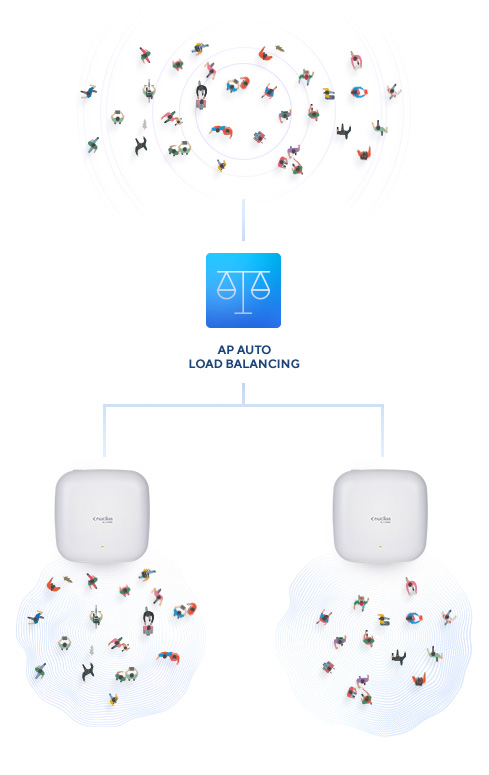

A more effective and efficient network.
When multiple access points are deployed in the same location, Nuclias Cloud supports automatic load balancing between them without the need for additional hardware or configuration. This ensures the Wi-Fi network performs optimally, all the time. And BSS Colouring, OFDMA, and MU-MIMO all increase wireless network capacity and efficiency.
Simple and clean installation, anywhere.
It can be ceiling-mounted, wall-mounted, or placed on a desk. The DBA-X1230P’s PoE function allows for easy installation and a simple, clean setup. No need to run extra power lines, and no more cable clutter. Perfect for advanced installations in areas where power outlets are not readily available.
Network management, refreshed.
Automate, monitor, manage and scale your network without the complexity or cost.

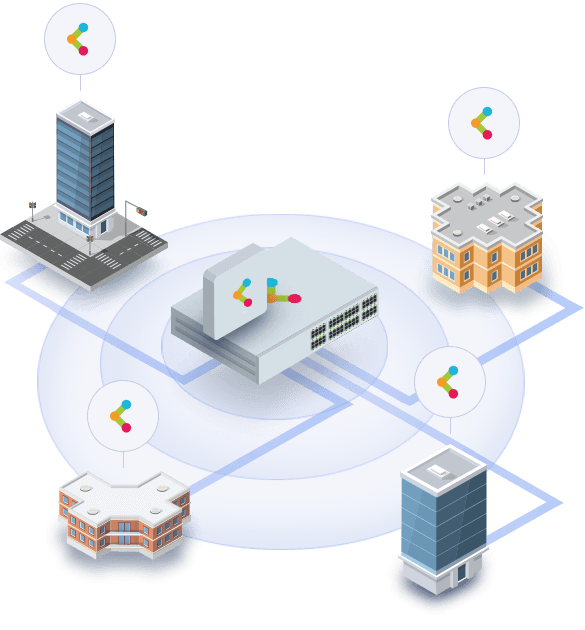

Get your networks up and running from anywhere, easily and quickly.
The DBA-X1230P can be deployed without the need to send IT engineers on-site. With Nuclias Cloud’s Zero Touch Provisioning, you can power-up the access points on site, connect them to the network, and remotely set up and manage them through the Nuclias Cloud portal.

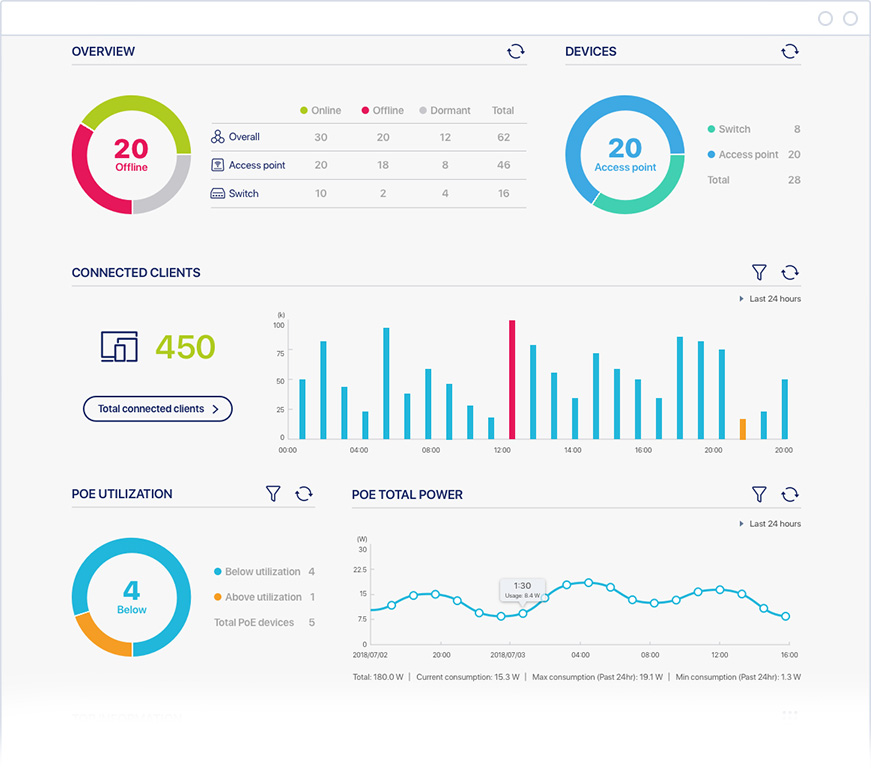

Complete Control over your Network
With D-Link Nuclias Cloud, businesses can organise their entire wireless network, manage multiple APs simultaneously, and monitor live network statistics. Now you can focus more on providing reliable connectivity and services and spend less time managing devices.
- Intuitive app
- Real-time network information
- Manage multiple sites and devices
- Over-the-air firmware updates

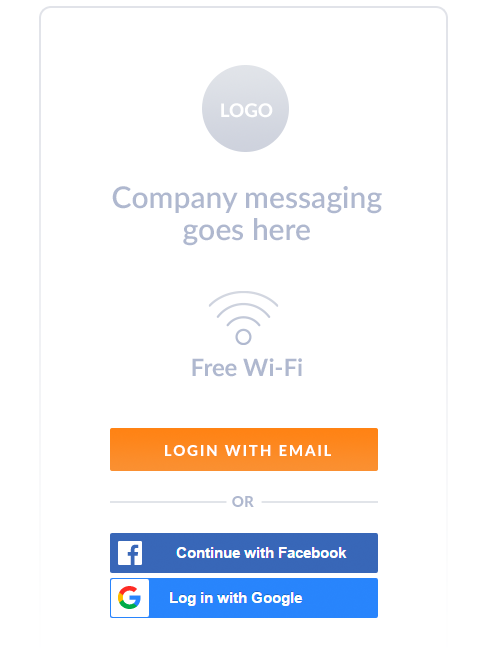

Your Guests Online in No Time with a Captive Portal
Get your guests online quickly and easily with a captive portal. Not only can you let them connect using just their email address, Facebook or Google account, it also gives your business the opportunity to increase brand awareness and advertise promotions. At the same time, it can provide user insights that allow businesses to better understand their customers.
Scale your Wi-Fi alongside your business
Nuclias Cloud is designed with unlimited scalability, so you can always tailor to the demands of your business. Adding a new site or expanding an existing one is quick and easy as all management and configuration is done through the cloud, with access points being ready to deploy straight out of the box.
Budget-friendly renewals
All Nuclias products include a 1-Year license.
And unlike other solutions in this category, there are no extra feature licenses to buy and prices aren't based on the number of users.
All Nuclias products include a 1-Year license.
And unlike other solutions in this category, there are no extra feature licenses to buy and prices aren't based on the number of users.
Търговски вериги
Възможност за пълна персонализация на портала за вход в свободна Wi-Fi мрежа с логото на вашия бизнес за постигане на по-добра разпознаваемост на марката.
Малки и средни по големина фирми
Пуснете в действие ефективна мрежа, готова за изискванията на утрешния ден. Лесно управлявате множество обекти и разполагате с подробни отчети.
Хотели
Потребление в реално време и справки за минали дати, часове и обекти.
Училища
Пуснете в действие точки за достъп бързо и ефикасно и управлявайте отдалечено работата им чрез облака.
Free Next-Business-Day Service
Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.
We're here to help.
Over 35 years in the networking industry
Innovative end‑to‑end solution experts for small businesses to large corporations around the world.
Комуникацията с нас е лесна
Квалифицирани специалисти в 16 държави. Нашите сервизни екипи са готови да ви помогнат.
D-Link Limited Lifetime warranty
The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.
Подобни продукти
Технически характеристики
|
Type
|
Cloud-managed AP |
|---|---|
|
Wireless standard
|
802.11ax Wi Fi 6 |
|
Frequency band mode
|
Dual-band simultaneous |
|
Wireless speed
|
1200 Mbps 5 GHz 574 Mbps 2.4 GHz |
|
Antenna type
|
Embedded omni-directional antennas |
|
Antenna gain
|
3 dBi for 2.4 GHz 4 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
1 x Gigabit Ethernet LAN |
|
Console port
|
Supported
|
|
Indoor/outdoor
|
Indoor |
|
Type of housing
|
Plastic |
|
Wireless modes
|
Access Point (AP) |
|
Advanced features
|
802.11k/r Roaming MU-MIMO |
|
Maximum number of SSIDs
|
16 |
|
Auto channel selection
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
WPA3-Personal/Enterprise
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
Rogue AP detection
|
Supported
|
|
Station isolation
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal |
|
Management platform
|
Nuclias Cloud Networking Solution |
