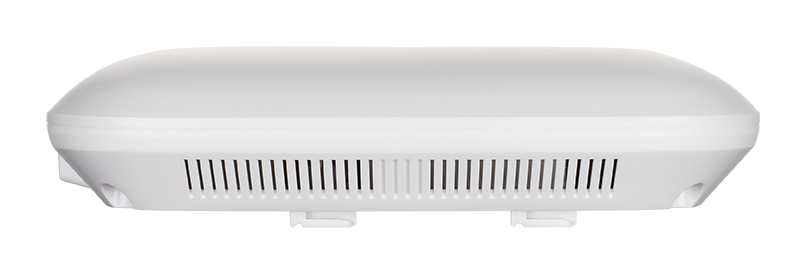

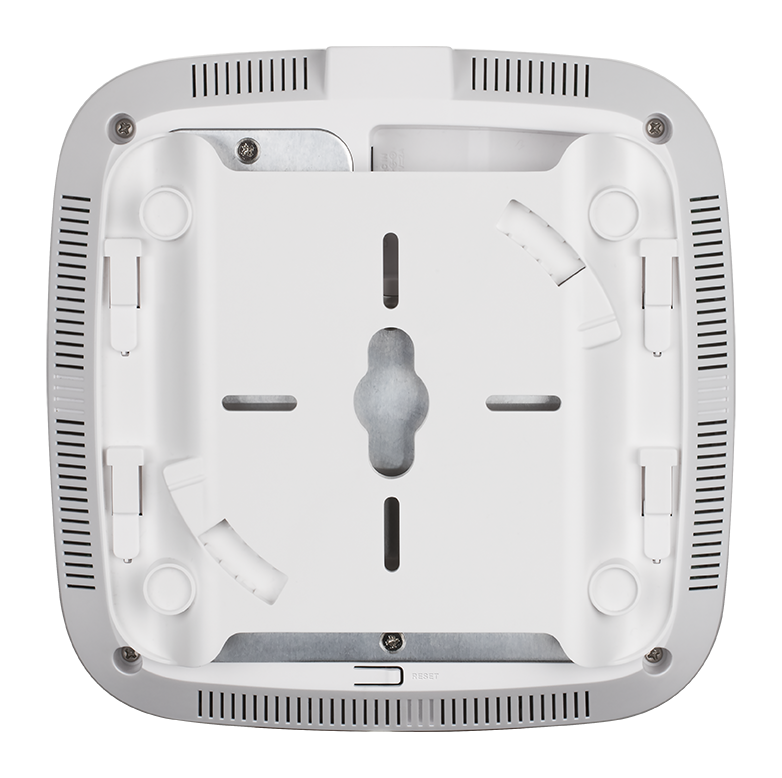

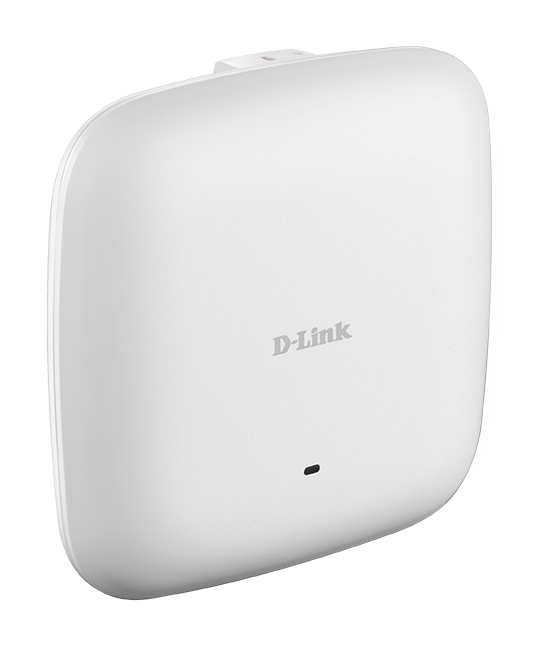

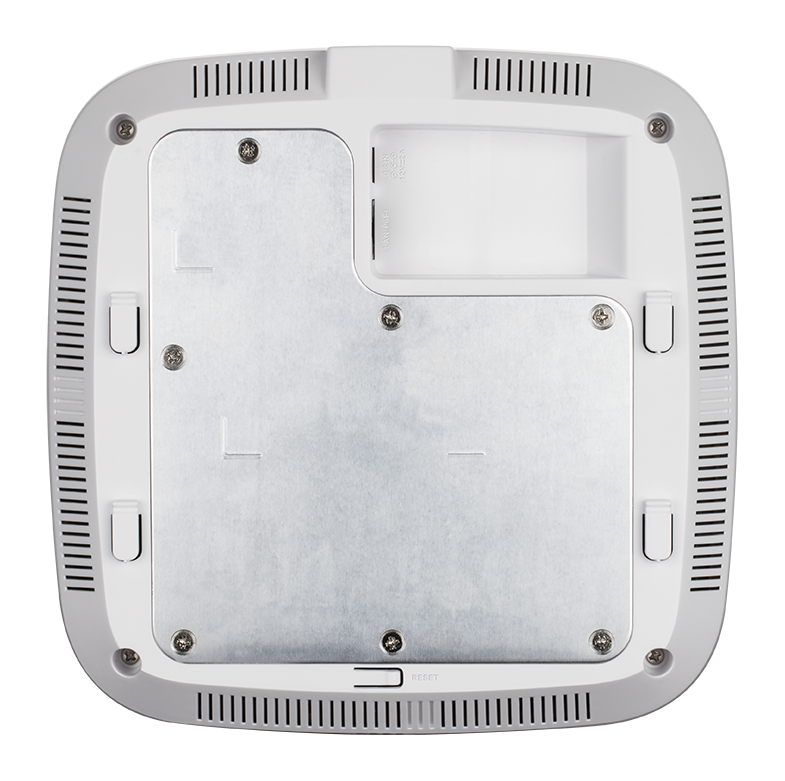

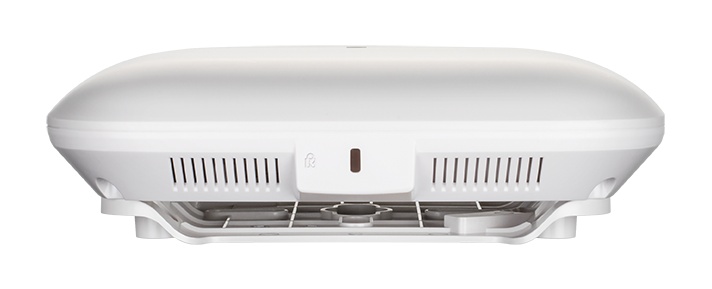

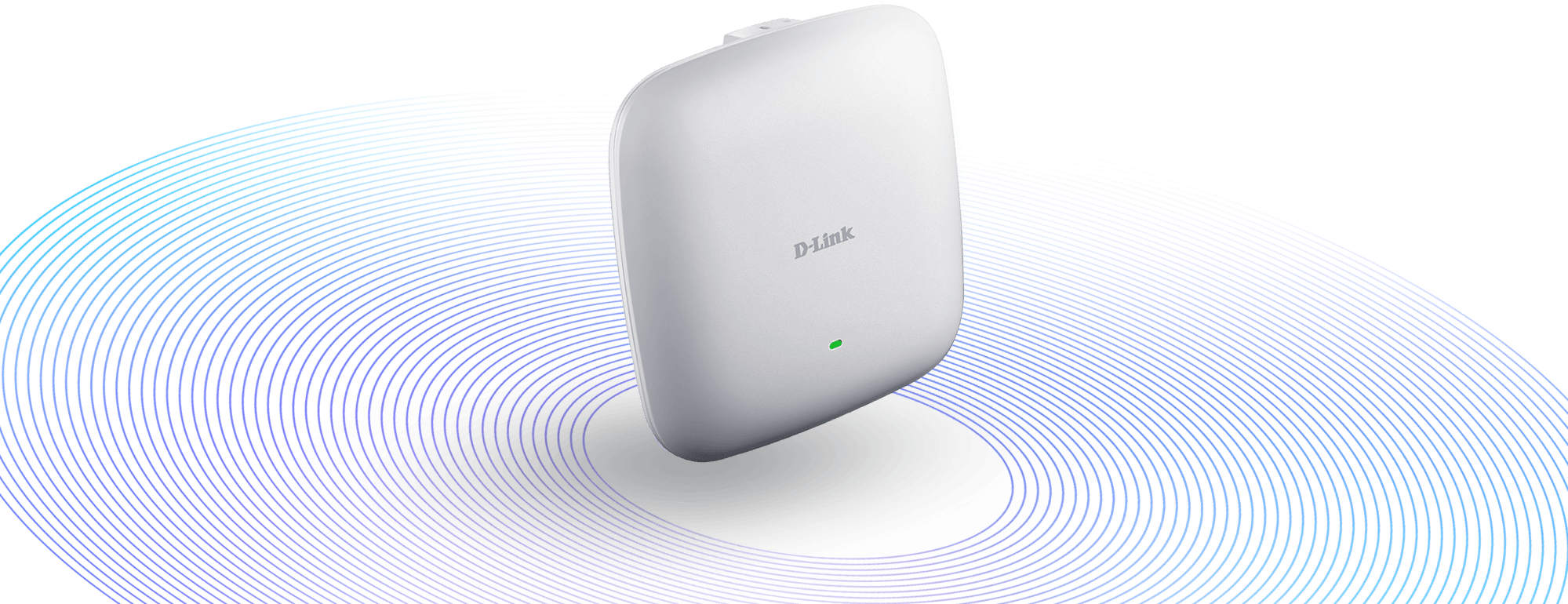

Wireless AC1750 Wave 2 Dual-Band PoE Access Point
DAP-2680
- Product Status: Live
- 802.11ac Wave 2 wireless, up to 1.75 Gbps1
- MU-MIMO with beamforming
- Band steering
- Gigabit PoE-capable LAN port
- AP Array utility support
- Free D-Link Central WiFiManager
![](/br/pt/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_02_wirelessspeed.png)
AC1750 Wave 2 Wi-Fi
802.11ac Wave 2 wireless with combined speeds of up to 1.75 Gbps1
![](/br/pt/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_03_upgradenetwork.png)
Multiple Operational Modes
Functions as an access point, Wireless Distribution System (WDS), WDS with access point, or wireless client.
![](/br/pt/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_05_seamlessroaming.png)

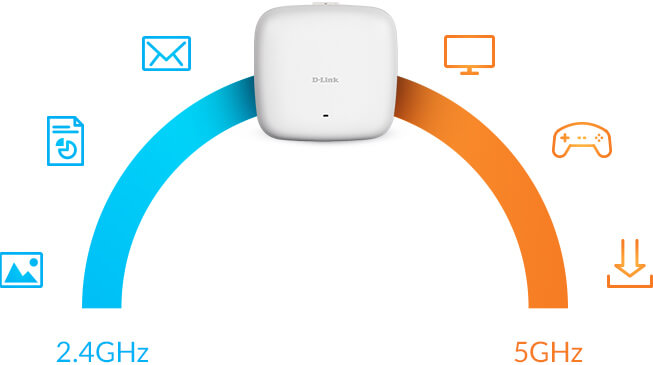

Band steering
Automatically steers traffic to the fastest, least congested band.
![](/br/pt/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_04_bandwidth.png)
MU-MIMO & Beamforming
Allows multiple devices to connect simultaneously for improved efficiency. And creates highly-targeted Wi-Fi connections for superior Wi-Fi bandwidth.
![](/br/pt/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_06_smartgreen.png)

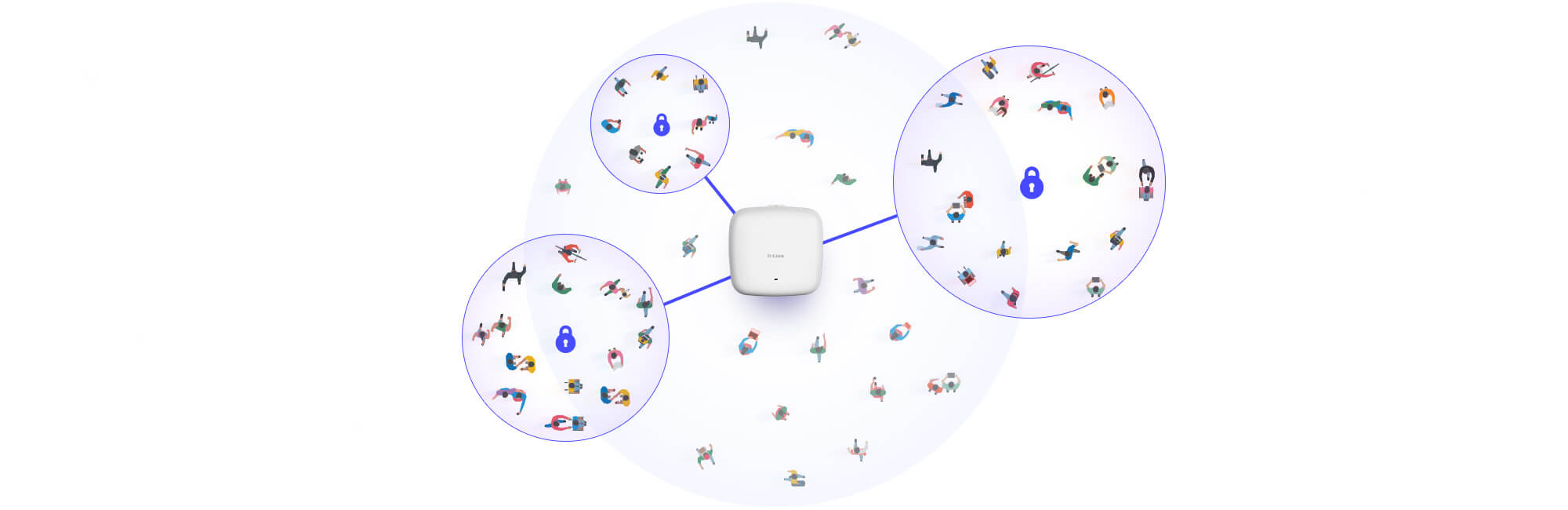

Smart, secure & green
The wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saves power and increases network security.
This product is compatible with Nuclias Connect*
Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.
*An upgrade to the latest product firmware is required.
![](/br/pt/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_learnmore.jpg?h=703&w=560&la=pt-BR&hash=4AD2DC625010EFCDAB36CDE1B5454D43)

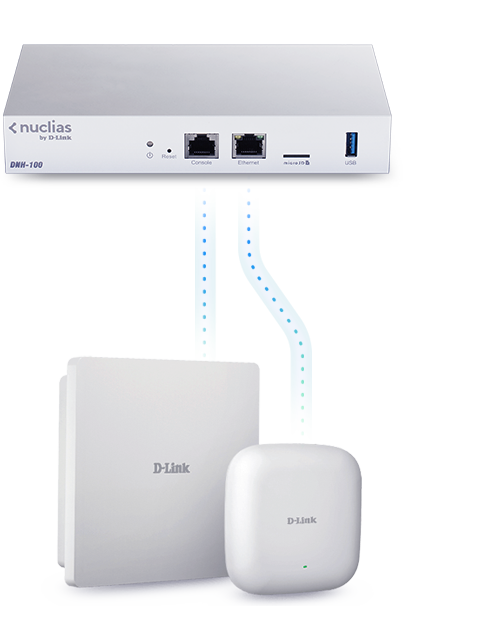

Nuclias hardware controller
The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.
![](/br/pt/-/media/product-pages/dap/2682/slices/dap2682_05_controller.png?h=640&w=490&la=pt-BR&hash=6028818F2C5D9CD76B869E810460CB2B)
Related Products
![](/br/pt/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_09_screenshot.png?h=100&w=192&la=pt-BR&hash=586EFC51387E6651569128E8F4C59D18)
![](/br/pt/-/media/product-pages/dnh/100/dnh_100_a1_side.png?h=100&w=209&la=pt-BR&hash=82D41EBAF5CB38785546815D0F038BA1)
![](/br/pt/-/media/product-pages/dap/2610/dap_2610_image_front_2.png?h=100&w=178&la=pt-BR&hash=415CA0767D1E9AEBB7EBE693B40FF3F8)
![](/br/pt/-/media/product-pages/dap/2662/dap_2662_a1_front.png?h=100&w=100&la=pt-BR&hash=EA1250250C8B3E5F98F9427DF6BB1435)
![](/br/pt/-/media/product-pages/dap/2682/dap_2682_a1_image_lside.png?h=100&w=85&la=pt-BR&hash=43990EA1DD36B1DA1D6F8E6738DC77BE)
Specs
Type
|
Software Managed AP |
---|---|
Wireless standard
|
Wireless AC Wave 2 |
Frequency band mode
|
Dual-band simultaneous |
Wireless speed
|
1300 Mbps 5 GHz 450 Mbps 2.4 GHz |
Antenna type
|
Embedded omni-directional antennas |
Antenna gain
|
3.6 dBi for 2.4 GHz 4.2 dBI for 5 GHz |
Power-over-Ethernet
|
Yes |

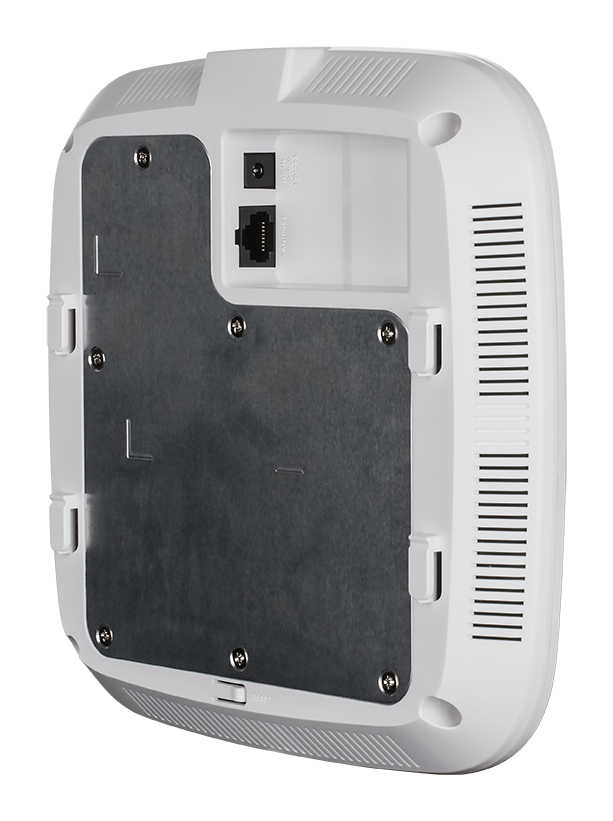

Wired interface
|
1 x Gigabit Ethernet LAN |
Indoor/outdoor
|
Indoor |
Type of housing
|
Plastic |
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
Advanced features
|
MU-MIMO SmartBeam |
Maximum number of SSIDs
|
16 |
Auto channel selection
|
Supported
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
Wi-Fi scheduler
|
Supported
|
AP traffic load balance
|
Supported
|
WEP 64/128 bit
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
TKIP/AES encryption
|
Supported
|
WPA_WPA2_PSK over WDS
|
Supported
|
WLAN partition
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
DHCP server
|
Supported
|
IGMP snooping
|
Supported
|
ARP spoofing
|
Supported
|
NTP
|
Supported
|
IPv6
|
Supported
|
Management platform
|
Nuclias Connect |
WEB
|
Supported
|
SNMP (v1, v2c, v3)
|
Supported
|
CLI
|
Supported
|
Telnet
|
Supported
|
SSH
|
Supported
|
Syslog
|
Supported
|
