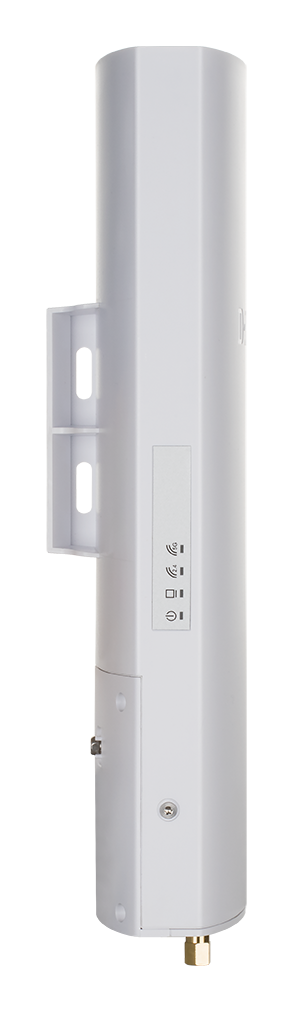

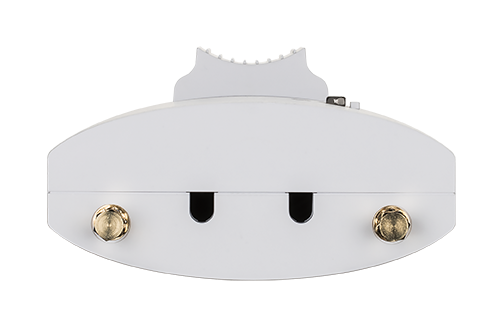

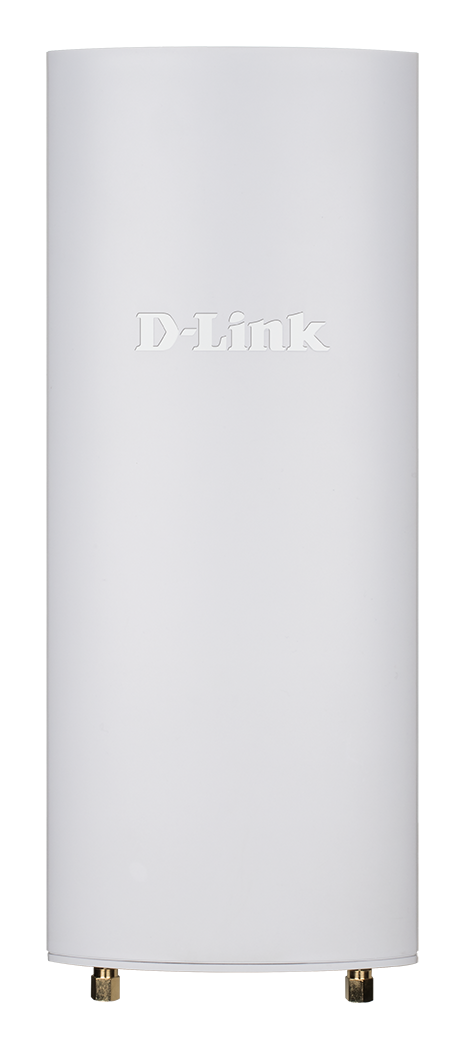

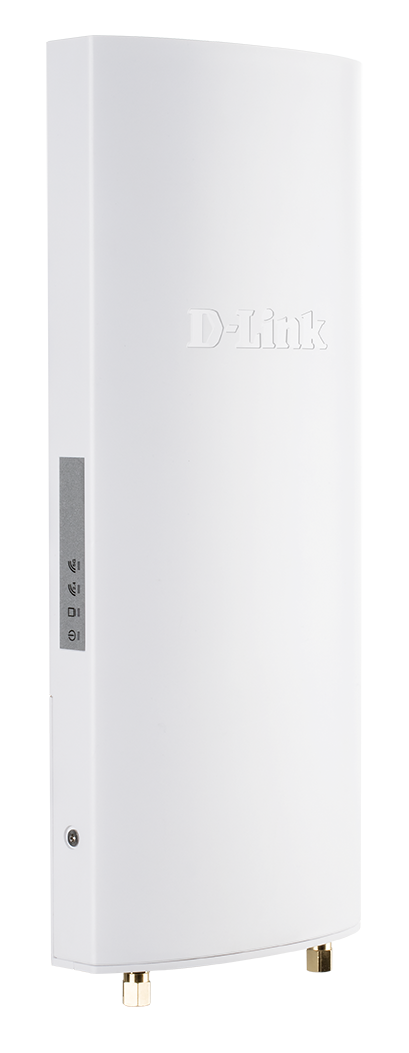

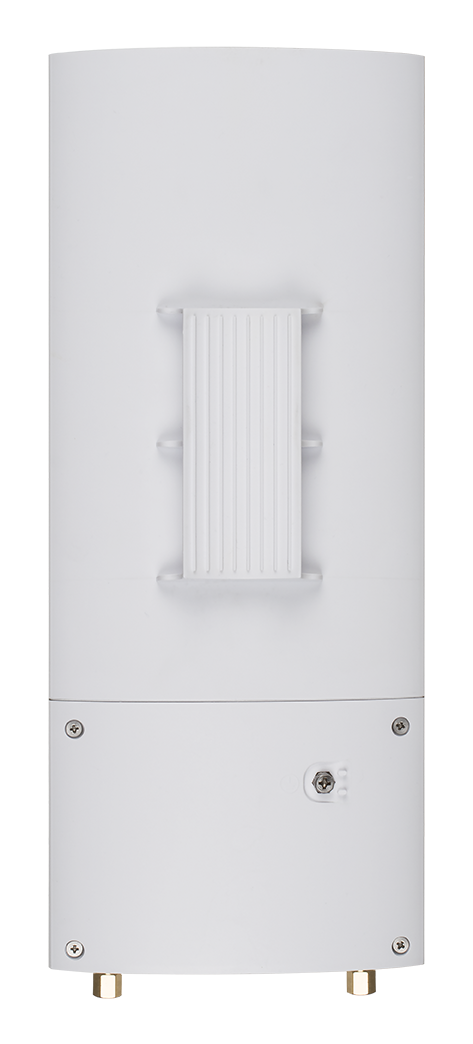

Nuclias Wireless AC1300 Wave 2 Outdoor Cloud‑Managed Access Point
DBA-3620P
- Product Status: Live
- Nuclias cloud-based remote management (1-year license included)
- Dual-band AC1300 Wave 2, 2x2 MU-MIMO
- IP55 water, dust-proof, weather-resistant housing (-40 to 50°C)
- Zero-Touch Provisioning, cloud-based auto-configuration, unlimited scalability

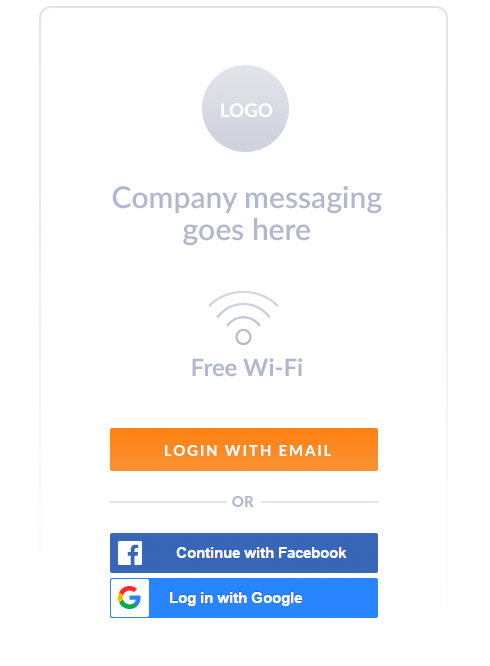

- Instant alerts, real-time statistics, WPA3 encryption, captive portal
![](/br/pt/-/media/product-pages/dba/1210p/assets/icon_01_cenralisedmanagement.png)

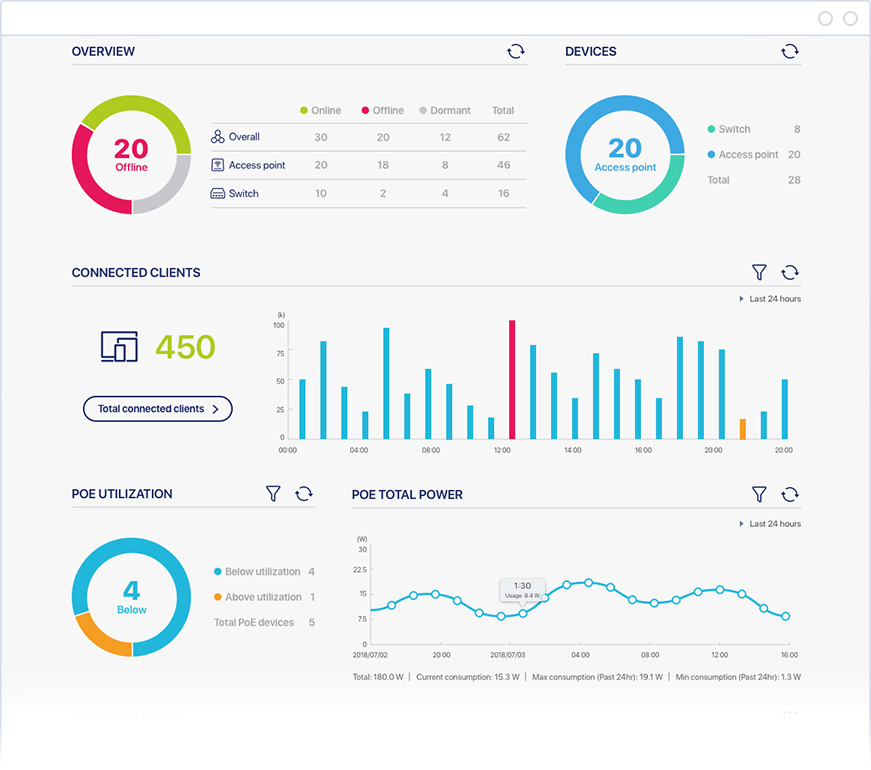

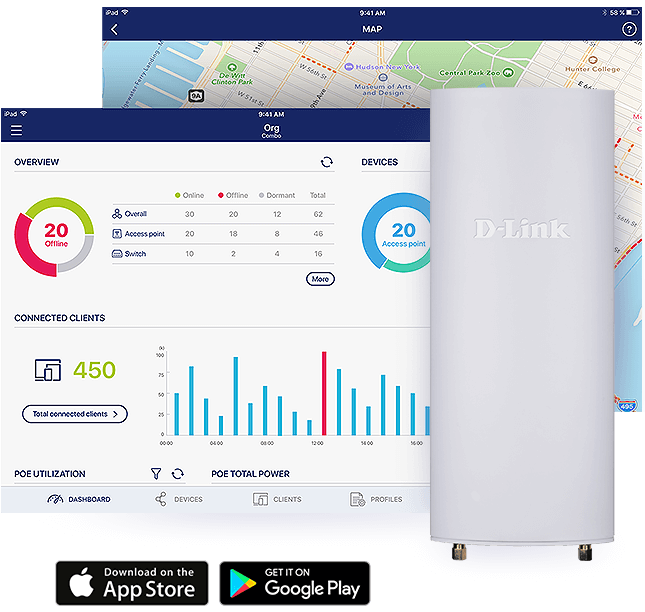

Nuclias cloud-based network management
Manage your network from one place from a browser or through the tablet app, anywhere, anytime.1
![](/br/pt/-/media/product-pages/dba/3621p/slices/dba3621p_03_weather.png)

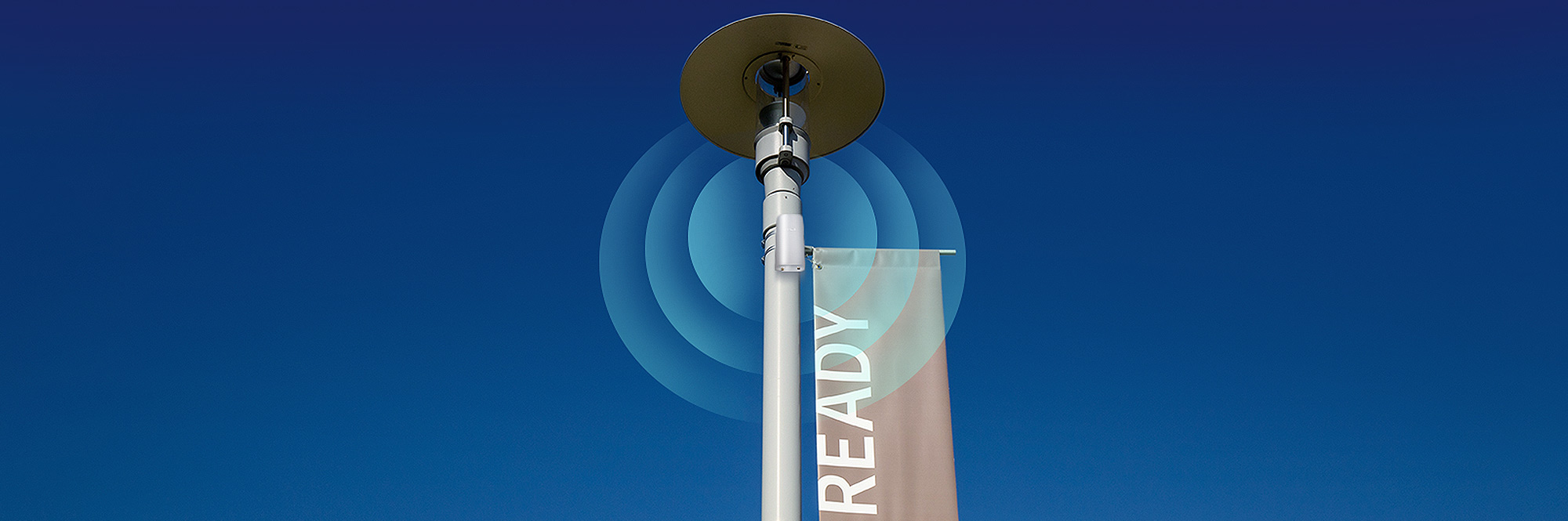

Outdoor design
IP55-rated weatherproof design with a wide -40 to 50°C operating temperature range.
![](/br/pt/-/media/product-pages/dba/3621p/slices/dba3621p_03_wpa3.png)
WPA3 Security
Keep your wireless network secure with the latest Wi-Fi encryption technology.
![](/br/pt/-/media/product-pages/dba/1210p/assets/icon_03_scalability.png)

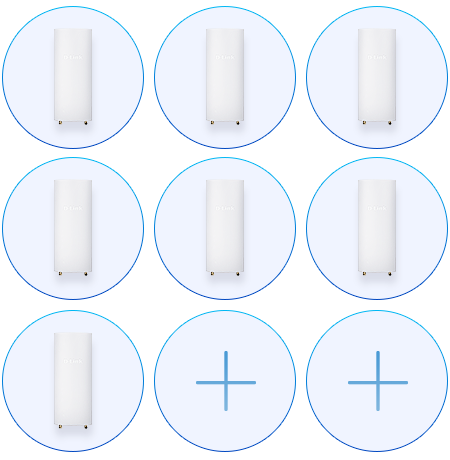

Unlimited scalability
Easy to add or scale back in line with demand.
![](/br/pt/-/media/product-pages/dba/1210p/assets/icon_02_zerotouch.png)

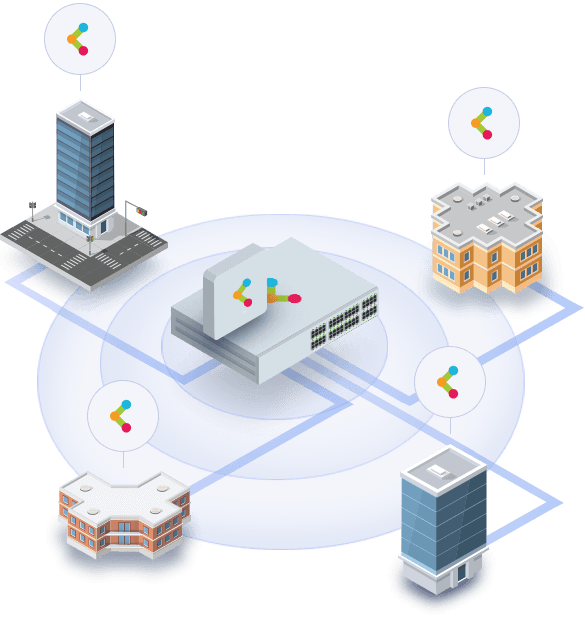

Zero-Touch Provisioning
Plug and play, cloud-based auto-configuration.
![](/br/pt/-/media/product-pages/dba/1210p/assets/icon_licence.png)
License included
1-year Nuclias Cloud Management license included with the product. Renewal options from 1 to 5 years.
![](/br/pt/-/media/product-pages/dap/2662/slices/dap2662_icon_poe.png)

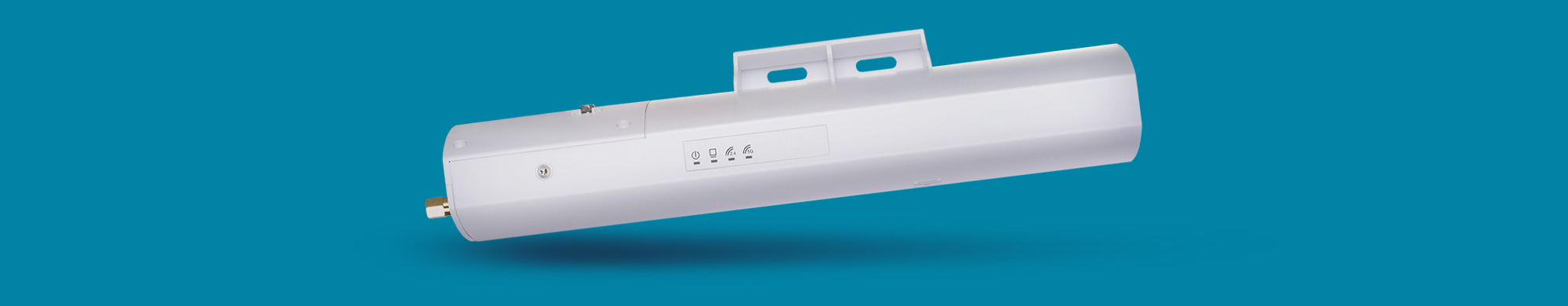

Easy-mount setup with PoE
Supports Power over Ethernet (802.3af) for a simpler installation with a single cable.
![](/br/pt/-/media/microsites/nuclias/v2/nuclias-cloud/solutions_cloud_03_cafe.png?h=260&w=260&la=pt-BR&hash=5DBDDC05D45E651D0401B2BDC8ECD53D)
Retail
Real time analytics help you tailor customer’s Wi-Fi experience, as well as further drive sales.
![](/br/pt/-/media/microsites/nuclias/v2/nuclias-cloud/solutions_cloud_03_smallbusiness.png?h=260&w=260&la=pt-BR&hash=F5B85814DB861DDF50B5E0C78C321FC8)
Small businesses
Deploy an efficient network built for the future. Easily manage multiple sites, and see detailed reports.
![](/br/pt/-/media/microsites/nuclias/v2/nuclias-cloud/solutions_cloud_03_motel.png?h=259&w=260&la=pt-BR&hash=A40A9274A3A0926E326CDFB6F4E25E36)
Hospitality
Create a secure and fast Wi-Fi experience for all your guests throughout all your premises.
![](/br/pt/-/media/microsites/nuclias/v2/nuclias-cloud/solutions_cloud_03_education.png?h=260&w=260&la=pt-BR&hash=1F5385C2FF8246695B607805F1C5520A)
Education
Ensure staff and student online safety while supporting a digital learning experience.
Budget-friendly renewals
All Nuclias products include a 1-Year license.
And unlike other solutions in this category, there are no extra feature licenses to buy and prices aren't based on the number of users.
All Nuclias products include a 1-Year license.
And unlike other solutions in this category, there are no extra feature licenses to buy and prices aren't based on the number of users.
Related Products
![](/br/pt/-/media/product-pages/dba/3621p/dba_3621p_a1_front.png?h=100&w=44&la=pt-BR&hash=5822F4547B1E9722B64B20A6D974CE48)
![](/br/pt/-/media/product-pages/dbs/2000/dbs_2000_series_a1_image_l_front.png?h=100&w=131&la=pt-BR&hash=6E39E7CBD06617DF71A444AC7A97C12D)
![](/br/pt/-/media/product-pages/dba/x2830p/dba_x2830p_a1_front.png?h=100&w=100&la=pt-BR&hash=18CC50380A03C836C28FF2350C8DBFAB)
![](/br/pt/-/media/product-pages/dba/x1230p/assets/dba_x1230p_a1_side.png?h=100&w=87&la=pt-BR&hash=96BB6327C8B667403C4240C47EF91D1E)
Specs
Type
|
Cloud-managed AP |
---|---|
Wireless standard
|
Wireless AC Wave 2 |
Frequency band mode
|
Dual-band simultaneous |

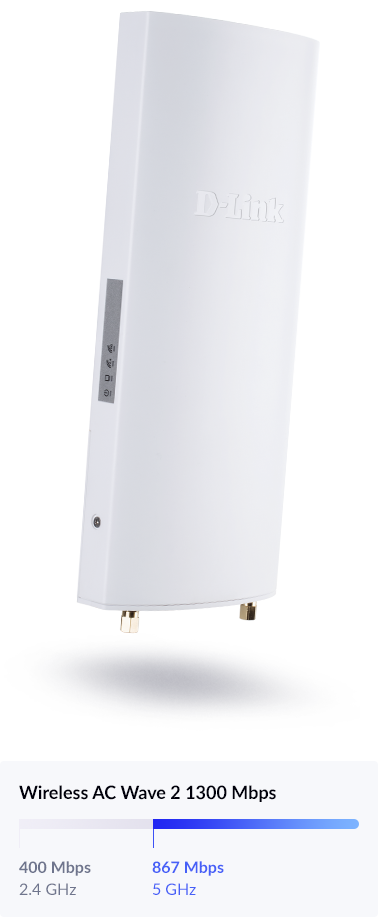

Wireless speed
|
400 Mbps 2.4 GHz 867 Mbps 5 GHz |
Antenna type
|
Embedded omni-directional antennas |
Antenna gain
|
3.5 dBi for 2.4 GHz 5 dBi for 5 GHz |
Wired interface
|
1 x Gigabit Ethernet LAN |
Console port
|
Supported
|
Indoor/outdoor
|
Outdoor |
Type of housing
|
Plastic |
IP rating
|
IP55 |
Wireless modes
|
Access Point (AP) |
Advanced features
|
802.11k/r Roaming MU-MIMO |
Maximum number of SSIDs
|
16 |
Auto channel selection
|
Supported
|
Wi-Fi scheduler
|
Supported
|

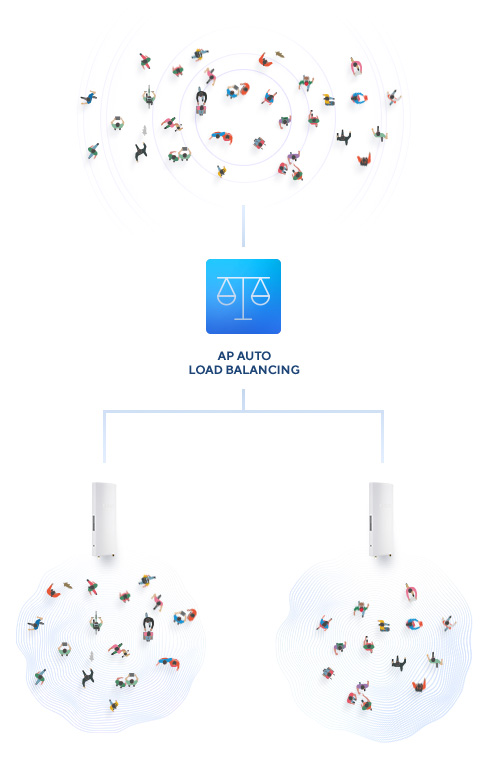

AP traffic load balance
|
Supported
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
WPA3-Personal/Enterprise
|
Supported
|
SSID broadcast disable
|
Supported
|
Rogue AP detection
|
Supported
|
Station isolation
|
Supported
|
MAC address filtering
|
Supported
|
802.1X authentication
|
Supported
|
Controller managed features
|
AP load balance Auto-channel, auto-RF management Captive portal |
IPv6
|
Supported
|
Management platform
|
Nuclias Cloud Networking Solution |
