Nuclias Cloud SD-WAN Gateway
DBG-2000
- Product Status (Revision A1): Live
- Nuclias cloud-based remote management (1-year license included)
- Point-to-point VPN options for flexible deployments
- Security Firewall, Intrusion Prevention System (IPS)
- Dynamic Web Content Filtering, Application Control
- SD-WAN with WAN load balancing
- Zero-Touch Deployment, plug & play deployment
Where to buy
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/dbg_2000_intuitive_interface_01.png)
Intuitive Interface
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/dbg_2000_automated_alerts_05.png)
Automated Monitoring & Alerts
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/dbg_2000_cloud_multisite_02.png)
Cloud Multisite Management
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/dbg_2000_encryption_03.png)
End to End Encryption
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/dbg_2000_multilingual_06.png)
Multilingual Support
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/dbg_2000_ota_updates_11.png)
Over-the-Air Firmware Upgrades
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/dbg_2000_administration_05.png)
Role-Based Administration
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/dbg_2000_sla_08.png)
99.9% Service-Level Agreement (SLA)
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/dbg_2000_reports_analytics_12.png)
Traffic Reporting & Analytics
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/dbg_2000_scalability_10.png)
Unlimited Scalability
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/dbg_2000_geolocation_07.png)
Visualised Geolocation
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/dbg_2000_zero_touch_04.png)
Zero-Touch Deployment

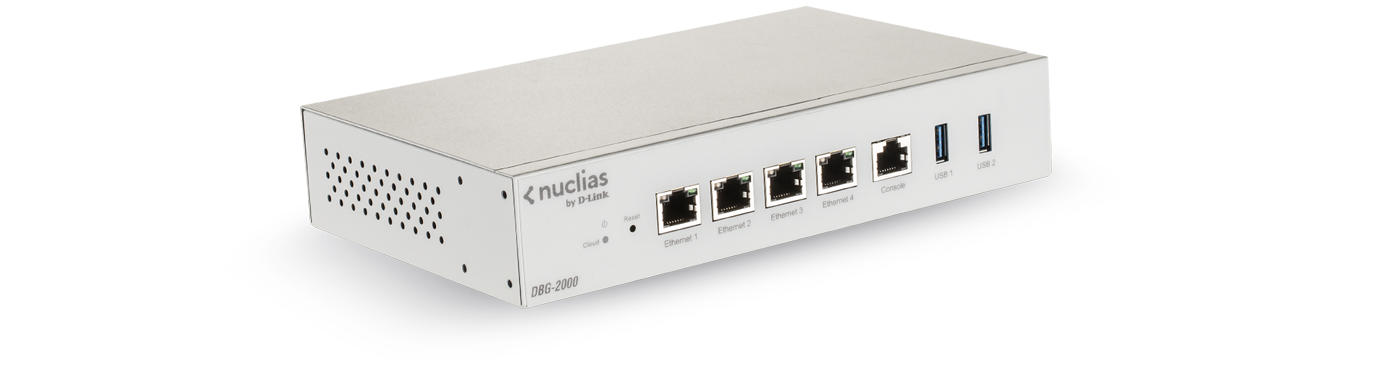

Convenient, software-defined networking.
Traditional WAN architecture can be complex and expensive when connecting remote sites. SD-WAN not only lowers operational costs but also optimises bandwidth utilisation and efficiency without compromising on network security.
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/dbg_2000_overview_01.png?h=376&w=1382&la=pt-BR&hash=422A177C12823B52575D82512BC6DF26)

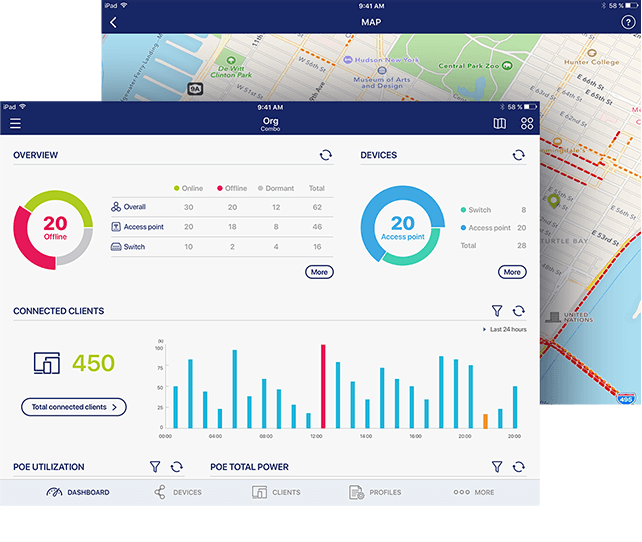

100% Cloud-Managed.
Compatible with Nuclias Cloud solution, this product is ideal for business networks of any size. Deploy networks easily with zero-touch deployments and remote management from a web browser or the free app.
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/dbg_2000_01_nuclias_cloud_interface.png?h=542&w=642&la=pt-BR&hash=CFD3BEF5221CF33FEEEE29EF6AB8722D)

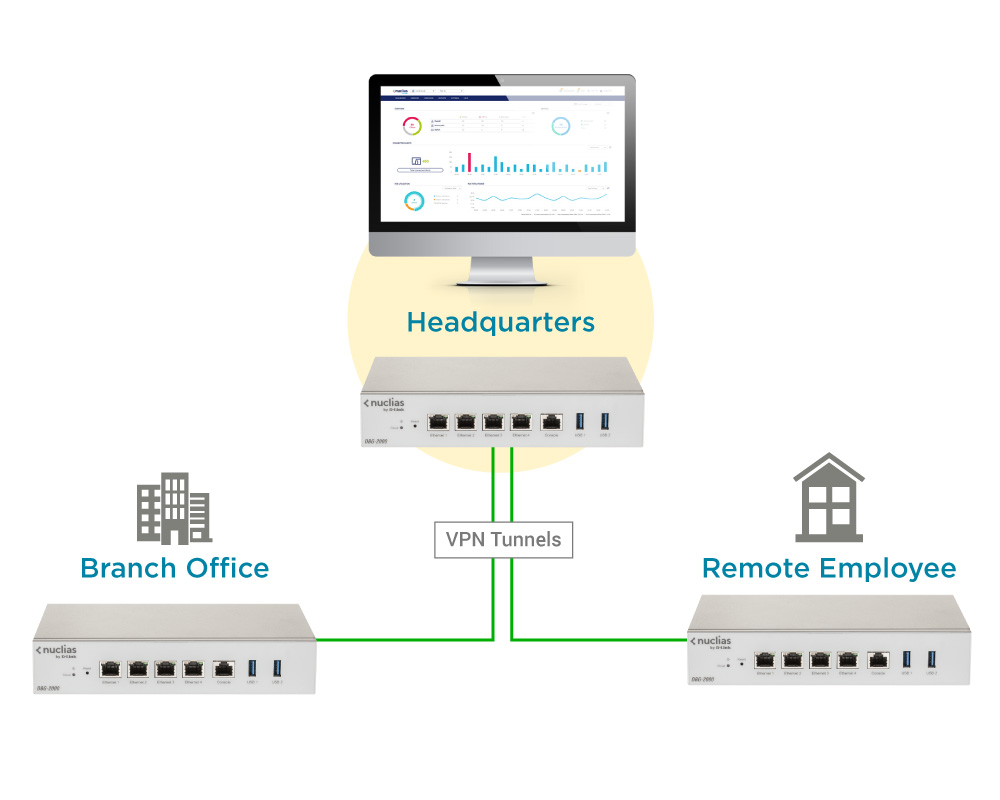

Quick VPN enables the modern decentralized workforce
Nuclias enables easy P2P VPN tunneling for better business privacy and remote working. Rapidly establish your VPN via the Nuclias dashboard for more secure connections.
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/quickvpn01.jpeg?h=800&w=1000&la=pt-BR&hash=EE959643DDCCE6F8276191E6D9F8F044)

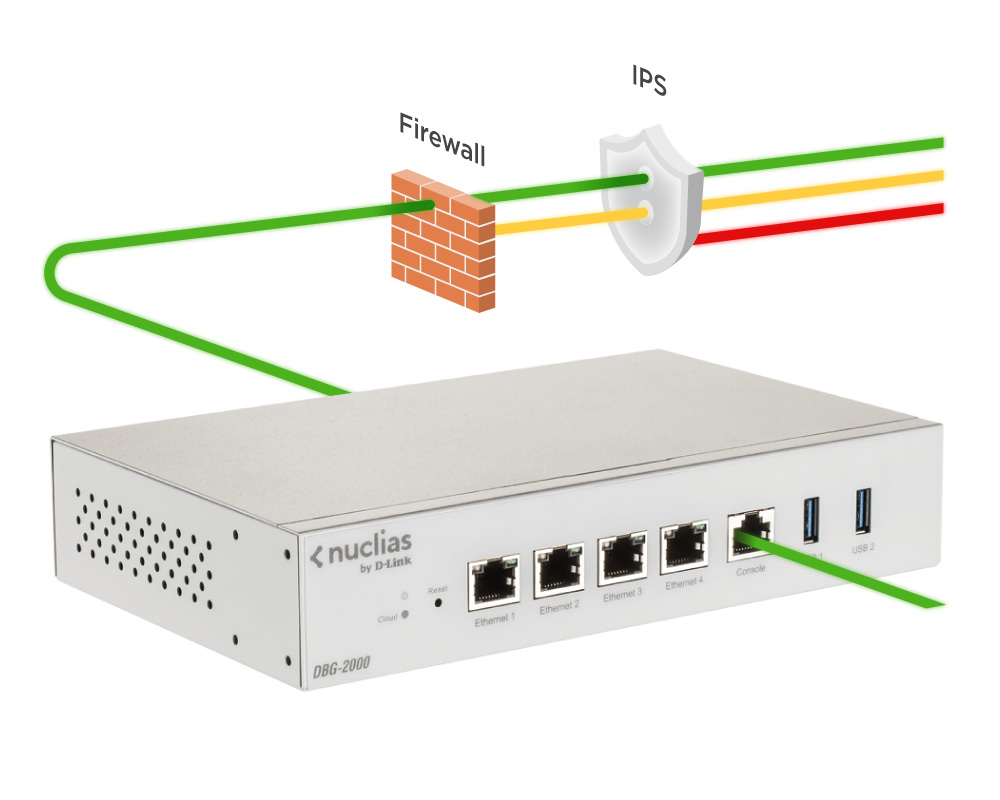

Strong network security features
The DBG-2000 is adept at keeping business networks more secure. The powerful network firewall filters traffic, blocking anything that shouldn’t be there.
Meanwhile, the Intrusion Prevention System (IPS) actively shields the network from modern day threats such as DDoS attacks, brute force attacks or vulnerability exploits, as well as raising the alarm alerting administrators to irregularities.
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/networksecurity01.jpeg?h=800&w=1000&la=pt-BR&hash=9E39C91D2C787607FC69F6A0131D4FA7)

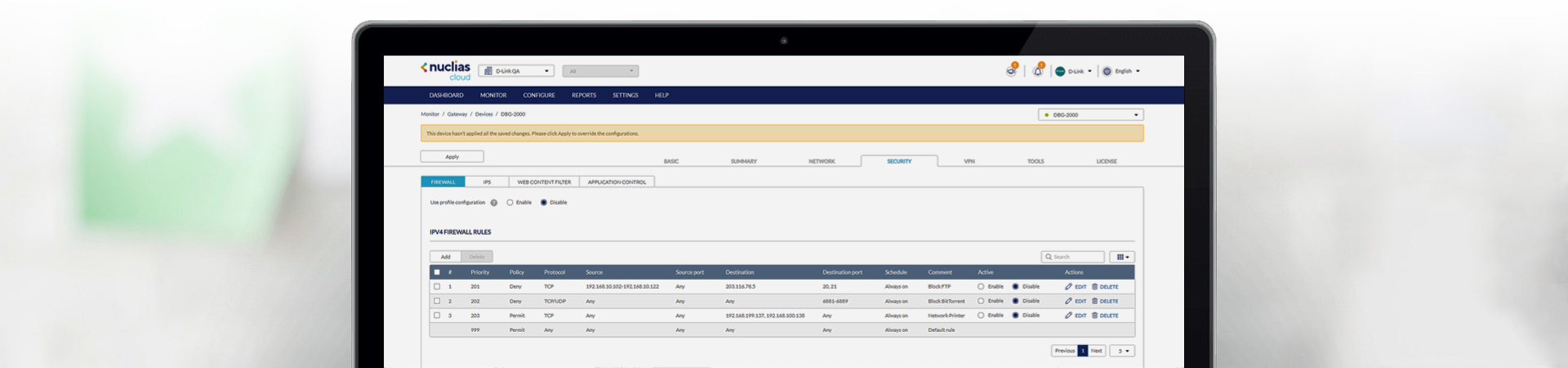

Simplified management policies
Nuclias Cloud empowers you with essential tools, such as Content Filters, Firewalls or Application Control. Define your policies as necessary, and then roll them out across the entire network for greater network-wide consistency.
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/policymanagement.jpeg?h=450&w=1920&la=pt-BR&hash=96D746FDDFB69235047129D06B004CEF)

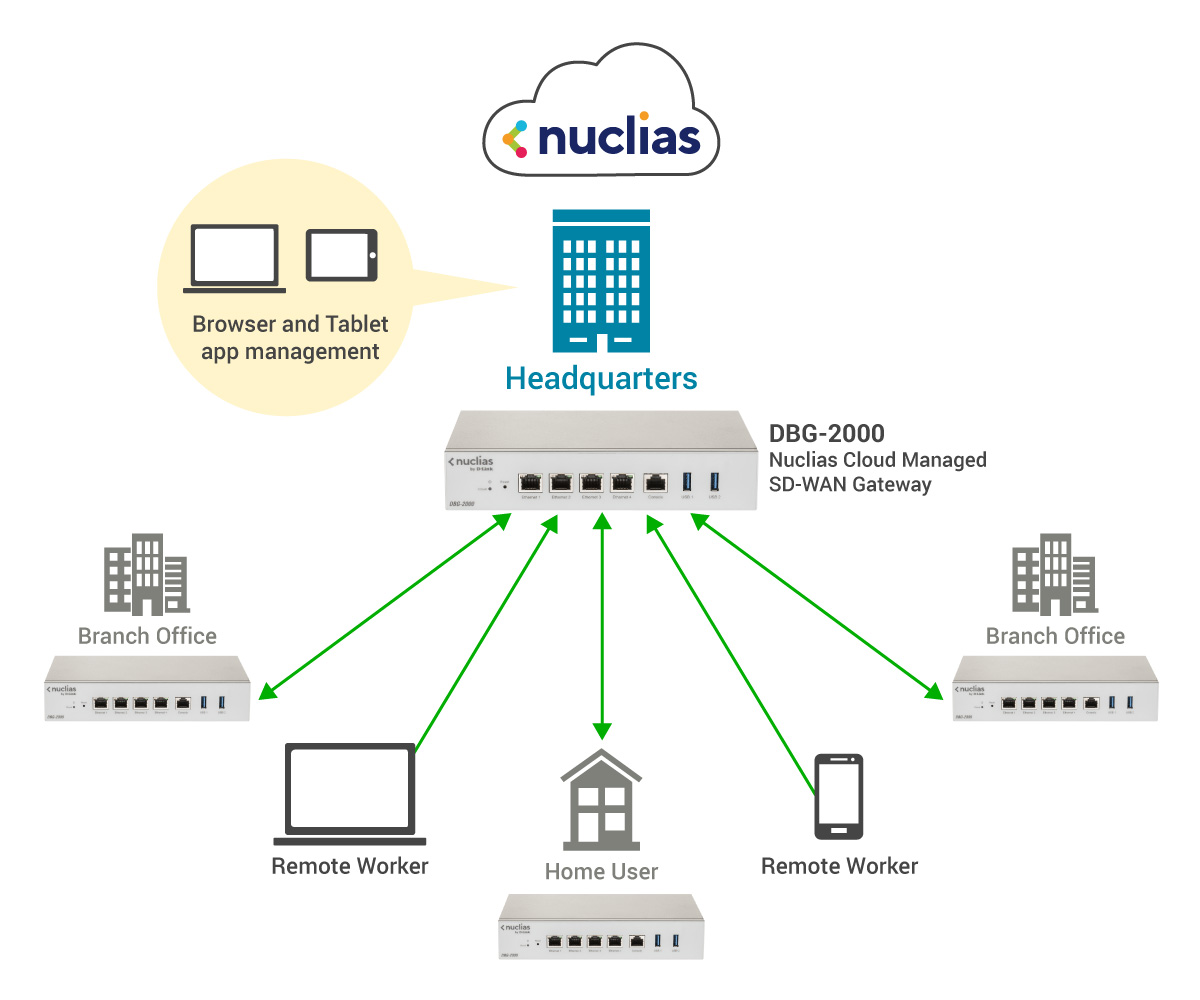

Application Topology:
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/application_topology_01.jpeg?h=1000&w=1200&la=pt-BR&hash=84F3C43AB684DC7B9C076F7D7488E340)
![](/br/pt/-/media/product-pages/dbg/dbg-2000/assets/dbg_2000_das_02.png?h=555&w=1525&la=pt-BR&hash=BD72C0F0A6D4039D5CF76FE37D81BEE1)
Free Next-Business-Day Service
Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.
Our rapid-response technical support is designed to ensure businesses get the best support for their unique environment. Our extended warranty and enhanced service packages increases the lengths of warranties and further minimises downtime.
![](/br/pt/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_14_assistlogo.png?h=92&w=224&la=pt-BR&hash=05509ADF29A40EDAF058241880931DAF)
Related Products
![](/br/pt/-/media/product-pages/dba/x2830p/dba_x2830p_a1_front.png?h=100&w=100&la=pt-BR&hash=18CC50380A03C836C28FF2350C8DBFAB)
![](/br/pt/-/media/product-pages/dba/x1230p/assets/dba_x1230p_a1_side.png?h=100&w=87&la=pt-BR&hash=96BB6327C8B667403C4240C47EF91D1E)
![](/br/pt/-/media/product-pages/dbs/2000/dbs_2000_series_a1_image_l_front.png?h=100&w=131&la=pt-BR&hash=6E39E7CBD06617DF71A444AC7A97C12D)
![](/br/pt/-/media/product-pages/dba/2820p/dba_2820p_a1_side.png?h=100&w=92&la=pt-BR&hash=46F7AE2A35A75252379F73AE0897921E)
![](/br/pt/-/media/product-pages/dba/2520p/dba_2520p_a1_front.png?h=100&w=100&la=pt-BR&hash=E408CDD9DF0491B4D023E75D95110F62)
Specs
Type
|
SD-WAN Gateway |
---|---|
Wired interface
|
1 x Gigabit Ethernet LAN 1 x Gigabit Ethernet WAN 2 x Gigabit Ethernet WAN/LAN/DMZ |
USB ports
|
1 x USB 2.0 1 x USB 3.0 |
Console port
|
Supported
|
Firewall throughput
|
1.8 Gbps |
VPN throughput (3DES)
|
450 Mbps |
Concurrent sessions
|
200000 |
Firewall system
|
Intrusion prevention system (IPS) Web content filtering |
Networking
|
WAN load balancing |
VPN tunnels
|
200 |
IPSec tunnels
|
200 |
PPTP/L2TP tunnels
|
200 |
VPN features
|
IPSec/PPTP/L2TP Server OpenVPN Quick VPN |
Controller managed features
|
Captive portal |
Management platform
|
Nuclias Cloud Networking Solution |
Support
Version | Date | Type | File Size | |
---|---|---|---|---|
Datasheet EN | - | 0.26mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
Manual 2.2.0.8 RevA1 | Product Manual | 26/07/2021 | - | - | Download |
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version | Description | Date | |
---|---|---|---|
CE doc UKCA 1.00 RevA1 | CE document | 12/10/2021 | Download |
