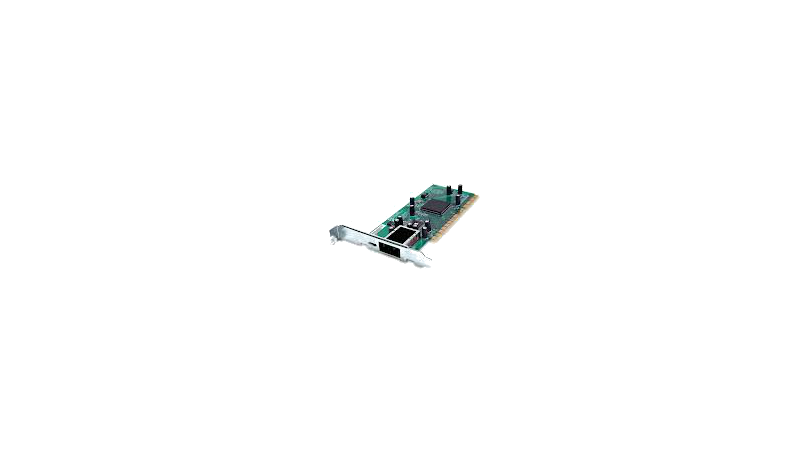

32-Bit Gigabit Ethernet Adapter
DGE-500T
- Product Status (Revision A): Live
The DGE-500T is IEEE 802.3, IEEE 802.3u and IEEE 802.3z compliant. It is designed with the newest networking technologies such as Auto MDI-II/MDI-X crossover capabilities, and multicasting support to utilize network bandwidth more efficiently. The DGE-500T is 2.1 and 2.2 PCI compliant. The DGE-500T supports Full Duplex operation for 20/200/2000Mbps data rates and flow control.
The DGE-500T RJ-45 Ethernet port is designed to automatically detect a straight- through or a crossover Cat5 cable. The DGE-500T comes with a built-in 8 KB Transmit and 32 KB Receive data FIFOs. The DGE-500T supports Plug-and-Play installation and is compatible with Windows 98, ME, 2000, NT 4.0 Operating systems.
* Specifications are subject to change without notice.
Specification
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX FAST Ethernet
- IEEE 802.3z 1000BASE-T Gigabit Ethernet
- ANSI / IEEE 802.3 NWay Auto-negotiation
- IEEE 802.3x Full Duplex Flow Control
Protocol
- CSMA/CD
Host Interface
- PCI 2.1, 2.2 specification
- 32 bit compatible RJ-45 network
Data Transfer Rate
- Ethernet 10 Mbps (half-duplex) 20Mbps (full-duplex)
- Fast Ethernet 100 (half-duplex) 200Mbps(full-duplex)
- Gigabit 1000Mbps (full-duplex) 2000Mbps (full-duplex)
Network Cables
- Gigabit Ethernet 4-pair UTP Cat5e 100-ohm STP
Led Indicator
- 10 Link
- 100 Link
- 1000 Link
- FDX, Collision, Activity
- Data
RJ-45 Port
- Auto MDI-II/MDI-X port
Power Consumption
- 10 watts. (max.)
Temperature
- Operating: -10° ~50° C
- Storage: -10° ~70° C
Humidity
- Operating: 10%~90%
- Storage: 5%~90%
Dimensions
- 164 X 69 mm (WxH)
EMI
- FCC Class B
- CE Mark B
- VCCI-B
* Specifications are subject to change without notice.
