5-Port Gigabit Unmanaged Desktop Switch
DGS-105
- Product Status (Revision E1): Live

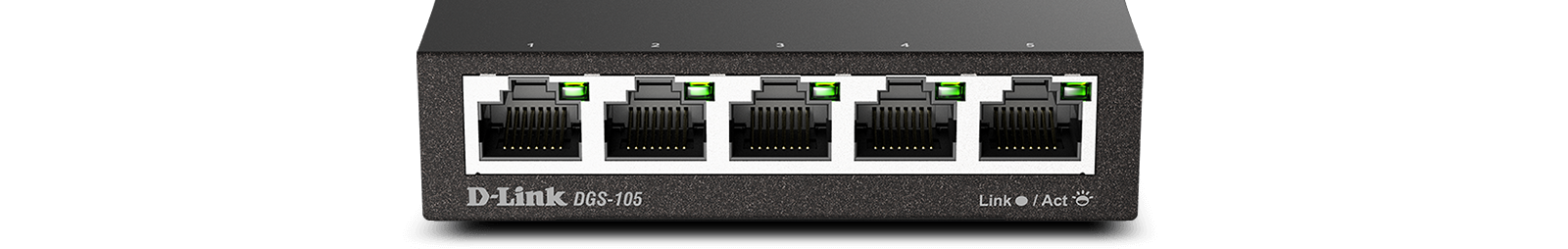

![](/br/pt/-/media/product-pages/dgs/105/assets/dgs105_01_overview_02.png?h=254&w=1600&la=pt-BR&hash=EA580B412D8D0C6267BEF5CD47941455)
Compact Gigabit Connectivity.
The DGS-105 5-Port Gigabit Unmanaged Desktop Switch offers an economical way for SOHO and small and medium businesses to benefit from the increased bandwidth of Gigabit Ethernet. It provides five Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.
Online games, 4k video streaming, large file downloads - nothing beats wired Ethernet
Smaller switches great for advanced home users that would prefer to not connect everything through WiFi and congesting their network. This switch functions like a powerstrip - one cable turns into multiple. Run a single cable from the router and then turn that cable to multiple gadgets.
![](/br/pt/-/media/product-pages/dgs/105/assets/dgs105_02_award.png?h=88&w=91&la=pt-BR&hash=A4BADECDFC8592E4950A589C35E608F5)
![](/br/pt/-/media/product-pages/dgs/105/assets/dgs105_03_overview2.jpg?h=923&w=2000&la=pt-BR&hash=CA54942EF520610948BBA928791BD22A)
Effortless Gigabit Networking
Plug-and-play makes it easy to instantly create a network connected to the internet, without fiddling with any configurations whatsoever.
Gigabit Ethernet transfer speeds make it ideal for transferring files quickly and online gaming. With front, easy-to-access Ethernet ports with two colour LED light indicators per port to make it easy to distinguish the link status. The switch features QoS, which organizes and prioritizes time-sensitive and important data for efficient delivery, allowing for smooth streaming media, VoIP calling, and online gaming.

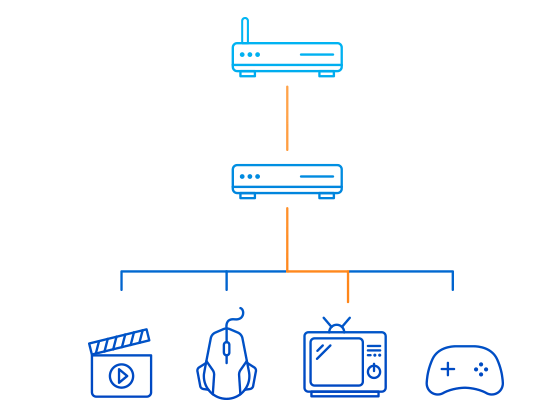

IGMP Snooping
When Internet Group Management Protocol (IGMP) snooping is enabled, the DGS-105 listens to IGMP conversations between hosts and routers and maintains a map of exactly which links need IP multicast streams, resulting in greater efficiency and smoother performance.
Any links that do not need multicasts can be filtered, so you’re always in control of which ports specifically receive multicast traffic.
![](/br/pt/-/media/product-pages/dgs/105/assets/dgs105_06_igmp.png?h=420&w=560&la=pt-BR&hash=261D02166CB743C22563D293A4C6F0A3)
Think Green
This switch saves energy and reduces heat, which in turn extends its product life without sacrificing performance or functionality.
The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which can detect when a connected computer is shut down or when there is no Ethernet traffic, and will proceed to power down the idle port, saving a substantial amount of power. In addition, the switch can also save energy by detecting the length of cable connected to a port and use only as much power as is required. Both of these features work together to help you save power automatically.

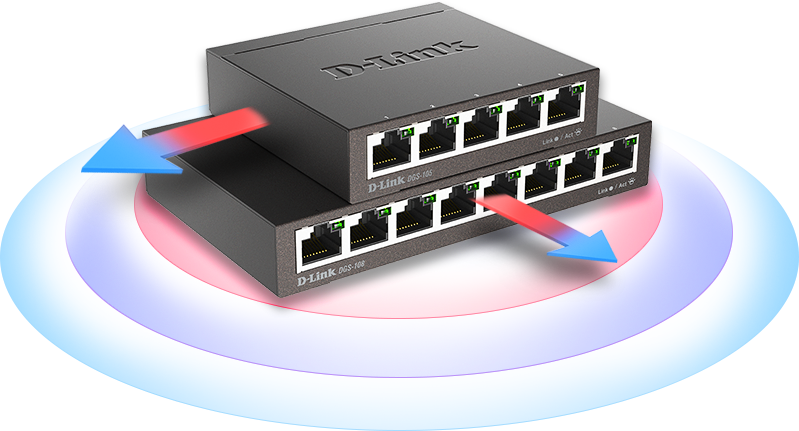

Compact and Silent
Designed with durability and performance in mind.
Its sturdy metal housing ensures the product can withstand wider operating by helping to dissipate heat and reduce stress on internal components.
![](/br/pt/-/media/product-pages/dgs/105/assets/dgs105_08_durability_crop.png?h=431&w=799&la=pt-BR&hash=0A3184C07E8B60EB2F09B5EA15918C5E)
Related Products
![](/br/pt/-/media/product-pages/dgs/1005p/dgs_1005p_side_left.png?h=100&w=150&la=pt-BR&hash=96BEA56747809421D3F64FAF6B341DF1)
![](/br/pt/-/media/product-pages/dgs/108/e1/dgs108e1image-lfront.png?h=100&w=262&la=pt-BR&hash=A1DC368ADC0AA491929EA5F06F303819)
Specs
Number of ports
|
5 to 14 ports |
---|---|
Main type of ports
|
1000BASE-T Gigabit Ethernet |
Switching capacity
|
10 Gbps |
Fanless
|
Supported
|
D-Link Green
|
Supported
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
Form Factor
|
Desktop |
Housing
|
Metal |
Jumbo frame
|
Supported
|
Cable diagnostics
|
Supported
|
MAC address
|
2K |
Number of QoS queues per port
|
4 |
