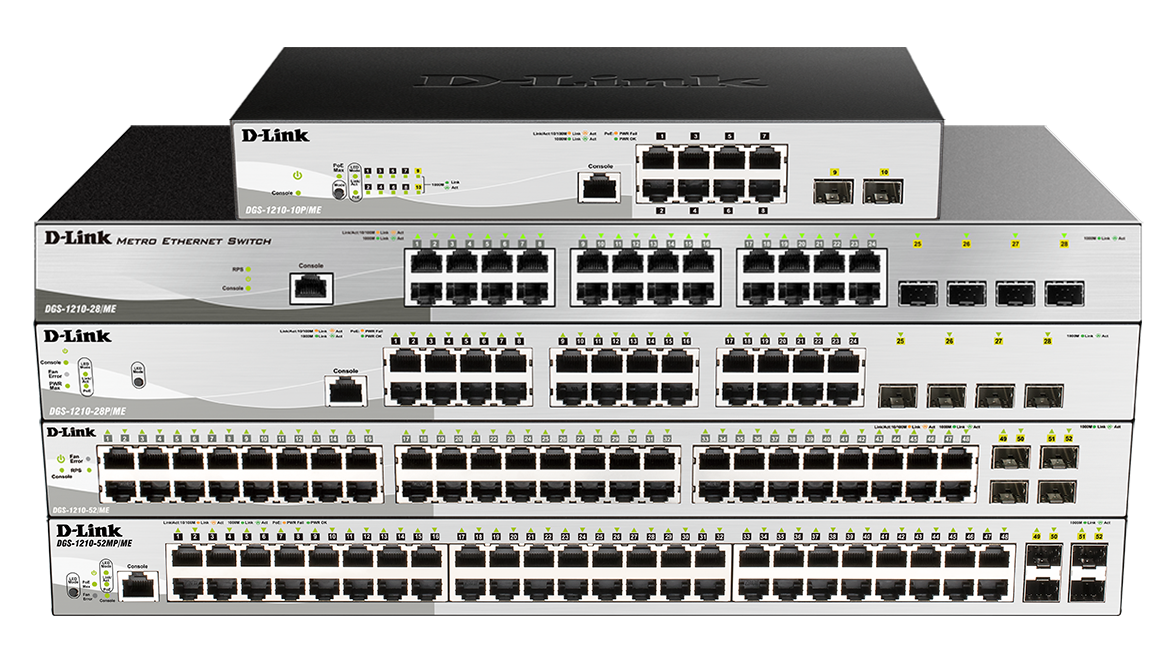

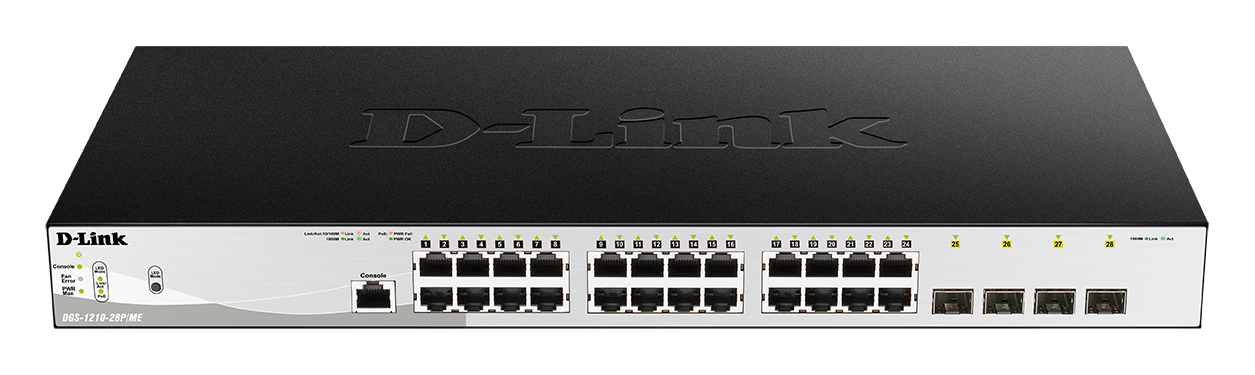

Gigabit Managed Switches
DGS-1210/ME Series
- Product Status (Hardware version: B): Live
- Wide range of port configurations
- Advanced layer 2 features with static route and IP interface support
- PoE options up to 370W power budget
- Easy management with web UI
- Available in PoE and non-PoE variations
![](/br/pt/-/media/product-pages/dgs/2000/assets/dgs2000_02_flexible.png)
Flexible Hardware Design
Wide range of port and media types, including 10/100/1000BASE-T RJ-45 ports, 100/1000 Mbps GbE/SFP combo ports, and 100/1000 Mbps SFP ports.
![](/br/pt/-/media/product-pages/dgs/2000/assets/dgs2000_02_poe.png)
High Switching Capacity and PoE Budget
Up to 104 Gbps switching capacity with a maximum PoE budget up to 370W.
![](/br/pt/-/media/product-pages/dgs/2000/assets/dgs2000_02_layer2.png)
Layer 2 with Layer 3 Lite features
Equipped with a complete lineup of L2 features, and supports IP interfaces, ARP, IPv6 neighbor discovery (ND) and default routing.
![](/br/pt/-/media/product-pages/dgs/2000/assets/dgs2000_02_security.png)
Network Security
D-Link’s innovative Safeguard Engine™ protects the switches against traffic flooding caused by malicious attacks.
![](/br/pt/-/media/product-pages/dgs/2000/assets/dgs2000_02_management.png)
Simplified Management
Simple management through user-friendly web configuration or command line interface (CLI) via Telnet or SSH for ease-of-use.
![](/br/pt/-/media/product-pages/dap/3315/assets/dap3315_08_icon_warranty.png)
Limited Lifetime Warranty & Next Day Service
Register to enjoy D-Link Limited Lifetime Warranty support, with complimentary next business day advance replacement service included.
Learn more
Free Next-Business-Day Service
Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.
Our rapid-response technical support is designed to ensure businesses get the best support for their unique environment. Our extended warranty and enhanced service packages increases the lengths of warranties and further minimises downtime.
![](/br/pt/-/media/product-pages/dwl/6620aps/assets/dwl6620aps_14_assistlogo.png?h=92&w=224&la=pt-BR&hash=05509ADF29A40EDAF058241880931DAF)
Related Products
![](/br/pt/-/media/product-pages/dem/310gt/dem-310gt-left.png?h=100&w=178&la=pt-BR&hash=CF14900C6EAA68E0D7F2132907640899)
![](/br/pt/-/media/product-pages/dem/311gt/dem311gtg1image-lside.png?h=100&w=178&la=pt-BR&hash=D0950320B3DAF7F6B6BEA3CA44E18757)
![](/br/pt/-/media/product-pages/dem/312gt2/dem-312gt2-left.png?h=100&w=178&la=pt-BR&hash=229C15C53D786839016221723459A889)
![](/br/pt/-/media/product-pages/dps/500a/dps500aa1image-lfront.png?h=100&w=178&la=pt-BR&hash=C4D7F38194A04F119993FC4756F4FF1E)
![](/br/pt/-/media/product-pages/dgs/1100/v2/dgs110005v205pdv208v208pv216v224v224pv2a1image-lfront.png?h=100&w=111&la=pt-BR&hash=87CB34AB70E256110524A0FB0E0E74F3)
Specs
Number of ports
|
16 to 30 ports 48 to 54 ports 5 to 14 ports |
---|---|
Layer
|
Layer 2+ |
Main type of ports
|
1000BASE-T Gigabit Ethernet |
Type of uplink ports
|
SFP |
Switching capacity
|
104 Gbps 20 Gbps |
PoE options
|
802.3af 802.3at |
Number of PoE ports
|
24 48 |
PoE power budget
|
See datasheet See datasheet See datasheet |
D-Link Green
|
Supported
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
Form Factor
|
Rackmountable |
Housing
|
Metal |
Jumbo frame
|
Supported
|
Cable diagnostics
|
Supported
|
MAC address
|
16K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Link aggregation
|
802.3ad |
VLAN group (max static)
|
4K |
VLAN type
|
GVRP MAC-based Port-based Protocol-based |
Advanced VLAN
|
Asymmetric VLAN Double VLAN (Q-in-Q) ISM VLAN |
IPv6 Ready
|
Supported
|
Number of QoS queues per port
|
8 |
CoS based on contents
|
Supported
|
Bandwidth control
|
64 Kbps minimum granularity |
ACL type
|
Ingress |
ACL based on packet contents
|
Supported
|
Time-based ACL
|
Supported
|
Encryption protocol supported
|
SSH SSL (v1/v2/v3) |
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
ARP spoofing
|
Supported
|
BPDU attack protection
|
Supported
|
802.1X access control
|
Supported
|
Microsoft NAP support
|
Supported
|
RADIUS/TACACS+ authentication
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
RMON v1/v2
|
Supported
|
LLDP
|
Supported
|
ICMPv6
|
Supported
|
