Smart+ Managed Gigabit Switches
DGS-1210 Series
- Product Status (Hardware version: Fx): Live
- Layer 2 management and security with Layer 3 capabilities
- Compact Command-Line Interface (CLI) and web-based User-Interface
- Static Routing and MSTP
- PoE options up to 370W power budget
- Dual image & config
Where to buy
![](/br/pt/-/media/product-pages/common/product-features/2018/static-routing.png)
Static Routing
Route Layer 3 traffic between switches, even if they're segmented in VLANs.
![](/br/pt/-/media/product-pages/common/product-features/2018/uplink.png)
Fibre Uplink Ports
Connect to other areas of your network at fibre-optic Gigabit speeds, and reach even further distances.
![](/br/pt/-/media/product-pages/common/product-features/2018/surveillance-mode.png)
Surveillance Mode Interface
D-Link’s exclusive, easy-to-use Surveillance Mode interface gives you a snapshot of your security topology in an instant.
PoE Capable
Up to 370 W PoE output per switch
![](/br/pt/-/media/product-pages/common/product-features/2018/static-routing.png)
VLANs
Segment your network into VLANs.
![](/br/pt/-/media/product-pages/dgs/3130/assets/dgs3130_icon_08_dualimage.png)
Dual Image
Risk-free configuration testing.
Smart Managed with a Plus
With increased PoE output, advanced Layer 2 management features, and Layer 3 static routing , D-Link’s DGS-1210 Smart+ Managed Gigabit Switches provide a cost-efficient and flexible solution for expanding any business network.
Advanced Layer 2 Management with Layer 3 Static Routing
The DGS-1210 Smart+ family has advanced network management options, accessible via Compact CLI or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, dual software images, and dual configuration files.
With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ family is a versatile solution for access-edge network environments.
![](/br/pt/-/media/product-pages/dgs/1210-plus/assets/advanced-l2-management-features.png?h=560&w=560&la=pt-BR&hash=E976762E124E63B8F865BF447B0D05D1)

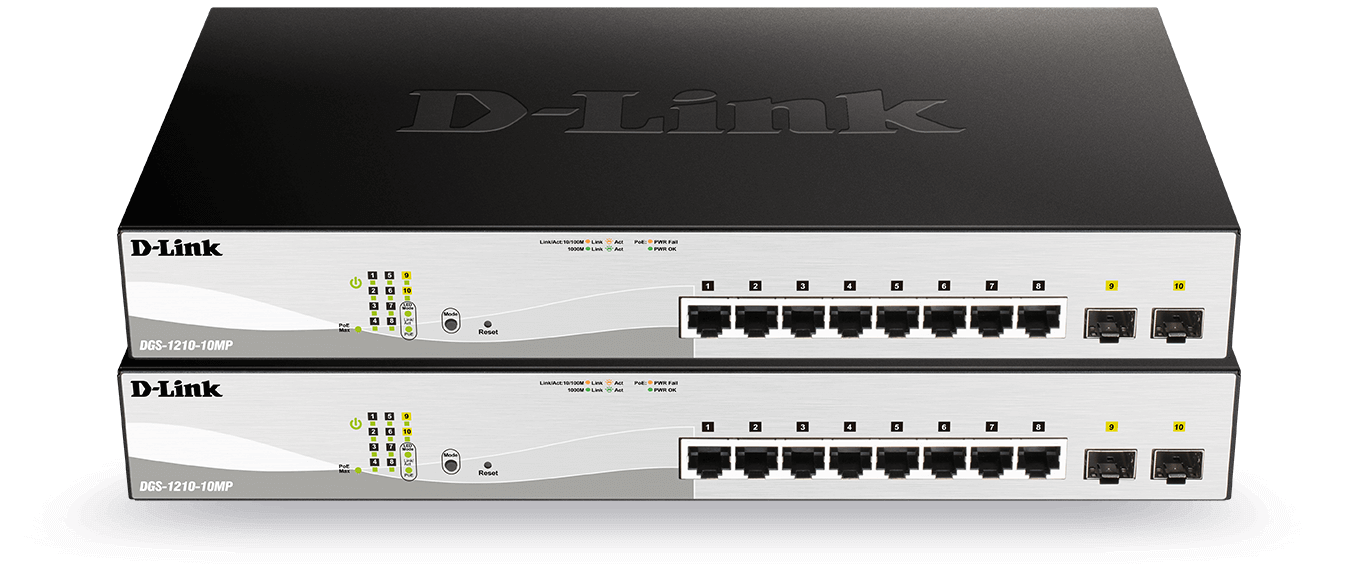

Fibre Uplinks
Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy-efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network.
![](/br/pt/-/media/product-pages/dgs/1210-plus/assets/fibre-uplinks.png?h=570&w=1358&la=pt-BR&hash=91FBB3189A86F59A537B963E41D5200E)
PoE and PoE+, with budgets up to 370W
The DGS-1210 Smart+ Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.
This product is compatible with Nuclias Connect*
Nuclias Connect is our free remote network management software designed with network scalability, privacy and customisation in mind. It can be used either as an on-premises software management platform, or as a cloud solution.
*An upgrade to the latest product firmware is required.
![](/br/pt/-/media/microsites/nuclias/nuclias-connect-product-page/nucliasconnectproductpage_learnmore.jpg?h=703&w=560&la=pt-BR&hash=4AD2DC625010EFCDAB36CDE1B5454D43)

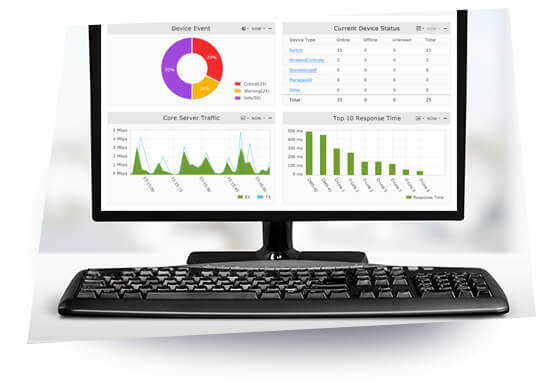

Free Network Design and Management Software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.
![](/br/pt/-/media/product-pages/dgs/1210-plus/assets/manage.jpg?h=390&w=560&la=pt-BR&hash=35B26F45111B3BFDC12504C754D2C8E8)
Smart Energy-Saving Design
D-Link Green technology enables the DGS-1210 Smart+ series to save power without any sacrifices. The majority of the family utilises a fanless design, otherwise they feature a smart fan that powers on above a certain temperature. All come with advanced silicon technology which saves up to 73% of energy compared to a normal switch.
![](/br/pt/-/media/product-pages/dgs/1210-plus/assets/dlink-green-logo.png?la=pt-BR&h=409&w=370&mw=520&hash=498076008C3569F886E4803A70C58BC5)

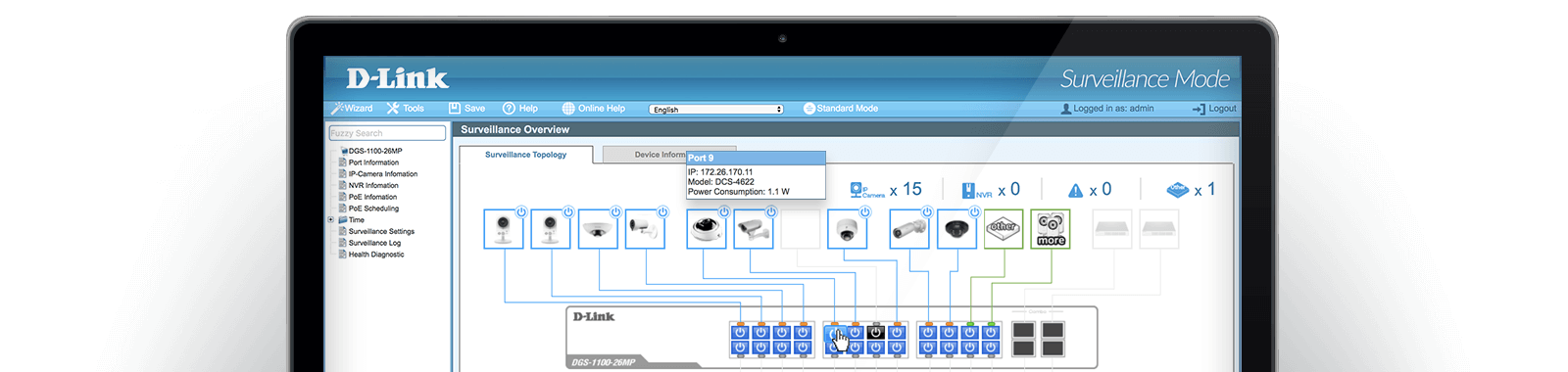

Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy-to-use surveillance features which enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.
![](/br/pt/-/media/product-pages/dgs/1210-plus/assets/ip-surveillance-mode.png?h=380&w=1600&la=pt-BR&hash=77E9C3FAC25596F9993583E00FC6230B)
DGS-1210 Smart+ switch series

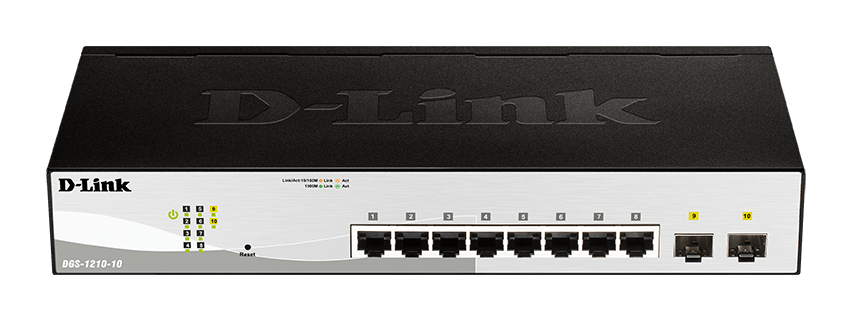

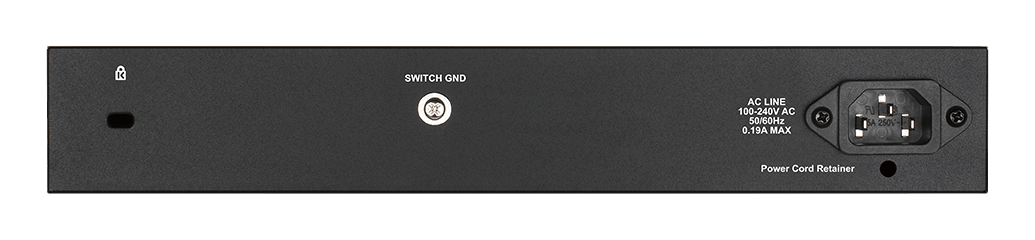

![](/br/pt/-/media/product-pages/dgs/1210/f1/dgs121010f1image-lfront.png?mh=300&h=300&w=796&la=pt-BR&hash=6512A85EE8AED9E093A4C0F797937182)
· 8 x 1000Base-T
· 2 x SFP
· Fanless

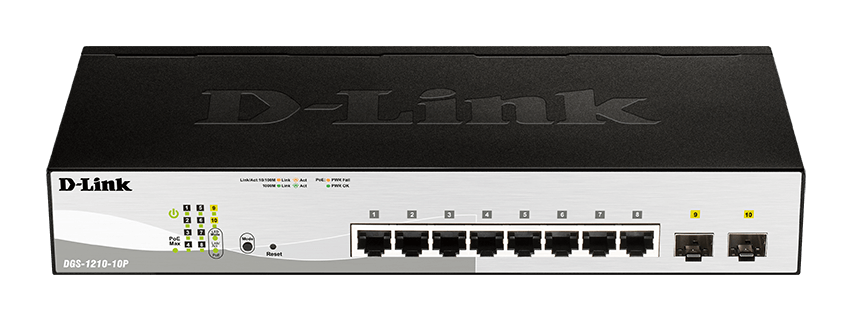

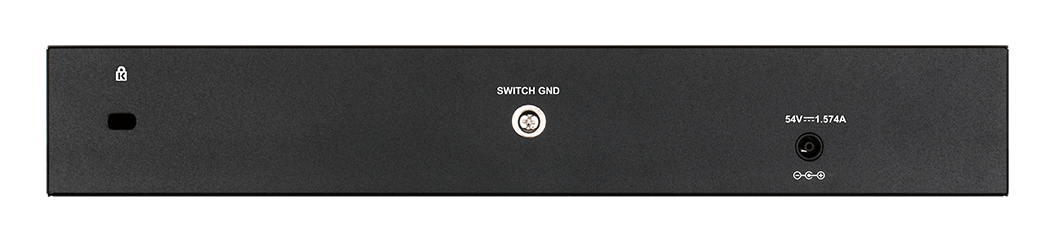

![](/br/pt/-/media/product-pages/dgs/1210/f1/dgs121010pf1image-lfront.png?mh=300&h=300&w=796&la=pt-BR&hash=F4B0B94FF066141E7CBE9100F472A53F)
· 8 x 1000Base-T 802.3af/802.3at PoE
· 2 x SFP
· 65W PoE budget
· Fanless

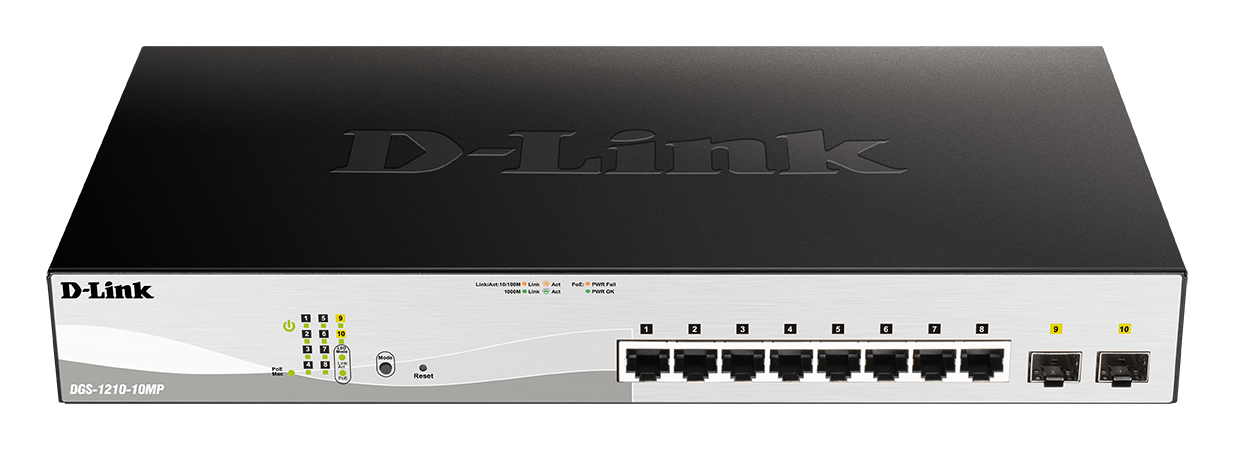

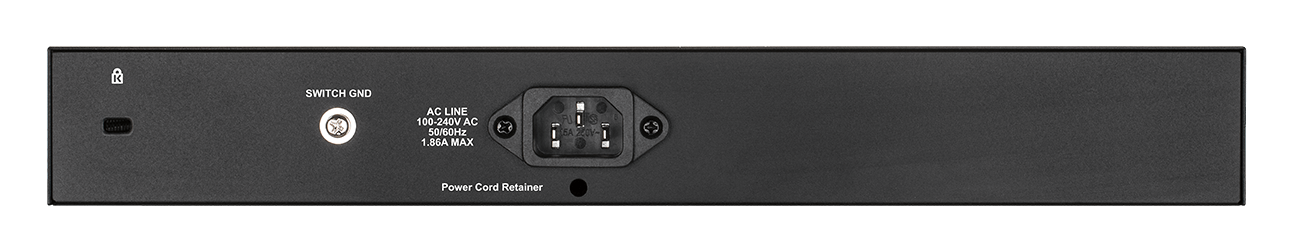

![](/br/pt/-/media/product-pages/dgs/1210/f1/dgs121010mpf1image-lfront.png?mh=300&h=300&w=823&la=pt-BR&hash=41F6C400DDFEFB19894C2BF2EBBA653C)
· 8 x 1000Base-T 802.3af/802.3at PoE
· 2 x SFP
· 130W PoE budget
· Fanless

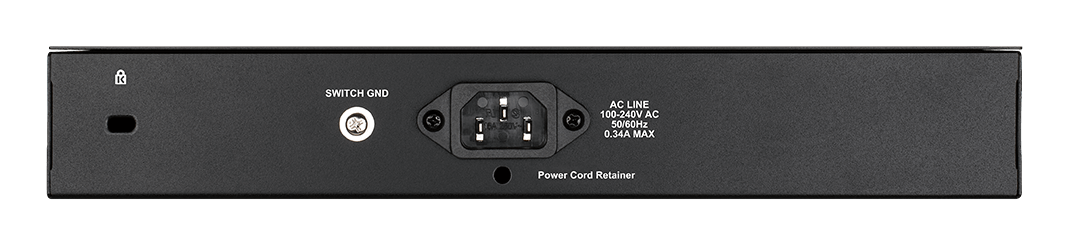

![](/br/pt/-/media/product-pages/dgs/1210/f1/dgs121020f1image-lfront.png?mh=300&h=300&w=693&la=pt-BR&hash=517285EF5848DEFB4CE9BA9E9FFCE741)
· 16 x 1000Base-T
· 4 x Combo
· Fanless

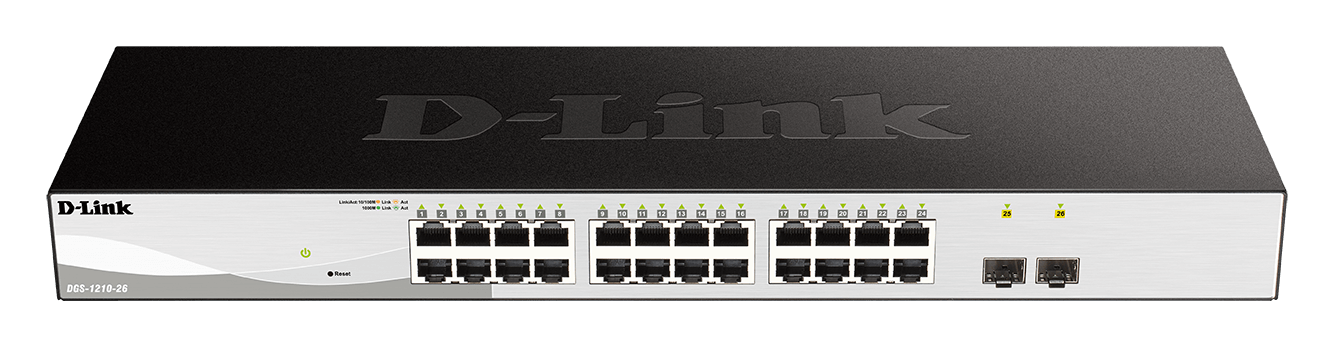

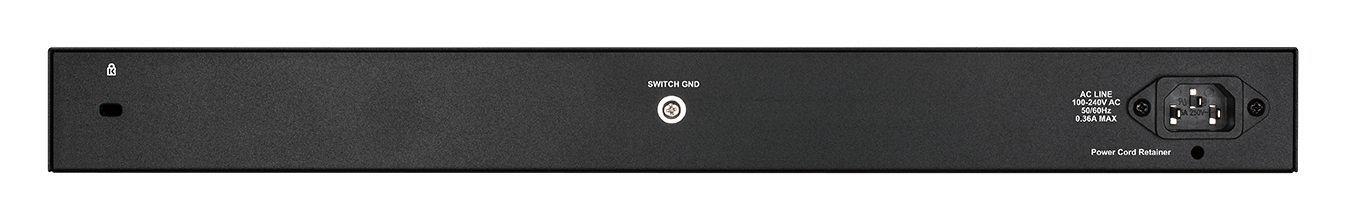

![](/br/pt/-/media/product-pages/dgs/1210/f1/dgs121026f1image-lfront.png?mh=300&h=300&w=1162&la=pt-BR&hash=C615EB8BFEBBD9E0B9B492B3CEF63BB4)
· 24 x 1000Base-T
· 2 x SFP
· Fanless

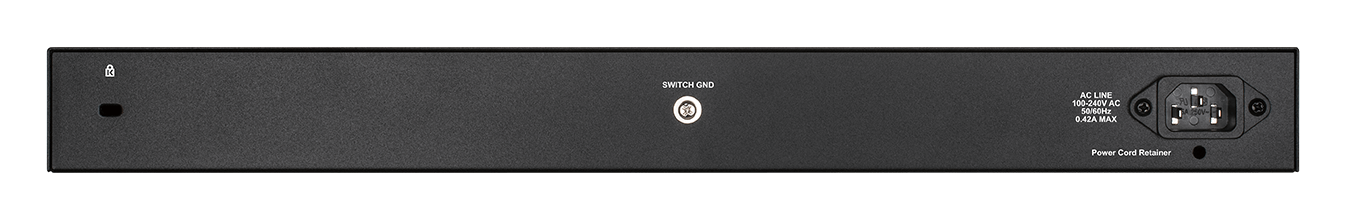

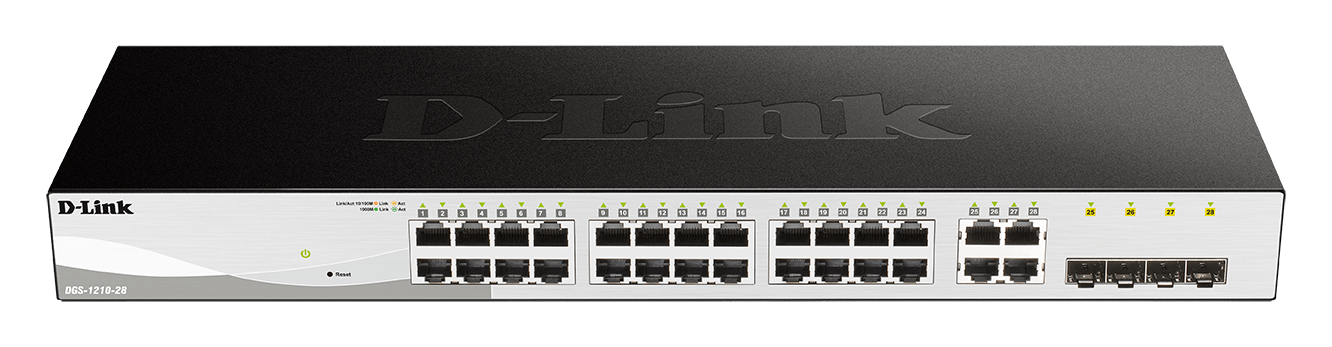

![](/br/pt/-/media/product-pages/dgs/1210/f1/dgs121028f1image-lfront.png?mh=300&h=300&w=1152&la=pt-BR&hash=C3E9F5A065FDBF981ECDCE73C184627D)
· 24 x 1000Base-T
· 4 x Combo
· Fanless

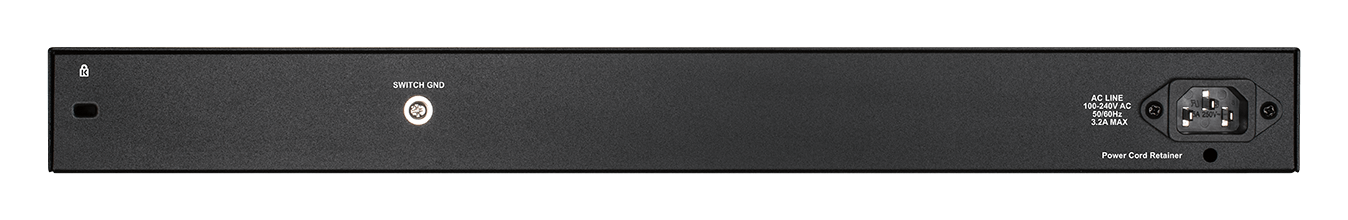

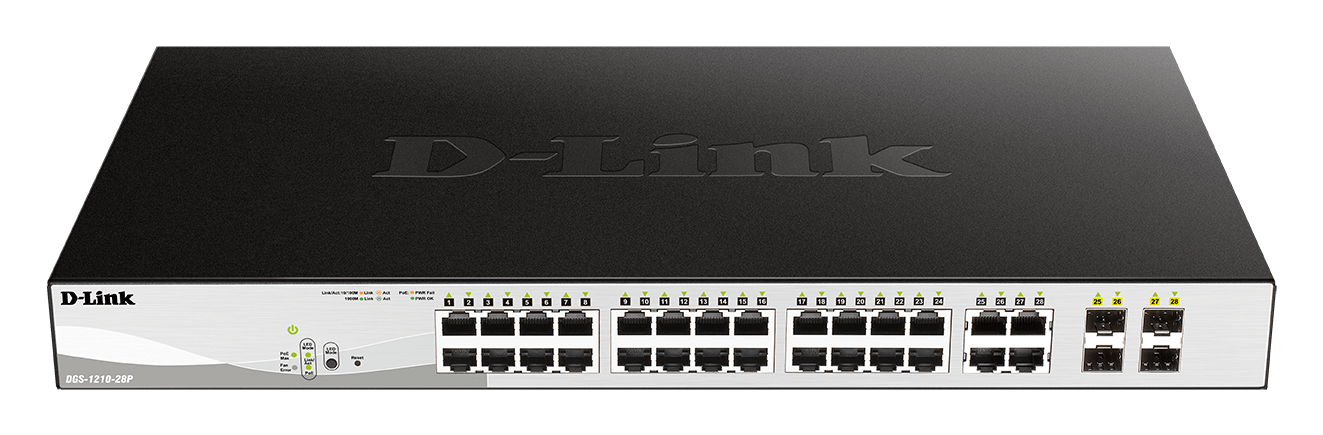

![](/br/pt/-/media/product-pages/dgs/1210/f1/dgs121028pf1image-lfront.png?mh=300&h=300&w=912&la=pt-BR&hash=6A12F175DDA99592D80EA44E058A2692)
· 24 x 1000Base-T 802.3af/802.3at PoE
· 4 x Combo
· 193W PoE budget

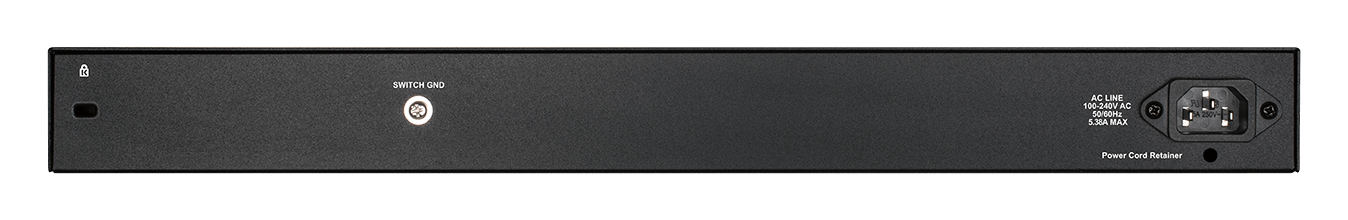

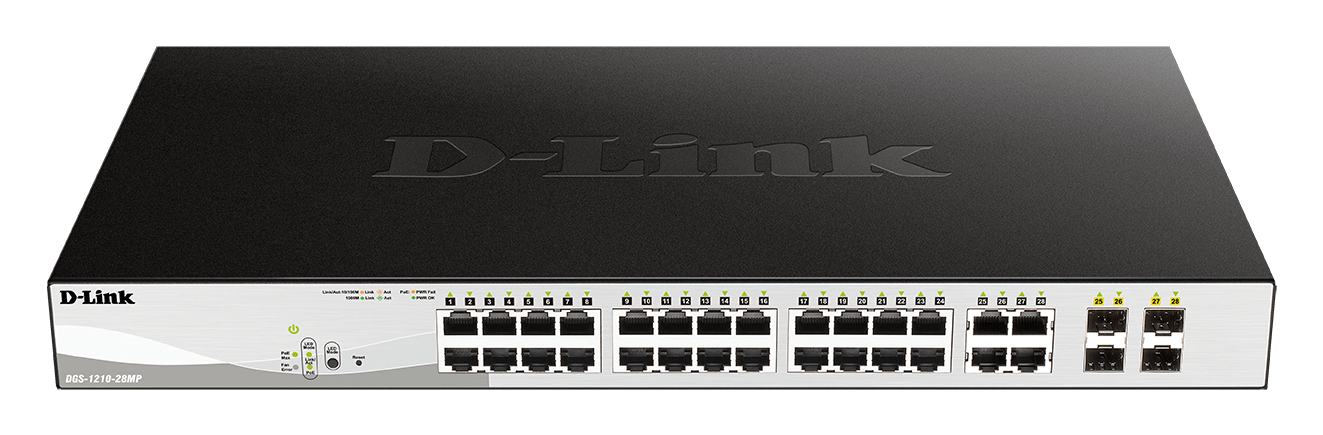

![](/br/pt/-/media/product-pages/dgs/1210/f1/dgs121028mpf1image-lfront.png?mh=300&h=300&w=912&la=pt-BR&hash=5EED353EA1EFE15D49124499298DD7D7)
· 24 x 1000Base-T 802.3af/802.3at PoE
· 4 x Combo
· 370W PoE budget

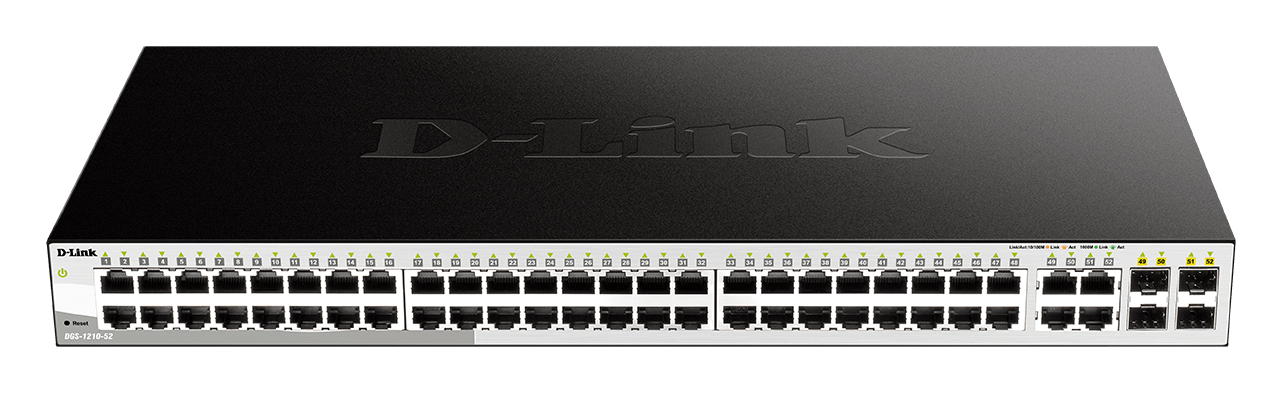

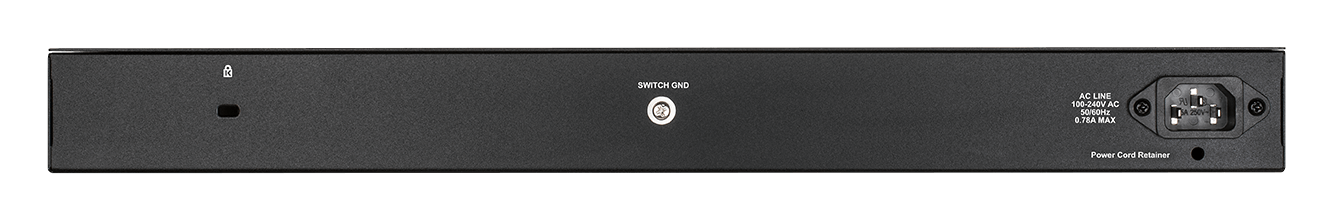

![](/br/pt/-/media/product-pages/dgs/1210/f1/dgs121052f1image-lfront.png?mh=300&h=300&w=978&la=pt-BR&hash=1A69DE94D7E5A23992E1FC721E66901D)
· 48 x 1000Base-T
· 4 x Combo
· Fanless

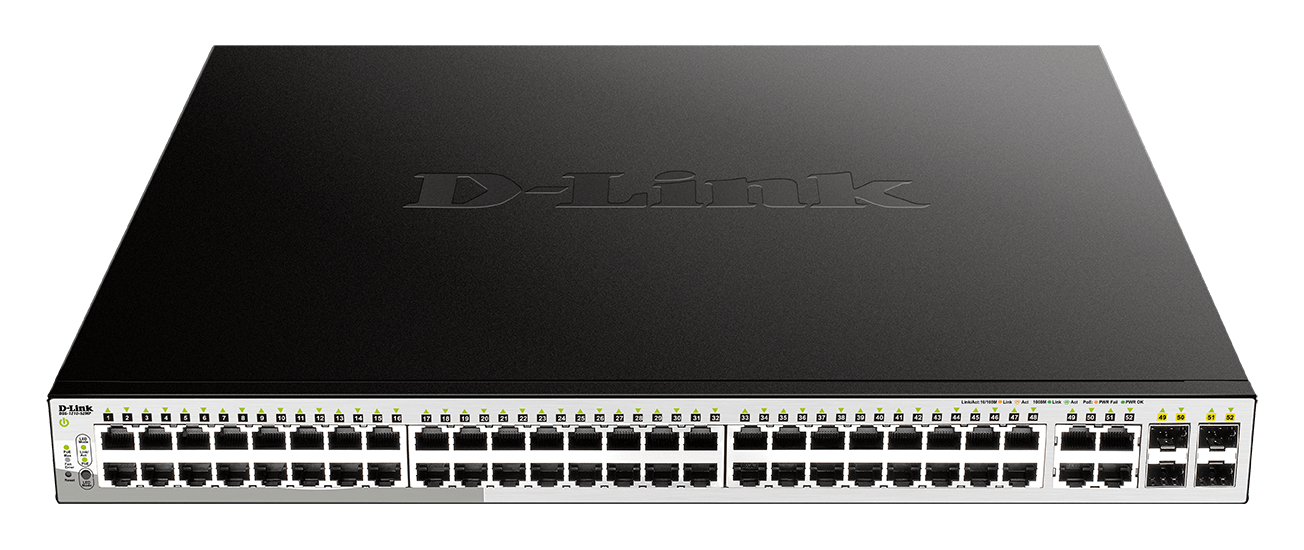

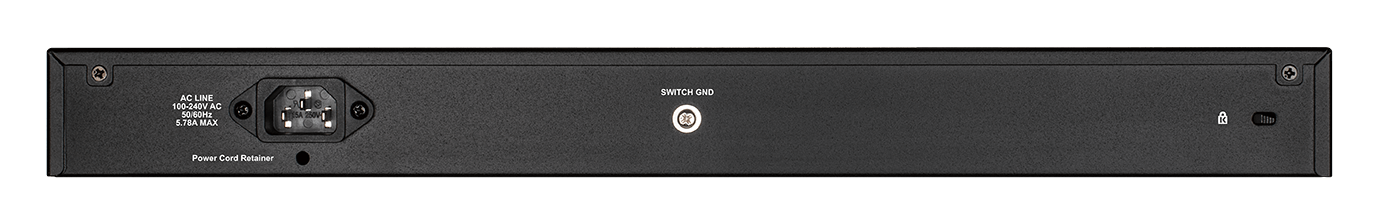

![](/br/pt/-/media/product-pages/dgs/1210/f1/dgs121052mpf1image-lfront.png?mh=300&h=300&w=711&la=pt-BR&hash=EB7DE1288FA051BD1720D75F426741D2)
· 48 x 1000Base-T 802.3af/802.3at PoE
· 4 x Combo
· 370W PoE budget
Related Products
![](/br/pt/-/media/product-pages/dv/700/dv700.png?h=100&w=178&la=pt-BR&hash=026BE902E486EBE14EB376CE5E0FB0A9)
![](/br/pt/-/media/product-pages/dem/310gt/dem-310gt-left.png?h=100&w=178&la=pt-BR&hash=CF14900C6EAA68E0D7F2132907640899)
![](/br/pt/-/media/product-pages/dem/311gt/dem311gtg1image-lside.png?h=100&w=178&la=pt-BR&hash=D0950320B3DAF7F6B6BEA3CA44E18757)
![](/br/pt/-/media/product-pages/dem/312gt2/dem-312gt2-left.png?h=100&w=178&la=pt-BR&hash=229C15C53D786839016221723459A889)
![](/br/pt/-/media/product-pages/dem/314gt/dem314gt.png?h=100&w=117&la=pt-BR&hash=EDFCBA766D0C67D08B50B906C5001E5C)
Specs
Type
|
Smart managed |
---|---|
Number of ports
|
16 to 30 ports 48 to 54 ports 5 to 14 ports |
Layer
|
Layer 2 |
Main type of ports
|
1000BASE-T Gigabit Ethernet |
Type of uplink ports
|
Combo 1000BASE-T/SFP SFP |
Switching capacity
|
104 Gbps 20 Gbps 40 Gbps |
PoE options
|
802.3af 802.3at |
Number of PoE ports
|
24 8 |
PoE power budget
|
See datasheet See datasheet |
D-Link Green
|
Supported
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
Form Factor
|
Desktop Rackmountable |
MAC address
|
16K 8K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Link aggregation
|
802.3ad |
VLAN group (max static)
|
256 |
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Auto Voice VLAN |
Number of QoS queues per port
|
8 |
CoS based on contents
|
Supported
|
Bandwidth control
|
16 Kbps minimum granularity |
ACL type
|
Ingress |
ACL based on packet contents
|
Supported
|
Encryption protocol supported
|
SSL (v1/v2/v3) |
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
ARP spoofing
|
Supported
|
802.1X access control
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
LLDP-MED
|
Supported
|
ICMPv6
|
Supported
|
