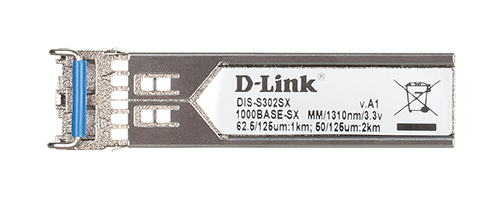

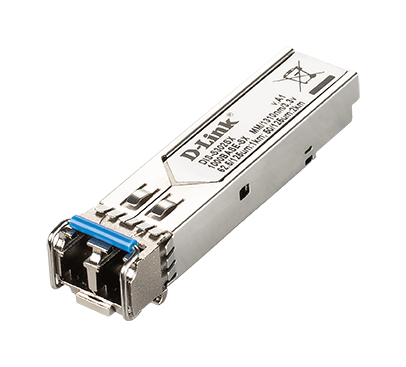

1-port Mini-GBIC SFP to 1000BaseSX Multi-Mode 2km Fibre Transceiver
DIS-S302SX
- Product Status: Live
- 1-port Mini-GBIC SFP to 1000BaseSX Multi-Mode Fibre Transceiver
- up to 2 km
- -40 ~ 85°C operating temperature
Related Products
![](/br/pt/-/media/product-pages/dis/100g-series/dis_100g_5w_leftsideangle.png?h=100&w=66&la=pt-BR&hash=1A15CCF950B8CFB91FBDFF43078DD9EC)
Industrial Gigabit Unmanaged Switch
DIS-100G-5W
![](/br/pt/-/media/product-pages/dis/100g-series/dis_100g_5sw_leftsideangle.png?h=100&w=66&la=pt-BR&hash=92E9F9BA69823CE460E441BF9ECCA444)
Industrial Gigabit Unmanaged Switch with SFP slot
DIS-100G-5SW
![](/br/pt/-/media/product-pages/dis/100g-series/dis_100g_5psw_leftsideangle.png?h=100&w=62&la=pt-BR&hash=ADFEDF8853A59ADFD4D0016ACB123DAE)
Industrial Gigabit Unmanaged PoE Switch with SFP slot
DIS-100G-5PSW
![](/br/pt/-/media/product-pages/dis/300g-series/dis_300g_12sw_leftsideangle.png?h=100&w=68&la=pt-BR&hash=22611859C9D268EFB623C3753C45AD1E)
Industrial Gigabit Managed Switch with SFP slots
DIS-300G-12SW
![](/br/pt/-/media/product-pages/dis/300g-series/dis_300g_8psw_leftsideangle.png?h=100&w=77&la=pt-BR&hash=B5096A2A16D9DC9DE671786D7496D14E)
Industrial Gigabit Managed PoE Switch with SFP slots
DIS-300G-8PSW
Specs
Features
- Hot Pluggable
- MSA Compliant
- RoHS Compliant
Standard
Compliant Standard
- IEEE802.3z
- 1000BASE-SX
Transceiver Type
- SFP
Fiber Media support
- Multi-Mode
Distance
- Max. Distance or other supported cable type
- 62.5/125um fiber: 1km
- 50/125um fiber: 2km
- 62.5/125um OM1 1km
- 50/125um OM2 1km
- 50/125um OM3 2km
- 50/125um OM4 2km
Speed
- 1.25Gbps
Interface
Connector
- Duplex LC Connector
Direction
- Single-direction
Wavelength
- 1310 nm
Output Optical Power (TX Optical Power)
- Max. (dBm) -3dBm
- Min. (dBm) -9dBm
Input Optical Power (RX Optical Power)
- Max. (dBm) -3dBm
- Min. (dBm) -22dBm
Sensitivity (dBm)
- -22dBm
Cable Type
- Multi-mode 50/125um or 62.5/125um fiber
Operating
Power (V)
- 3.3V
Max Input Current (mA)
- 300mA
Power Budget (MIN Power Budget) (dB)
- 13dB
MAX Power Budget (dB)
- 19dB
Heat Generated (kJ/h)
- 2.376 kJ/h
MTBF (hours)
- 224,167 hours
Physical & Environment
Operation Temperature (°C)
- -40-85°C
Storage Temperature (°C)
- -40-85°C
Operating Humidity (%)
- 5% ~ 95%
Storage Humidity (%)
- 5% ~ 95%
Dimension ( W x D x H)
- 13.7mm x 55.4mm x 8.5mm
Weight
- 20g
Bail latch colour
- Blue
Certifications
Emission (EMI)
- FCC Class B
- CE Class B
- VCCI Class B
Safety
- LVD
- EN 60825-1
