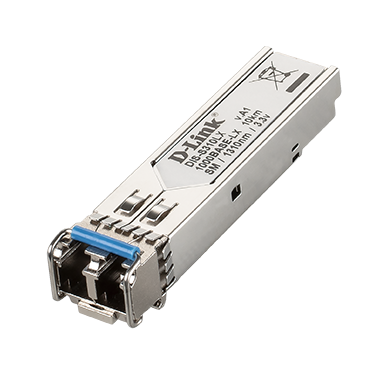

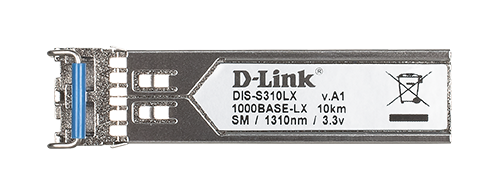

1-port Mini-GBIC SFP to 1000BaseLX Single-Mode 10km Fibre Transceiver
DIS-S310LX
- Product Status: Live
- 1-port Mini-GBIC SFP to 1000BaseLX Single-Mode Fibre Transceiver
- up to 10 km
- -40 ~ 85°C operating temperature
Where to buy
Related Products
![](/br/pt/-/media/product-pages/dis/100g-series/dis_100g_5w_leftsideangle.png?h=100&w=66&la=pt-BR&hash=1A15CCF950B8CFB91FBDFF43078DD9EC)
Industrial Gigabit Unmanaged Switch
DIS-100G-5W
![](/br/pt/-/media/product-pages/dis/100g-series/dis_100g_5sw_leftsideangle.png?h=100&w=66&la=pt-BR&hash=92E9F9BA69823CE460E441BF9ECCA444)
Industrial Gigabit Unmanaged Switch with SFP slot
DIS-100G-5SW
![](/br/pt/-/media/product-pages/dis/100g-series/dis_100g_5psw_leftsideangle.png?h=100&w=62&la=pt-BR&hash=ADFEDF8853A59ADFD4D0016ACB123DAE)
Industrial Gigabit Unmanaged PoE Switch with SFP slot
DIS-100G-5PSW
![](/br/pt/-/media/product-pages/dis/300g-series/dis_300g_12sw_leftsideangle.png?h=100&w=68&la=pt-BR&hash=22611859C9D268EFB623C3753C45AD1E)
Industrial Gigabit Managed Switch with SFP slots
DIS-300G-12SW
![](/br/pt/-/media/product-pages/dis/300g-series/dis_300g_8psw_leftsideangle.png?h=100&w=77&la=pt-BR&hash=B5096A2A16D9DC9DE671786D7496D14E)
Industrial Gigabit Managed PoE Switch with SFP slots
DIS-300G-8PSW
Specs
Features
- Hot Pluggable
- MSA Compliant
- RoHS Compliant
Standard
Compliant Standard
- IEEE802.3z
- 1000BASE-LX
Transceiver Type
- SFP
Fiber Channel FC-PI standard
- 100-SM-LC-L
Fiber Media support
- Single-Mode
Distance
- 10km
Speed
- 1.25Gbps
Interface
Connector
- Duplex LC Connector
Single/bi Direction
- Single-direction
Wavelength
- 1310nm
Output Optical Power (TX Optical Power)
- MAX.: -3dBm
- MIN.: -8 dBm
Input Optical Power (RX Optical Power)
- MAX.: - 3 dBm
- MIN.: - 24 dBm
Sensitivity
- -24dBm
Cable Type
- Single-mode 9/125um fibre
Operating
Power
- 3.3V
Max Input Current
- 300mA
Power Budget (MIN Power Budget)
- 16dB
MAX Power Budget
- 21dB
Heat Generated
- 2.376 kJ/h
MTBF (hours)
- 223,857 hours
Physical & Environment
Operation Temperature
- -40~85℃
Storage Temperature
- -40~85℃
Humidity (Operating)
- 5%~95%
Humidity (Storage)
- 5%~95%
Dimension ( W x D x H )
- 13.7 x 55.4 x 8.5mm
Weight
- 20g
Bail latch colour
- Blue
Emission (EMI) and Safety Certifications
EMI
- CE
- FCC
- VCCI
Safety
- LVD
- EN 60825-1
- EN 60825-2
