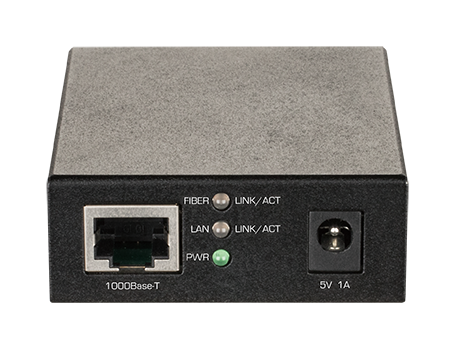

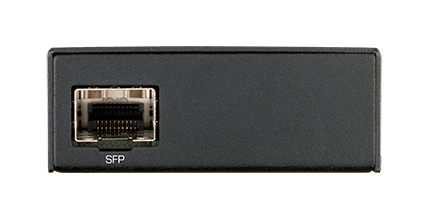

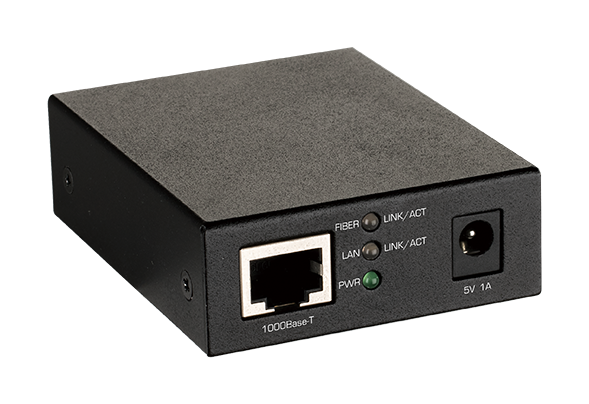

1000BaseT to SFP Standalone Media Converter
DMC-G01LC
- Product Status (Revision B): Live
Where to buy
D-Link’s 10/100/1000Base-T to SFP Standalone Media Converter turn an Ethernet connection into fibre, allowing for long distance connections. Instead of requiring an investment in an entire chassis, the standalone DMC-G01LC is able to provide the same high-quality conversion on its own. The standalone nature of these means that you can use save space and cut costs while still extending your network over long distances, depending on the SFP transceiver installed. The DMC-G01LC allows for 1000 Mbps Full-Duplexing, letting you truly maximise your network’s potential.
No Wasted Space
Its compact size fits anywhere and does not require an additional chassis. Measuring just 75 x 60 x 23 mm, this allows for convenient installation wherever it is needed, especially in limited space environments such as telecommunication cabinets or a distribution box.
Related Products
![](/br/pt/-/media/product-pages/dem/211/dem-211-left.png?h=100&w=178&la=pt-BR&hash=2D0C6D4EA746F9F2ADBA032A1D0B6371)
![](/br/pt/-/media/product-pages/dem/310gt/dem-310gt-left.png?h=100&w=178&la=pt-BR&hash=CF14900C6EAA68E0D7F2132907640899)
![](/br/pt/-/media/product-pages/dem/311gt/dem311gtg1image-lside.png?h=100&w=178&la=pt-BR&hash=D0950320B3DAF7F6B6BEA3CA44E18757)
![](/br/pt/-/media/product-pages/dem/312gt2/dem-312gt2-left.png?h=100&w=178&la=pt-BR&hash=229C15C53D786839016221723459A889)
![](/br/pt/-/media/product-pages/dmc/700sc/2_dmc_700sc_b6b7_image_lfront.png?h=100&w=178&la=pt-BR&hash=02C234AAE2A4A09D789816116DD90064)
Specs
Technical Specifications
General
LAN
- 1 x 10/100/1000 Mbps port
- IEEE 802.3u/x/3ab
- Auto-Negotiation for each port
- Full-Duplex operation at 1000 Mbps / Half/Full-Duplex operation at 10/100 Mbps
- Auto MDI/MDIX
- Supports Jumbo frames up to 9216 bytes at 1000 Mbps
Max. Forwarding Rate
- 1,488,000 pps
Forwarding mode
- Cut-Through
Packet Buffer Memory
- 256 Kbits
Switching Capacity
- 2 Gbps
Physical/Environmental
External Power Adapter
- Switching 5V/1A Level V Power Adapter, ErP compliant
Power Consumption (Max.)
- DC 2.34 W / AC 3.46 W
Power Consumption (Standby)
- DC 1.49 W / AC 2.06 W
Heat Dissipation (Max.)
- 11.81 BTU/h
MTBF (hours)
- 506,711
Operation Temperature
- 0 to 50 °C (32 to 130 °F)
Storage Temperature
- -10 to 70 °C (14 to 158 °F)
Operating Humidity
- 10 to 90%
Storage Humidity
- 5 to 90%
Emission (EMI) & Safety Certifications
EMI
- EMI: CE class A, FCC class A, VCCI class A, BSMI class A
Safety
- LVD, UL/cUL
Optional Transceivers
- DEM-211: 100BASE-FX, Multi-mode, 2 km
- DEM-310GT: 1000BASE-LX, Single-mode, 10 km
- DEM-311GT: 1000BASE-SX, Multi-mode, 550 m
- DEM-312GT2: 1000BASE-SX, Multi-mode, 2 km
