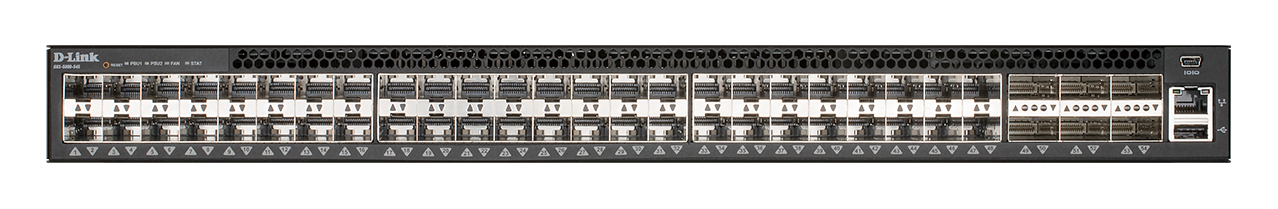

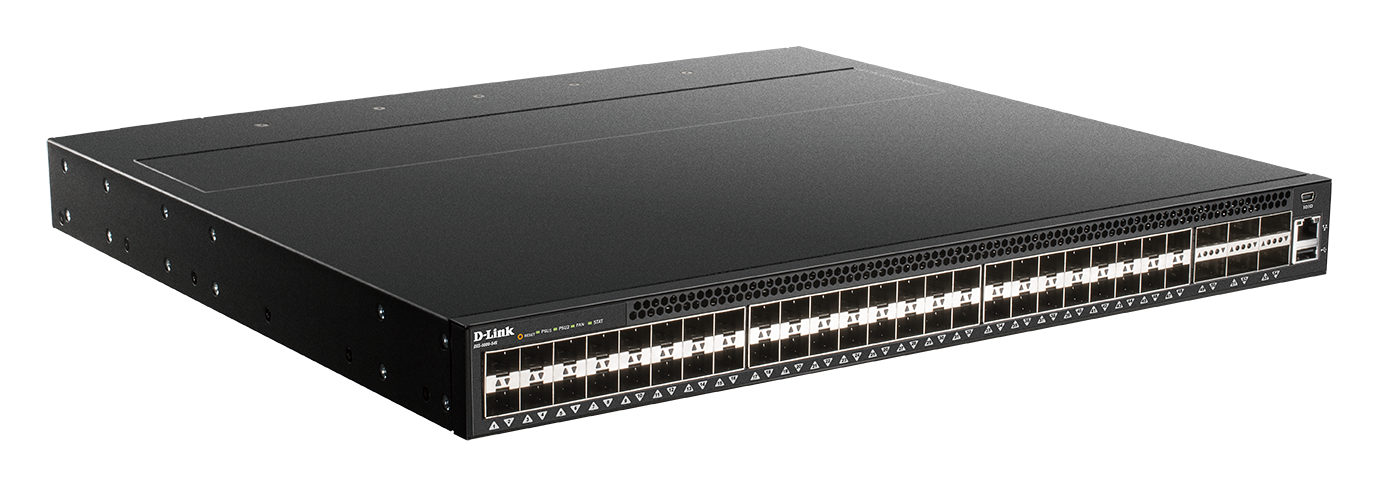

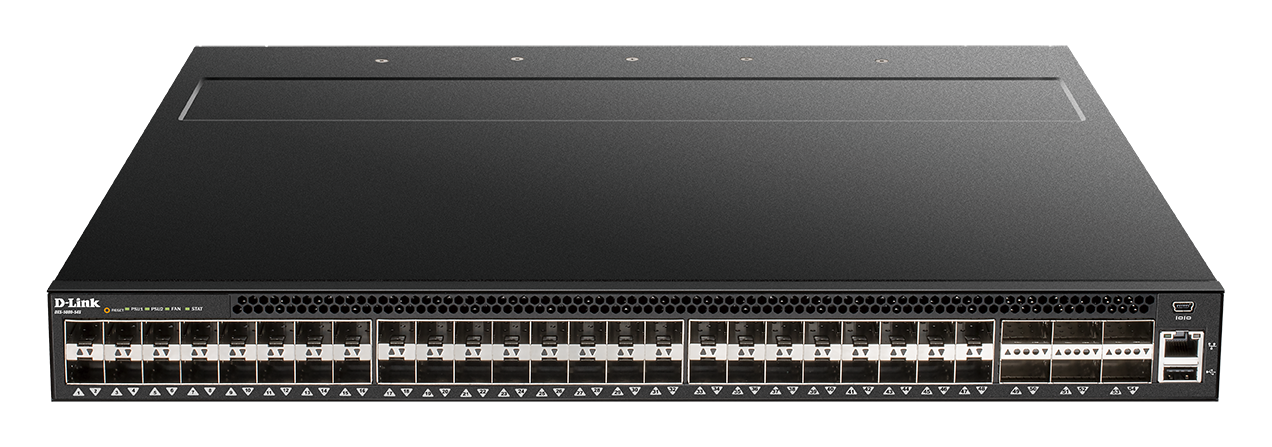

54-Port 10G/40G Enterprise Aggregation Switch

DXS-5000-54S

  • Product Status (Revision A): End of Sale
High Availability

MLAG support. Hot-swappable power supplies and fans.

Leaf-Spine, Top-of-Rack, End-of-Row

10G and 40G port combinations for high bandwidth Leaf-Spine, ToR, or EoR network architecture topologies.

Open Network Switching (ONS)

ONIE provides the option to install a preferred Network Operating System, such as Pluribus Netvisor OS, or activate the pre-loaded D-Link OS.

SDN-enabled

Supports OpenFlow v1.0/1.3 and Software-Defined Networks, like Cumulus Networks.

Convenient Management

Mini-USB console port. RJ-45 dedicated management port. USB-2.0 port. Industry-standard full CLI.

Limited Lifetime Warranty

Register and enjoy Limited Lifetime Warranty support from one of the global leaders in the industry.

Future-proof your network.

Designed with up to 1.44 Tbps of simultaneous high throughput, high port density, and ultra-low latency to accommodate scale and requirements. Ideal as aggregation switches in enterprise environments, as well as Top-of-Rack, Leaf-Spine, or End-of-Rack core Ethernet switches in data centers.

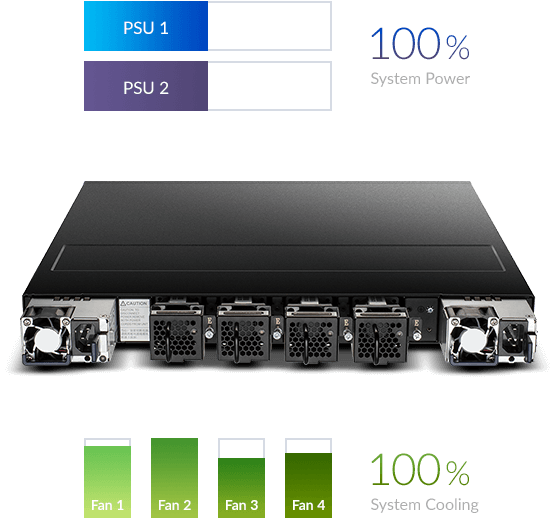

High Availability and Reliability

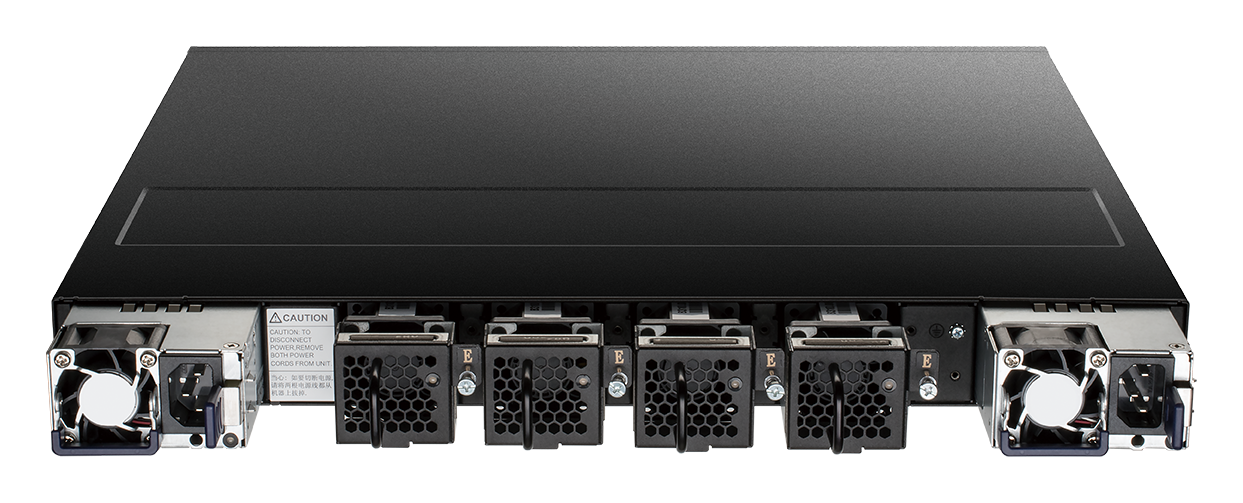

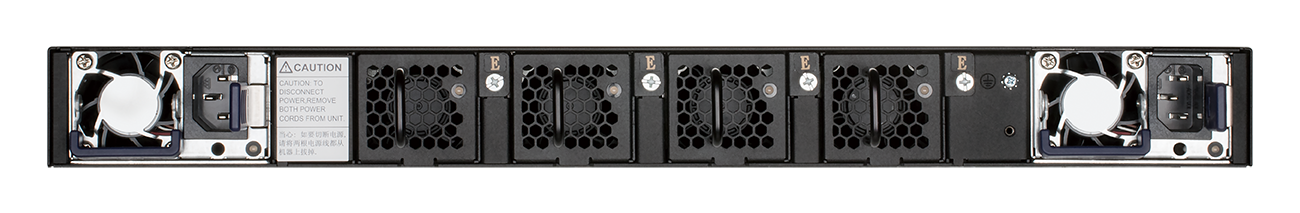

Both the fans and PSUs are hot-swappable to increase uptime, and front-to-back airflow allows the creation of optimal cooling configurations.

MLAG enables efficient network topologies that also increase uptime with dual-management, control planes, and upgrades that don’t affect services.

Load Sharing
Enables both PSUs to evenly distribute the load to increase reliability and lifetime.

1+1 redundancy
Maintains uptime even if a power supply fails.

Comprehensive Layer 2 & Layer 3 Capabilities

L2 features include L2 switching, L2 multicast, advanced Quality of Service (QoS), and robust security features.

Advanced L3 routing for enterprise integration, including OSPF, BGP, Graceful Restart, Bidirectional Forwarding Detection (BFD), and L3 multicast.

And support for MLAG, MLD Snooping, IP interface, DVMRP v3, PIM-DM, and includes data center features like 802.1Qaz, 802.1Qau, and 802.1Qbb.

Virtualisation and Data Center Features

VXLAN allows deployments of larger and more flexible VLAN architectures by using a 24-bit ID, which enables deployments of up to 16 million isolated logical networks across Layer 3 subnets to accommodate the increasing scale of virtualized cloud environments.

24-bit ID
VXLAN
Uses this network identifier to address L2 segments.

16 million
VLAN
VXLAN greatly increases the number of simultaneous VLANs.

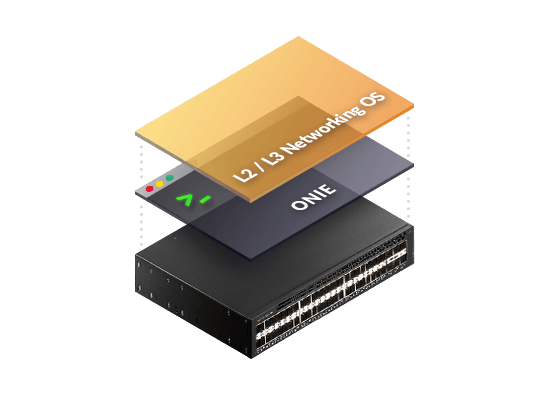

Bare Metal and Open Networking Switches

The DXS-5000 supports Open Networking, which provides innovative third-party operating systems and software options. This lowers costs by separating software from hardware and increases network agility and flexibility.

ONIE gives you the option to install a preferred Network OS, such as the Pluribus Netvisor OS, or activate the pre-loaded D-Link OS.

With support for standards-based tools and standards-based applications, Open Networking simplifies scalability and future-proofs the network.

Virtual and on-site surveys to help you fully understand your requirements.

Free no-obligation project surveys

Whether it's a completely new network or an upgrade to an existing site, a free no-obligation project survey from one of our highly-skilled engineers will help you to assess your network.

Speak to an expert

We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Related Products

24-Port Top of Rack 10 Gigabit Managed Switch with Expansion Slot
DXS-3600-32S/SI, DXS-3600-32S-SE-LIC, DXS-3600-EM-4XT, DXS-3600-EM-Stack, DXS-3600-FAN-FB, DXS-PWR300AC
Find out more
Top of Rack 10 Gigabit Stackable Managed Switches
DXS-3400-24TC, DXS-3400-24SC
Find out more
10G Multi-Gigabit Smart Managed Switches
DXS-1210-10TS, DXS-1210-12TC, DXS-1210-12SC, DXS-1210-16TC
Find out more
Type
Managed
SDN
Number of ports
48 to 54 ports
Layer
Layer 3
Main type of ports
10GbE SFP+
Type of uplink ports
40GbE QSFP+
Switching capacity
1.44 Tbps
Form Factor
Rackmountable
Jumbo frame
Supported
MAC address
288K
Spanning Tree Protocol
802.1D STP
802.1s MSTP
802.1w RSTP
Link aggregation
802.3ad
VLAN group (max static)
4K
VLAN type
Port-based
Advanced VLAN
Double VLAN (Q-in-Q)
ISM VLAN
IPv4/IPv6 routing table
IPv4 - 8K
IPv6 - 2K
IPv4/IPv6 forwarding table
IPv4 - 2K
IPv6 - 2K
IP interfaces
128
Static route for IPv4/IPv6
IPv4 - 64
IPv6 - 64
IPv6 tunneling
Supported
Multicasting
Supported
PIM-SM
Supported
OSPF
Supported
BGP
Supported
OSPFv3
Supported
Number of QoS queues per port
8
CoS based on contents
Supported
Bandwidth control
1% of port speed minimum granularity
ACL type
Egress
Ingress
VLAN-based
Time-based ACL
Supported
Encryption protocol supported
SSH
BPDU attack protection
Supported
802.1X access control
Supported
RADIUS/TACACS+ authentication
Supported
SNMP (v1/v2c/v3)
Supported
RMON v1
Supported
sFlow
Supported
LLDP
Supported
LLDP-MED
Supported

Support

This product was phased out on: 24/06/2022
This product's last date of support is on: 24/06/2027
