Nuclias Connect Hub

DNH-100

  • Product Status (Revision A1): Live
  • Built-in free Nuclias Connect software

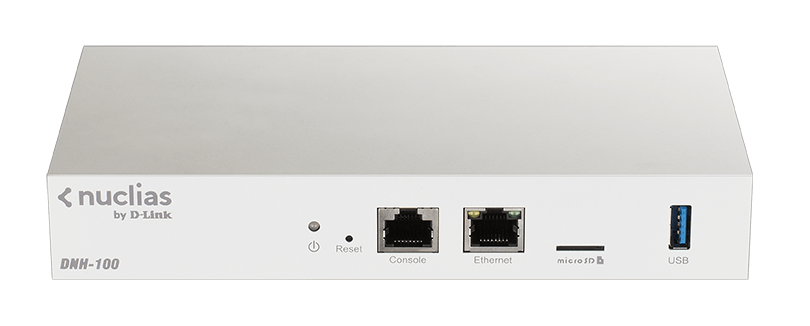

  • x1 GE port, x1 Console port, x1 USB 3.0, x1 MicroSD
  • Manage up to 100 APs / smart-managed switches (DGS-1210 Series)
  • Free Nuclias Connect app
  • Rack-mounting kit included

Download the datasheet.

Where to buy

Pre-loaded with Nuclias Connect Management Software

Authentication via Customisable Captive Portal, 802.1x and Radius Server, POP3, LDAP, AD

Backwards-Compatible with a Range of DAPs

Intuitive Interface

License-Free Centralised Management

Multi-Tenant & Role-Based Administration

Multilingual Support

Payment Gateway (Paypal) Integration and Front-Desk Ticket Management

Remote & Batch Configurations

Searchable Event Log and Change Log

Traffic Reporting & Analytics in Real-Time

Low Total Cost of Ownership

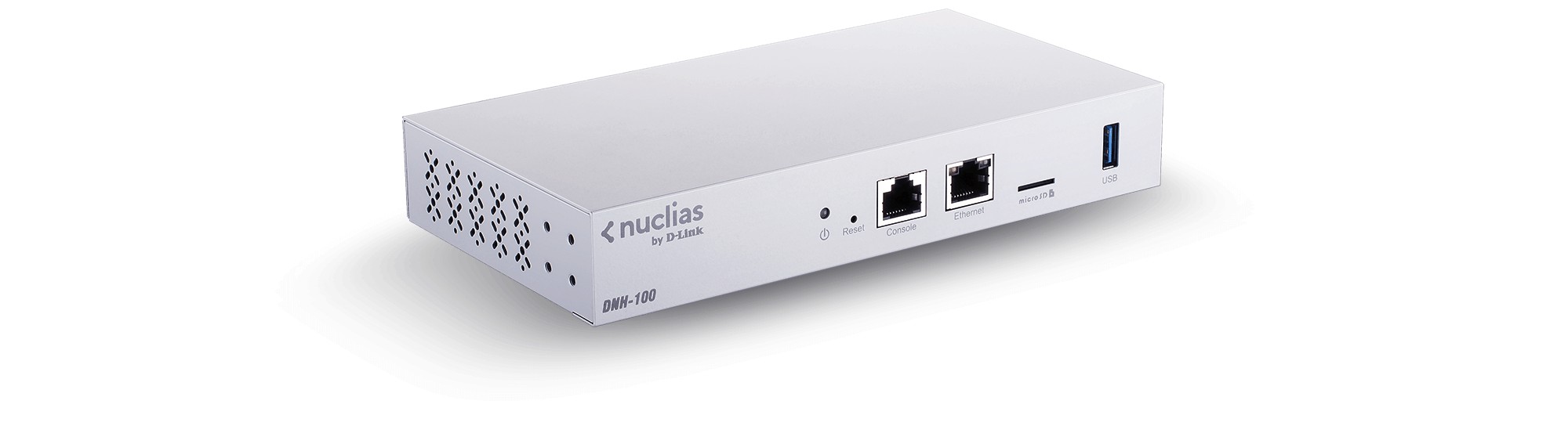

Dedicated Nuclias Connect hardware controller for centralised AP management.

Pre-loaded with Nuclias Connect centralised network management software, the professional Nuclias Connect Hub supports a large number of existing D-Link APs*, and can manage up to 100 Access Points (APs) and smart-managed switches (DGS-1210 Series). It can be deployed quickly and securely in a rack with the included rack-mounting kit and is designed to support small-to-medium business and larger enterprise network environments.

Industry-leading hardware that brings value to your business.

The Hub features centralised monitoring and management of all wireless APs on your network. Designed to perfectly fit in network environments, the DNH-100 Hub is an inexpensive dedicated hardware option with the Nuclias Connect software pre-installed, so you don’t need to purchase and install Nuclias Connect on a separate compatible third-party server.



 Multi-platformCentralised management
Local and multi-site access point management. Accessible through the free Nuclias Connect app or standard web browser.
 Versatile installation
Rack-mountable. Small form-factor for easy placement. Integrated hardware controller and self-contained application server in one device.
 Cost-effectiveCost-effective and scalable
No extra server needed. Simply add more Hubs when you want to scale up your network.

Make network tasks quicker and easier.

The Nuclias Connect Hub offers tremendous flexibility, from easier and more secure deployments to remote AP and switch management. And the built-in Nuclias Connect software makes monitoring easier with an intuitive dashboard, while functionality and network self-healing tools such as airtime fairness, localised throttling and load-balancing improve overall user experience.




 Role-based access with remote management

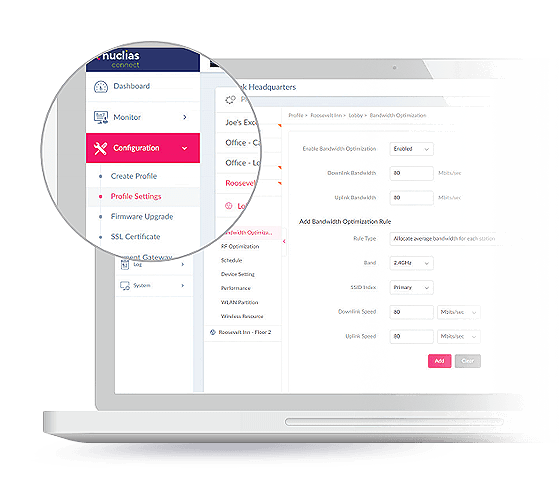

Assign different privileges to users and conveniently configure all devices from the Nuclias Connect app or web UI.
 Customisation and branding
The display, analytics reporting, management can be customised in a variety of ways for greater control and convenience. Add your brand’s logo to your Wi-Fi login screen via the captive portal functionality.

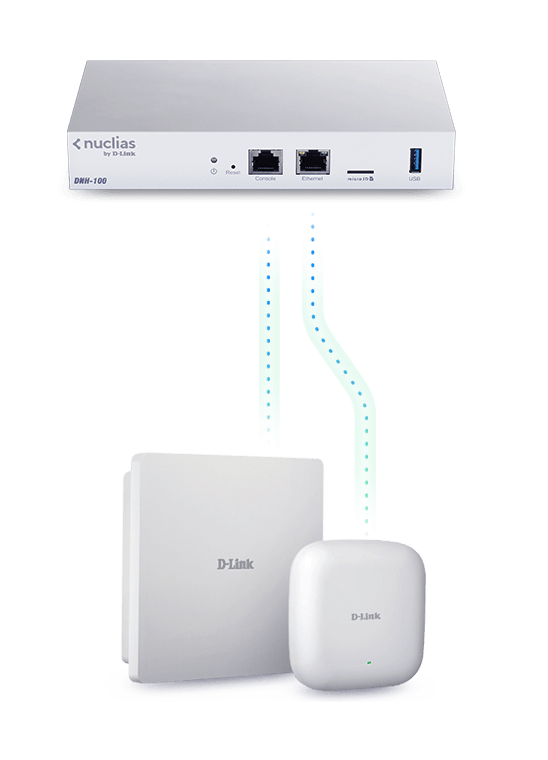

 AP discoveryExisting infrastructure

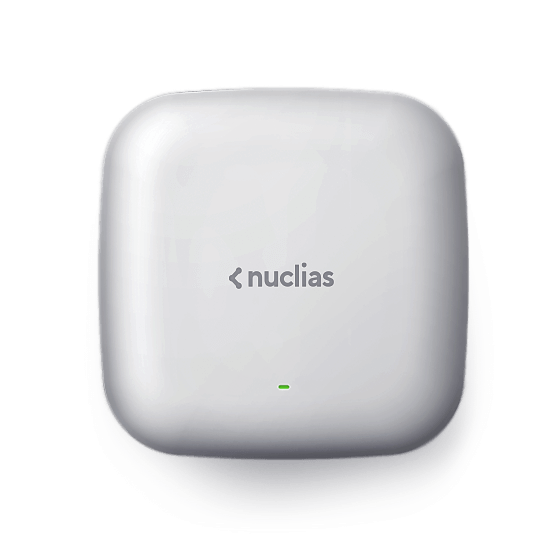

Works with a diverse range existing D-Link APs* and smart-managed switches (DGS-1210 Series) for added convenience, including PoE-enabled and Wave 2 access points. See the range.

What Nuclias Connect means for administrators.

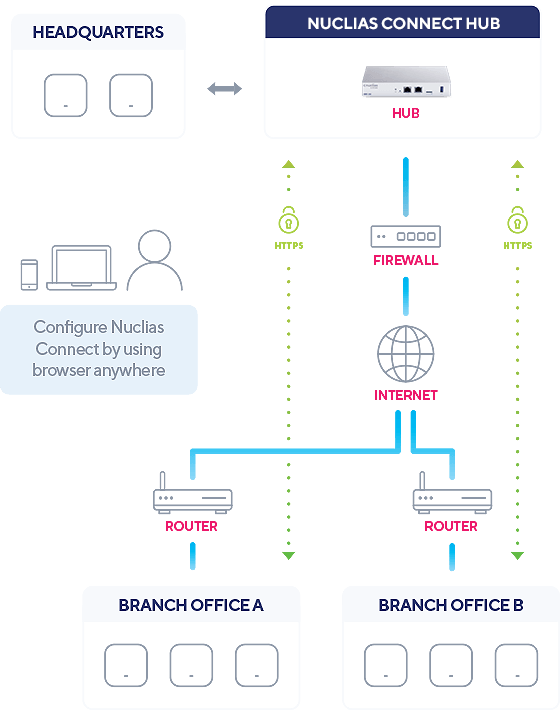

Since Nuclias Connect’s software operates transparently on the network, an AP or switch can be deployed anywhere in a NAT environment. Moreover, administrators can provide and manage a variety of distributed deployments, including the option to configure settings and administrator accounts for each deployment.

The built-in Nuclias Connect software allows for multiple user authentications and also makes it possible to configure specific access controls for each SSID, giving admins the option of configuring separate internal networks for different subnets. This means that more advanced Value-Added Services, such as Captive Portal or Wi-Fi Hotspot, can be used to help manage wireless network traffic.

Comprehensive controls for optimising the network.

 Multi-tenancyMulti-tenancy
Network admins can grant localised management authority for local networks.
 x8 SSIDs per radio
And the option of using one SSID to create a guest network for visiting.
 AP discovery and provisioning
It allows users to find APs on the same Layer 2/3 network and import profiles which can then be applied as needed to groups or individual APs for greater efficiency.
 Schedules and automated tasks
Batch configuration, automated network management and reporting, and searchable and auditable Event and Change Logs.
 Diverse authentication options
Captive Portal, 802.1x and RADIUS Server, and support for POP3, LDAP, AD

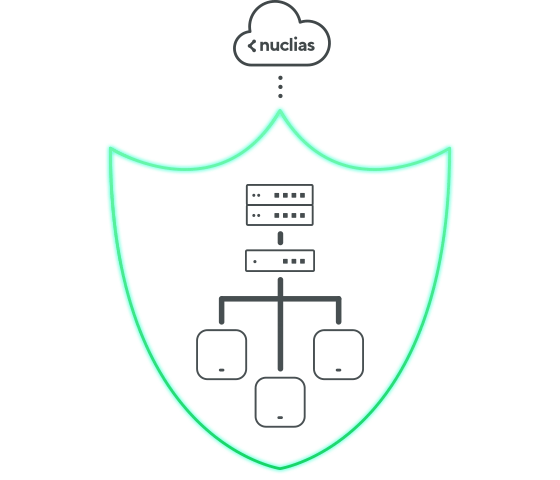

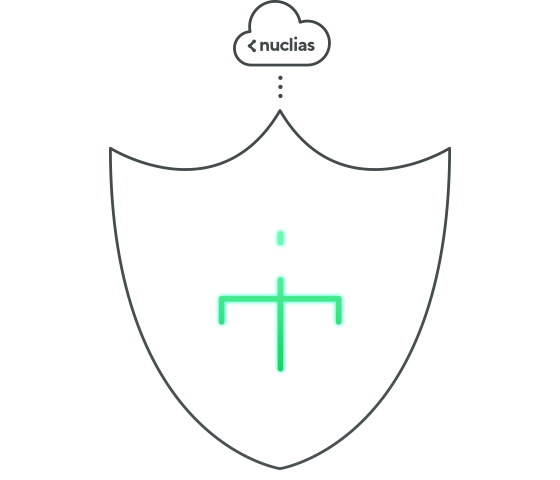

Data stays within your premises and follows your security measures.

With more devices being used on networks than ever before, privacy has become an essential requirement. The Nuclias Connect Hub is designed for businesses where privacy and security are mission-critical. User data never leaves your possession. The Hub saves power and improves security with the wireless scheduler feature which switches off wireless connectivity when not needed.

Scale your network alongside your business.

The Nuclias Connect Hub gives you the financial and technical flexibility to scale up the network simply by adding more Hubs while retaining a robust and centralised management system. Device information is stored locally and the network can be monitored in real-time.



 Cost-effective scaling
Centralised configurations allow network expansion of up to 100 APs/switches per Hub which results in a lower total cost of ownership.

Free software Free software
Utilise the hub’s built-in free Nuclias Connect software with full functionality without any subscription or license fees.

Know your business network, like never before.

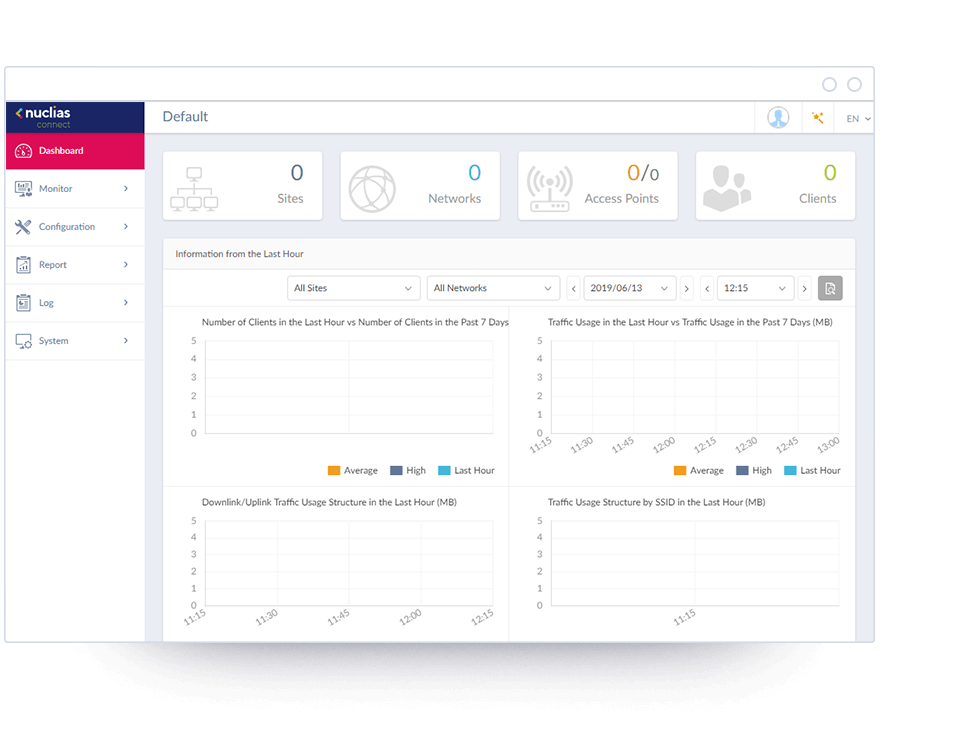

Use the Hub’s built-in Nuclias Connect software to monitor and remotely manage your wireless networks. It also makes it easier to scale the network as new APs/switches are automatically discovered enabling them to be quickly configured and deployed.

Easily manage your network on the go, get an instant overview of live usage and your network’s health, and delegate access to your teams. You can even upload your own map to visually show the location of your devices and create Wi-Fi access log-in pages that can be fully branded.


Detailed statistics and reports
of network usage across time and locations.
 Customisable portal for brand awareness.

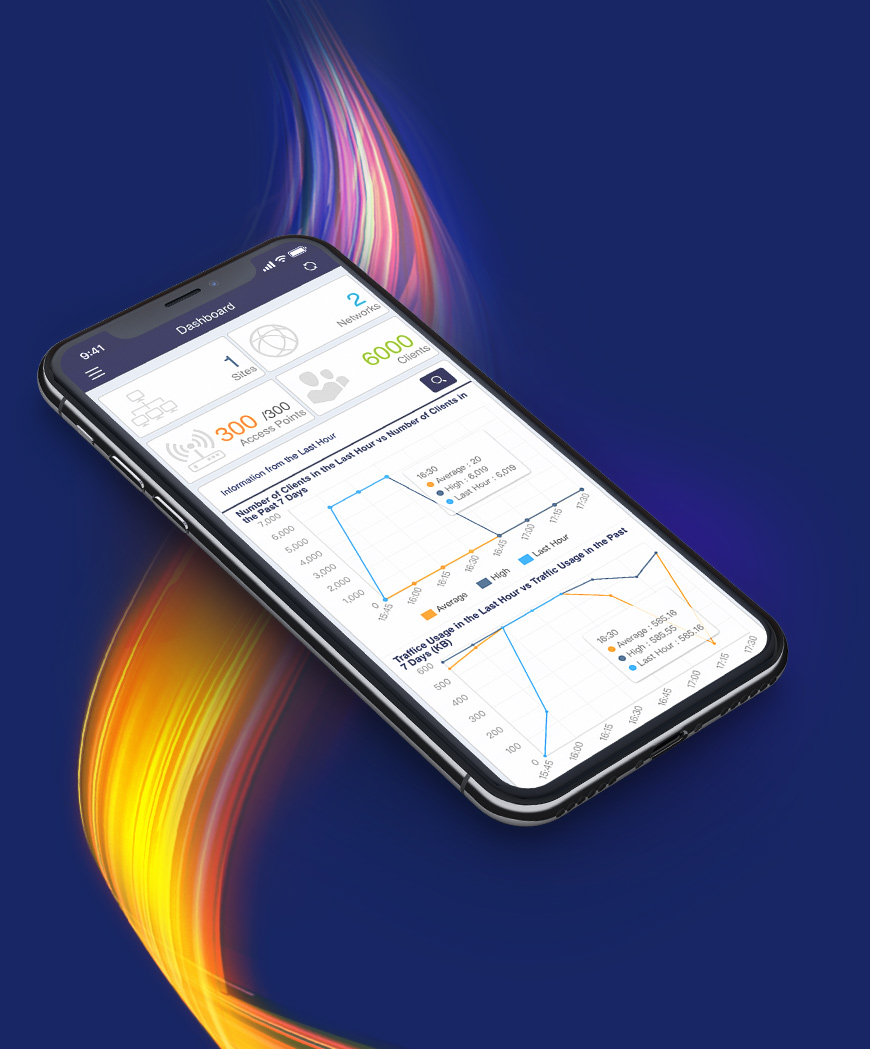

Free Nuclias Connect app.

Manage the network remotely with the free Nuclias Connect app. Instantly detect your devices in the network and push configurations remotely by using the app’s intuitive interface. Available on both iOS and Android phones, enjoy the convenience of remote network management on the go.




We're here to help.

Over 35 years in the networking industry

Innovative end‑to‑end solution experts for small businesses to large corporations around the world.

Talking to us is easy

Skilled local support in 16 countries. Our support teams are ready to help you.

D-Link Limited Lifetime warranty

The quality and reliability of D-Link products enable us to provide an industry-leading Limited Lifetime Warranty with every registration.

Related Products

Smart Managed Gigabit Switches
DGS-1210-08P, DGS-1210-16, DGS-1210-24, DGS-1210-24P, DGS-1210-48
Find out more
Smart+ Managed Gigabit Switches
DGS-1210-10, DGS-1210-10P, DGS-1210-10MP, DGS-1210-20, DGS-1210-26, DGS-1210-28, DGS-1210-28P, DGS-1210-28MP (Max PoE), DGS-1210-52, DGS-1210-52MP (Max PoE)
Find out more
Wireless AC1300 Wave 2 DualBand PoE Access Point
DAP-2610
Find out more
Wireless AC1750 Wave 2 Dual-Band PoE Access Point
DAP-2680
Find out more
Wireless AC1200 Wave 2 Dual Band Outdoor PoE Access Points
DAP-3666
Find out more
Management platform
Hardware
Access point management - number supported per unit (default/upgradeable)
Up to 100
AP auto discovery and monitoring
Supported
Auto channel and power management
Supported
Band steering
Supported
Centralised AP firmware upgrade
Supported
Fast roaming
L2
Rogue AP/Client detection and mitigation
Supported
NAT pass-through
Supported
Multi-tenancy
Supported
Bandwidth optimisation
Supported
External user databae - POP3 and LDAP
Supported
Voucher-based authentication
Supported
Captive portal
Supported

*Compatible models at the time of writing: DAP-2230, DAP-2310, DAP-2360, DAP-2610, DAP-2660, DAP-2680, DAP-2695, DAP-3662. Devices require the latest firmware in order to be compatible.
