- Single-mode fibre transceiver
- Up to 80 km. signal transmission
- Hot-swappable

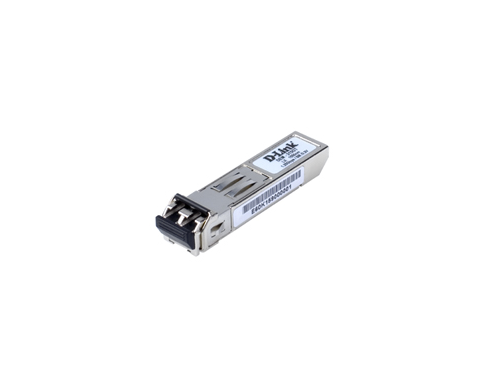

The DEM-315GT is a high performance 1550nm singlemode SFP (mini-GBIC) transceiver. Supporting full duplex, Gigabit speeds on singlemode fiber for distances of up to 80km on 9µm fiber. The unit features a metal housing to reduce EMI and to increase durability. The DEM-315GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.
* Third-Party Devices Must Comply With specified Supported Industry-Standard Specifications
* Actual product appearance may differ from the image displayed on this page
Produits apparentés
xStack 12-Port SFP Layer 3+ Gigabit Switch
DGS-3612G
Specification
- 1000Base-LX port (IEEE 802.3z standard)
- Duplex LC connector
- Very low jitter
- Full duplex operation
- 802.3x flow control support
- Fibre type: 9/125 um single-mode fibre (up to 80 km.)
- Wavelenght: 1550 nm.
- Power support: 3.3 V.
- Power budget: 22dB
- Low power dissipation <700mW
- Hot pluggable
- Class 1 laser product (complies with EN60825-1)
- TTL signal detect indicator
- Metal enclosure for lower EMI
