Full HD PoE Day/Night Network Camera

DCS-2210

  • Dostupnost produktu: End of Life

The DCS-2210 is a versatile surveillance solution that is perfect for monitoring low-light environments in your home or small office. It combines a high-resolution 2 Megapixel sensor with a built-in IR LED to help you keep watch over areas in complete darkness. The DCS-2210 also includes a built-in IR cut filter, making it suitable for both day and night applications. Additionally, the DCS-2210 is a complete system with a built-in CPU and web server that transmits high quality video images for security and surveillance. Simple installation and an intuitive web-based interface offer easy integration with your Ethernet network. The DCS-2210 also comes with remote monitoring and motion detection features for a complete and cost-effective home security solution.

ePTZ For Surveying Regions Of Interest

The ePTZ feature allows users to select a target region for close-up viewing simply by clicking on the video feed displayed within their browser. ePTZ makes use of the camera’s 2 mexapixel resolution to survey a large area effortlessly. Since ePTZ requires no moving parts, there is no need to worry about the camera having mechanical failures.

Easy To Configure And Operate

This network camera supports the Universal Plug-n-Play feature, which allows computers running on Windows XP/Vista/7 to automatically recognize the camera and add it to the network. Sign up with one of the free Dynamic DNS services available on the web to assign a name and domain to the camera (e.g. mycamera.dlinkddns.com), and remotely access the camera without having to remember your IP address. You may also view up to 32 cameras from a central location using the included D-ViewCam software. D-ViewCam has a robust set of features including automated e-mail alerts which can instantly inform administrators of suspicious or unusual activities.

Open Network Video Interface Forum (ONVIF) compliant

The Open Network Video Interface Forum (ONVIF) is standards relating to open IP video networking. DCS-2210 is ONVIF compliant and therefore interoperable with other manufacturer’s products on the same network such as cameras, storage systems, video analytics products and Video Management Systems. For more information on ONVIF and compatible D-Link network cameras, please click here.


Centralised management with D-ViewCam™

The included D-Link D-ViewCam™ (DCS-100) is a sophisticated video management software which enables you to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and trigger motion detection to record directly to your hard drive or network folder. D-ViewCam™ also allows you to upload a floor plan of your premises, and create a realistic layout according to the locations of your cameras, further simplifying the management process.

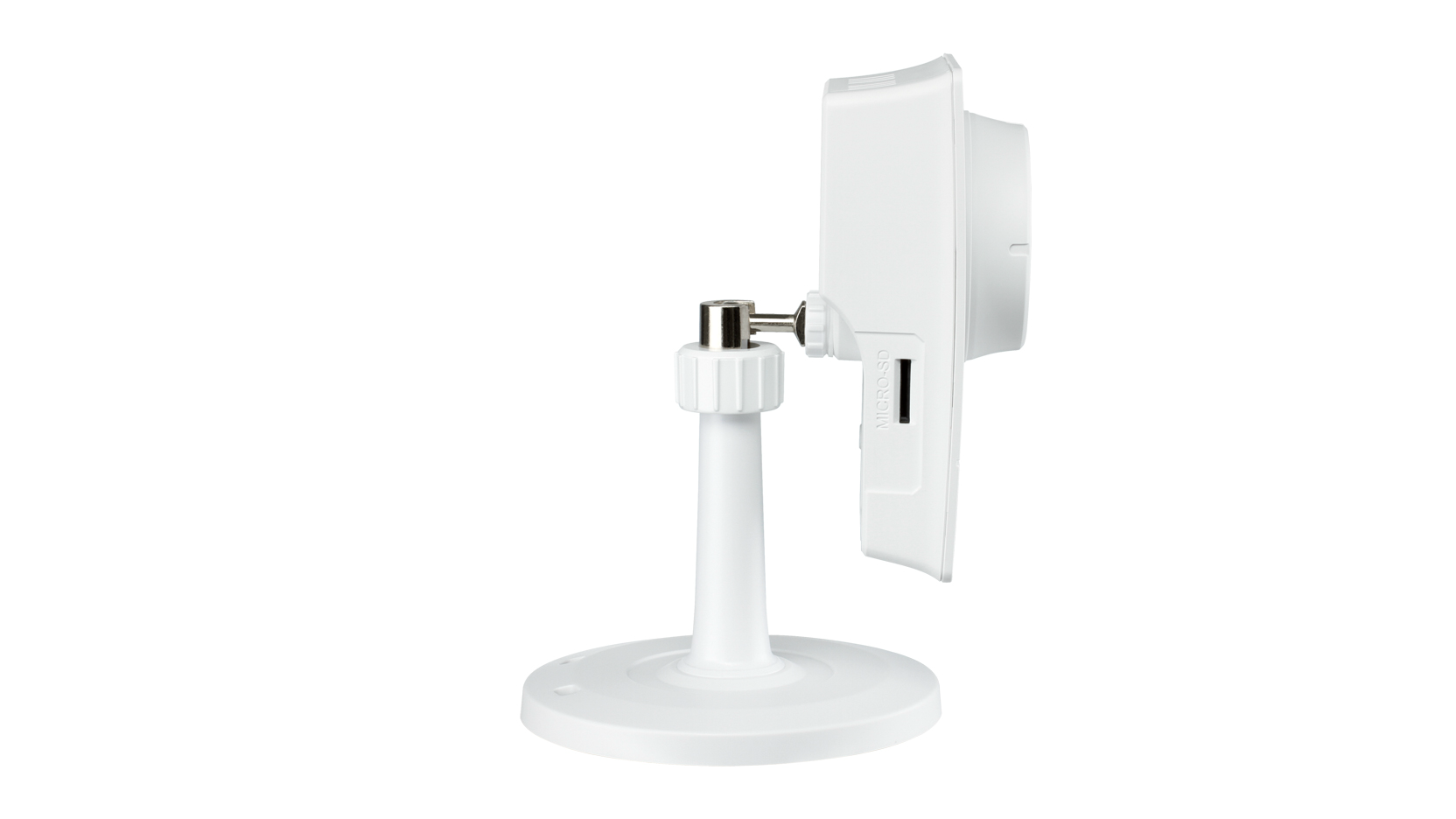

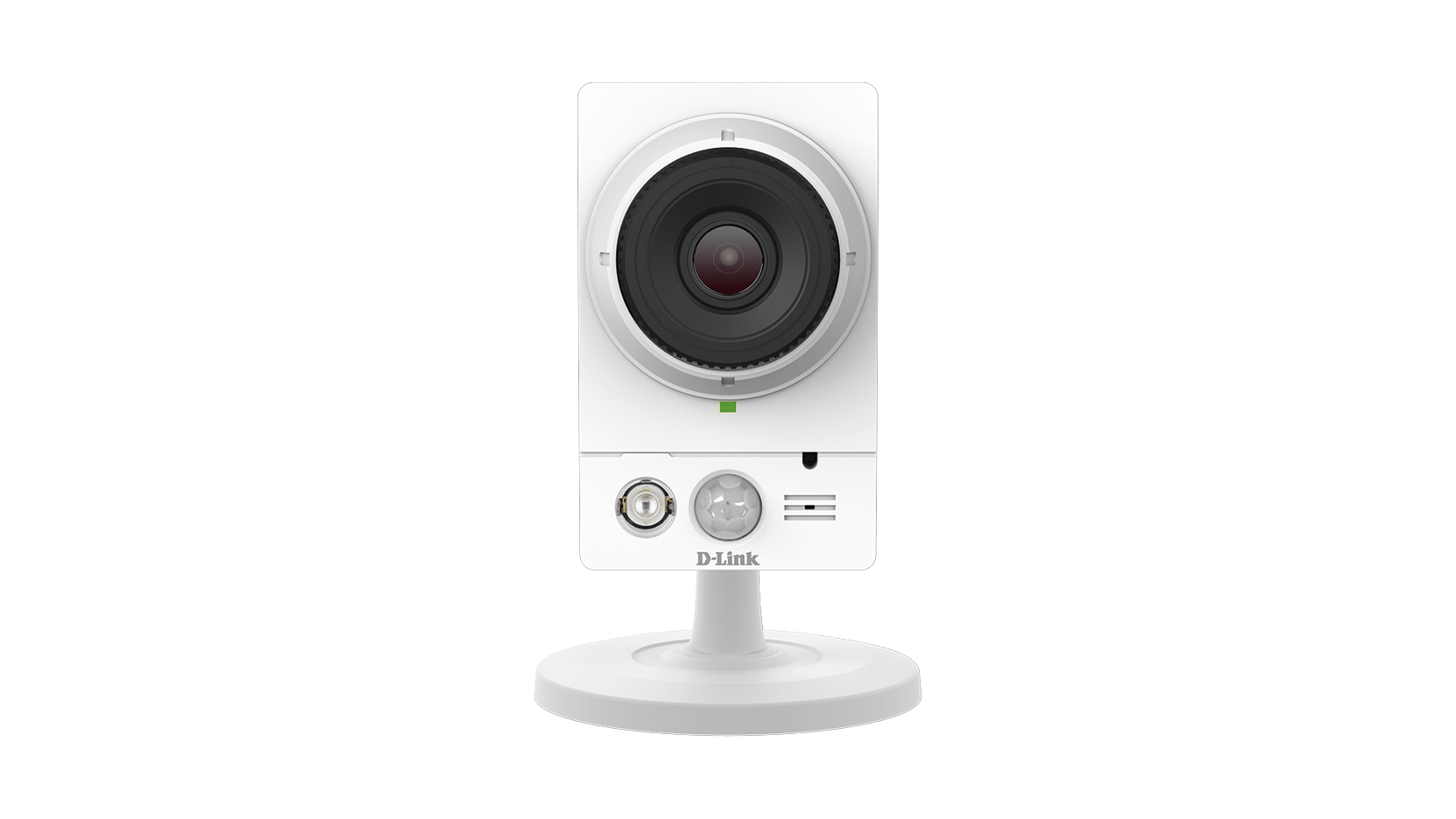

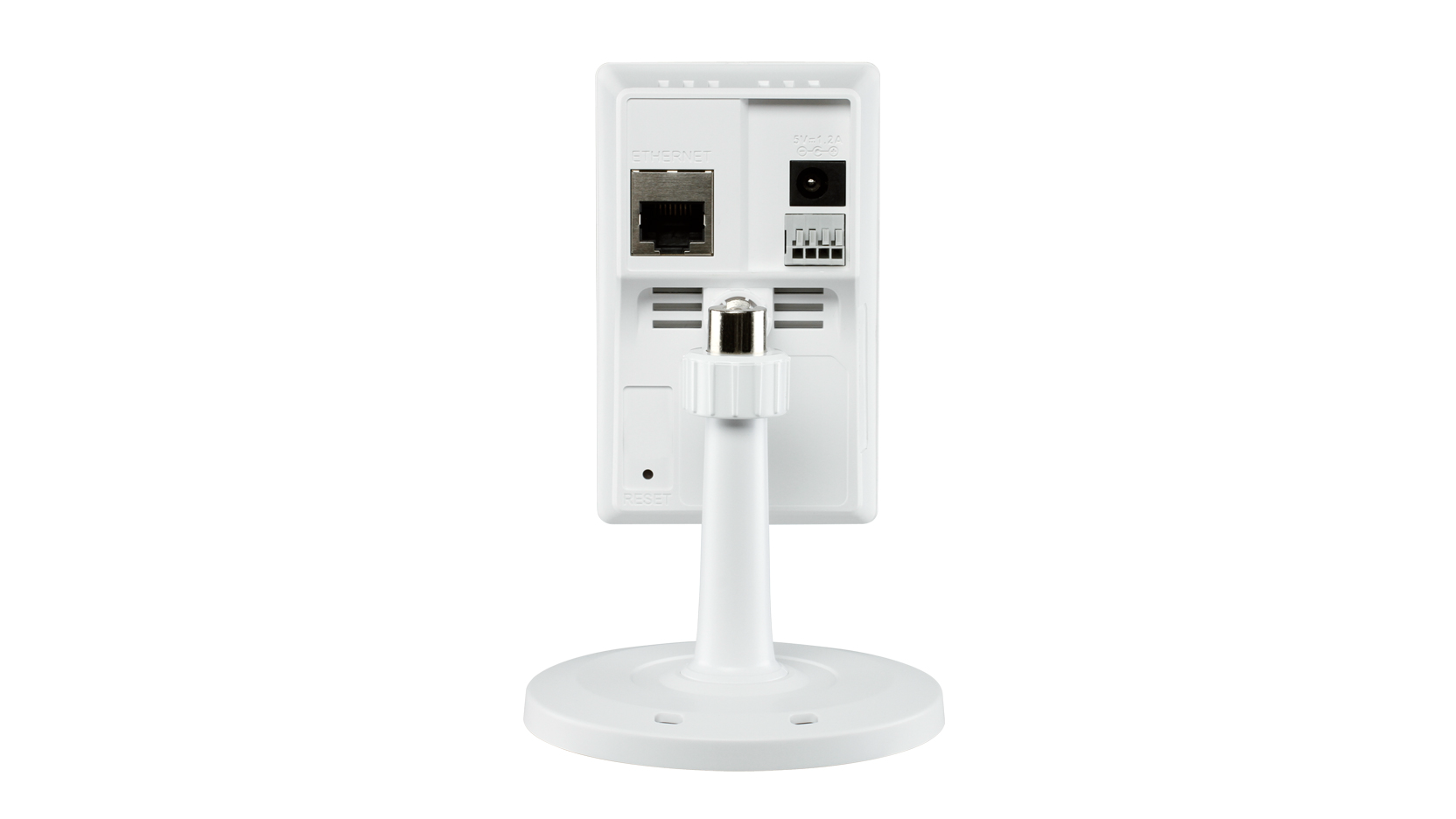

Actual product appearance may differ from the image displayed on this page

Technické specifikace produktu

Indoor/outdoor
Indoor
Connectivity
Wired PoE
Resolution
Full HD 2 megapixel
Image sensor
1/2.7" 2 megapixel progressive scan CMOS
Maximum Video Resolution
1280 x 800 (other)
1920 x 1080 (16:9)
Lens
4.37 mm
F2.0
Fixed
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
5 m
PIR(Passive Infrared)sensor
Supported
Privacy Masks
3 zones
2-way audio
Supported
Built-in Microphone
Supported
Built-in Speaker
Supported
Digital Input/Output(DI/DO)
1/1
External Card Slot
MicroSD SDHC (max 32 GB)
Features
ONVIF
Video Format
H.264
MJPEG
MPEG-4
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
10x
Motion Detection
Supported
Event Recording
Supported
E-mail Notification
Supported
Recording to NAS
Supported
Tento produkt byl ukončen: 26/09/2017
This product's last date of support is on: 26/09/2019
Version Date Type File Size
Datasheet (English) - PDF 0.27mb Stáhnout
IP Surveillance Guide - PDF 3.58mb Stáhnout
Version Description Date Type File Size
Manual D-view Cam v3.30(English) Manual D-view Cam v3.30 (English) - PDF 13.79mb Stáhnout
Manual v1.0 (English) Manual v1.0 (English) - PDF 5.07mb Stáhnout
Version Description Date Type File Size
1.00 Quick Installation Guide - PDF 1.13mb Stáhnout
Firmware pro produkt D-Link obsahuje software, který podléhá následující všeobecné veřejné licenci GNU (dále jen „GPL“) nebo všeobecné veřejné licenci GNU Lesser (dále jen „LGPL“). Další informace o podmínkách použití a přístup k použitému GPL či LGPL kodu naleznete zde:

http://tsd.dlink.com.tw/GPL.asp

Ve firmwaru tohoto produktu je použití GPL a LGPL kodu BEZ ZÁRUKY a jejich autorské právo náleží jednomu nebo více autorům. Více informací najdete v sekci GPL a LGPL kody pro tento produkt a v GPL a LGPL podmínkách použití.
Version Description Date Type
1.25.01 Firmware 20.10.2016 - Stáhnout
1.24.00 Firmware 19.10.2015 - Stáhnout
1.23.02 Release notes included 11.09.2015 - Stáhnout
Firmware Release notes included 1.22.00 Firmware
Release notes included
07.01.2015 - Stáhnout
Version Description Date
Device Pack 1.5.4

Device Pack

18.02.2014 Stáhnout
D-ViewCam 3.60 + Device Pack 3.60

D-ViewCam 3.60 + Device Pack 1.5.4

18.02.2014 Stáhnout
Setup Wizard 1.05 Setup Wizard 16.09.2012 Stáhnout
Version Description Date
CE Declaration CE Declaration 15.08.2011 Stáhnout
