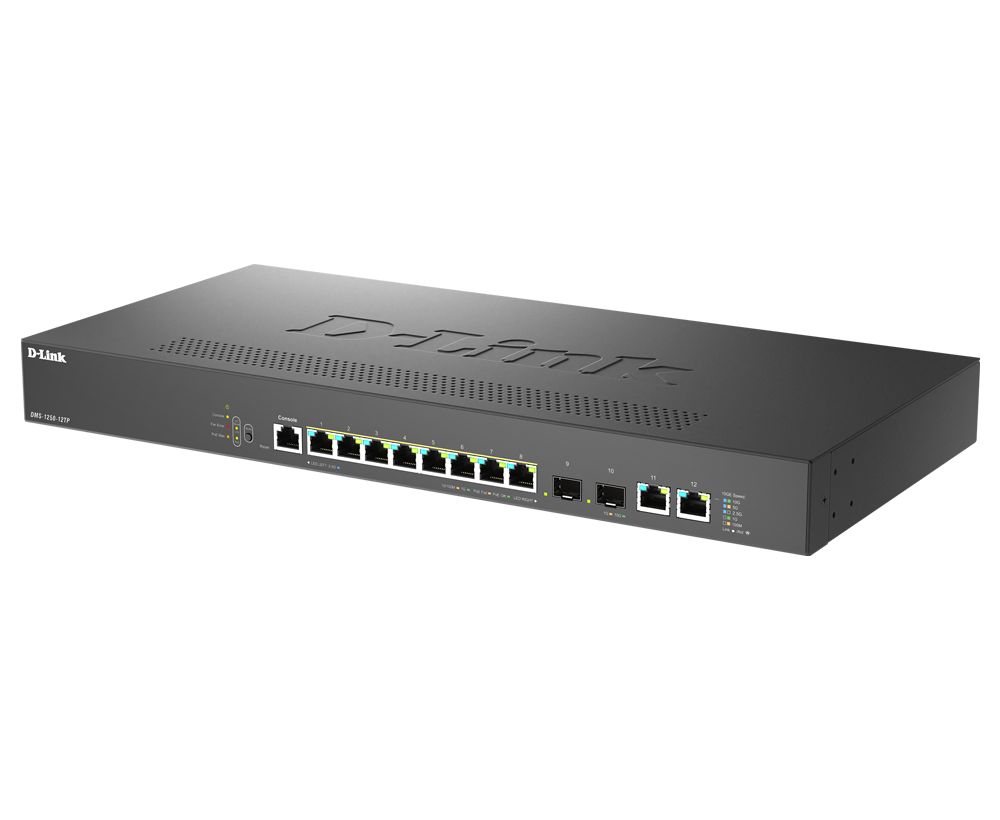

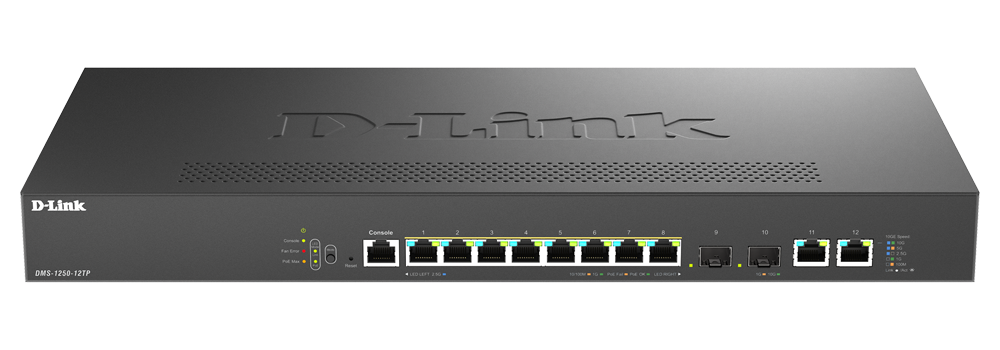

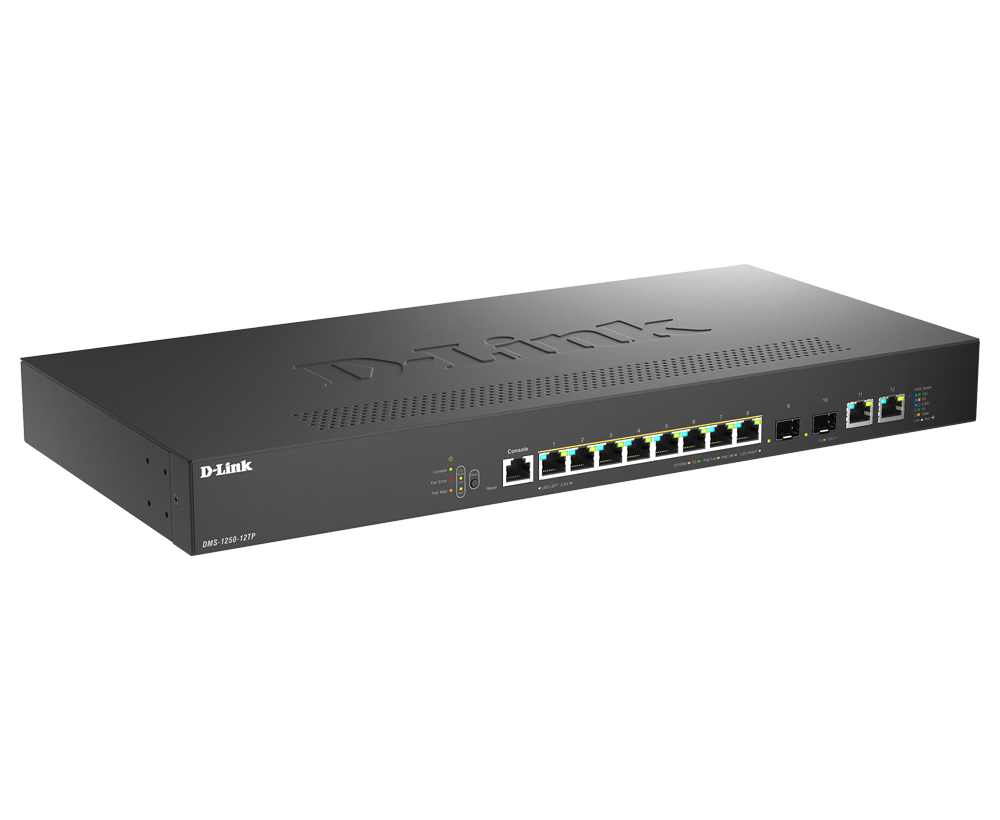

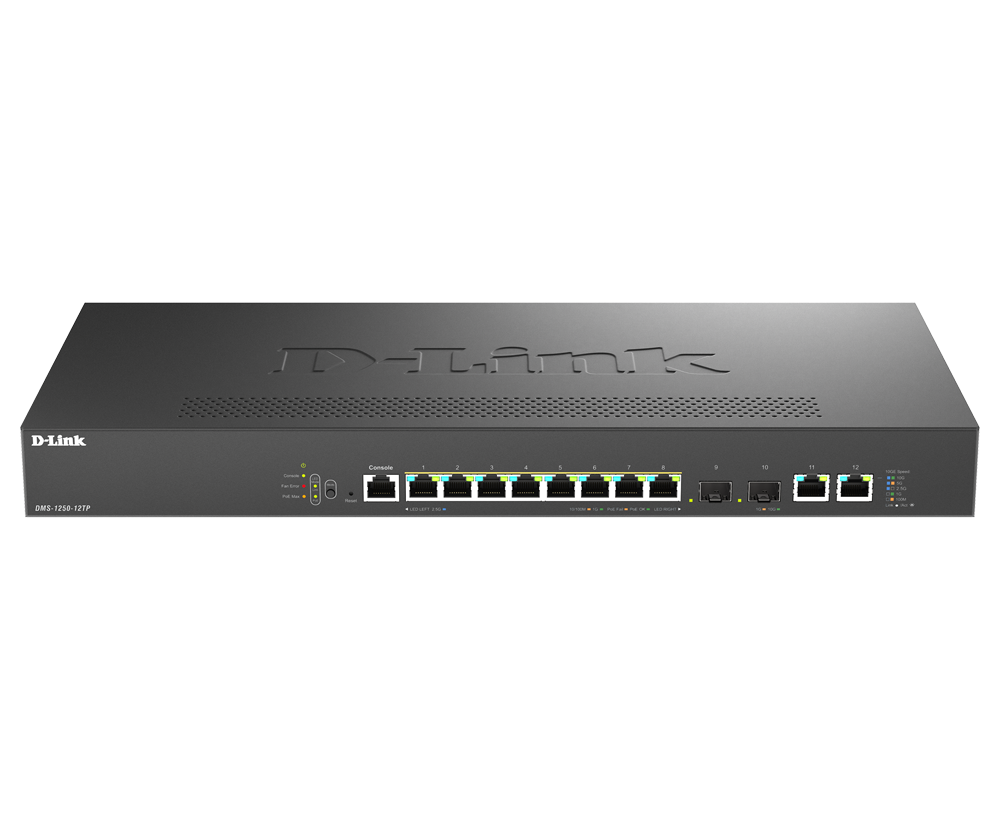

8-Port Multi-Gigabit Smart Managed Switch
DMS-1250-12TP
- Dostupnost produktu (A1): Live
- Eight 2.5Gbps Multi-G Ethernet PoE Ports
- Additional 2x 10Gigabit Ethernet and SFP+ Ports.
- Intelligent Smart Fan Design
- DNC / DNH ( D-Link Nuclias Connect / Hub ) and
D-View 8 for centralized management - Support IEEE802.3 af/at
- PoE budget up to 240W
- D-Link Safeguard Engine helps the CPU resist broadcast/multicast/unicast flooding.
- 6kV surge protection on all 2.5-Gigabit Ethernet Ports
Seznam prodejců
2.5G Speed, Ready for Wi-Fi 6 and More
The DMS-1250 Series switches can enhance your network by connecting a Wi-Fi 6 Access Point to any of the 2.5 Gbps ports, effectively maximizing throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, enabling your network to fully leverage the efficiency and high speeds offered by Wi-Fi 6.
Cutting-Edge PoE Features Ensuring
Reliable Power Delivery
Reliable Power Delivery
PoE+ ports provide a high power budget to fulfill the most business needs.
The innovative PoE functions can ensure uninterrupted power delivery to the power devices.
**The PoE power calculations are based on lab tests. The actual power budget may vary due to users’ limitations and environmental factors, thus limiting the guarantee of reaching the specified maximum power budget.
Why PoE
PoE switches simplify device installation by reducing cable usage and eliminating separate power supplies or outlets, unlike traditional switches.
Perpetual PoE
Perpetual PoE provides an uninterrupted power supply to network devices, even during reboots or maintenance.
Fast PoE
Fast PoE technology reduces the time it takes for devices to become operational after connecting to the network.
PD-Alive
The PD-Alive feature is perfect for IP surveillance networks to monitor the status of connected powered devices and verify their activity.
Intelligent Fan Control with Quiet Operation
The DMS-1250 PoE models with built-in internal fans which can automatically work between 5 levels of cooling to prevent the device from overheating or manually set to OFF or Quiet mode according to environment or operation temperature.
6 kV Surge Protection for All Ethernet Ports
The DMS-1250 Series switches offer enhanced 6kV surge protection on all 2.5-Gigabit Ethernet access ports, ensuring that your network remains resilient and that your devices stay safe from electrical surges.
Support L2+ Features
The DMS-1250 Series switches offer a comprehensive set of Layer 2+ capabilities, including:
- Static Route
- IPv4/IPv6
- DHCP relay*
- DiffServ QoS
- Port Mirroring
- Spanning Tree Protocol (STP/MSTP/RSTP)
- Link Aggregation Control Protocol (LACP)
- IGMP and MLD Snooping
Easy Management by DNC & D-View 8
The DMS-1250 Series switches offers a range of management tools to cater to users' diverse needs. D-Link Nuclias Controller (DNC) and D-Link Nuclias Hub (DNH) enable the discovery and management of multiple D-Link devices, providing access to configure settings efficiently. Furthermore, the DMS-1250 Series can be seamlessly managed through D-View 8, a comprehensive central network management system. SNMP functionality allows for centralized network asset management, remote configuration, and logging functions.
Best Choice for SOHO, SMB and MDU
The DMS-1250 Series switches are versatile, suitable for SOHO, SMB, and MDU environments. They provide high-speed data transmission with 2.5GE and a crucial 10G speed uplink for external connectivity. This high-speed uplink ensures that the entire MDU can access external services without encountering data bottlenecks. Furthermore, they effectively implement IEEE 802.3at or IEEE 802.3bt in DMS-1250-10SP, 10SPL, and 12TP to enable devices to connect and receive power supply.

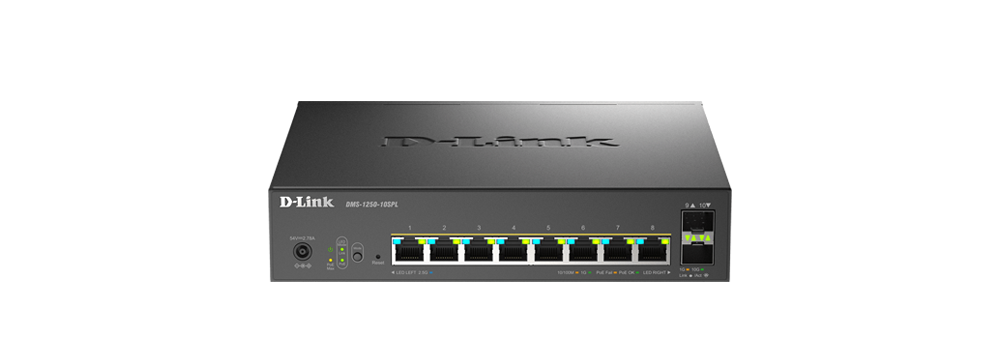

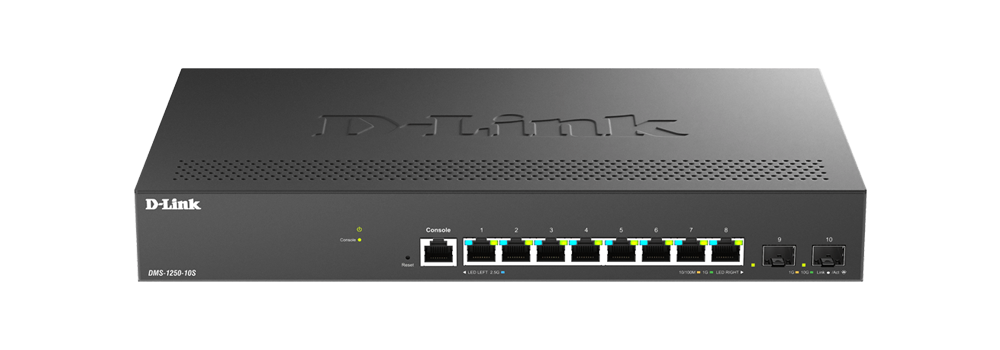

DMS-1250 Series Switches Comparison
 DMS-1250-10S |  DMS-1250-10SPL |  DMS-1250-10SP |  DMS-1250-12TP | |
|---|---|---|---|---|
| Interface | 8 x 2.5GE 2 x 10G SFP+
| 8 x 2.5GE PoE 2 x 10G SFP+
| 8 x 2.5GE PoE 2 x 10G SFP+
| 8 x 2.5GE PoE 2 x 10GE
2 x 10GE SFP+ |
| Performance | ||||
| Switch Capacity | 80 Gbps | 80 Gbps | 80 Gbps | 120 Gbps |
| Max. Packet Forwarding Rate | 59.53 Mpps | 59.53 Mpps | 59.53 Mpps | 89.29 Gbps |
| PoE | ||||
| PoE Standard | N/A | IEEE802.3bt + IEEE802.3af/at | IEEE802.3af/at | IEEE802.3af/at |
| PoE Ports | N/A |
Port 1 ~ 2 (IEEE802.3bt) Port 3 ~ 8 (IEEE802.3af/at) | Port 1 ~ 8 | Port 1 ~ 8 |
| PoE Budget | N/A | 120 W | 240 W | 240 W |
| Technical Specification | ||||
| Surge Protection | ・IEEE61000-4-5 surge protection compliance ・6kV surge protection on all 2.5-Gigabit Ethernet ports | |||
| Maximum Power Consumption | 13.58 W | 147 W (PoE on) | 287.58 W (PoE on) | 289.74 W (PoE on) |
| Fan | Fanless | Fanless | 2 internal fans | 2 internal fans |
| Console Port | Yes | No | Yes | Yes |
| Power Supply Type | Internal | External | Internal | Internal |
Technické specifikace produktu
|
Type
|
Smart managed |
|---|---|
|
Number of ports
|
5 to 14 ports |
|
Layer
|
Layer 2 Layer 2+ |
|
Main type of ports
|
2.5GBASE-T Ethernet |
|
Type of uplink ports
|
10GBASE-T 10GbE SFP+ |
|
Switching capacity
|
120 Gbps |
|
PoE options
|
802.3af 802.3at |
|
Number of PoE ports
|
8 |
|
PoE power budget
|
See datasheet |
|
D-Link Green
|
Supported
|
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
|
Form Factor
|
Rackmountable |
|
Housing
|
Metal |
|
Jumbo frame
|
Supported
|
|
Cable diagnostics
|
Supported
|
|
MAC address
|
16K |
|
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
|
Link aggregation
|
802.3ad |
|
VLAN group (max static)
|
4K |
|
VLAN type
|
Port-based |
|
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Auto Voice VLAN |
|
IP interfaces
|
8 |
|
Static route for IPv4/IPv6
|
IPv4 - 128 IPv6 - 64 |
|
Number of QoS queues per port
|
8 |
|
Bandwidth control
|
16 Kbps minimum granularity |
|
ACL type
|
Ingress |
|
Encryption protocol supported
|
SSH |
|
IP-MAC-port binding (IMPB) / Smart Binding
|
Supported
|
|
ARP spoofing
|
Supported
|
|
802.1X access control
|
Supported
|
|
SNMP (v1/v2c/v3)
|
Supported
|
|
RMON v1
|
Supported
|
|
LLDP
|
Supported
|
|
LLDP-MED
|
Supported
|
|
ICMPv6
|
Supported
|
