Description

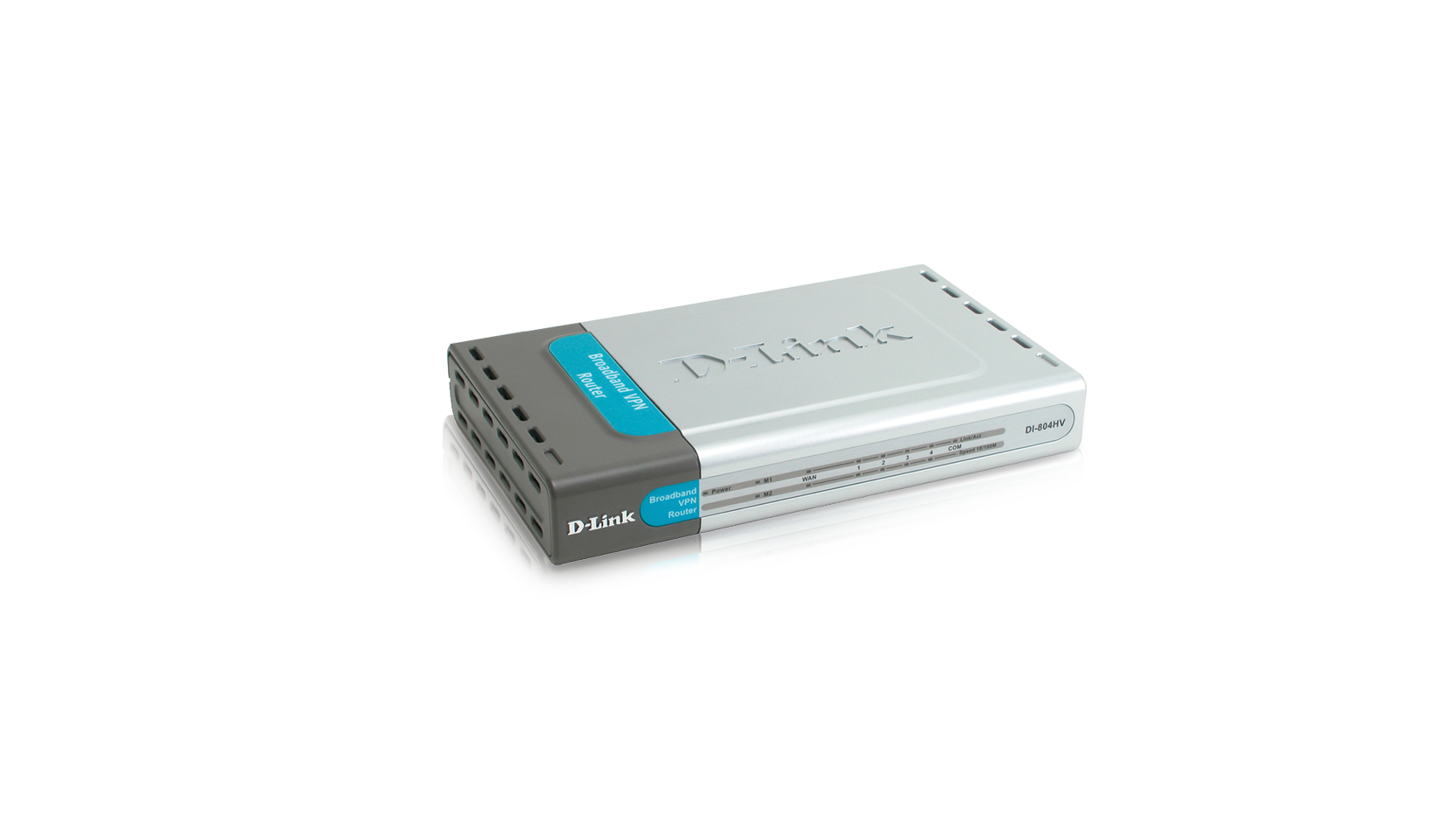

The DI-804HV is a 4-port Ethernet Broadband Router with VPN (Virtual Private Network) capabilities. The DI-804HV is ideal if you’re creating your home or small business network, or if you’re a more advanced user looking for additional management settings.
D-Link, the worldwide leader in innovative home and business networking, sets a new standard for broadband router performance with the Express EtherNetwork DI-804HV.
The DI-804HV is a 4-port Ethernet Broadband Router with VPN (Virtual Private Network) capabilities. The VPN feature allows users to securely connect multiple computers over the Internet. It also features 10/100Mbps Auto MDIX Ethernet ports allowing CAT 5 cable (straight-through or crossover) to work with the DI-804HV.
The DI-804HV is ideal if you’re creating your home or small business network, or if you’re a more advanced user looking for additional management settings.
The DI-804HV includes a new setup wizard and D-Link’s easy-to-use web-based graphical user interface (GUI) to help users configure network settings with a few simple clicks. With its built-in firewall protection, this router will also help to prevent unwanted Internet intruders from accessing your private network.
So, whether you’re a college student who wants to network with friends and roommates, an executive working at home or in a small office, or a concerned parent who just wants to have more control over how your children access the Internet, the D-Link Express EtherNetwork DI-804HV is the networking solution for you.
The DI-804HV is a 4-port Ethernet Broadband Router with VPN (Virtual Private Network) capabilities. The DI-804HV is ideal if you’re creating your home or small business network, or if you’re a more advanced user looking for additional management settings.
D-Link, the worldwide leader in innovative home and business networking, sets a new standard for broadband router performance with the Express EtherNetwork DI-804HV.
The DI-804HV is a 4-port Ethernet Broadband Router with VPN (Virtual Private Network) capabilities. The VPN feature allows users to securely connect multiple computers over the Internet. It also features 10/100Mbps Auto MDIX Ethernet ports allowing CAT 5 cable (straight-through or crossover) to work with the DI-804HV.
The DI-804HV is ideal if you’re creating your home or small business network, or if you’re a more advanced user looking for additional management settings.
The DI-804HV includes a new setup wizard and D-Link’s easy-to-use web-based graphical user interface (GUI) to help users configure network settings with a few simple clicks. With its built-in firewall protection, this router will also help to prevent unwanted Internet intruders from accessing your private network.
So, whether you’re a college student who wants to network with friends and roommates, an executive working at home or in a small office, or a concerned parent who just wants to have more control over how your children access the Internet, the D-Link Express EtherNetwork DI-804HV is the networking solution for you.
Weitere Produkte
Hi-Speed USB 2.0 Fast Ethernet Adapter
DUB-E100
8-Port Layer2 Gigabit Switch
DGS-108
Wireless N Range Extender
DAP-1360
Specs
Hardware
Number of Ports
Broadband Support
Backup Link Support
Routing
Routed Packet Type
Routing Protocols & Methods
VPN & IPSec
Application Support
Data Encryption Methods
Encryption Transforms
Authentication Transforms (for ESP and AH)
Security
Connection Modes
Number of Tunnels
Internet Gateway & Firewall
Supported Functions
Packet Inspection
Number of DMZ Ports
Firewall Security
Management & Configuration
IP Number Self-identification
Local & Remote Management
Firmware Upgrade
Physical & Environmental
Diagnostic LEDs
Power Supply
Dimensions
Weight
Operating Temperature
Storage Temperature
EMI Certification
Ordering Information
Broadband Internet Gateway With VPN Security
DI-804HV
Please specify one of the following after the model number:
/U
/B
Number of Ports
- 1 RJ-45 10BASE-T/100BASE-TX port for DSL/Cable modem connection
- 1 DB-9 RS-232 port (460Kbps Baud) for ISDN TA/analog modem connection (for WAN backup)
- 4 RJ-45 10BASE-T/100BASE-TX 10/100Mbps LAN switch ports
Broadband Support
- DSL modem
- Cable modem
- PPP over Ethernet (PPPoE)
Backup Link Support
- Dial-up ISDN TA
- Dial-up Analog modem
- PPP
- Dial-on-Demand with auto login to ISP
- Auto-disconnect with user-defined idle timer
- PAP/CHAP security
Routing
Routed Packet Type
- IP packets
Routing Protocols & Methods
- RIP-1, RIP-2
- Static Routing
- Dynamic Routing
VPN & IPSec
Application Support
- IPSec pass-through
- PPPTP pass-through
- L2TP pass-through
Data Encryption Methods
- IP ESP (Encapsulating Security Payload)
- Confidentiality over IP payload
- Optional authentication of IP payload and ESP header
- Null encryption
Encryption Transforms
- 56-bit DES (Data Encryption Standard)
- 168-bit 3DES
Authentication Transforms (for ESP and AH)
- MD5
- SHA-1
Security
- Pre-shared key
- Manual key
- IKE Security Association (SA) assignment
Connection Modes
- Site to Site
- Client to Site
Number of Tunnels
- 40 IPSec tunnels (max.)
Internet Gateway & Firewall
Supported Functions
- Network Address Translation (NAT)
- DHCP server automatic IP assignment
- Virtual server
Packet Inspection
- Static Packet Inspection (SPI)
Number of DMZ Ports
- 1 port (user-assignable to any LAN port)
Firewall Security
- Stateful Packet Inspection (SPI) to prevent Denial of Service (DoS) attacks (Syn flood, ICMP flood, UDP flood, "ping of death", IP spoofing, land attack, tear drop attack, IP address sweep attack, Win Nuke attack)
- Intrusion Detection Logging
- LAN/WAN filtering
Management & Configuration
IP Number Self-identification
- Through DHCP client
Local & Remote Management
- Web-based utilities (via browser)
Firmware Upgrade
- Web-based (via browser)
Physical & Environmental
Diagnostic LEDs
- Link (WAN port and serial port)
- Act (WAN port and serial port)
- Link/Act (per LAN port)
- 100Mbps (per LAN port)
- Power (per device)
Power Supply
- DC 5V 2A
- Through external AC power adapter
Dimensions
- 190 x 117 x 31 mm
Weight
- 153 grams (0.34 lb.)
Operating Temperature
- -5° - 45° C (23° - 113° F)
Storage Temperature
- -20° - 70° C (-4° - 158° F)
EMI Certification
- FCC Class B
- CE Class B
- C-Tick
Ordering Information
Broadband Internet Gateway With VPN Security
DI-804HV
- 1 RJ-45 10BASE-T/100BASE-TX port (for DSL/cable modem connection)
1 RS-232 COM port (for ISDN TA/analog modem connection)
4 RJ-45 10BASE-T/100BASE-TX switch ports
Please specify one of the following after the model number:
/U
- Includes no AC power adapter
/B
- Includes a UK standard AC power adapter
This product was phased out on: 01/06/2011
This product's last date of support is on: 25/12/2013
