Professional.
Simple.
Affordable.
High-definition professional surveillance and security solution.
Using a high-sensitivity 3-megapixel progressive scan CMOS sensor to deliver superior quality video.
Rugged design makes this camera ideal for reliable deployment in all weather surveillance applications.
Features
Full HD 3MP Video
Crisp, clear recording and playback so you never have to wonder
|
Weatherproof
Durable IP66 rated casing for surveillance in any weather
|
||
65 Ft Night Vision
16 built-in IR LEDs guarantee bright & clear images, even in total darkness
|
Motion Detection
Configure motion sensors and privacy mask settings so you always know what's happening
|
||
Wide Dynamic Range
Easily identify subjects in any lighting with digital WDR video enhancement
|
3D Filter
Reduce noise in low-light environments for clear, smooth images
|
Security in High Definition
Crisp Full HD, 3 megapixel video gives you a clear view of what's going on. High definition resolution and a compact design makes the DCS-4703E Ideal for small, medium and large enterprise installations.
*Screen images simulated
Continuous Monitoring with Night Vision
Built-in IR LED illuminators automatically turn on depending on lighting conditions, allowing the camera to capture video even in low-light or no-light conditions.
Combined with the IR-Cut filter, the DCS-4703E can also provide sharp grayscale video in low-light conditions. Embedded with a powerful SoC (System-on-Chip), the camera provides real-time video compression in H.264 and MJPEG formats.
Anytime, Anywhere Surveillance
Equipped to handle dust, rain, sleet and snow with an IP66 weatherproof housing and a glare-reducing sun shield, the DCS-4703E is rugged enough to keep an eye on your toughest outdoor areas without the need for additional accessories.
3-Axis Adjustment

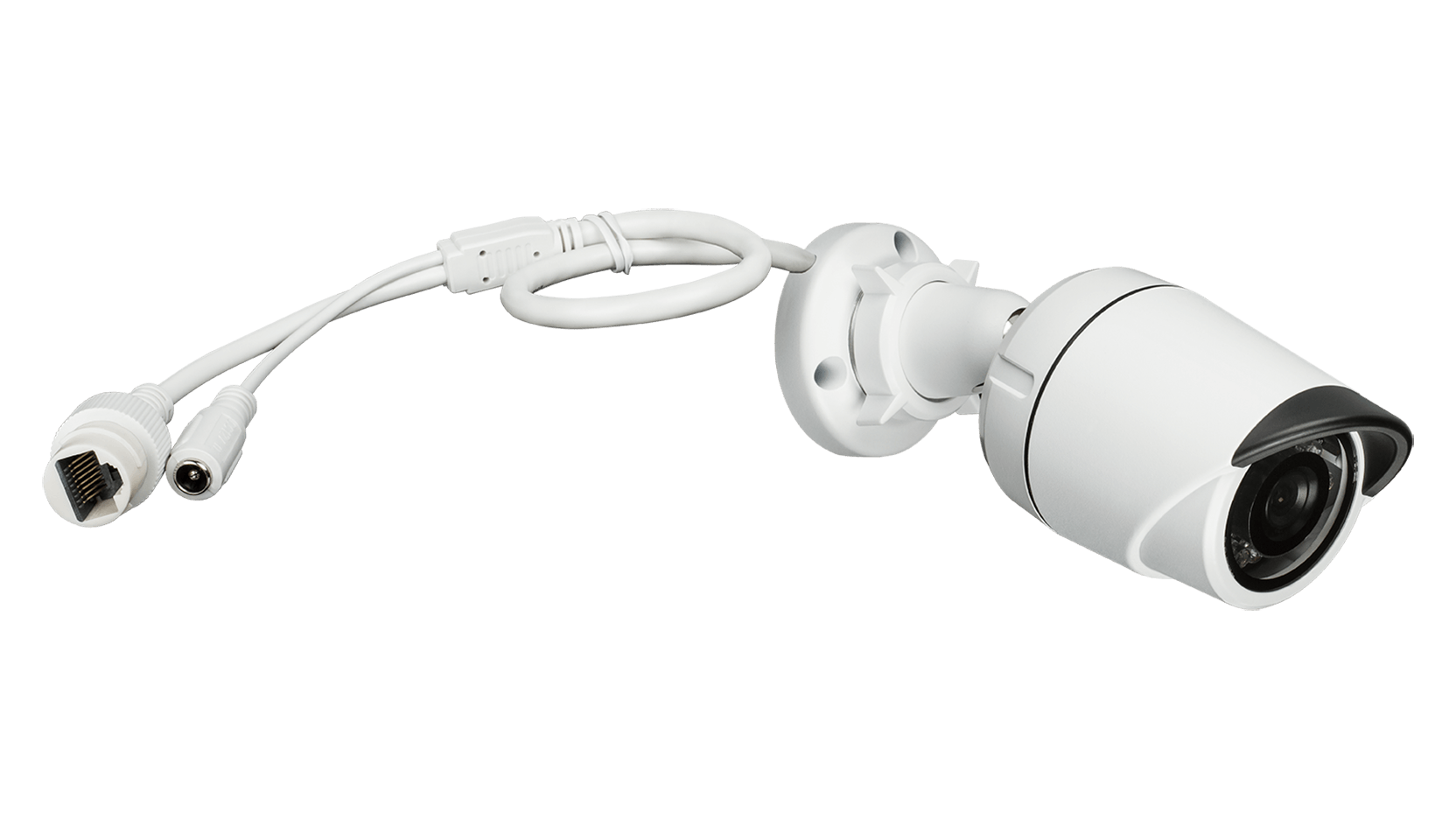

The Full HD Outdoor PoE Mini Bullet Camera's unique design with 3-axis cable management bracket allows for flexible and secure mounting options.
PoE = Convenience
Power over Ethernet makes surveillance installation simpler, safer and less expensive. The DCS-4703E has a built-in 802.3af compliant PoE module, allowing for single cable deployment and reducing the need to drill holes or lay additional cabling.
*The DCS-4703E can also be powered by a standard 12V DC, 1.5A power adapter (not included).
Video Management Software (VMS)
The Full HD PoE Dome Network Camera includes a free VMS solution called D-ViewCam, a complete surveillance software package that enables you to view, manage and record up to 32 cameras on a single computer. In addition, the DCS-4703E is Onvif-compliant and supported by several VMS solutions to seamlessly integrate with other vendor IP cameras and NVRs.
Related Products
Specs
Indoor/outdoor
|
Indoor Outdoor |
---|---|
Type
|
Bullet |
Connectivity
|
Wired PoE |
Resolution
|
3 megapixel |
Image sensor
|
1/3" 3 megapixel progressive scan CMOS |
Maximum Video Resolution
|
1920 x 1080 (16:9) 2048 x 1536 (other) |
Advanced Light features
|
Wide Dynamic Range |
Lens
|
3.6 mm F1.8 Fixed |
Angle of View (H/V/D)
|
70° / 40° / 80° |
Infrared-Cut Removable Filter
|
Supported
|
Night vision
|
Supported
|
Night vision range
|
20 m |
Wide Dynamic Range(WDR)
|
Supported
|
LowLight+
|
Supported
|
Privacy Masks
|
3 zones |
Power Consumption
|
6.4 W |
App Support
|
JustConnect+ |
Features
|
D-ViewCam D-Link NVR compatible ONVIF |
Video Format
|
H.264 MJPEG |
Multi-Stream
|
Supported
|
Mobile Stream
|
Supported
|
Digital Zoom
|
10x |
Motion Detection
|
Supported
|
Event Recording
|
Supported
|
E-mail Notification
|
Supported
|
Recording to NAS
|
Supported
|
Version | Date | Type | File Size | |
---|---|---|---|---|
Datasheet | - | 0.73mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
Manual | Manual | 09-12-2016 | 5.55mb | Download |
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version | Description | Date | |
---|---|---|---|
Setup Wizard | Setup Wizard | 03-01-2017 | Download |
