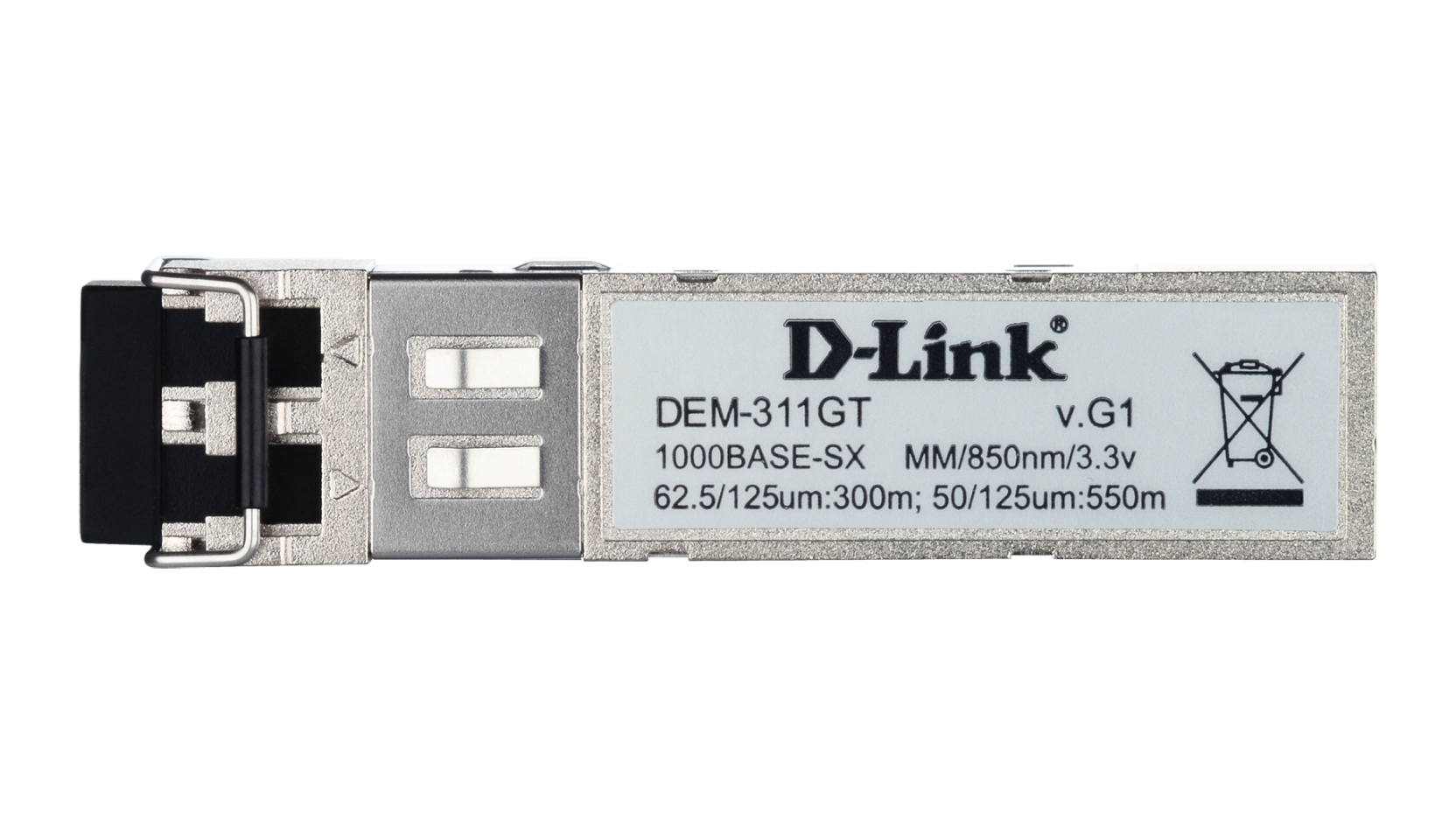

SFP 1000Base-SX Multi-mode Fibre Transceiver
DEM-311GT
- Product Status: Live
- 850nm Multi-Mode Tranceiver
- 550m Max Distance, Duplex LC Connector
The DEM-311GT is a high performance 850nm multimode SFP/mini-GBIC transceiver. Supporting full duplex, Gigabit speeds on multimode fiber for distances of up to 220m/550m on 62.5µm/50µm fiber respectively. The unit features a metal housing to reduce EMI and to increase durability. The DEM-311GT is hot pluggable and is backed by a standard 2-year product warranty and free technical support.
* Third-Party Devices Must Comply With specified Supported Industry-Standard Specifications
Specs
Product/Performance Specifications
Optical Receiver Sensitivity
Interface Options
Connector Type
Operational Ranges
Support Voltage
Max Voltage
Max Current
Safety Certifications and Environmental Information
Class 1 Laser
FDA 21
Physical Specifications
Dimensions (WxDxH)
Warranty and Support Information
Warranty
Support
Ordering Information
DEM-311GT 1000BASE-SX SFP Up to 220/550m
Optical Receiver Sensitivity
- -18dBm (max)
Interface Options
Connector Type
- LC
Operational Ranges
Support Voltage
- 3.1-3.5V
Max Voltage
- 6.0V
Max Current
- 300mA
Safety Certifications and Environmental Information
Class 1 Laser
- EN 60825-1
FDA 21
- 1040.10 & 1040.11
Physical Specifications
Dimensions (WxDxH)
- 13.8 x 57.2 x 8.5 mm
Warranty and Support Information
Warranty
- 2 Year Warranty
Support
- Free Technical Support
Ordering Information
Part Number Description
DEM-310GT 1000BASE-LX SFP Up to 10kmDEM-311GT 1000BASE-SX SFP Up to 220/550m
