Outdoor Industrial AC1200 Access Point
DIS-3650AP
- Product Status (Revision A1): Live
- Dual-band AC1200 speeds: 300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz
- Industrial design, rugged IP67 weatherproof housing
- Wide operating temperature range of -20 to 65°C
- 6 kV surge protection, 8 kV ESD protection
- MU-MIMO, 802.11k/r fast roaming, WPA3 Security

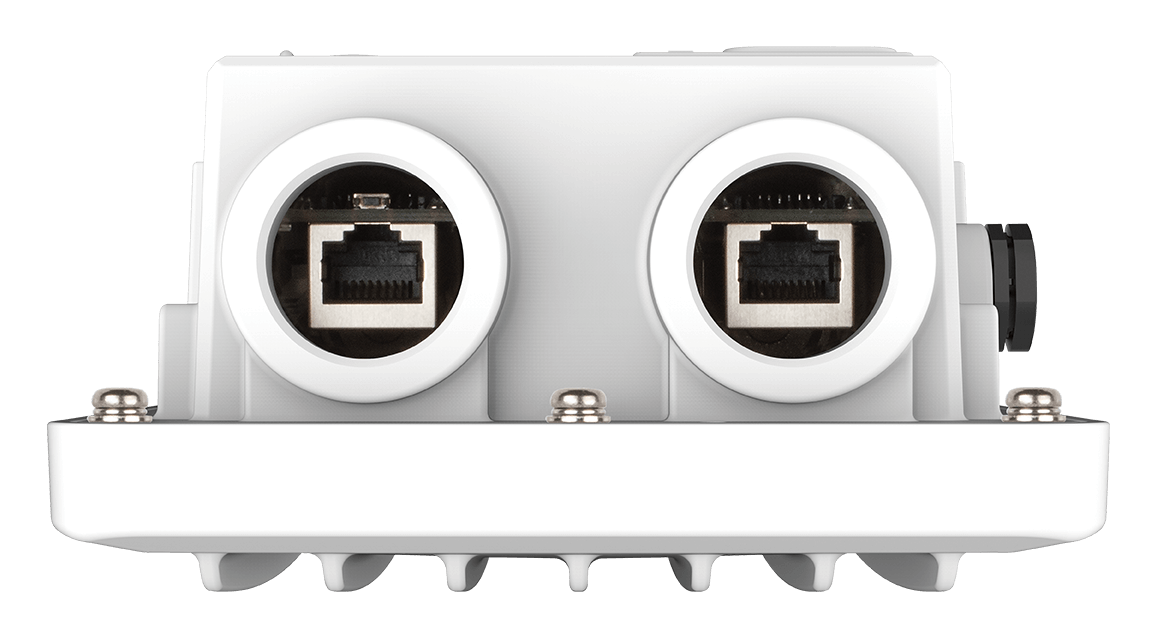

- 1 x Gigabit LAN (PoE 802.3at supported), 1 x Console Port
- Flexible articulating wall/pole mount or DIN mount
- Standalone, or with free Nuclias Connect management software, or with dedicated Nuclias Connect Hub
Where to buy
Fast Wi-Fi, even in extreme weather.
Fast dual-band Wi-Fi that’s designed to operate even in extreme environments and comes in a rugged IP67 weatherproof housing. It can be DIN, pole, or wall-mounted, making it ideal for industrial installations.
Manage your business network with ease
The DIS-3650AP can work as a standalone device but can also work with Nuclias Connect - a free software-based management platform (with optional hardware controller) that can be used on-premises, or as a cloud solution hosted on a public cloud service. Admin tasks can be swiftly carried out from the Nuclias Connect app, or server/PC-based software for easy access, easy automation, and easy network scalability.
Easily manage your network with Nuclias Connect
Automate, monitor, manage and scale your network in line with business demand without the complexity or cost, through the centrally managed Nuclias Connect platform.

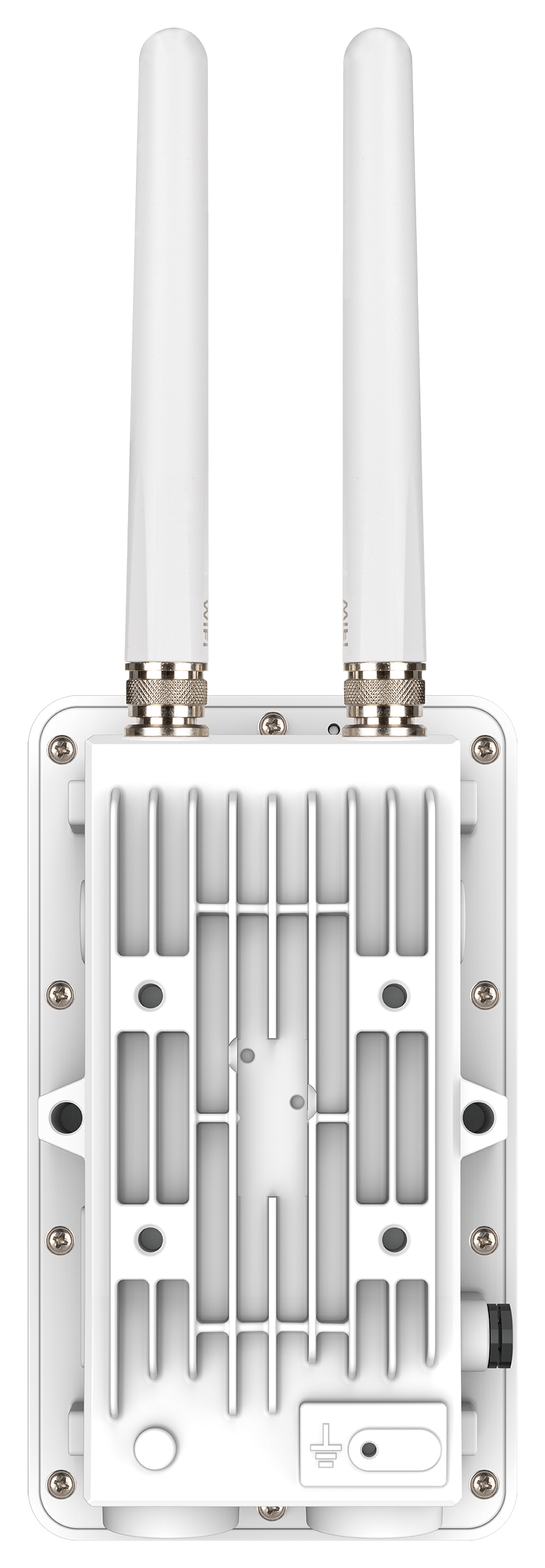

Flexible DIN or wall mountable
For increased flexibility in varied working environments, it can be mounted on a DIN rail or pole/wall-mounted
Built tough, for tough environments
Wide operating temperature range with built-in 6kV surge protection and 8kV ESD protection
PoE Ready
Power over Ethernet makes for an easier installation with a single cable
Easy to scale up
The free Nuclias Connect management software controller allows you to scale up the network by up to 1,500 access points2
Reliable, secure performance
Fast throughput with dual-band, MIMO technology, band steering & airtime fairness intelligently manages users with WPA3 wireless encryption
Hassle-free admin tasks
Empower admins to work efficiently, even across multiple sites. Deploy, configure, update and expand rapidly.
Free-to-download software & app
Rapidly setup, manage and monitor APs locally via our free network management software, or remotely with the Nuclias Connect app
Strong, reliable performance for your business

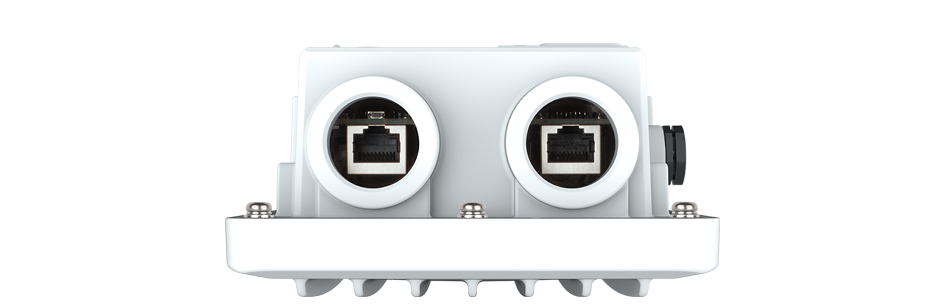

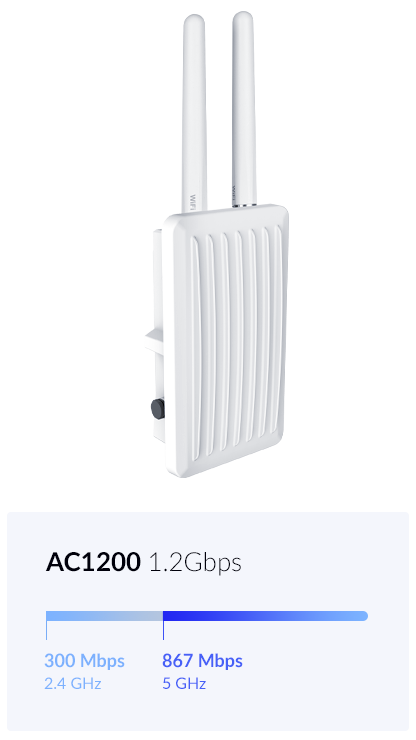

The DIS-3650AP delivers reliable, high-speed wireless AC Wave 2 performance with maximum combined wireless signal rates of up to 1200Mbps1, with x1 Gigabit LAN ports for high-capacity backhaul to the wired network
It also supports multiple VLANs for enhanced network management, x16 SSID setups, MAC Address filtering, WLAN partitioning, and utilises WPA3™ Wi-Fi security for advanced network protection
Seamless and self-sufficient networking
It employs band steering, MU-MIMO and beamforming - all designed to work together to alleviate congestion by automatically routing devices based on Internet usage, so your network won’t be slowed down by devices performing intense tasks.

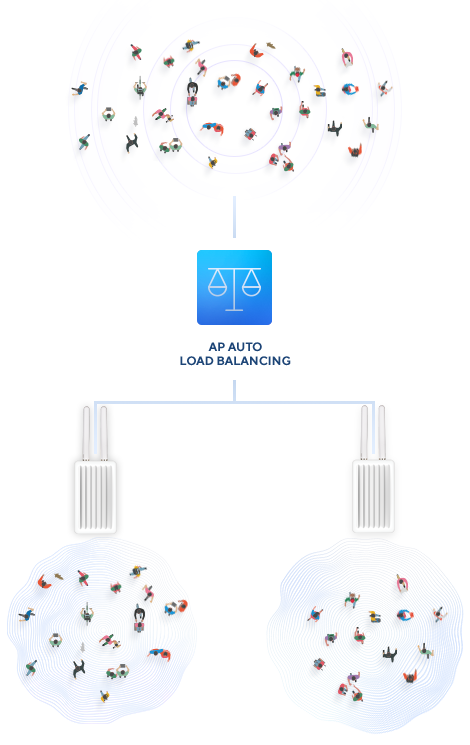

This access point also supports Load Balancing and Airtime Fairness technology to distribute workloads between other APs for optimum resource utilisation, allowing every device in your network to seamlessly get the best connectivity possible — without putting a strain on your whole network.
Durable and reliable design

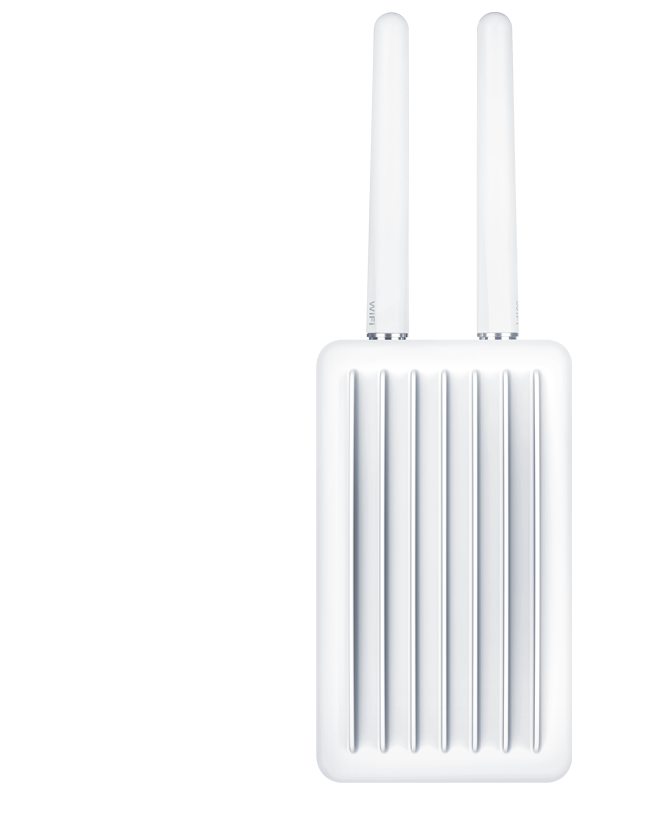

The DIS-3650AP has a rugged IP67 weatherproof housing, designed to protect itself from harsh environmental conditions and supports a wide operating temperature range of -20 to 65°C.
For increased flexibility in extreme environments, the DIS-3650AP can be mounted on a pole, wall or DIN-mounted, and the option to be powered via clutter-free Power over Ethernet (802.3at PoE).

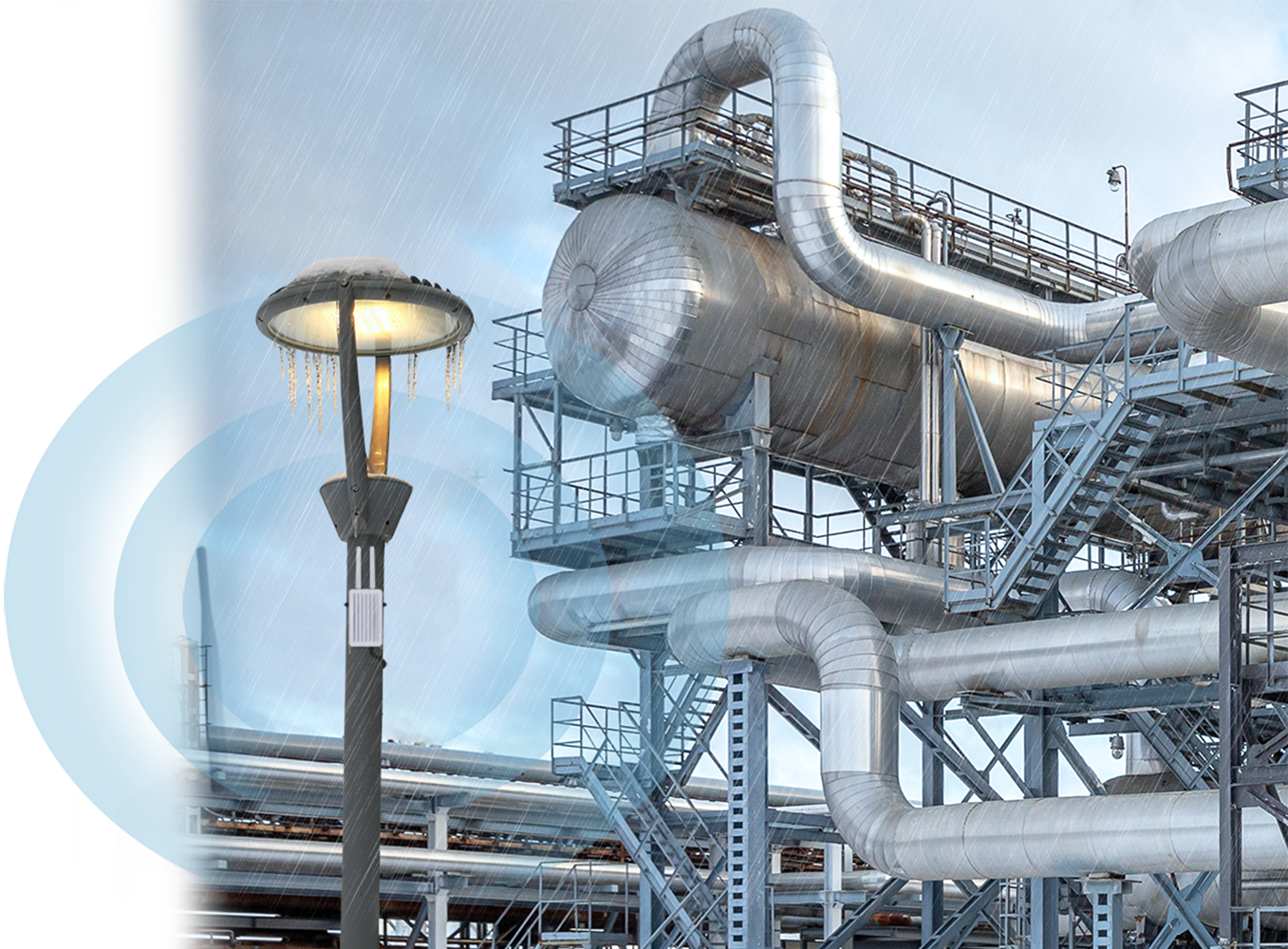

Built to work, made to last
The built-in 6 kV surge protection and 8KV ESD protection both ensure continuous operation in unexpected electrical surges or discharges.

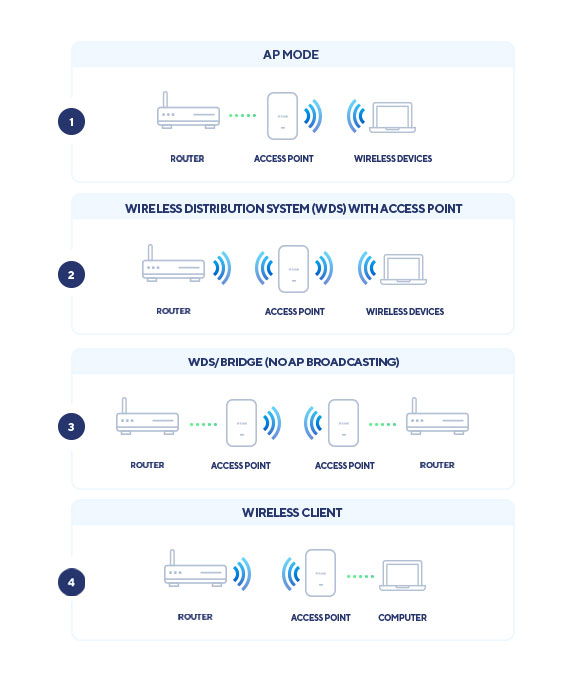

Multiple Operation Modes
The DIS-3650AP can be configured to fit the needs of your network and optimise performance.
- Access point
- Wireless distribution system (WDS) with access point
- WDS/bridge (no AP broadcasting)
- Wireless client.
Advanced and customisable on-premise network management.
Nuclias Connect is a unified network management tool with cost-effective scalability, powerful controls, and is designed as a solution for every type of business.
Minimise the hassle of deployments, configurations and admin tasks.
Compared to traditional hardware-based unified management systems, Nuclias Connect offers tremendous flexibility. Easy setups, remote access and an intuitive dashboard make life easier for network admins, while functionality and network self-healing tools such as airtime fairness, localised throttling and load-balancing improves overall user experience.
Get your networks up and running from anywhere, easily and quickly.
Network administrators can set different configurations and authority levels for head and branch offices. Network devices can be pre-configured before being dispatched to regional offices, allowing rapid deployments, replacements or scaling. The solution also enables Managed Service Providers to send pre-configured APs to their customers and remotely manage their wireless networks.
Manage your business network, like never before.

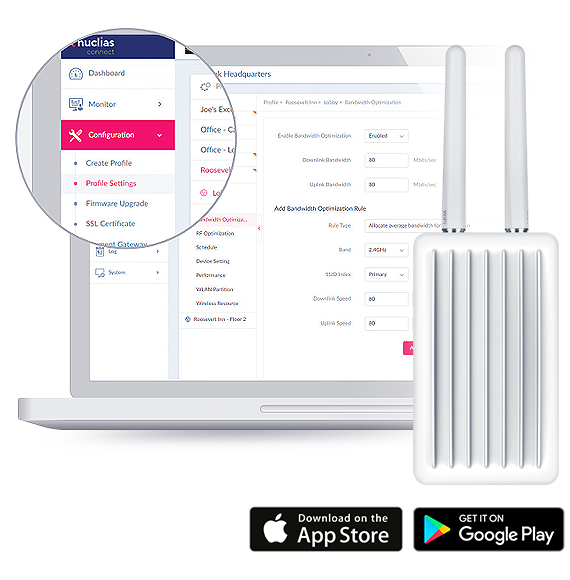

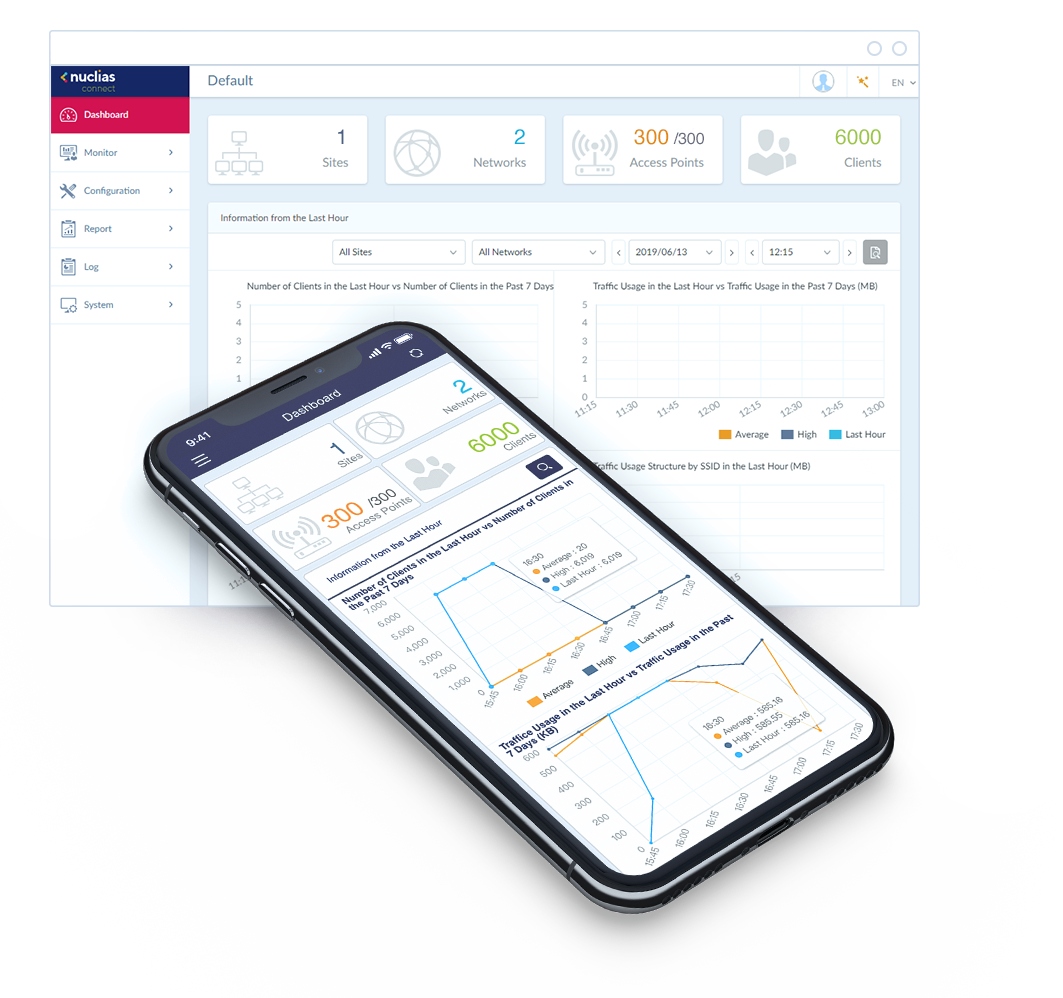

Nuclias Connect enables you to manage and control your network from anywhere with an Internet connection. It provides an extensive understanding of your network and its users through traffic analytics and status reports, which can be viewed at a glance through an intuitive interface on PC, or phone via our app. Insights derived from this traffic data can be used to create business value, and traffic can be viewed across the entire network, to the level of a single AP.

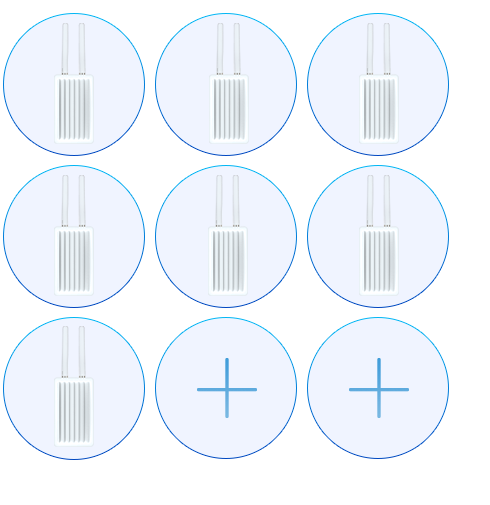

Easy to scale up
The free Nuclias Connect management software controller allows you to scale up the network by up to 1,500 access points2.
How Nuclias can help you
Private Sector
Real time analytics help you tailor customer’s Wi-Fi experience, as well as further drive sales.
Industrial
Deploy an efficient and robust network built for the future. Easily manage multiple sites, and see detailed reports.
Government
Create a secure and fast Wi-Fi experience for all your guests and staff throughout your premises.
Manufacturing Facility
Ensure staff & employee safety while supporting an evolving digital experience.
Efficient hardware, dedicated to Nuclias Connect.
The new Nuclias Connect Hub (DNH-100) is an optional hardware controller that’s small and comes pre-installed with Nuclias Connect. It provides an inexpensive, ready-made solution, and makes AP configurations fast and easy. It removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.
Free Next-Business-Day Service
Enjoy our free Next Business Day service, as standard with D-Link Business products, to replace faulty equipment quickly.
We're here to help.
Over 35 years in the networking industry
Innovative end-to-end solution experts for small businesses to large corporations around the world.
Talking to us is easy
Skilled local support in 16 countries. Our support teams are ready to help you.
5‑Year D‑Link Warranty
You're protected by one of the global leaders in the industry.
1 Maximum wireless signal rate derived from IEEE standard 802.11 and 802.11ac specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
2 Number of wireless access points supported depends on the specification of the computer on which DNC is installed. To support 1500 APs, a computer with at least an Intel Core i7 with 24 GB RAM and 4 TB hard drive, and 20 Mbps uplink bandwidth is recommended. To support 100 APs, a computer with at least an Intel Core i5 3.2GHz with 8 GB RAM and 2 TB hard drive, and 10 Mbps uplink bandwidth is recommended.
Specs
|
Wireless standard
|
Wireless AC Wireless AC Wave 2 |
|---|---|
|
Frequency band mode
|
Dual-band simultaneous |
|
Wireless speed
|
300 Mbps 2.4 GHz 867 Mbps 5 GHz |
|
Antenna type
|
2 detachable omni-directional antennas |
|
Antenna gain
|
3 dBi for 2.4 GHz 5 dBi for 5 GHz |
|
Power-over-Ethernet
|
Yes |
|
Wired interface
|
1 x Gigabit Ethernet LAN |
|
Console port
|
Supported
|
|
Indoor/outdoor
|
Outdoor |
|
Type of housing
|
Metal |
|
IP rating
|
IP67 |
|
Wireless modes
|
Access Point (AP) WDS bridge WDS with AP Wireless client |
|
Advanced features
|
802.11k/r Roaming MU-MIMO |
|
Maximum number of SSIDs
|
16 |
|
Auto channel selection
|
Supported
|
|
WMM-PS/802.11e (U-APSD)
|
Supported
|
|
Wi-Fi scheduler
|
Supported
|
|
AP traffic load balance
|
Supported
|
|
L2 roaming
|
Supported
|
|
WEP 64/128 bit
|
Supported
|
|
WPA/WPA2-Personal/Enterprise
|
Supported
|
|
WPA3-Personal/Enterprise
|
Supported
|
|
SSID broadcast disable
|
Supported
|
|
MAC address filtering
|
Supported
|
|
802.1X authentication
|
Supported
|
|
DHCP server
|
Supported
|
|
802.1D STP
|
Supported
|
|
IGMP snooping
|
Supported
|
|
ARP spoofing
|
Supported
|
|
NTP
|
Supported
|
|
Management platform
|
Nuclias Connect |
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
CLI
|
Supported
|
|
Telnet
|
Supported
|
|
Syslog
|
Supported
|
Support
| Version | Date | Type | File Size | |
|---|---|---|---|---|
| Datasheet EN | - | 0.56mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| Manual 1.00 RevA1 | Product Manual | 22.06.2022 | - | - | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| QIG 1.00 RevA1 | Quick Install Guide | 27.10.2021 | - | - | Download |
