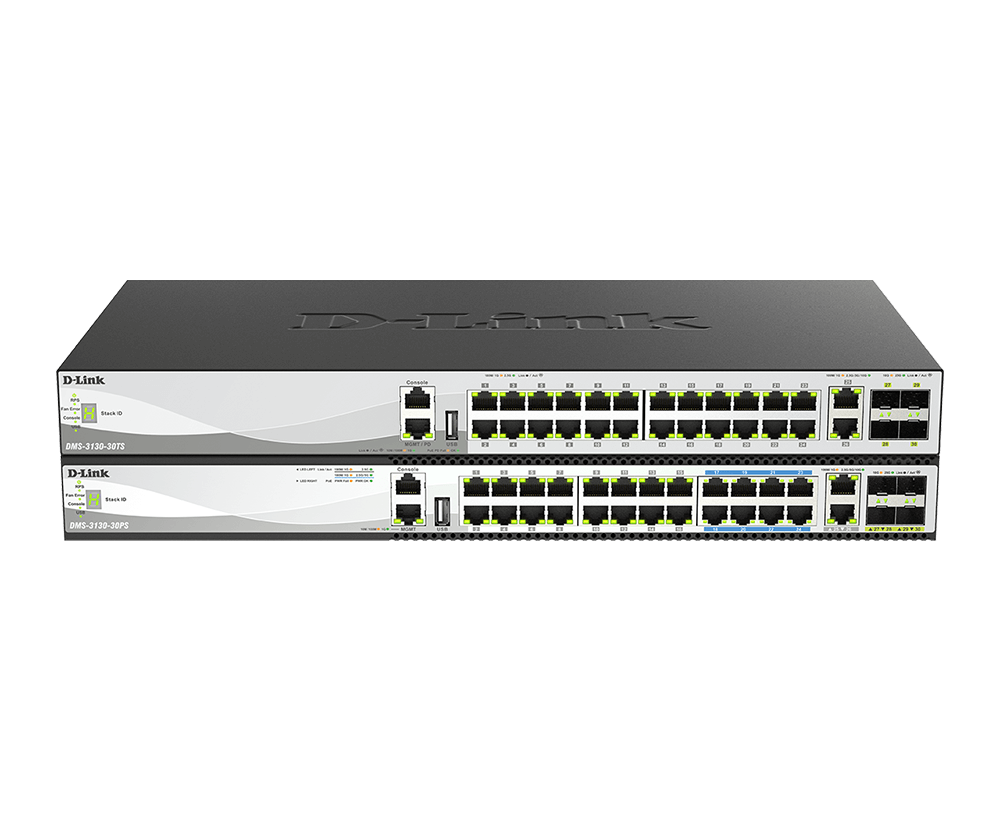

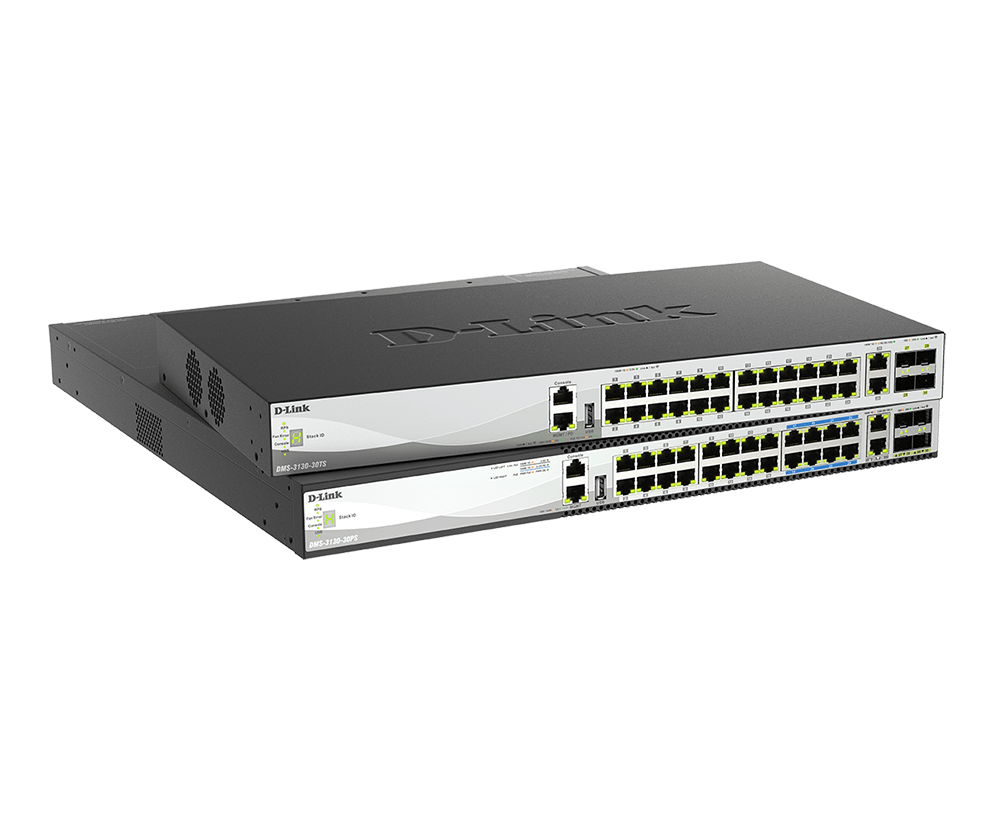

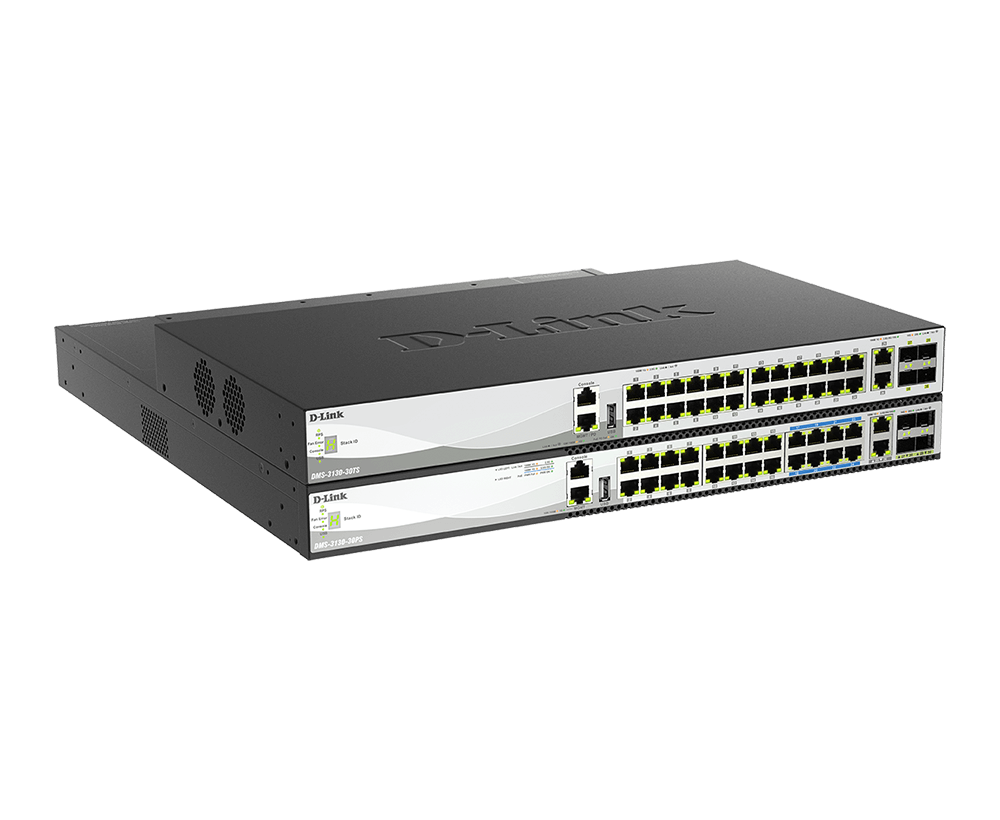

30-Port Layer 3 Stackable Multi-Gigabit Managed PoE Switch Series
DMS-3130 Series
- Product Status ($name): Live
- Multi-Gigabit 1G/2.5G/5G/10G/25G support
- 2.5GBASE-T PoE+ and 5GBASE-T 60W PoE support
- x4 25G SFP28 uplink ports
- 6 kV surge protection on 2.5G/5G ports
- Up to 400Gbps of switching capacity
- Physically stacking of up to 9 units
- Integrated software image with powerful L2 and L3 features
- Power over Ethernet (PoE) options, up to 740W with RPS
- QoS and D-Link Safeguard Engine
Where to buy
Why You Want It
Multi-GIGABIT Ports
Connect at 2.5G/5G/10G/25G speeds. Utilize copper ports, and four 25G fibre uplink ports to reach further distances.
PoE Capable

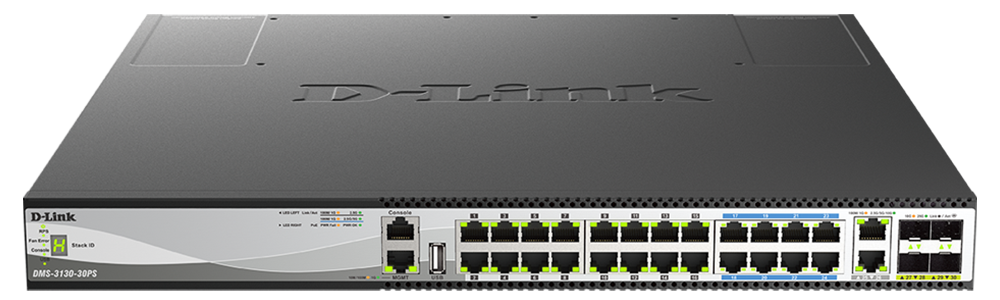

DMS-3130-30PS has x16 2.5G PoE+, x8 5G 60W PoE++ ports, and supports Perpetual PoE and Fast PoE.
Stackable Smart Gigabit
Up to 9 units per stack for max. 234 Multi-Gigabit ports, up to 200 Gbps stacking bandwidth. Long-distance stacking over fibre.
Layer 2 Features
Such as flow control, link aggregation, Ethernet Ring Protection Switching (ERPS), Spanning Tree Protocols, Loopback Detection, Flow Mirroring, IGMP/MLD Snooping.
Lite Layer 3 Features
Including up to 128 IP Interfaces, VRRP, static routing, RIPng, OSPF, IGMP and PIM-SM.
RIPv1/v2/ng
Determines the best route to a destination in the network.
Static Routing
Route Layer 3 traffic between switches, even if they're segmented in VLANs.
Multiple Images and Configurations
Risk-free firmware and configuration testing.
Accelerate your network with Multi-Gigabit Ethernet
With two 10GBASE-T ports and four 10G/25G SFP28 ports, up to 400Gbps switching capacity, physical stacking of up to 9 switches for greater port density, and Layer 2 and Layer 3 features, the DMS-3130 Switch Series offer a versatile, secure, and fast network that can be deployed in a variety of environments and topologies, including Metro Ethernet deployments.
World-class reliability
Advanced L2 and L3 features including port security, Storm Control, Link Aggregation, and Spanning Tree Protocols. Management options like 802.3ah OAM, 802.1ag CFM, and industry standard CLI support, with support for multiple images and multiple configurations.

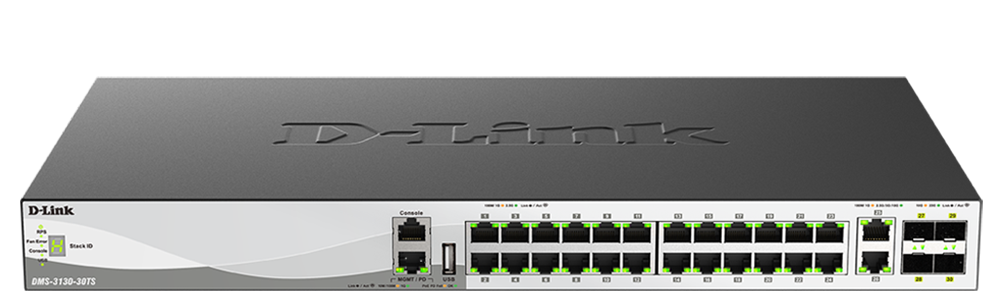

x4 25G SFP28 uplink ports, physical stacking for redundancy, and have built-in G.8032 Ethernet Ring Protection Switching (ERPS) to help minimise recovery times to 50 ms. An USB 2.0 interface to store config files, boot images, and syslog. As well as support for an additional external redundant power supply on all models to ensure maximum uptime. DMS-3130-30TS even supports PoE PD function on the MGMT port, allowing it to be powered by a PoE switch.
Comprehensive security
Includes the latest security such as Multi-layer and Packet Content Access Control Lists (ACL), and Storm Control. And our exclusive D-Link Safeguard Engine has been designed to guard against traffic flooding caused by malicious attacks and protect your business network uptime.
IP-MAC-Port Binding allows you to bind a source IP address with an associated MAC and define the port number to enhance user access control. And DHCP Snooping makes the switch learn IP/MAC pairs by snooping DHCP packets and saving them to the IMPB whitelist, giving you extra control.
Electrical surge protection
Featuring built-in 6 kV surge protection on all PoE and non-PoE 2.5G/5G Ethernet access ports, the switches are protected against sudden electrical surges caused by lightning strikes or unstable electrical currents. It lowers maintenance costs effectively by minimizing the need for expensive equipment repairs or replacements.
Easy Access Control policies
They feature multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and an easy deployment. After authentication, individual policies such as VLAN membership, Quality of Service (QoS) policies, and ACL rules can be assigned to each host.
Versatile traffic management
The DMS-3130 Series has a rich set of multi-layer QoS/CoS features to ensure that critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority. L2/L3 Multicast support enables your network to handle growing IPTV applications.
PoE+ /PoE++ with budgets up to 960W
PoE+ /PoE++ with budgets up to 960W DMS-3130-30PS provides sixteen 2.5G ports supporting 802.3af/at PoE and eight 5G ports supporting 60W 802.3bt PoE standards with a power budget of 740 watts expandable to 960 watts with dual power supplies.
Multi-Gigabit PoE with up to 60W of power per port is ideal for Wi-Fi 6/6E access points, smart lighting, or industrial automation equipment. Perpetual PoE and Fast PoE support delivers faster and uninterrupted power to connected devices even when the switch is booting.
DMS Series Comparison
| Product |  DMS-3130-30TS |  DMS-3130-30PS |
|---|---|---|
| Interfaces | ||
| Ports |
|
|
| Optional Redundant Power Supply |
|
|
| Performance | ||
| Switching Capacity | 360 Gbps | 400 Gbps |
| 64-Byte Packet Forwarding Rate | 268 Mpps | 298 Mpps |
| Packet Buffer Memory | 4 MB | 4 MB |
| PoE | ||
| PoE Standards |
| |
| PoE Power Budget |
| |
