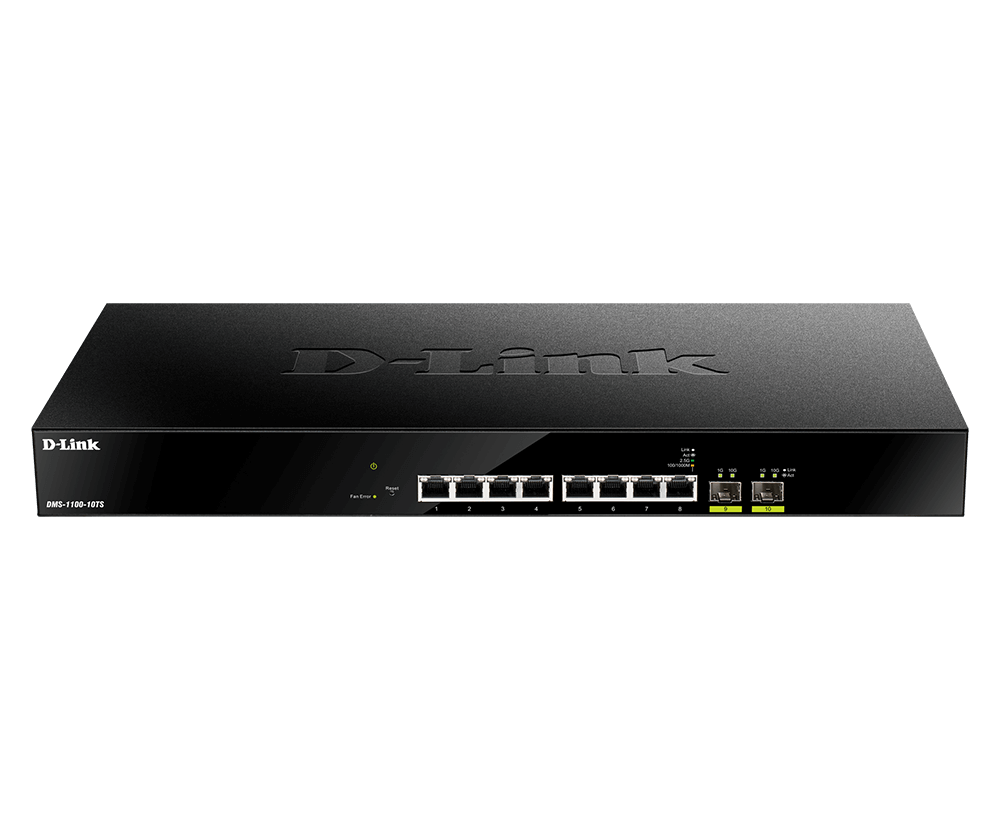

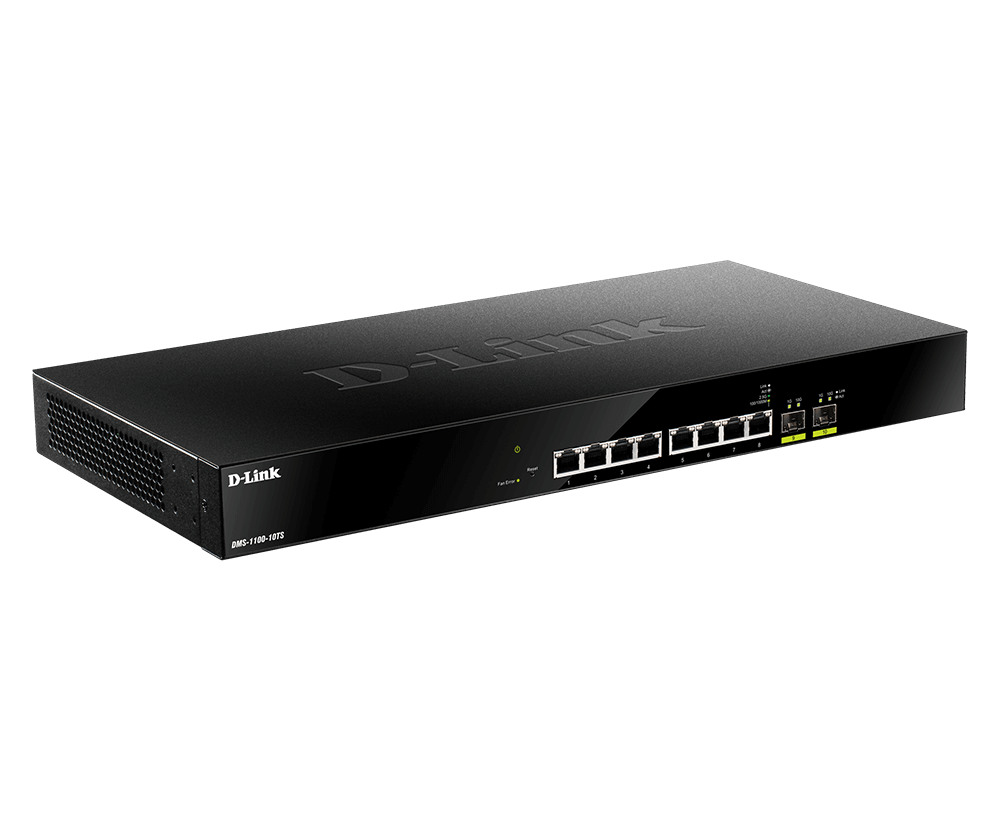

2.5 Gigabit Ethernet Smart Managed Switch
DMS-1100-10TS
- Product Status (Revision A1_v120): Live
- 8 x 100/1000/2.5G Base-T ports and 2 x SFP+ ports for access point or surveillance deployments
- Quality of Service (QoS) prioritizes time-sensitive traffic for a smoother network experience
- IEEE 802.3az Energy Efficient Ethernet is not just good for the planet, but for your budget as well
- A wide variety of L2 Features to improve switch overall efficiency, making for a better, faster network
- Web-based GUI makes network management as easy as it should be
- Easily configure and deploy your equipment with D-Link Network Assistant
- Built-in SNMP MIB allows convenient remote management for when you can’t be on premises
- Auto surveillance VLAN expedites surveillance data for continuous video feeds
- Auto voice VLAN prioritizes VoIP traffic for jitter-free calls
- LLDP/LLDP-MED for efficient interoperability
- Loopback Detection and Cable Diagnostics help you to troubleshoot network issues
Where to buy
Your Switch in Numbers
The DMS-1100-10TS features eight 2.5 Gigabit PoE ports and two dedicated SFP+ Ports, offering an impressive 80 Gbps total switching capacity. It is perfect for a deployment of Wave 2 Access Points, while the uplink ports provide more than enough bandwidth when accessing the larger local network.
8
Gigabit Ports
80 Gbps
Switching Capacity
2
SFP+ Uplinks

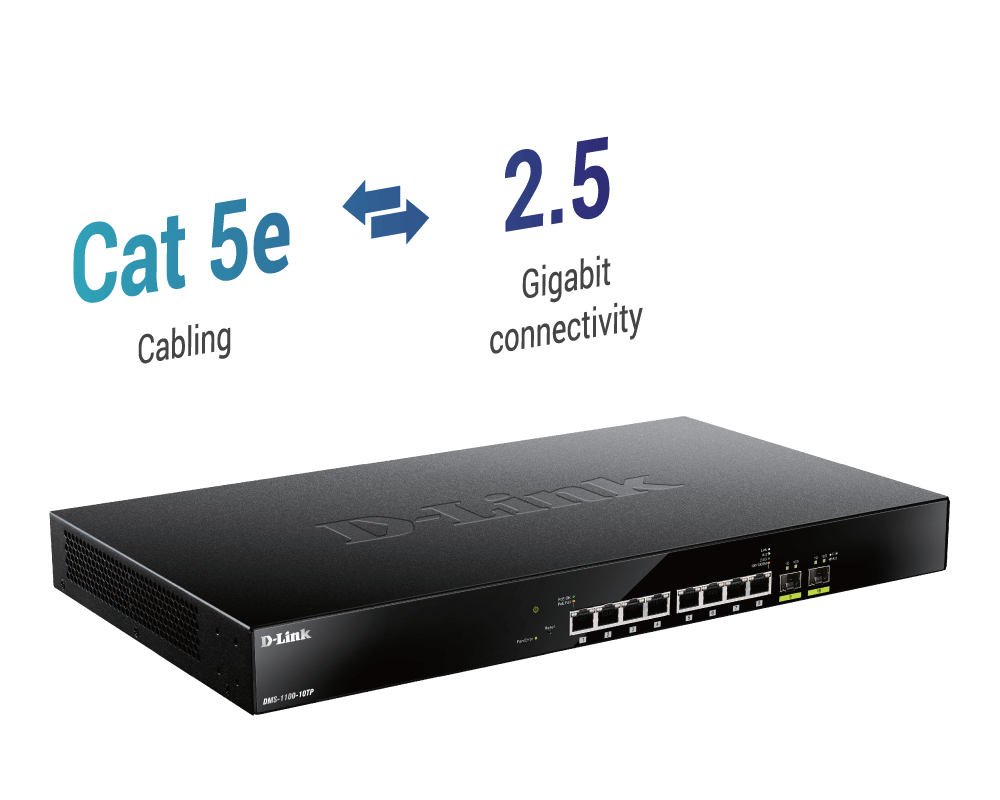

A Bridge Between Two Generations
The DMS-1100-10TS is a future-ready solution, designed for the upcoming years of connectivity. As more businesses replace older Ethernet with 2.5G to support increasingly powerful Access Points, you can rest assured this switch will keep on serving you well.
It is also a big deal for your CAPEX thanks to backwards compatibility. It can push Cat 5e cabling to its limit, allowing 2.5 Gigabit connectivity over it, so you get the absolute most out of your existing cabling.

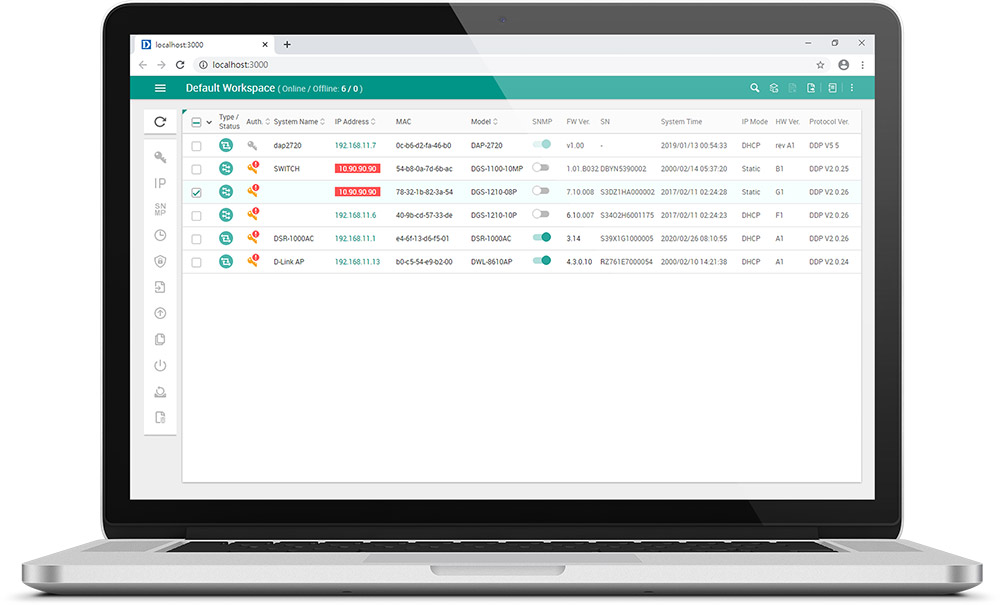

Easy Setup & Effortless Management
Allay your deployment fears. With the free D-Link DNA app, first time setup is a breeze, with your device up and going in minutes.
Fast Data, Fast Business
When data is running smoothly, so does your business. The DMS-1100 Series is packed with Layer 2 features for a more efficient network and rapid troubleshooting abilities.
Spanning Tree Protocol
Effectively streamlines pathways between complex networks that include several switches, maintaining speedy and safe transmission of data
Loopback Detection
Data being transmitted and then erroneously retransmitted continuously can paralyze the network, but this feature keeps a watchful eye out, stopping potential loops in their tracks.
Port Mirroring
Observe and monitor network traffic, with only the most minimal burden on the network.

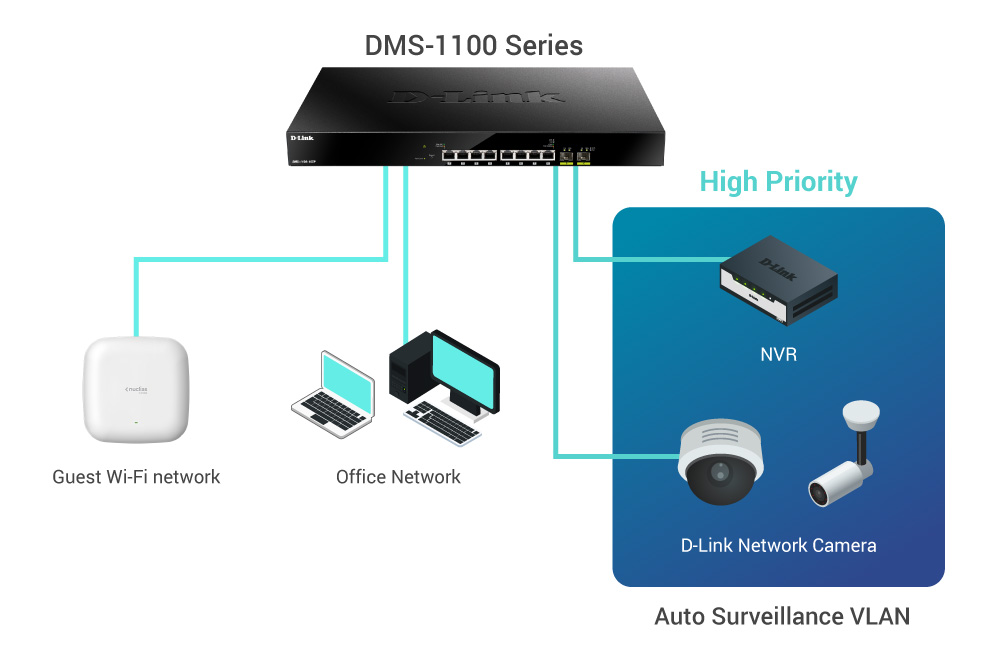

Even Safer Surveillance
If you have surveillance cameras or related devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. The DMS-1100 Series intelligently sorts surveillance traffic automatically into a separate VLAN. It can also head off a variety of malicious attacks by isolating sensitive areas of the network.
Specification
|
Aggregation
|
8 x Link Aggregation Group Per Device 8 x Max Port Per Link Aggregation Group |
|---|---|
|
Comply with RoHS 6
|
Yes |
|
Control
|
802.3x Flow |
|
CPU Speed
|
800MHz |
|
Dimensions
|
440 x 210 x 44 mm |
|
DRAM Size
|
256MB |
|
Energy Efficiency Ethernet (EEE)
|
Yes |
|
FAN
|
Smart Fan |
|
Flash Memory Size
|
128MB |
|
Head-of-line (HOL) Blocking Prevention
|
Yes |
|
Humidity
|
Operating: 0% - 95% RH Storage: 0% - 95% RH |
|
Interfaces
|
2 x 10G SFP+ 8 x 2.5GBase-T Auto MDI/MDIX |
|
Jumbo Frame
|
9KB |
|
MAC Address Table Size
|
16K |
|
Maximum Forwarding Rate
|
59.52 Mpps |
|
Maximum Heat Dissipation
|
113.73 BTU/hr (100V) 114.96 BTU/hr (240V) |
|
Maximum Power Consumption
|
33.7 W |
|
MTBF
|
378,023.34 Hours |
|
Operating Altitude
|
2000 m |
|
Packet Buffer Size
|
12 Mbits |
|
Power Input
|
100 to 240 V AC |
|
Power Saving
|
By Cable Length By LED Shut-Off By Link Status By Port Shut-Off By System Hibernation |
|
Spanning Tree Protocol (STP)
|
IEEE 802.1D STP IEEE 802.1w RSTP |
|
Standby Power Consumption
|
21.6 W |
|
Store & Forwarding Forwading
|
Yes |
|
Switching Capacity
|
80 Gbps |
|
Temperature
|
Operating: -5 to 50° C (23 to 122° F) Storage: - 40 ~ 70 °C |
|
VLAN
|
802.1Q Asymmetric VLAN Auto Surveillance VLAN Port-based VLAN VLAN Groups Voice VLAN |
|
Weight
|
2.53KG |
