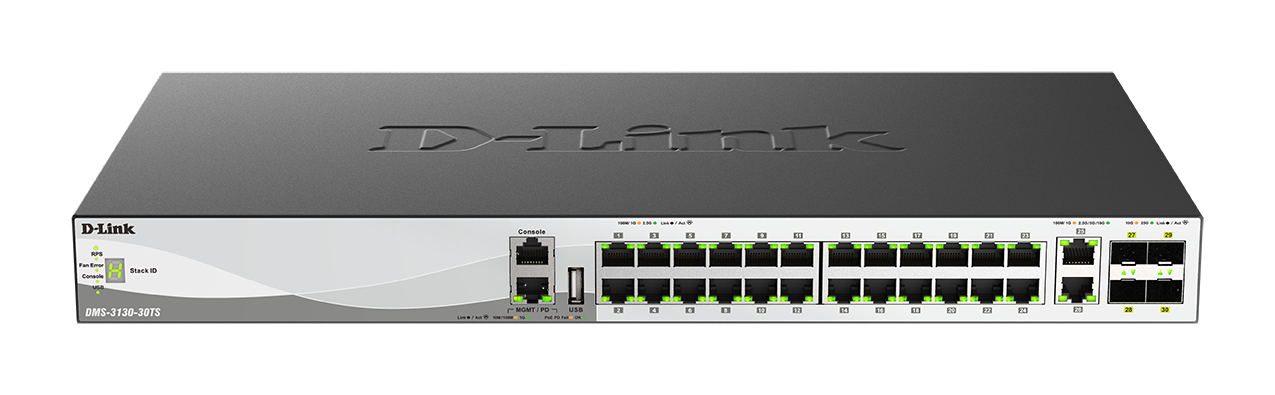

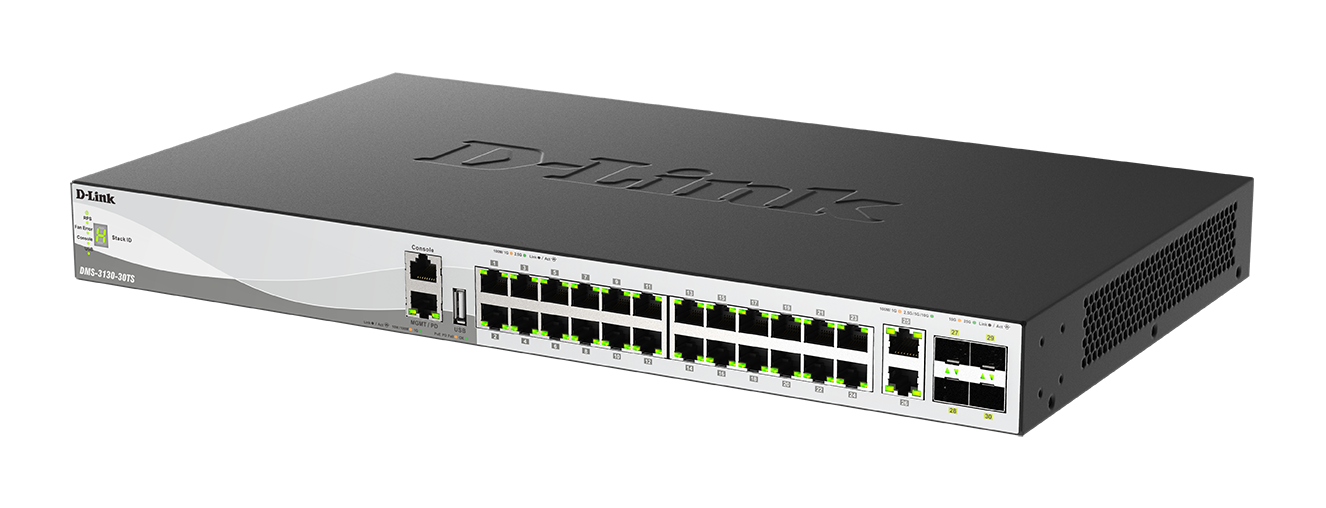

Layer 3 Stackable Multi Gigabit Managed Switches
DMS 3130 Series
- Product Status (Revision A1_v101WW): Live
Multi-Gigabit 2.5G/5G/10G/25G
Connect at 2.5G/5G/10G/25G speeds. Utilise copper ports, and four 25G fibre uplink ports to reach further distances.
Multi-Gigabit 2.5G PoE+ and 5.GPoE++

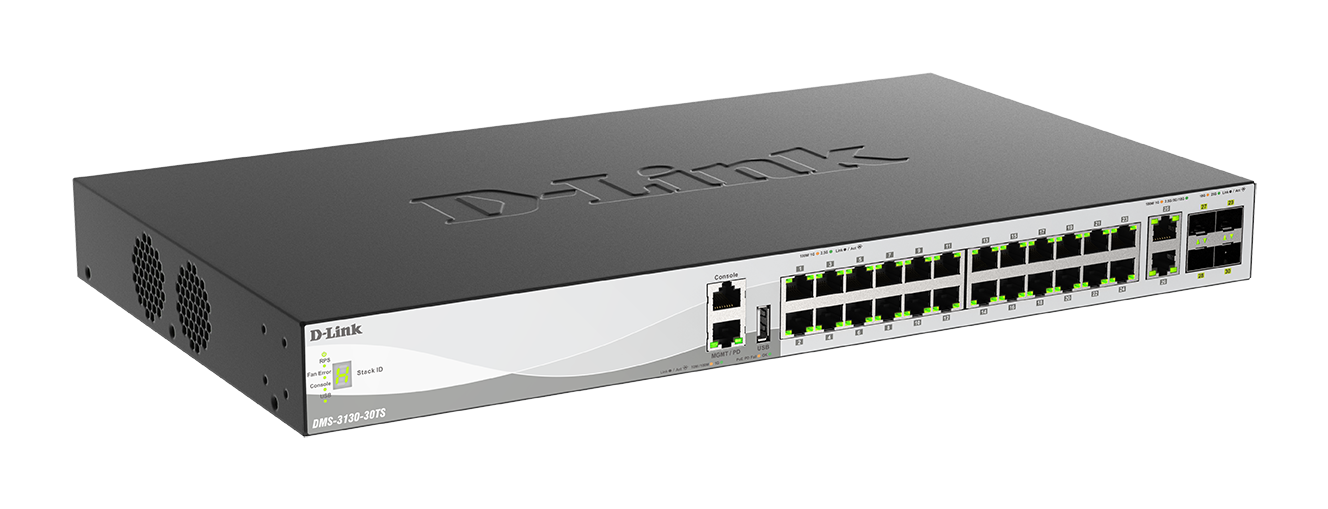

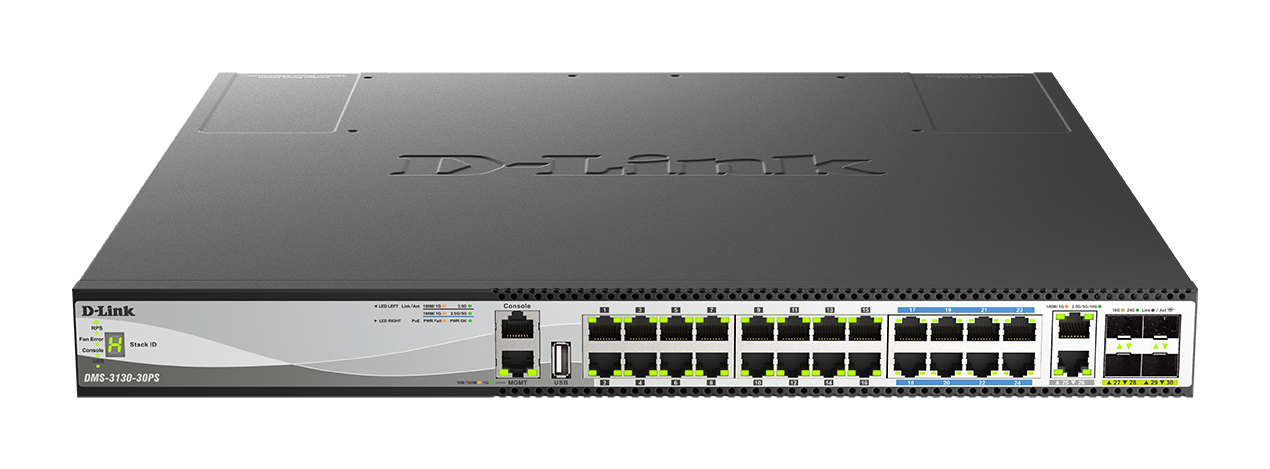

DMS-3130-30PS has x16 2.5G PoE+, x8 5G 60W PoE++ ports, and supports Perpetual PoE and Fast PoE.

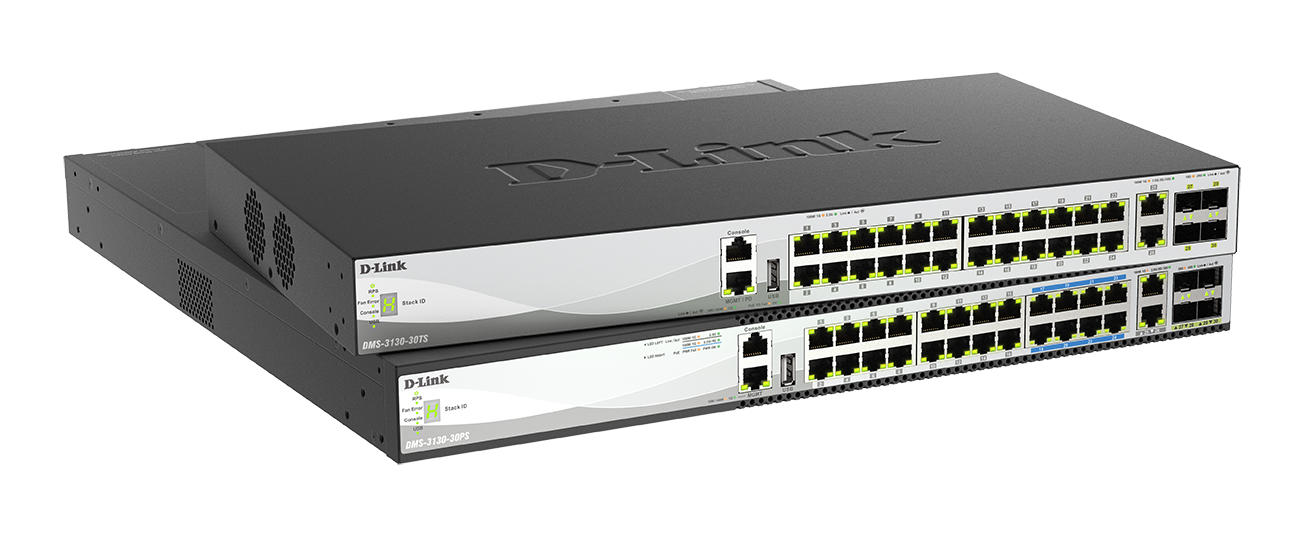

Physical Stacking
Up to 9 units per stack for max. 234 Multi-Gigabit ports, up to 200 Gbps stacking bandwidth. Long-distance stacking over fiber.
Layer 2 Features
Such as flow control, link aggregation, Ethernet Ring Protection Switching (ERPS), Spanning Tree Protocols, Loopback Detection, Flow Mirroring, IGMP/MLD Snooping.
Layer 3 Features
Including up to 128 IP Interfaces, VRRP, static routing, RIPng, OSPF, IGMP and PIM-SM.
Static Routing
Route Layer 3 traffic between switches, even if they're segmented in VLANs.
Multiple Image and Configurations
Risk-free firmware and configuration testing.
Accelerate your network with Multi-Gigabit Ethernet.

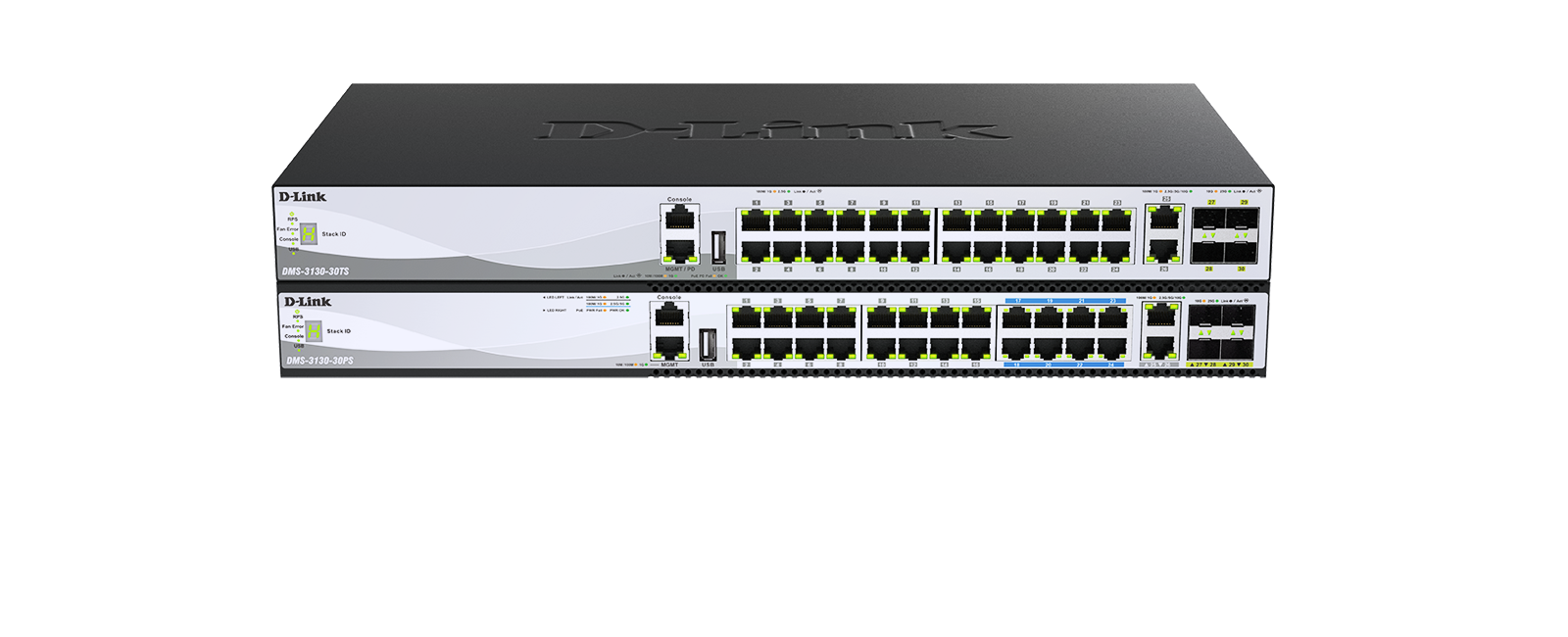

With two 10GBASE-T ports and four 10G/25G SFP28 ports, up to 400Gbps switching capacity, physical stacking of up to 9 switches for greater port density, and Layer 2 and Layer 3 features, the DMS-3130 Switch Series offer a versatile, secure, and fast network that can be deployed in a variety of environments and topologies, including Metro Ethernet deployments.

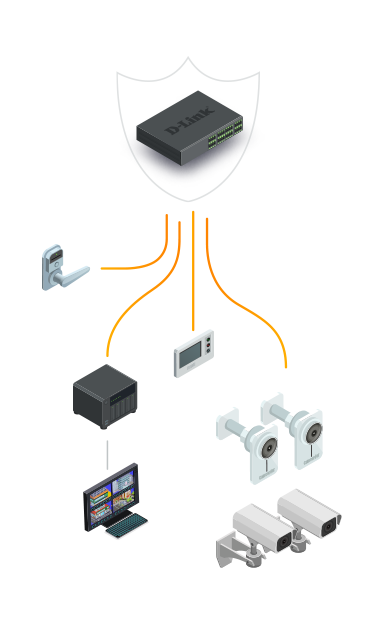

World-class reliability.
Advanced L2 and L3 features including port security, Storm Control, Link Aggregation, and Spanning Tree Protocols. Management options like 802.3ah OAM, 802.1ag CFM, and industry standard CLI support, with support for multiple images and multiple configurations.

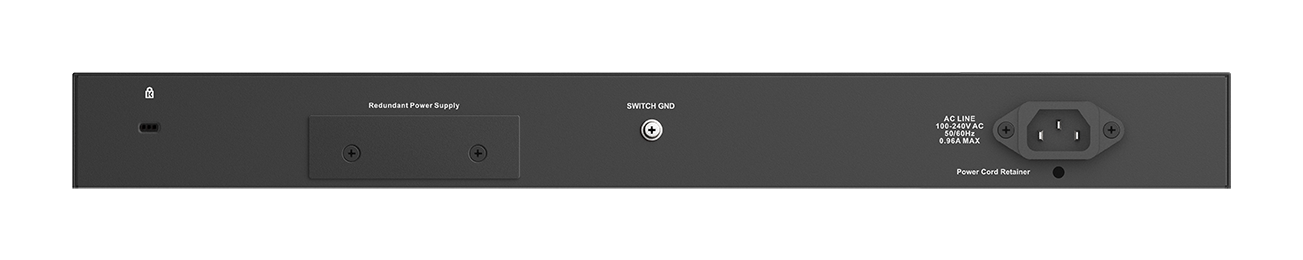

x4 25G SFP28 uplink ports, physical stacking for redundancy, and have built-in G.8032 Ethernet Ring Protection Switching (ERPS) to help minimise recovery times to 50 ms. An USB 2.0 interface to store config files, boot images, and syslog. As well as support for an additional external redundant power supply on all models to ensure maximum uptime. DMS-3130-30PS even supports PoE PD function on the MGMT port, allowing it to be powered by a PoE switch.
Comprehensive security.
Includes the latest security such as Multi-layer and Packet Content Access Control Lists (ACL), and Storm Control. And our exclusive D-Link Safeguard Engine has been designed to guard against traffic flooding caused by malicious attacks and protect your business network uptime.
IP-MAC-Port Binding allows you to bind a source IP address with an associated MAC and define the port number to enhance user access control. And DHCP Snooping makes the switch learn IP/MAC pairs by snooping DHCP packets and saving them to the IMPB whitelist, giving you extra control.
Electrical surge protection.
Featuring built-in 6 kV surge protection on all PoE and non-PoE 2.5G/5G Ethernet access ports, the switches are protected against sudden electrical surges caused by lightning strikes or unstable electrical currents. It lowers maintenance costs effectively by minimising the need for expensive equipment repairs or replacements.
Easy Access Control policies.
They feature multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and an easy deployment. After authentication, individual policies such as VLAN membership, Quality of Service (QoS) policies, and ACL rules can be assigned to each host.
A stack above the competition.
Unlock the full potential of your network infrastructure. Utilise the high switching capacity of up to 400Gbps to eliminate bottlenecks and maintain optimal network efficiency even during peak times, enabling you to effortlessly handle demanding network environments.
Versatile traffic management.
The DMS-3130 Series has a rich set of multi-layer QoS/CoS features to ensure that critical network services such as VoIP, video conferences, IPTV, and IP surveillance are always given high priority. L2/L3 Multicast support enables your network to handle growing IPTV applications.
Host-based IGMP/MLD Snooping allows multiple multicast subscribers per physical interface, while ISM VLAN allows the switches to send multicast streams in a multicast VLAN to save bandwidth and provide better security to the backbone network.
PoE+ /PoE++ with budgets up to 960W

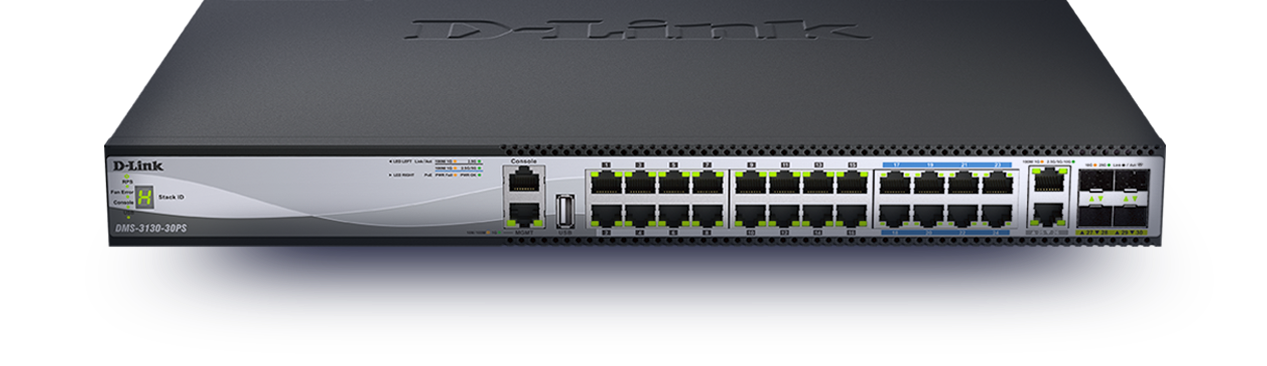

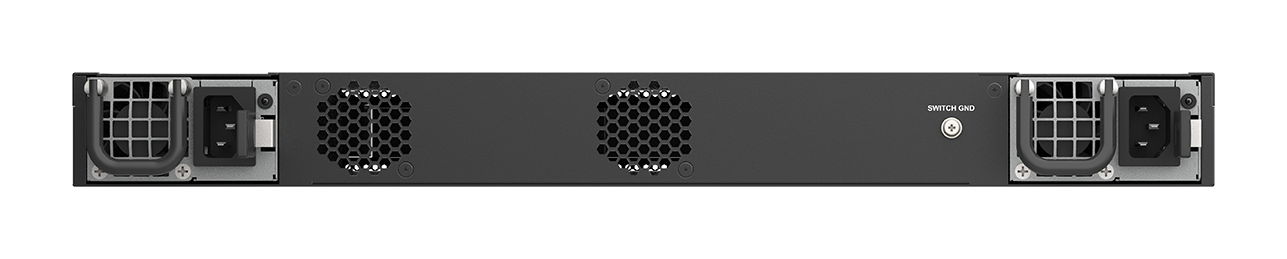

PoE+ /PoE++ with budgets up to 960W DMS-3130-30PS provides sixteen 2.5G ports supporting 802.3af/at PoE and eight 5G ports supporting 60W 802.3bt PoE standards with a power budget of 740 watts expandable to 960 watts with dual power supplies.

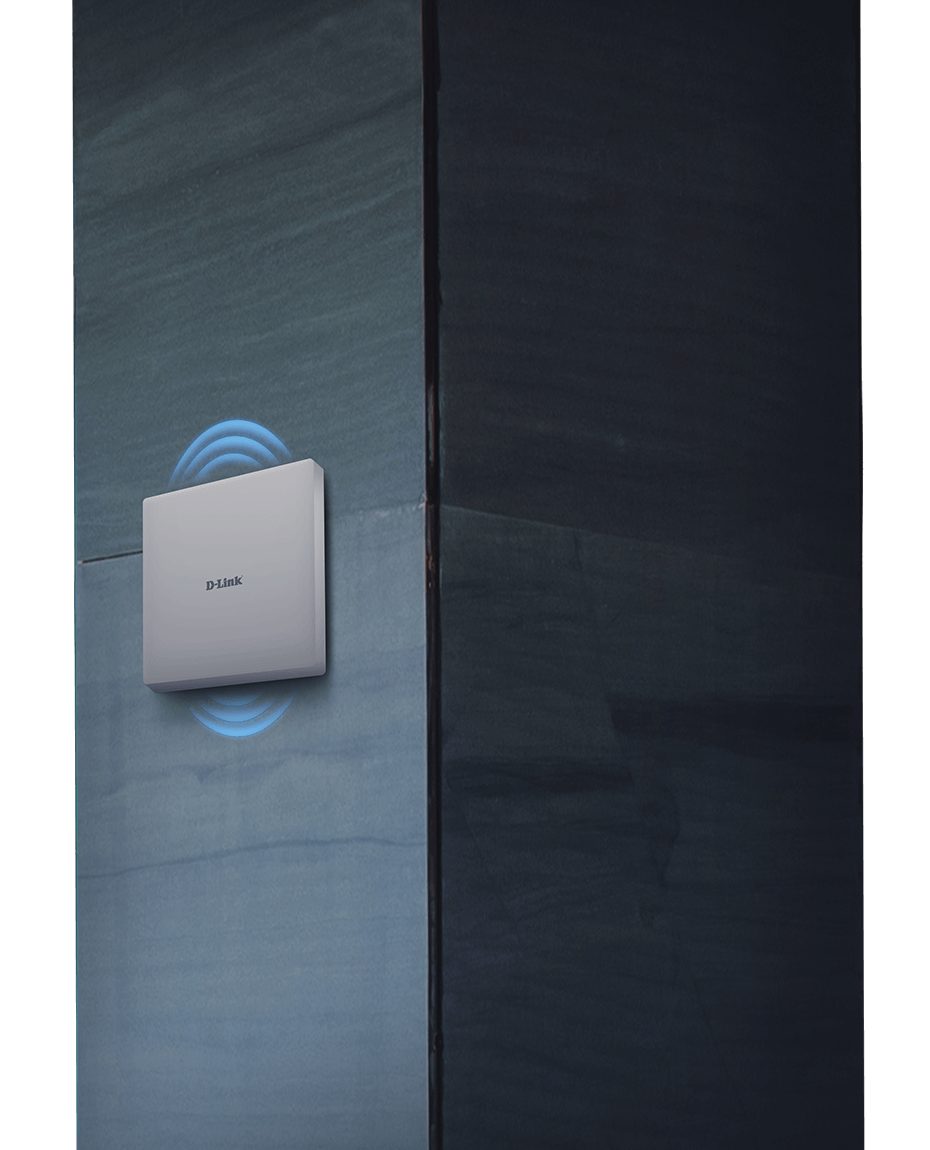

Multi-Gigabit PoE with up to 60W of power per port is ideal for Wi-Fi 6/6E access points, smart lighting, or industrial automation equipment. Perpetual PoE and Fast PoE support delivers faster and uninterrupted power to connected devices even when the switch is booting.
