4G Multi-Connect Modem
DWM-314-T
- Product Status (Revision A1_v1.00): Live
- 4G LTE speeds of up to 150 Mbps1 for fast internet access and data transfer
- 4 x 10/100 Fast Ethernet LAN ports for reliable wired connectivity
- 1 x SIM slot for plug-and-play WAN connectivity
- No set up required, simply plug it in and your network is ready to
- Durable zinc-plated steel case is corrosion-resistant to ensure device longevity
- -30 to 70°C operating temperature to resist harsh environments
- Wall or DIN-rail mounting allow for optimal device placement
Where to buy
Hassle Free Installation
Simply insert a SIM card to enable Cat. 4 LTE connectivity (up to 150 Mbps)1 for M2M applications.
Backwards Compatibility
Compatible with 4G/3G networks, ensuring broader coverage and enhanced connectivity.
Multi-Port FE Connectivity
Four Fast Ethernet LAN ports to connect multiple devices for general M2M applications.
Industrial-Grade Durability
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Secure VPN Protection
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.
Centralized Management
Conveniently manage devices and network from anywhere via the D-ECS management platform.

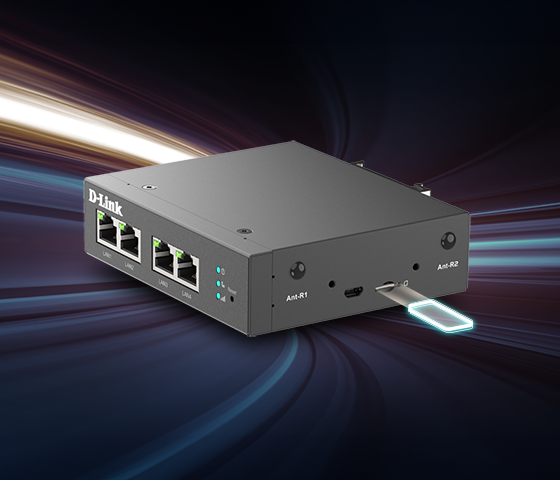

Hassle-Free Installation
Simply insert the SIM card (Nano-SIM 4FF) and the DWM-314-T is ready to connect your M2M devices to the Internet via the 4G LTE cellular network. The rugged compact design allows the DWM-314-T to be installed in virtually any location, even in extreme environments.
Remote Management
D-Link offers the latest advanced cloud computing platform to enable flexible, secure and low latency networks for mission-critical operations.
With fast, flexible deployment and having full control and visibility over your network, the D-Link D-ECS centralized management platform offers extensive tools to enable device management, traffic analytics, security, cost-management and much more.

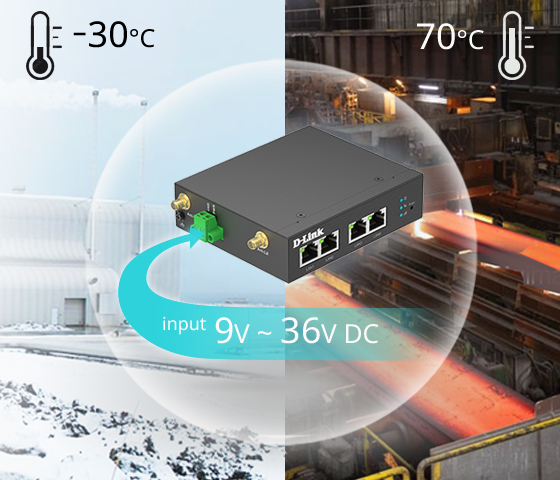

Robust Build Quality
The industrial-grade casing provides reliable high-speed connectivity in extreme conditions. The corrosion-resistant zinc-plated steel case with wide operating temperature range and humidity tolerance mean that the DWM-314-T is ready for the most demanding M2M applications in virtually any environment. Convenient wall and DIN-rail mounting options allow the DWM-314-T to be mounted virtually anywhere.
Related Products
Purpose-built to ensure uninterrupted M2M connectivity, even in harsh environments
The DWM-314-T’s 4G LTE and Ethernet interfaces allow wired connectivity to be added to virtually any device. 4G LTE and Ethernet provide driverless, instant access for any Ethernet-enabled device without the need for pre-configuration or special software, making the DWM-314-T a true plug-and-play solution, suitable for mass deployment or small-scale use. If unique settings are required, the easy-to-use web interface can be configured through any web browser.

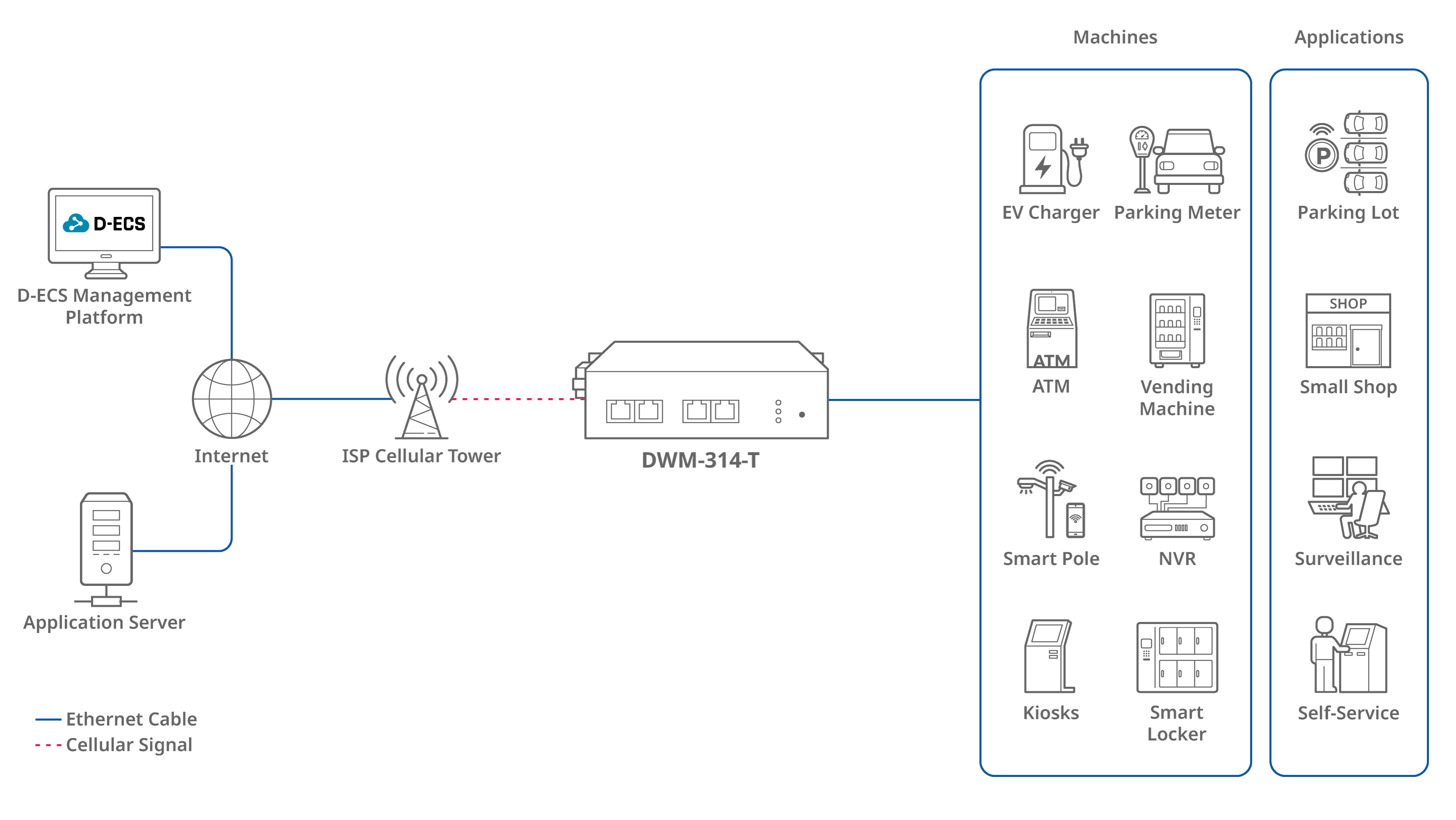

Versatile Applications
Designed to meet the needs of the most demanding M2M applications, the cost-effective DWM-314-T offers four Fast Ethernet LAN ports for M2M connectivity, suitable for smart locker, EV charger, POS, parking lot, ATM, vending machines, kiosks, digital signage.
Specification
|
4G/5G Antenna Connectors
|
2 x SMA antennas |
|---|---|
|
Attack Prevention
|
IPS |
|
Cellular Module
|
4G LTE Cat. 4 |
|
Data Usage
|
Yes |
|
Ethernet Interface
|
4 x FE |
|
IPv6
|
Cellular IPv6 |
|
LAN
|
DHCP Server |
|
Local Management
|
Web UI/SSH |
|
MAC/URL Filter
|
Yes |
|
Maximum Cellular Data Throughput
|
LTE: 150 Mbps (DL) / 50 Mbps (UL) |
|
Network Address Translation (NAT)
|
Yes |
|
OpenVPN
|
Yes |
|
Port Forwarding
|
Yes |
|
Power Input
|
2-pin TB for DC 9V-36V |
|
Remote Management
|
D-ECS |
|
SIM Slot
|
1 x 4FF Nano-SIM |
|
SMS Notification
|
Yes |
|
Static Route
|
Yes |
|
Temperature
|
Operating -30 to 70 ˚C |
|
WAN
|
Cellular |
SKU & Certifications
4G LTE Bands
| EU SKU: LTE-FDD: B1/B3/B7/B8/B20/B28A LTE-TDD: B38/B40/B41 |
|---|---|
Certification
| CE/UKCA |
