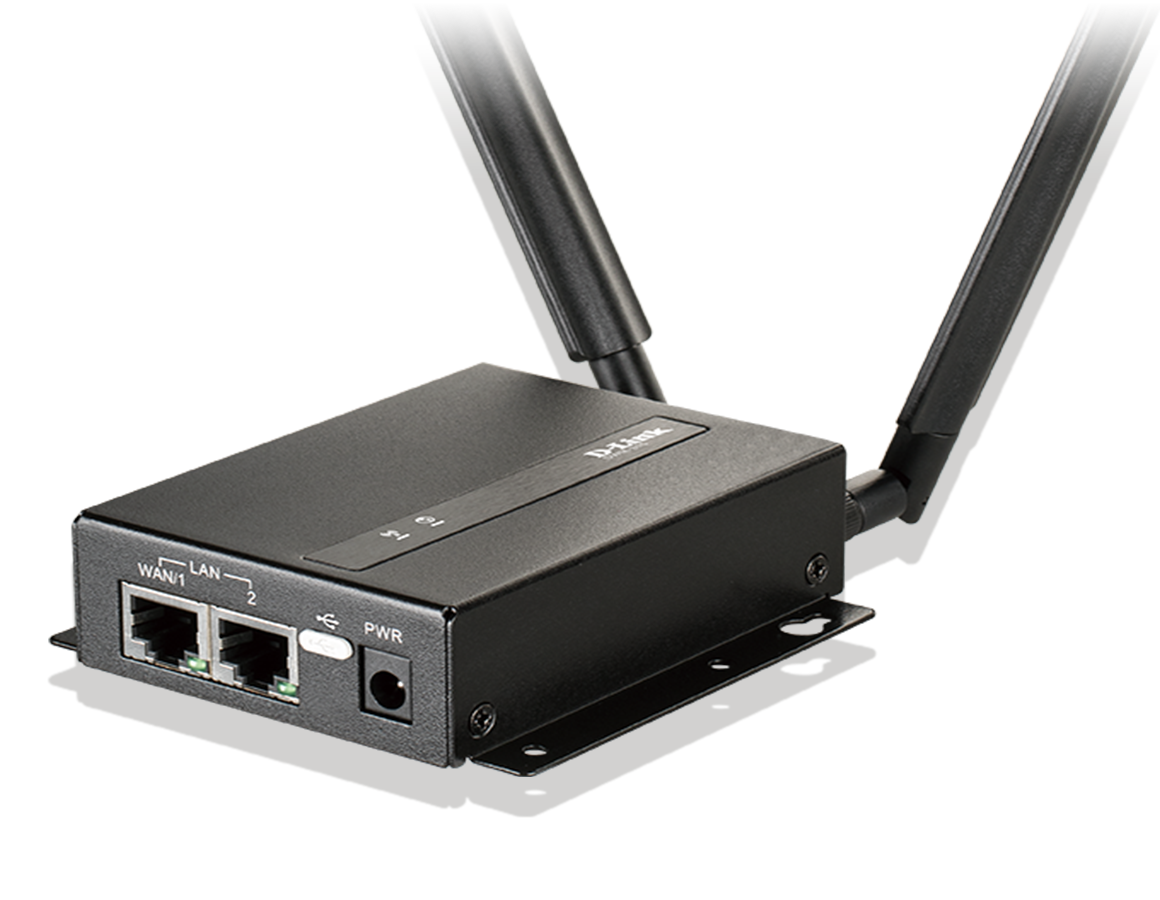

4G LTE Cat.6 M2M VPN Router
DWM-315
- Product Status (Revision A1): End of Sale
Robust, dual-SIM 4G Cat.6 Mobile Router
Easy-to-deploy, high-performance, industrial-grade 4G/3G mobile router for Machine-to-Machine applications in any environment.
High-speed 4G Internet
Blazing fast 4G/3G LTE download speeds of up to 300 Mbps1
Dual wired connectivity for flexibility and reliability
The dual Gigabit Ethernet ports (1 x WAN/LAN + 1 x LAN) with fallback support provides additional resiliency to your M2M applications.
Dual-SIM slot for always-on Internet
Configurable dual-SIM fallback provides connectivity that you can count on, even if one operator's network goes down
Advanced VPN
Integrated VPN client and server with support for IPSec, PPTP, L2TPv2, GRE, and OpenVPN tunneling
Easy management
Local and remote access through web/Telnet/SSH and SNMP support. TR-069 and D-ECS management platform available for projects.
Rapid deployment anywhere
The wall-mount for easy installation anywhere, small form factor, SNMP management support, Zinc-plated steel case, wide operating temperature and humidity tolerance

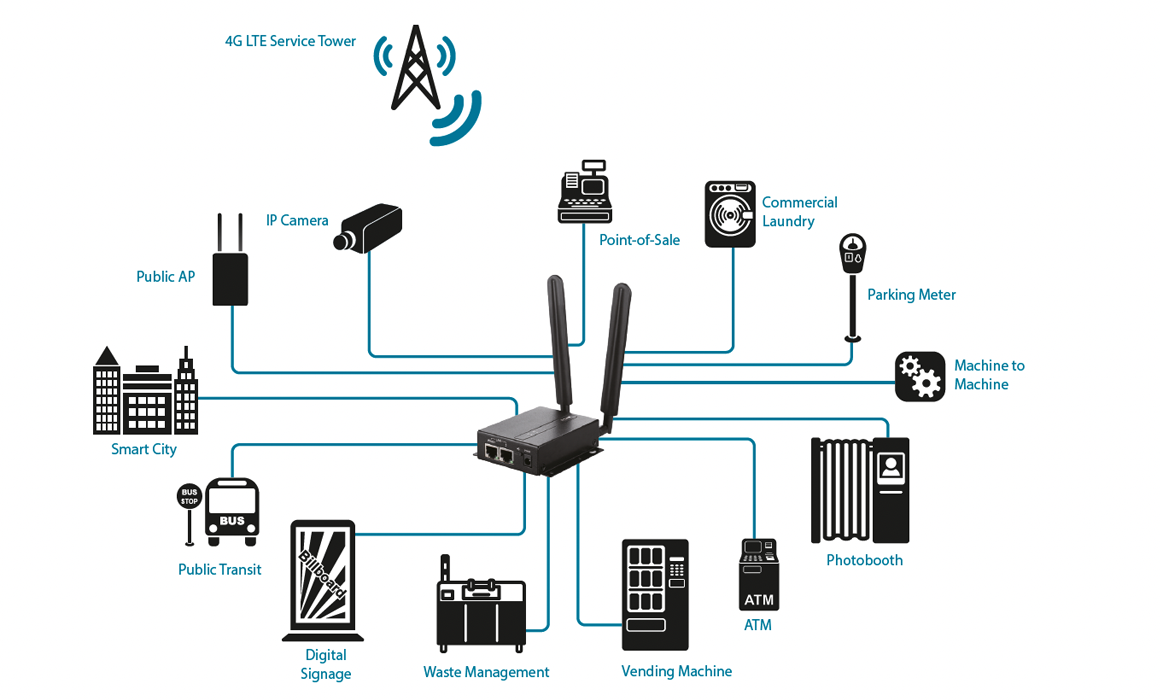

Purpose-built for M2M
Remotely monitor and manage your Machine-to-Machine (M2M) networks with the industrial-grade DWM-315. Features such as redundant mobile Internet with dual SIM slots, secure VPN connection, flexible dual Gigabit wired LAN connectivity, ensure your M2M applications stay online, 24/7.

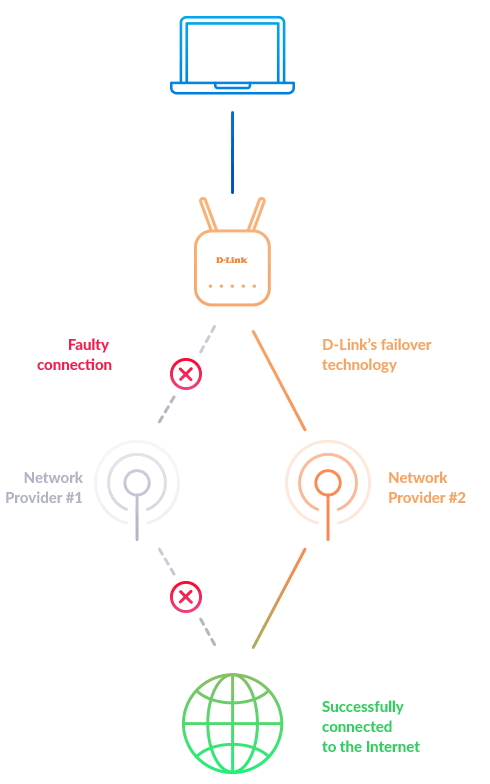

Your Internet will never fail you again
Disruptions can happen at any time, but we’ve developed D-Link’s Failover technology to eliminate them altogether.
If one of your network providers are having connectivity issues, the DWM-315 will automatically switch your connection over to backup 4G/3G cellular data on another network, thanks to the built-in Dual-SIM option - so your business can keep functioning, as normal.
Connectivity where you need it most
Easily connect to your high-speed 4G/3G LTE mobile connection and enjoy downlink speeds of up to 300 Mbps1 and uplink speeds up to 50 Mbps1 - facilitating fast, reliable and responsive Internet access that enables you to deploy the router in a remote location, and still access your devices from anywhere.

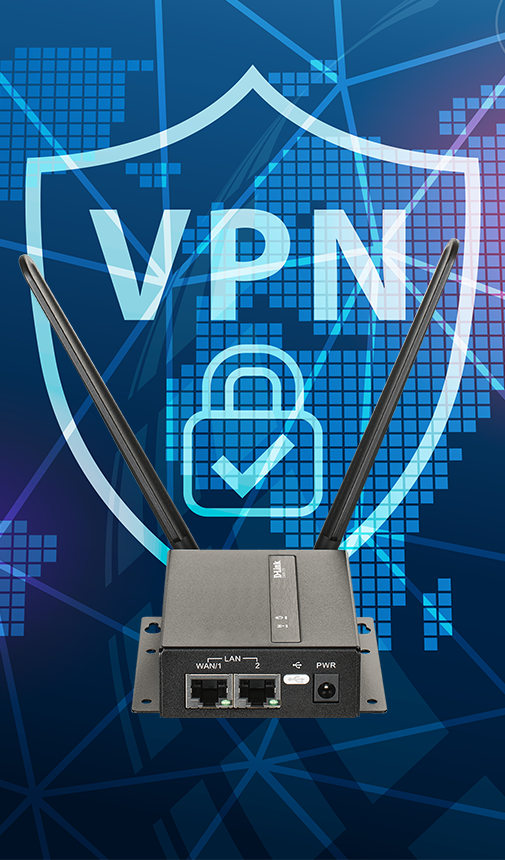

Reliable, secure and high-speed VPN
The DWM-315 can support almost any VPN policy and manage multiple configurations. It even supports IPSec, GRE and OpenVPN protocols as well as handling pass-through traffic.
Advanced VPN configuration options include multiple encryption options, key management, negotiation modes, and VPN authentication using an internal user database.
Network agility for Enterprise IoT Management
D-Link offers the latest advanced EaaS (Edge as a Service) cloud computing platform to enable flexible, secure and low latency networks for mission critical operations.

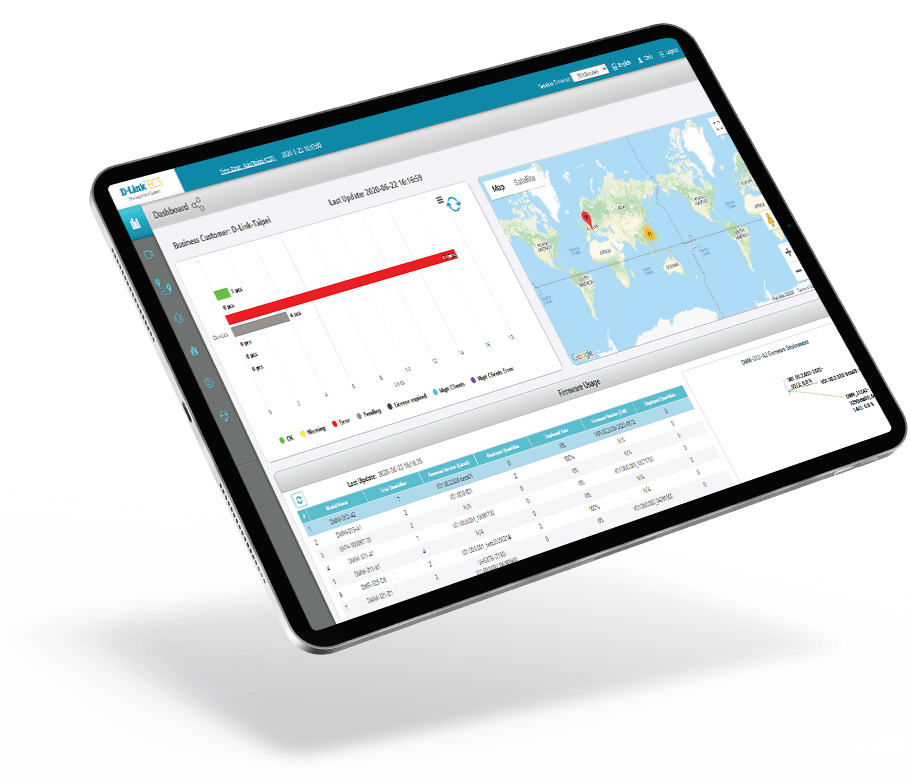

With fast, flexible deployment and having full control and visibility over your network, the D-ECS D-Link Edge Cloud Solution platform offers extensive functionality enabling device management, traffic analytics, security, cost-management and more.
Related Products
Specification
|
Type
|
VPN security router |
|---|---|
|
Antenna type
|
2 detachable omni-directional antennas |
|
Wired interface
|
1 x Gigabit Ethernet LAN 1 x Gigabit Ethernet WAN/LAN |
|
3G/4G LTE support
|
3G/4G LTE via Dual SIM |
|
Type of housing
|
Metal |
|
VPN features
|
IPSec/PPTP/L2TP Server VPN Tunnel Keep Alive |
|
DHCP server
|
Supported
|
|
WEB
|
Supported
|
|
SNMP (v1, v2c, v3)
|
Supported
|
|
Telnet
|
Supported
|
|
SSH
|
Supported
|
1 Data rates are theoretical. Data transfer rate depends on network capacity, signal strength, and environmental factors.
