Layer 3 Stackable 10G / 100G Managed Switches
DXS-3610 Series
- Product Status ($name): Live
- High speed network infrastructure with multiple interfaces
- Stack up to 12 switches (up to 1.2 Tbps stacking bandwidth)
- OpenFlow 1.3 compliance for SDN-enabled network compatibility
- Modular PSU (1+1) and fan (N+1) with load sharing capabilities
- Switch Resource Management (SRM) for flexible system resource manageability
- Switch locator LED and ID tag for maintenance convenience
- Upgradable license for full L3 and MPLS applications
Where to buy
Switching that Stacks Above the Competition
The DXS-3610 Layer 3 Stackable 10G/100G Managed Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.
Why You Want It
Highly Scalable
License upgradable to MPLS, supports Switch Resource Management
High Performance
Powerful 100G uplink speed, 48 x 10G ports and Mac Table up to 288K
Hot-Swappable Redundancy
Multiple Fan Modules with Load-Sharing PSUs
SDN Compatible
OpenFlow v1.3 compliance for SDN environments
High Availability
The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps.
Hot-Swappable Redundancy

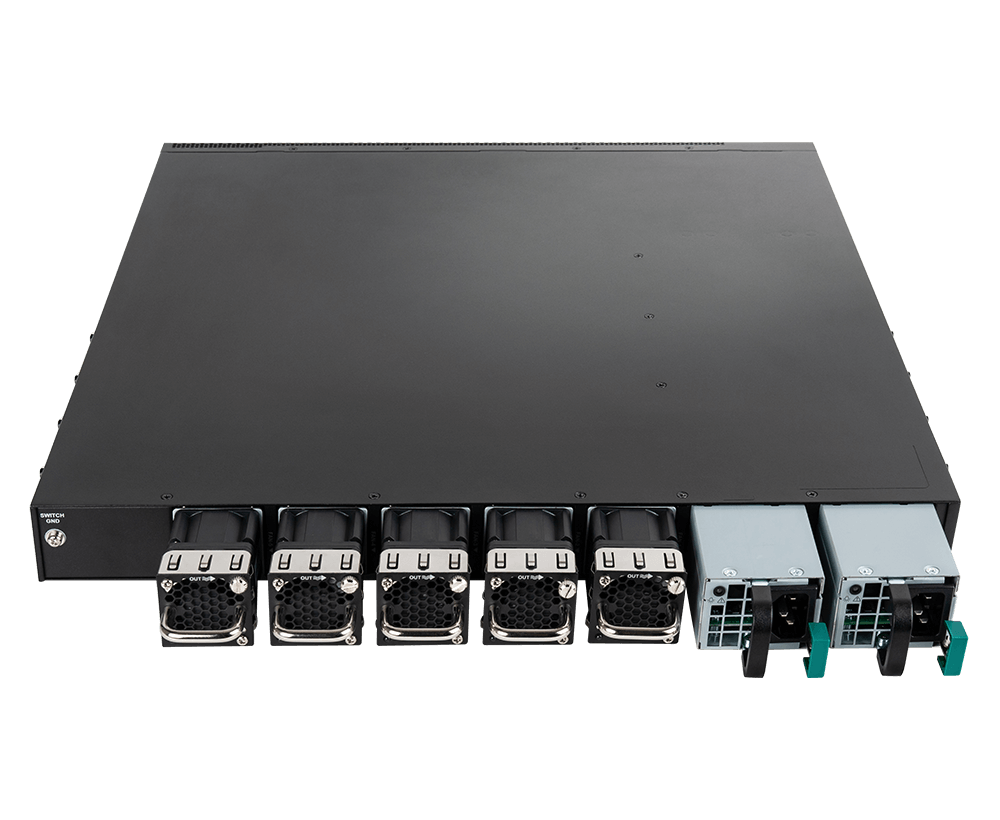

The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.
Robust and Versatile Stacking Capability

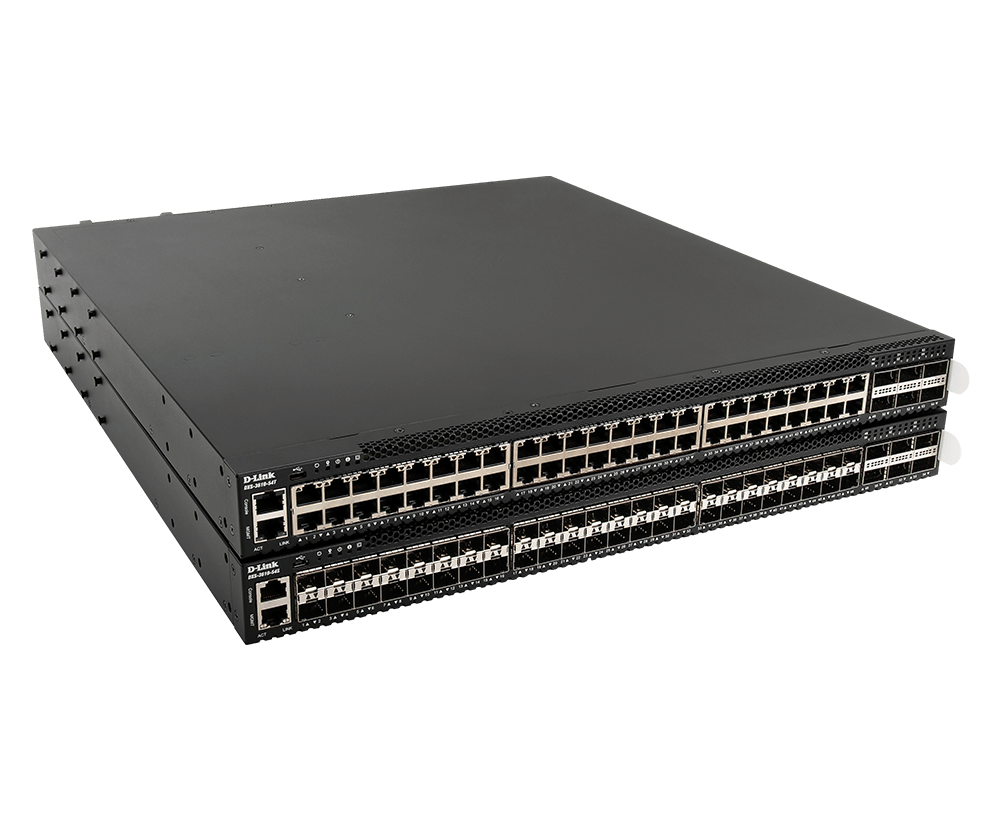

Stack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.
Simplified Deployment
Remotely activate the front panel LED indicator to rapidly locate the DXS-3610 in your data center or server room that requires extra attention.
Enhanced Manageability for Peace of Mind

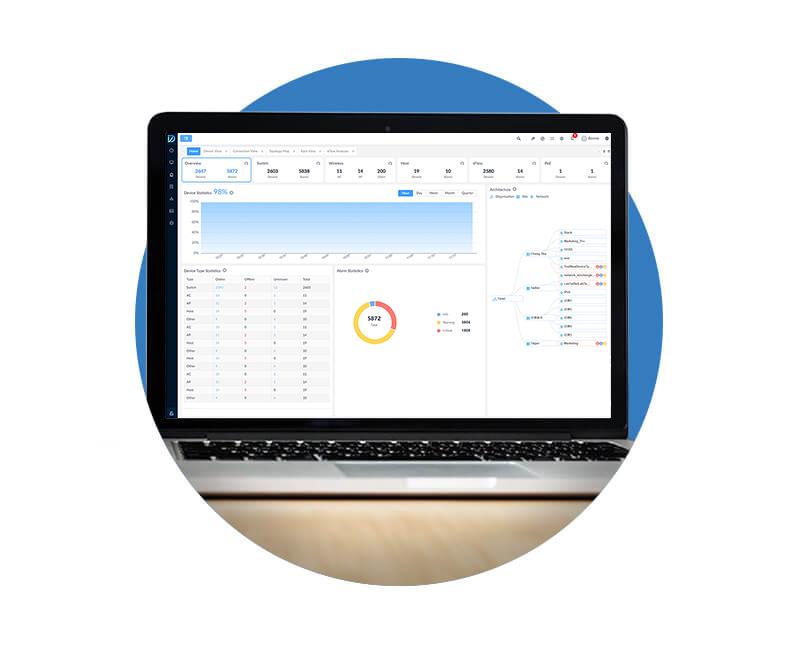

For more complex network infrastructures, D-View 8, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.
DXS-3610 Series Comparison
| Product |  DXS-3610-54S |  DXS-3610-54T |
|---|---|---|
| Interfaces |
|
|
| Switching Capacity | 2.16Tbps | 2.16Tbps |
| Forwarding Rate | 1607.04 Mpps | 1607.04 Mpps |
| SDN Availability | Yes | Yes |
| Packet Buffer | 32MB | 32MB |
| Physical Stackability | Yes(Max.12 switches) | Yes(Max.12 switches) |
| Powerful Routing/ MPLS by DLMS | Yes | Yes |
