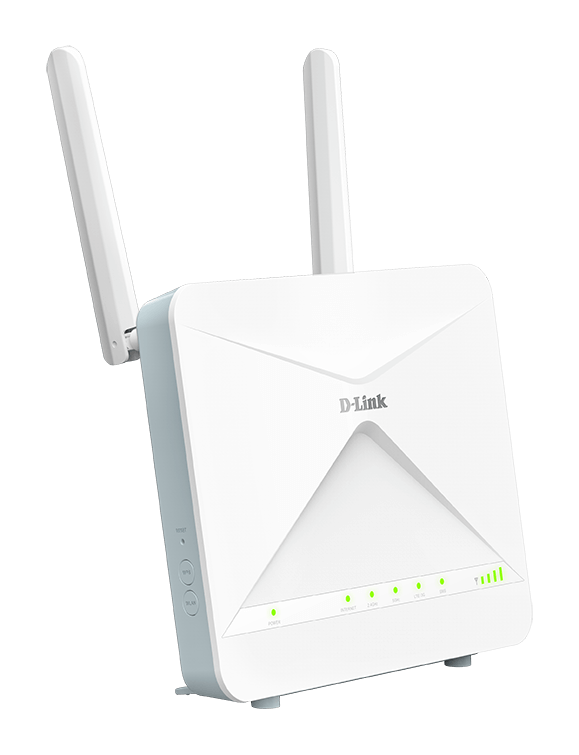

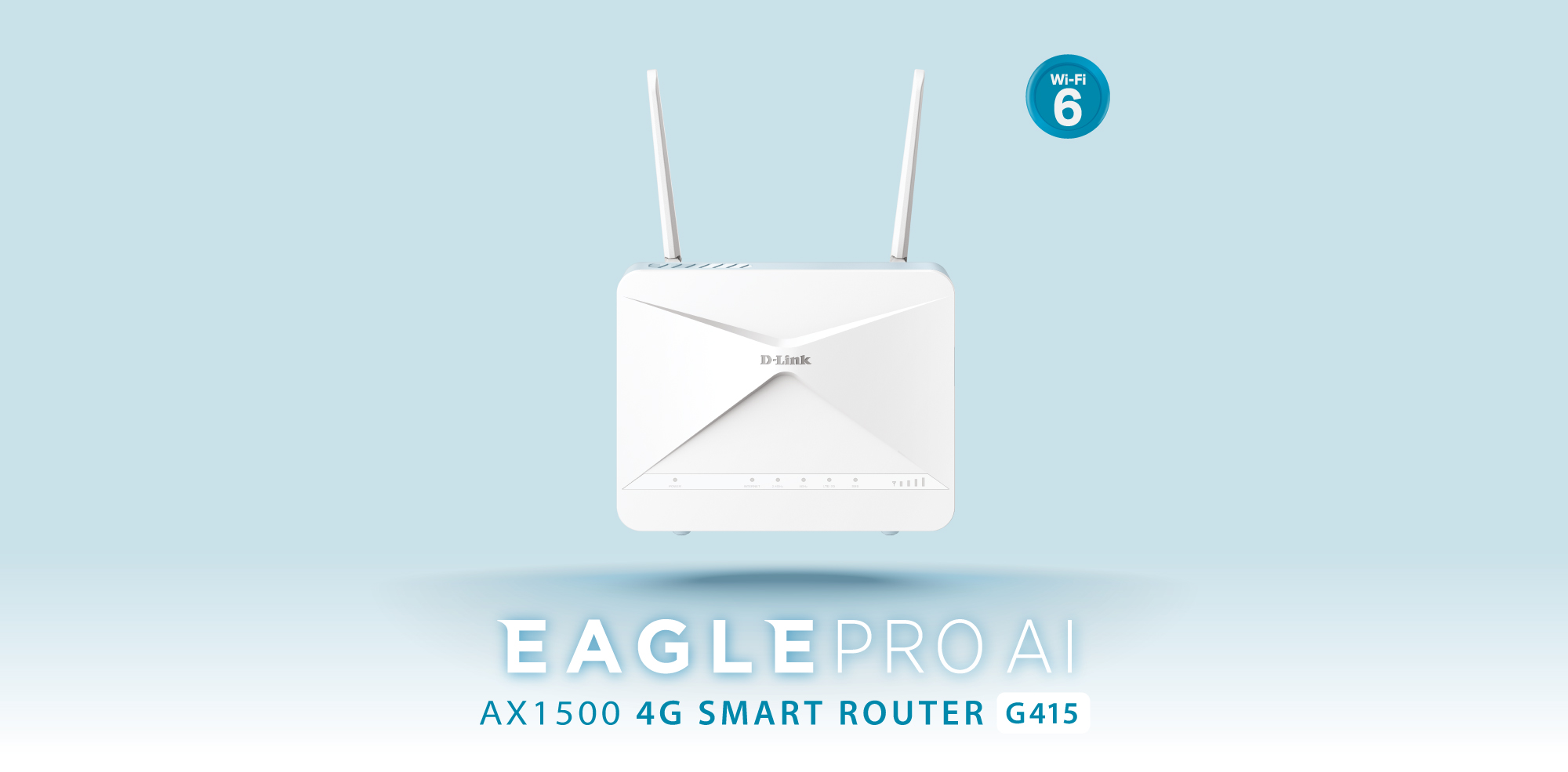

AX1500 4G Smart Router

G415

  • Product Status (Revision A2_v100): Live
  • 4G LTE CAT4 Connectivity at up to 150 Mbps
  • Wi-Fi 6 (802.11AX) Support, up to 1500 Mbps
  • 1x 10/100/1000 Gigabit Ethernet WAN Port with automatic failover
  • 3x 10/100/1000 Gigabit Ethernet LAN Ports
  • WPA/WPA2/WPA3 Support
  • Mesh with other Eagle Pro AI Devices
  • EAGLE PRO AI features including
    • AI Wi-Fi Optimizer
    • AI Traffic Optimizer
    • AI Parental Controls
    • AI Assistant

Download the datasheet.

Where to buy

Mobility

Connectivity

Reliability

Expandability

High-Speed, Flexible Mobile Broadband

The G415 AX1500 4G Smart Router allows you use your carrier’s SIM/UICC card to share your 3G/4G mobile network access through dedicated Wi-Fi 6 network or any of the three Gigabit ports. With LTE CAT 4 support, you can download at up to 150Mbps, enabling you to stream in 4K definition, make conference calls, and surf the web seamlessly even without a fixed broadband connection.

Stay Connected Even When Your Fixed Broadband Goes Down

In addition 3G/4G wireless broadband support, the G415 also provides a built-in Gigabit Ethernet WAN port for fixed broadband connections. You can set either fixed or mobile connection as the primary connection, and with automatic failover mode, one connection can be used to provide uninterrupted connectivity in the event that the other fails.

Wi-Fi 6 Performance

MU-MIMO & OFDMA

Beamforming

WPA3

TWT Technology

Health Mode

Guest Connect

4G Speeds

Why Do You Need Wi-Fi 6?

Wall obstruction and interference from home appliances can weaken your Wi-Fi connectivity. Having many devices connected to your network can make the problem worse. Wi-Fi 6 technology was designed to help overcome these issues and will soon become a standard feature in all new end devices. Whether you’re looking for an upgrade or replacement, Wi-Fi 6 is the best choice.

Learn More

Why Choose Wi-Fi 6

Increase in throughput

Reduction in Latency

More Coverage Area

More Connected Devices

Backwards Compatible

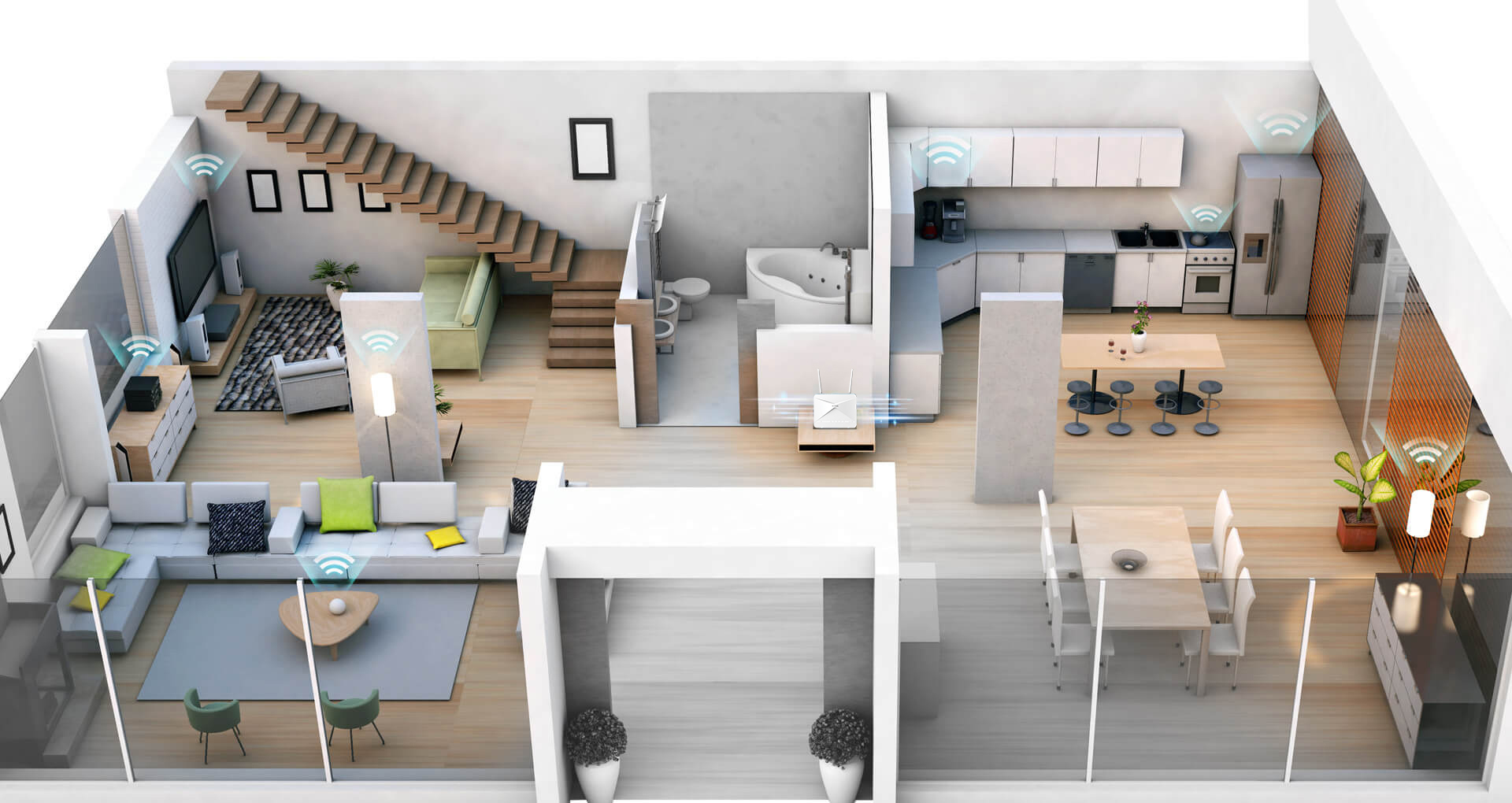

Connect Up to 128 Devices

*Number of connected devices and coverage area are D-link test results. Performance may vary under different environments.

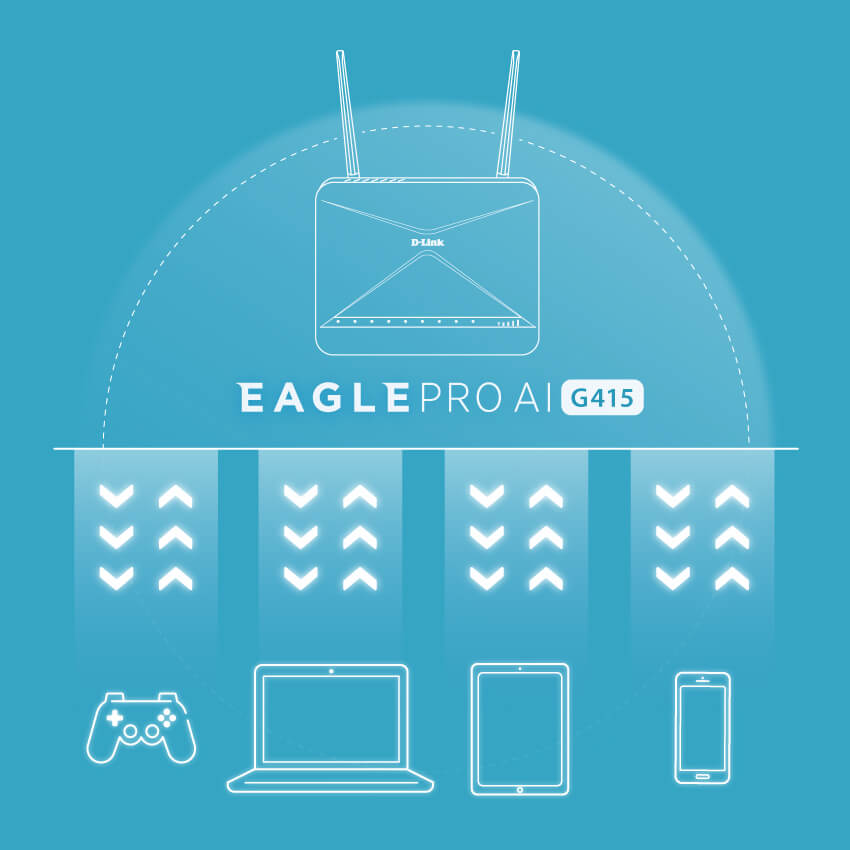

More Devices, Faster W-Fi, Greater Coverage

Wi-Fi 6 features bi-directional MU-MIMO technology to handle more simultaneous users at faster data rates, and beamforming capability to greatly extend Wi-Fi coverage area.

More Users at Once, Lower Latency

Wi-Fi 6 offers OFDMA technology to serve more device connections at once to significantly reduce network latency.

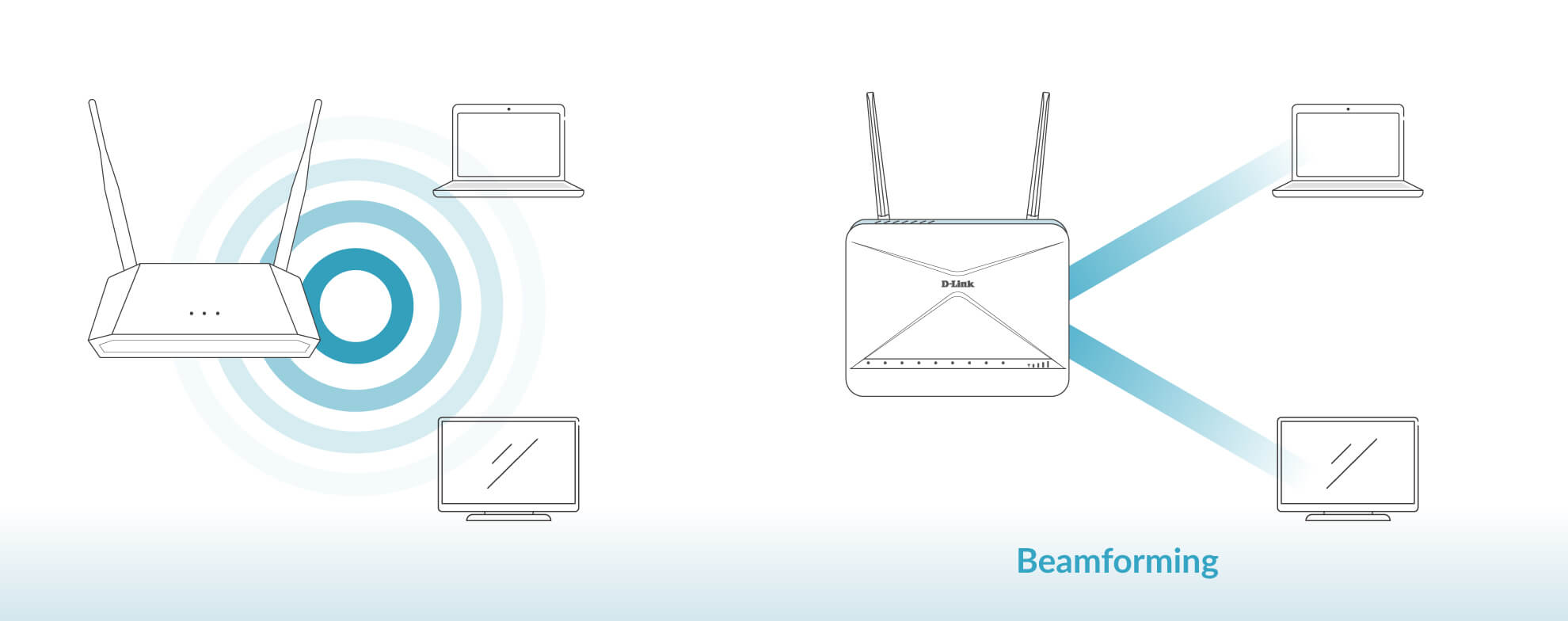

Reliable Connections for Greater Coverage

Beamforming technology detects device locations to focus signals for reliable data transmissions at greater distances.

Highest Protection Level for Peace of Mind

User privacy is of utmost importance when connected to the Internet. WPA3 technology is aligned with CNSA standards and features 192-bit encryption to ensure your connections are safe and protected from unauthorized access.

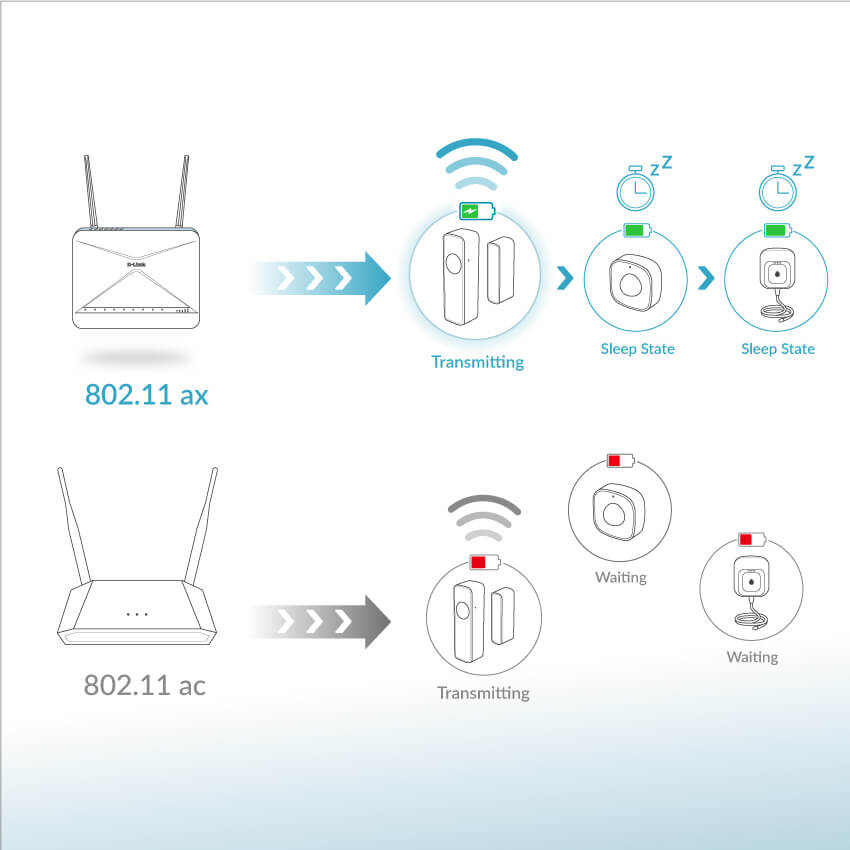

Save Power on Mobile Devices

Target Wake Time (TWT) technology schedules connected devices to be awake or asleep during designated time periods. This not only saves device battery life, but also reduces network congestion.

Greater Protection with Main and Guest Wi-Fi Control

  • Turn on guest Wi-Fi to prevent visitors from accessing you local network, granting access only to the Internet
  • Set data speeds for guess Wi-Fi users to preserve Wi-Fi quality
  • Log-in credentials and QR codes for guest Wi-Fi access

No More Wi-Fi Congestion

Smart Connect technology automatically directs your device to the optimum wireless band. No more frustrating drop outs, lag or interruptions in your wireless connections.

Always the Best Connection Possible

AI Wi-Fi Optimizer continuously scans the environment to keep you connected to the cleanest channel available.

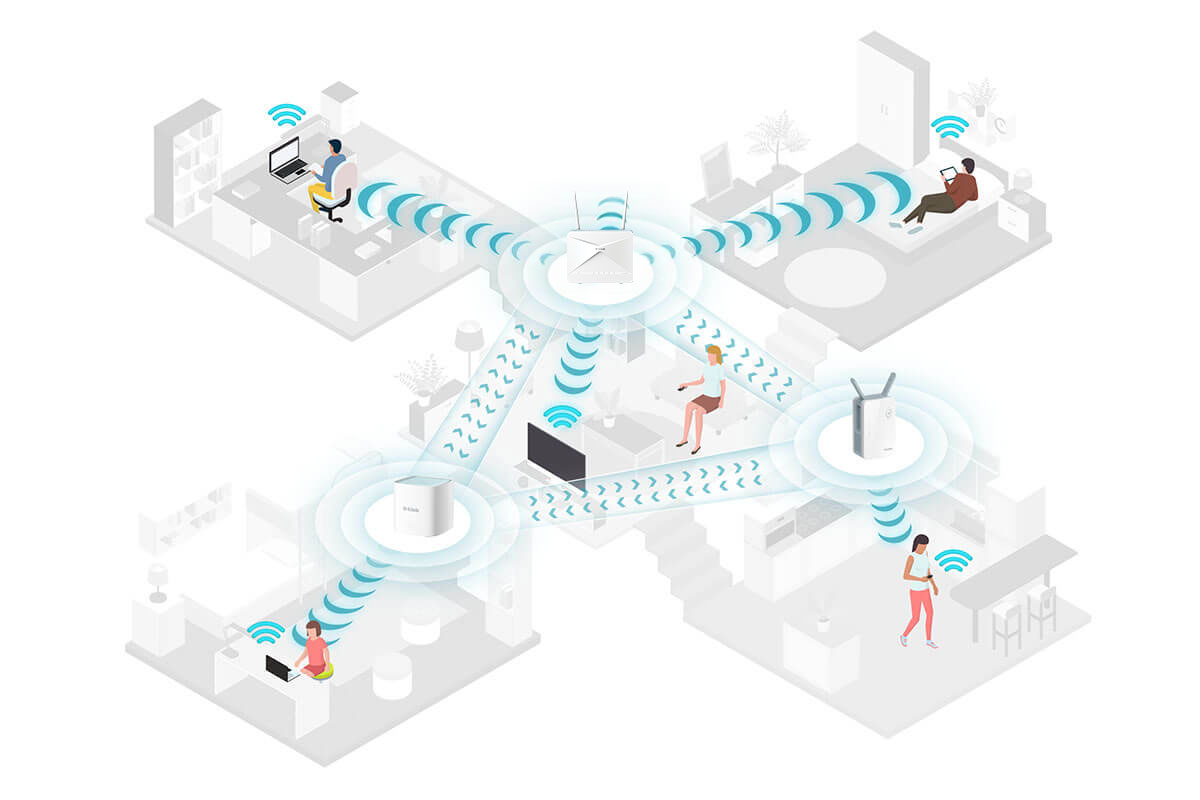

Intelligent One-Touch Setup for Seamless Connections

  • Auto Mesh setup and detects the best channels within the network
  • Simple access management with one SSID for both Wi-Fi bands (2.4 and 5 GHz)
  • Network self-healing when a weak connection is detected

Uninterrupted Video, Voice, and Gaming Enjoyment

When high network traffic is detected, AI-based QoS technology prioritizes your important services such as 4K/8K video streaming to keep them running lag-free.

Services such as email or file transfers will be given lower priority to ensure network quality.

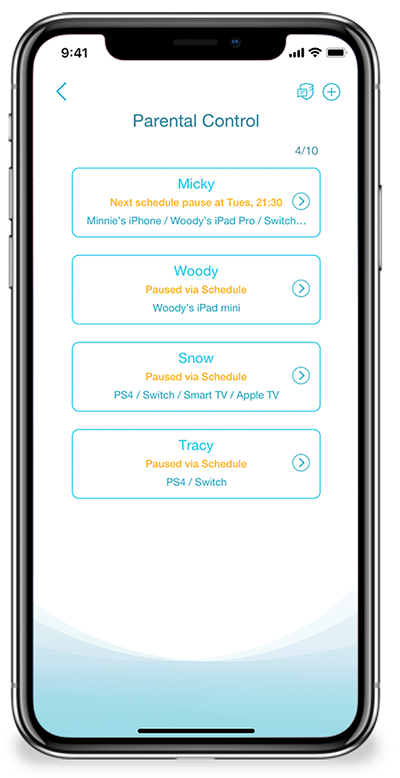

Keep Playtime Safe and Healthy

AI parental control lets you designate online hours for little ones and restrict website access to keep their learning experience a safe and healthy one.

Health Mode

  • Schedule Wi-Fi transmission hours to reduce possible effects of electromagnetic radiation
  • Schedule Wi-Fi access hours to maintain a balanced family lifestyle
  • Turn off Wi-Fi entirely to conserve energy

Perfect For


Trailer Home

Fast internet on the go


Remote Communities

Where fixed broadband isn't an option


Pop-Up Retail

Helps enable smart POS services for retailers and Wi-Fi for consumers

For Everything Wi-Fi, there’s D-Link EAGLE PRO AI

The EAGLE PRO AI App managing your W-Fi has never been easier, AI Assistant to continuously monitor data usage and provide actionable recommendations and weekly report.
Managing your Wi-Fi has never been easier.

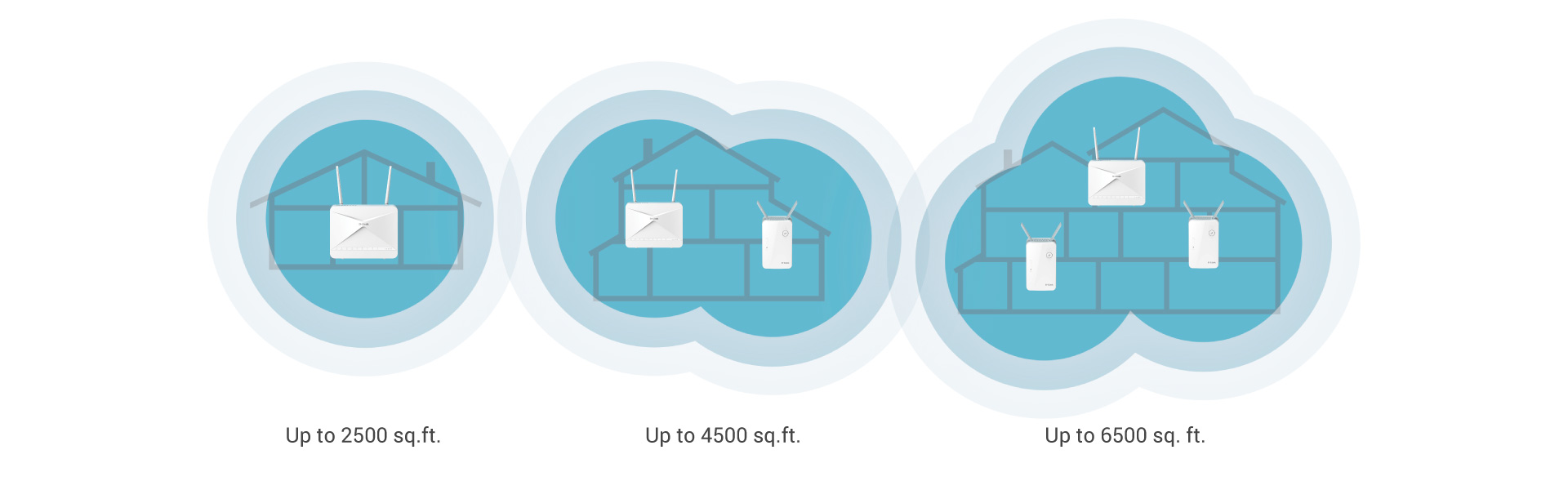

Expanding Your Wi-Fi is a Snap

Simply add E15 Wi-Fi extenders to build a smart Mesh network, giving you high-speed Internet coverage throughout your home of any size.

Works with Google Assistant and Alexa

Easily integrates with Amazon Echo’s Alexa
or the Google Assistant for convenient hands-free voice control.
*Please check availability in your region

google amazon

Antenna
2 x external 4G LTE antennas
Certifications
BSMI/NCC
CE
RCM
Device Management
EAGLE PRO AI app (iOS and Android)
Dimensions
198 x 170.14 x 66.21 mm (7.79 x 6.69 x 2.60 in)
Firewall
1 x DMZ
Anti-spoofing Checking
IP/MAC Address Filtering
Stateful Packet Inspection
Frequency Support
GSM/GPRS/EDGE: 900/1800 MHz
LTE Bands: Release 10 CAT4: Band 1/3/7/8/20/28/38/40/41
UMTS/HSPA/HSPA+/DC-HSPA+: Band 1/8 (900/2100 MHz);

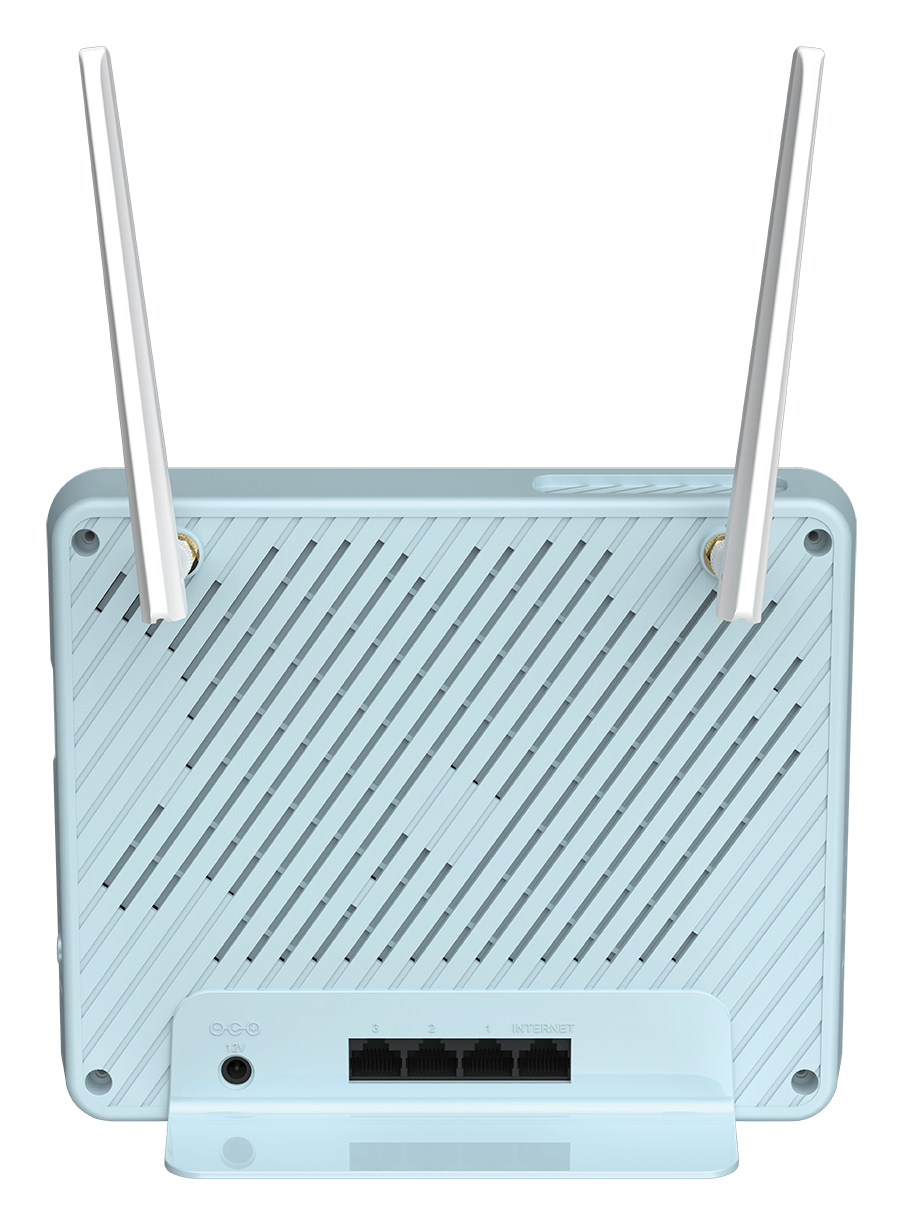

Interfaces
1 x Power button
1 x power connector
1 x reset button
1 x SIM Card slot
1 x WLAN button
1 x WPS button
1x Gigabit Ethernet WAN port
3 x Gigabit Ethernet LAN port
LED Status Indicators
2.4 GHz Wi-Fi
5 GHz Wi-Fi
Internet
LTE/3G
Power
Signal Strength
SMS
LTE Data Rates
DC-HSPA Downlink up to 42 Mbps
DC-HSPA Uplink up to 5.72 Mbps
LTE Downlink up to 150 Mbps
LTE Uplink up to 50 Mbps
Operating Humidity
10% to 90% non-condensing
Operating Temperature
0 to 40 °C (32 to 104 °F)
Power Input
12V/1.5A
Security Protocol
WPA (Wi-Fi Protected Access)
WPA2
WPA3
WPS (Wi-Fi Protected Setup)
Standards
IEEE 802.11ax/ac/n/g/b/a
IEEE 802.3u/ab
Storage Humidity
0% to 95% non-condensing
Storage Temperature
-10 to 70 °C (14 to 158 °F)
Voice Assistant
Amazon Alexa
Google Assistant
Weight
400 g (14.1 oz)
Wi-Fi Data Rate
1/2/5.5/11 Mbps in 802.11b mod
2.4 GHz Up to 300 Mbps
5 GHz Up to 1201 Mbps
6/9/11/12/18/24/36/48/54Mbps in 802.11g mode
