AX1500 Smart Router
R15
- Product Status (Revision A1_v140): Live
- Dual-band 2x2 Wi-Fi 6 delivers blazing fast connectivity with increased range and reliability
- Up to 1201Mbps (5GHz) and 300Mbps (2.4GHz) speeds
- Mesh capability with other Eagle Pro AI devices
- 1 x 10/100/1000 Gigabit Ethernet WAN port
- 3 x 10/100/1000 Gigabit Ethernet LAN ports
- Supports WPA, WPA2, and the latest WPA3 Wi-Fi Security
- Clean Network Initiative compliant for security and privacy
- Voice control compatibility with Google Assistant and Amazon Alexa
- Eagle Pro AI features including
- AI Wi-Fi Optimizer
- AI Mesh Optimizer
- AI Traffic Optimizer
- AI Parental Control
- AI Assistant
Where to buy
EAGLE PRO AI
AX1500 Dual Band Router
With advanced AI features for continuous network monitoring, the R15 keeps your Wi-Fi performing at its best. Managing your network has never been easier with the AI Assistant on the free mobile app.
All New D-Link EAGLE PRO AI AX1500 Dual Band Router
Introducing the revolutionary D-Link EAGLE PRO AI series with AI-enabled capabilities to optimize your Wi-Fi, and the AI Assistant to give you total control at your fingertips.
Wi-Fi 6 Performance
MU-MIMO & OFDMA
Beamforming
WPA3
TWT Technology
Health Mode
Guest Connect
Why Do You Need Wi-Fi 6?
Wall obstruction and interference from home appliances can weaken your Wi-Fi connectivity. Having many devices connected to your network can make the problem worse. Wi-Fi 6 technology was designed to help overcome these issues and will soon become a standard feature in all new end devices. Whether you’re looking for an upgrade or replacement, Wi-Fi 6 is the best choice.
Why Choose Wi-Fi 6
Increase in throughput
Reduction in Latency
More Coverage Area
More Connected Devices
Backwards Compatible
Connect Up to 128 Devices
*Number of connected devices and coverage area are D-link test results. Performance may vary under different environments.
More Devices, Faster W-Fi, Greater Coverage
Wi-Fi 6 features bi-directional MU-MIMO technology to handle more simultaneous users at faster data rates, and beamforming capability to greatly extend Wi-Fi coverage area.
More Users at Once, Lower Latency
Wi-Fi 6 offers OFDMA technology to serve more device connections at once to significantly reduce network latency.
Reliable Connections for Greater Coverage
Highest Protection Level for Peace of Mind
User privacy is of utmost importance when connected to the Internet. WPA3 technology is aligned with CNSA standards and features 192-bit encryption to ensure your connections are safe and protected from unauthorized access.
Save Power on Mobile Devices
Target Wake Time (TWT) technology schedules connected devices to be awake or asleep during designated time periods. This not only saves device battery life, but also reduces network congestion.
Greater Protection with Main and Guest Wi-Fi Control
- Turn on guest Wi-Fi to prevent visitors from accessing you local network, granting access only to the Internet
- Set data speeds for guess Wi-Fi users to preserve Wi-Fi quality
- Log-in credentials and QR codes for guest Wi-Fi access

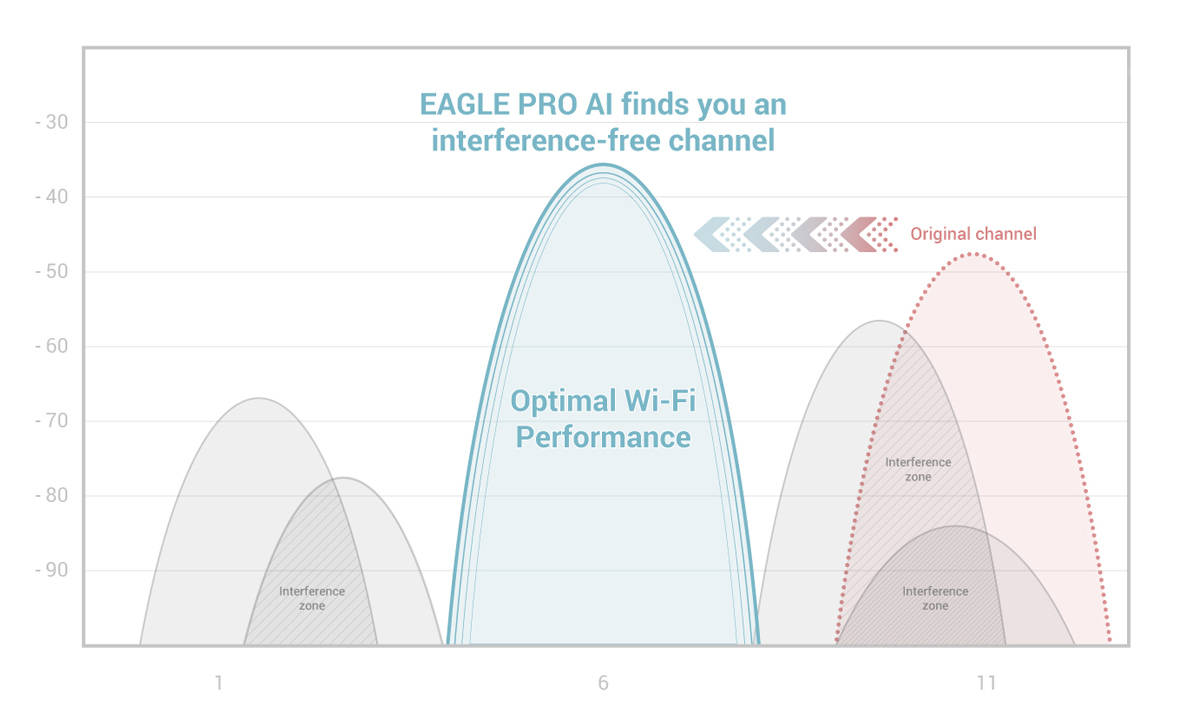

No More Wi-Fi Congestion
Smart Connect technology automatically directs your device to the optimum wireless band. No more frustrating drop outs, lag or interruptions in your wireless connections.
Always the Best Connection Possible

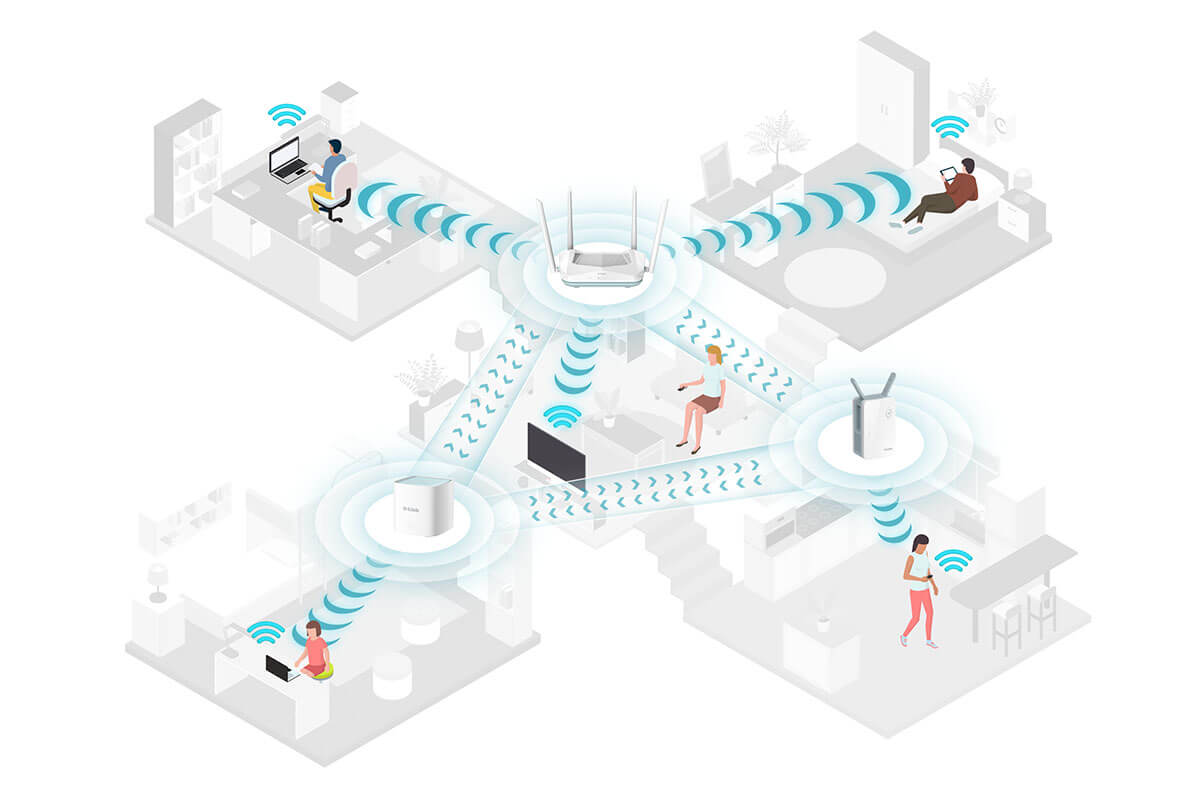

Intelligent One-Touch Setup for Seamless Connections
- Auto Mesh setup and detects the best channels within the network
- Simple access management with one SSID for both Wi-Fi bands (2.4 and 5 GHz)
- Network self-healing when a weak connection is detected
Uninterrupted Video, Voice, and Gaming Enjoyment
When high network traffic is detected, AI-based QoS technology prioritizes your important services such as 4K/8K video streaming to keep them running lag-free.
Services such as email or file transfers will be given lower priority to ensure network quality.

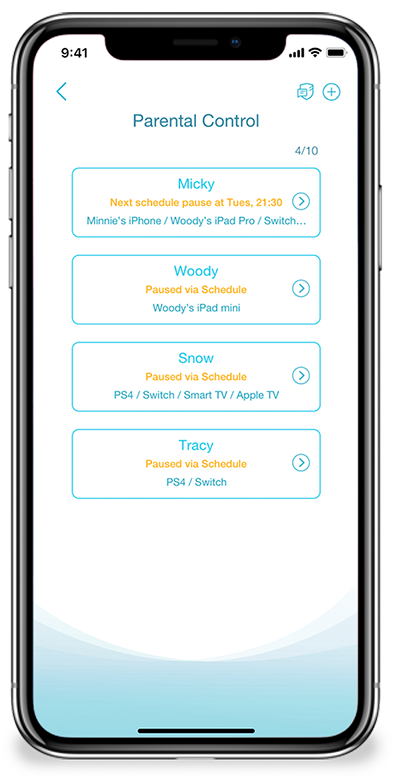

Keep Playtime Safe and Healthy
AI parental control lets you designate online hours for little ones and restrict website access to keep their learning experience a safe and healthy one.
Health Mode
- Schedule Wi-Fi transmission hours to reduce possible effects of electromagnetic radiation
- Schedule Wi-Fi access hours to maintain a balanced family lifestyle
- Turn off Wi-Fi entirely to conserve energy

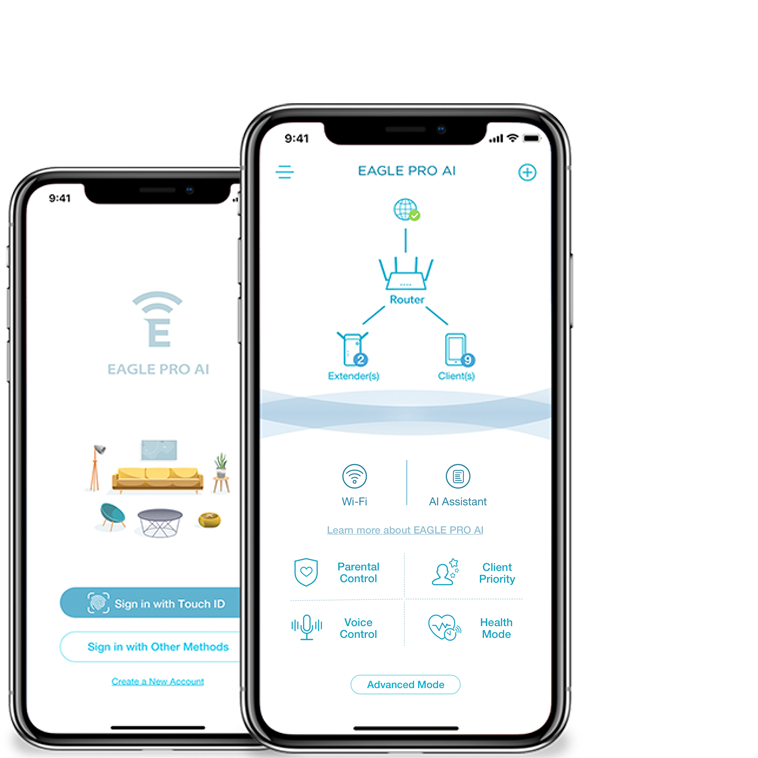

For Everything Wi-Fi, there’s D-Link EAGLE PRO AI
Managing your Wi-Fi has never been easier.
Expanding Your Wi-Fi is a Snap
Simply add E15 Wi-Fi extenders to build a smart Mesh network, giving you high-speed Internet coverage throughout your home of any size.
Voice Control works with Google Assistant or Alexa
Easily integrates with Amazon Echo’s Alexa
or the Google Assistant for convenient hands-free voice control.
*Please check availability in your region
Designed & Crafted in Taiwan
Trusted / Reliable / Quality Assured
AI Series Product
Specification
|
Antenna
|
4 x External antennas |
|---|---|
|
Certifications
|
CE FCC IC |
|
Device Management
|
EAGLE PRO AI app (iOS and Android) Web UI |
|
Dimensions
|
251.64 x 166.47 x 194.18 mm |
|
Interfaces
|
1 x Gigabit Ethernet WAN port 1 x power connector 1 x WPS button 3 x Gigabit Ethernet LAN port DS-Lite Dynamic IP Static IP Support 802.1p & 802.1q |
|
L2TP
|
Yes |
|
LED Status Indicators
|
2.4 GHz Wi-Fi 5 GHz Wi-Fi Internet Power |
|
Operating Humidity
|
10% to 90% non-condensing |
|
Operating Temperature
|
0 to 40 °C (32 to 104 °F) |
|
Power Input
|
12 V 1A |
|
PPPoE
|
Yes |
|
PPTP
|
Yes |
|
Security Protocol
|
WPA2 (Wi-Fi Protected Access) WPA3Wi_Fi Protected Access WPS (Wi-Fi Protected Setup) |
|
Storage Humidity
|
5% to 95% non-condensing |
|
Storage Temperature
|
-20 to 65 °C (-4 to 149 °F) |
|
Voice Assistant
|
Amazon Alexa Google Assistant |
|
Weight
|
300 g |
|
Wireless IEEE Standard
|
802.11ax/ac/n/g/b/k/v/a/h 802.3u/ab |
|
Wi-Fi Data Rate
|
2.4 GHz Up to 300 Mbps 5 GHz Up to 1201 Mbps |
