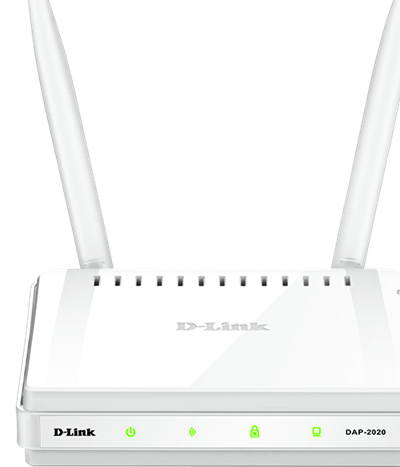

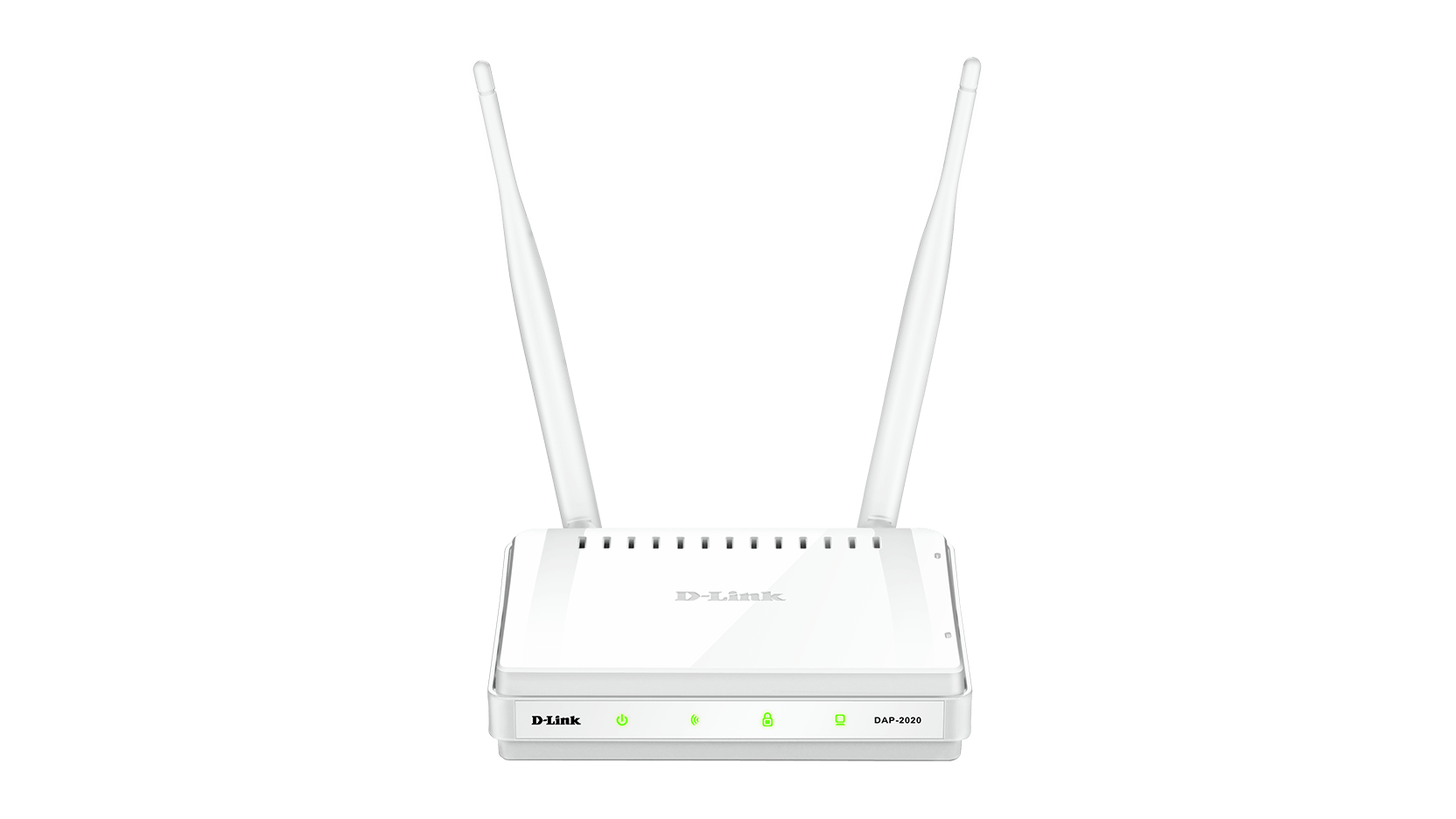

DAP 2020 Wireless N Access Point
DAP-2020
- Product Status: End of Life
Secure.
Manageable.
Flexible.
Create a secure and manageable wireless network with ease. Multiple operational modes, network management tools and security features provide greater flexibility.

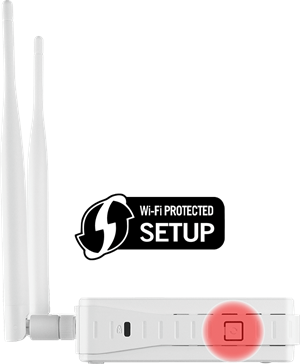

Secure Your Wireless Network
Set up your wireless network quickly and securely with Wi-Fi Protected Setup (WPS).
Latest Wi-Fi security standards ensure encrypted and secure wireless network traffic with no hassle.
Multiple Operation Modes
Configure the DAP-2020 to suit your specific wireless application needs with seven different operation modes.

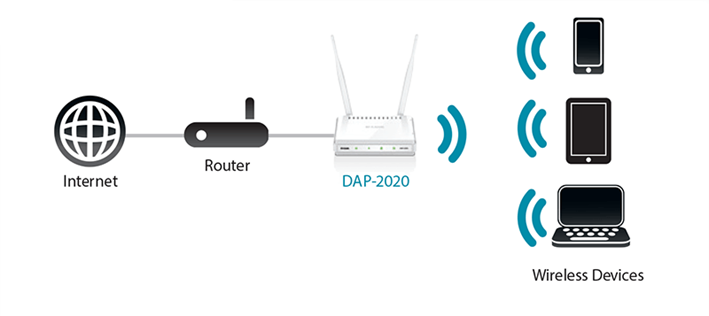

Access Point Mode
"Access point" mode allows the device to act as a central hub for wireless users. This is the most common use of an access point.

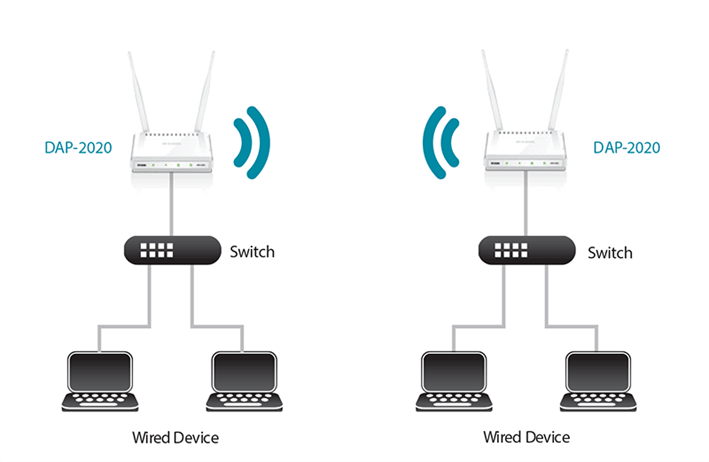

Bridge Modes
"Bridge" mode can wirelessly join two networks together, while "Bridge with AP" mode allows the device to act as a wireless hub and as a bridge at the same time.
Repeater mode extends wireless coverage to cover all dead spots.
Wireless client mode enables the DAP‑2020 to connect to another access point.
WISP client router mode allows wireless Internet service subscribers to share an Internet connection with wired computers without the need for an extra router.
WISP repeater (range extender) mode can let WISP subscribers share their Internet connection with wireless devices without any additional routers.

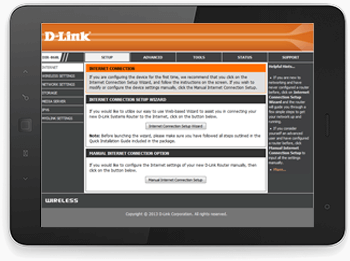

Quick and Easy Installation
With the D‑Link setup wizard, you can set up your wireless network in minutes. It configures your DAP‑2020’s operating mode and allows you to easily add new wireless devices to the network.

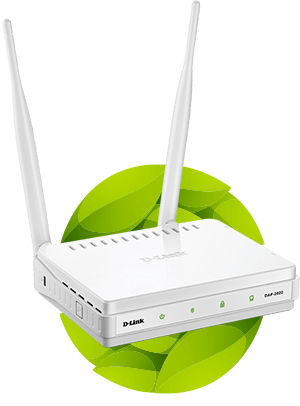

Effective Power Saving
Built-in schedule function dynamically powers down the wireless network off when not in use. This feature reduces power consumption, saving energy and money.
Whats in the box?
DAP‑2020
Antennas
Ethernet Cable
Power adapter
Specs
Functions & Features
Features
Connectivity
- Wireless N connectivity
- Wireless 802.11g/b backward compatibility
- Wireless speeds of up to 300 Mbps1
Multiple Operation Modes
- Access point
- Wireless client
- Bridge
- Bridge with AP
- Repeater
- WISP client router
- WISP repeater (range extender)
Security
- WPA2/WPA wireless encryption
- Wi-Fi Protected Setup (WPS)
- Easy to Use and Manage
- Intuitive web user interface
- Built-in setup wizard
Technical Specifications
General
Network Standards
- 802.11n wireless LAN
- 802.11g wireless LAN
- 802.11b wireless LAN
- 802.3/802.3i/j/u 10BASE-T/100BASE-TX Ethernet
- ANSI/IEEE 802.3 NWay auto-negotiation
Device Interfaces
- 802.11n/g/b wireless LAN
- One 10/100BASE-TX Ethernet LAN port
Operating Frequency
- 2.4 to 2.4835 GHz
Operating Channels
- ETSI: 13
Radio & Modulation Schemes
- DQPSK, DBPSK, CCK, OFDM
Functionality
Operating Modes
- Access Point
- Wireless Client
- Bridge
- Bridge with AP
- Repeater (range extender)
- WISP Client Router
- WISP Repeater
Antennas
- Two 5 dBi gain detachable omni-directional antennas with RP-SMA connector
Security
- 64/128-bit WEP data encryption
- WPA-PSK, WPA2-PSK
- WPA-EAP, WPA2-EAP
- TKIP, AES
- MAC address filtering
- SSID broadcast disable function
- WPS (Wi-Fi Protected Setup)
Advanced Features
- Quality of Service (QoS): Wi-Fi Multimedia (WMM)
Device Management
- Web-based management through Microsoft Internet Explorer 6 or higher, Firefox 3.0 or higher, or other Java-enabled browser
Status LEDs
- Power
- Wireless
- Security
- LAN
Physical
Dimensions
- 147.5 x 113 x 31.5 mm (5.81 x 4.45 x 1.24 inches)
Weight
- 224.7 g (0.50 lbs)
Power Input
- External power adapter: 12 V DC/0.5 A
Max. Power Consumption
- 2.25 W
Temperature
- Operating: 0 to 40 °C (32 to 104 °F)
- Storage: -20 to 65 °C (-4 to 149 °F)
Humidity
- Operating: 10% to 90% non-condensing
- Storage: 5% to 95% non-condensing
Certifications
- Wi-Fi, CE
