Vigilance 4 Megapixel H265 Outdoor Dome Camera
DCS-4614EK
- Product Status (Revision A1): End of Sale
Professional Surveillance in Vandal-proof 4MP High Definition
A 4 Megapixel lens and state-of-the-art image enhancement features, packed into a secure and compact form factor that’s ready to face the outdoors.
4MP HD Resolution
4-megapixel sensor with High Definition resolution up to 2592 x 1520 for detailed footage
Vandal-proof
IK10-rated housing for protection against physical impacts
Weather-Resistant
IP66 water-resistant and dust-tight housing with an operating temperature range of -30 to 50 °C
Day & night surveillance
Built-in IR LED illuminators with 30-meter range for pitch-black areas
PoE Capable
Supports 802.3af PoE for flexible and simple installation
Storage options
Equipped with a microSD card slot anda ONVIF compatibility for local storage to device or recording equipment.
Wide Dynamic Range with LowLight+
Improved image quality in high-contrast conditions with WDR & optimised for low-light environments
Free Video Management Software
Free D-ViewCam software to take snapshots, video clips and save them to a local hard drive
High quality videos, whatever the lighting
Video resolutions of up to 2592 x 1520 provide incredibly detailed videos while noise reduction, WDR and superior low light performance dramatically improve image quality, even in challenging lighting conditions. The DCS-4614EK offers unbelievable flexibility to be manually angled to provide surveillance where you need it the most.

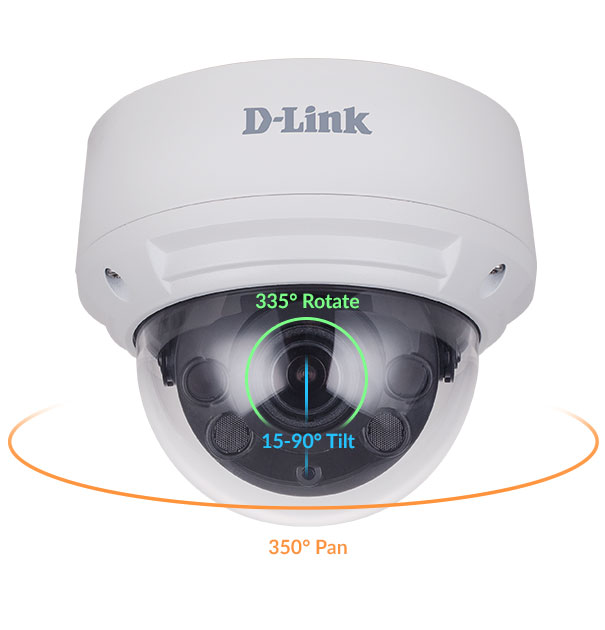

Viewing Angles
(H) 100°
(V) 58°
(D) 126°
High Quality Lens
2.8 mm lens with an F2.0 aperture

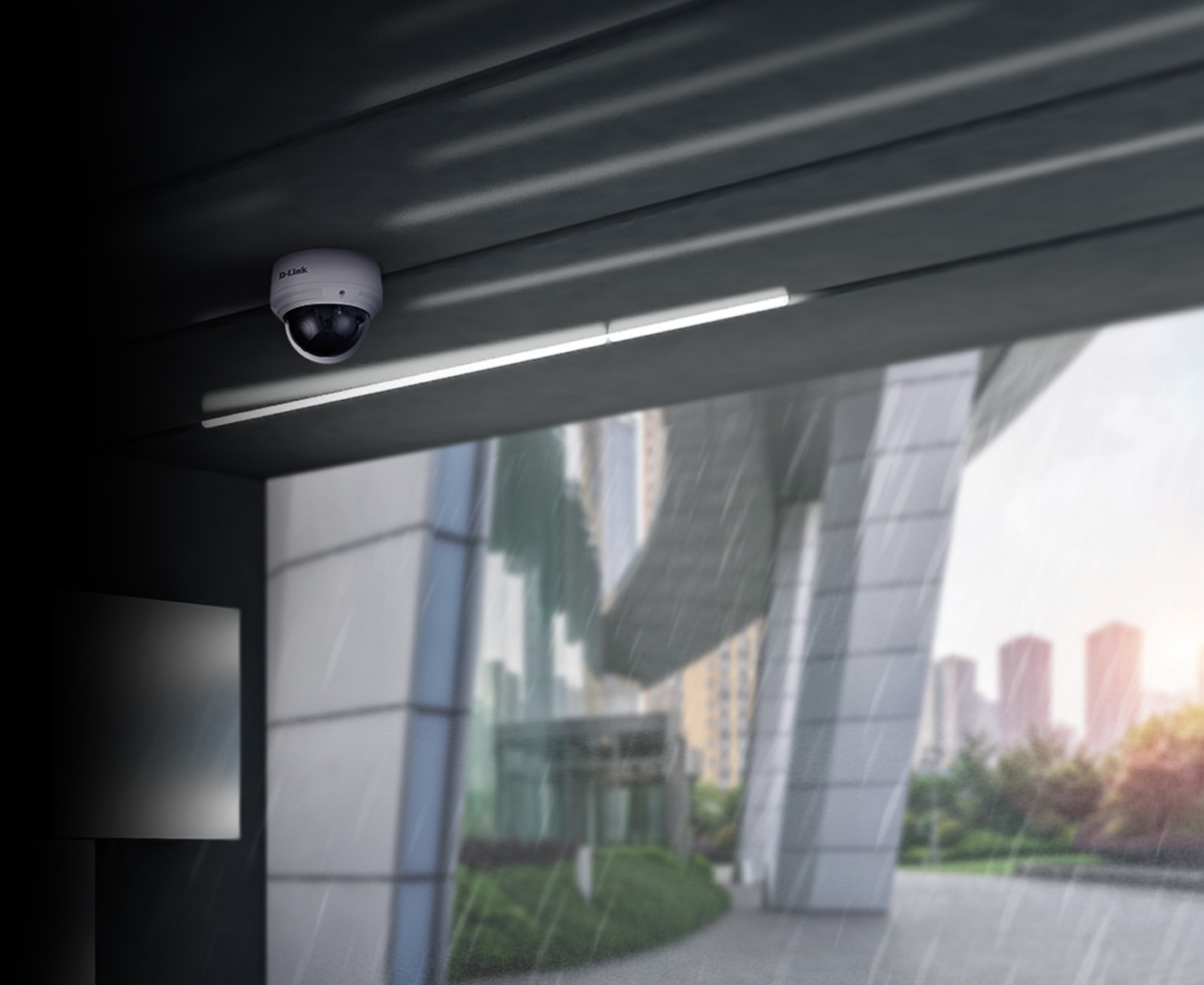

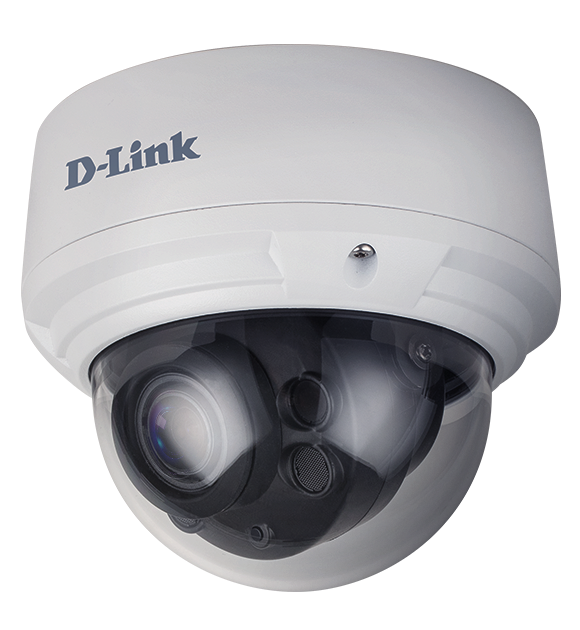

Versatile Monitoring in All Environments
IP66 certification ensures the camera is completely protected from dust and water in any environment and the IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera.
Weather resistant
Withstands rain and moisture with a wide operating temperature range of -30°C to 50°C.
Vandal-proof
The IK10 certified vandal-proof housing makes sure it keeps recording even when intruders attempt to sabotage the camera.

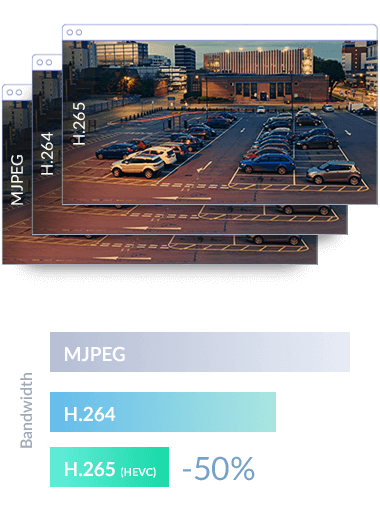

Optimising Bandwidth and Storage
To maximise bandwidth efficiency and improve image quality, the DCS-4614EK provides real-time video compression using the H.265, H.264 and MJPEG codecs, supporting two separate profiles for simultaneous video streaming and recording.
Flexible Connectivity
Built-in 802.3af-compliant PoE support simplifies installation by providing power and networking connectivity over a single standard network cable.

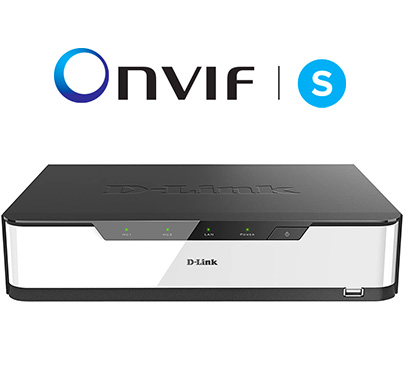

Optional recording to an NVR, VMS or NAS system
Support for ONVIF Profile S lets you easily record video streams to your ONVIF compliant NVR, VMS or NAS system for centralized viewing or continuous, 24/7 recording.
Free Surveillance Management Software
D-Link Network Cameras include D-Viewcam - a complete surveillance software package to view, manage and record up to x64 cameras on a single computer from a central location.
We're here to help.
Πάνω από 35 χρόνια στη βιομηχανία των δικτύακών συσκευών
Καινοτόμες ειδικές λύσεις από άκρο σε άκρο για μικρές επιχειρήσεις σε μεγάλες εταιρείες σε όλο τον κόσμο.
Η επικοινωνία μαζί μας είναι εύκολη
Ειδικευμένη τεχνική υποστήριξη σε 16 χώρες. Οι ομάδες υποστήριξής μας είναι έτοιμες να σας βοηθήσουν.
2‑Ετής D‑Link Εγγύηση
Σας προστατεύει ένας από τους παγκόσμιους ηγέτες στη βιομηχανία.
Specs
|
Indoor/outdoor
|
Outdoor |
|---|---|
|
Type
|
Dome |
|
Connectivity
|
Wired PoE |
|
Resolution
|
4 megapixel |
|
Image sensor
|
1/2.8" 4 megapixel WDR progressive scan CMOS |
|
Maximum Video Resolution
|
2592 x 1520 (16:9) |
|
Advanced Light features
|
Corridor Mode LowLight+ Wide Dynamic Range |
|
Lens
|
2.8 mm F2.0 Fixed |
|
Angle of View (H/V/D)
|
100° / 58° / 126° |
|
Infrared-Cut Removable Filter
|
Supported
|
|
Night vision
|
Supported
|
|
Night vision range
|
30 m |
|
Wide Dynamic Range(WDR)
|
Supported
|
|
LowLight+
|
Supported
|
|
Privacy Masks
|
3 zones |
|
Vandal Proof
|
Supported
|
|
External Card Slot
|
MicroSD SDHC SDXC (max 256 GB) |
|
Power Consumption
|
8 W |
|
App Support
|
JustConnect+ |
|
Features
|
ONVIF |
|
Video Format
|
H.264 H.265 MJPEG |
|
Multi-Stream
|
Supported
|
|
Mobile Stream
|
Supported
|
|
Digital Zoom
|
18x |
|
Motion Detection
|
Supported
|
|
Event Recording
|
Supported
|
|
E-mail Notification
|
Supported
|
| Version | Date | Type | File Size | |
|---|---|---|---|---|
| Datasheet EN | - | 0.71mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| QIG 1.21 RevA1B1 | Quick Install Guide | 30/11/2021 | - | - | Download |
| QIG 1.20 RevA1B1 | Quick Install Guide | 1/10/2021 | - | - | Download |
| QIG 1.10 RevA1 | Quick Install Guide | 19/4/2021 | - | - | Download |
| QSG 1.10 RevA1 | Quick Setup Guide | 9/3/2021 | - | - | Download |
| QSG 1.10 RevA1 | Quick Setup Guide | 26/11/2020 | - | - | Download |
